product name

Samsung UN75JU6500FXZA_IU05

Model: UN75JU6500FXZA_IU05

Save Part Not Listed?
product name

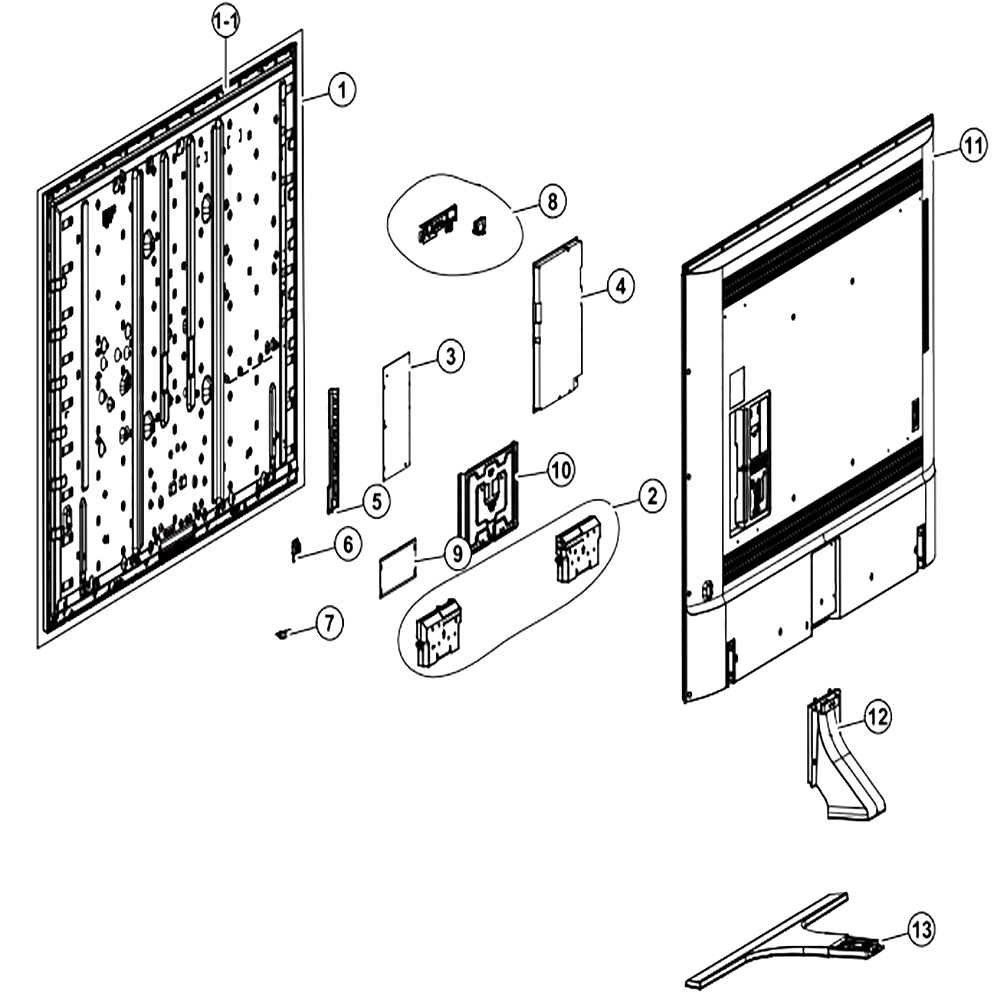

Main

...
...
1-1
Assy Chassis Front P; 75ju6400,pc+abs+mf1 SAM-BN96-35599F
...
1
Product Lcd-Amlcd; Cy-Gj075fgnv1h,ju6400, SAM-BN95-03705A
...
2
Assy Speaker P; 6ohm,4pin,10w,ju6400 65" SAM-BN96-35006D
...
3
Assy Pcb Main; Ku6000 SAM-BN94-11378G
...
4
Dc Vss-Led Tv Pd Bd; L75s6tn_Fdy,l75s6tn_ SAM-BN44-00809A
...
5
Holder-Side Av SAM-BN61-11587A
...
6
Assembly Board P-Function Jog SAM-BN96-35345B
...
7
Assembly Board P-Function Assy SAM-BN96-35346D
...
8
Network-Wlan Client SAM-BN59-01194A
...
9
Assy T Con P; V750dk1-Qs5,10,270x122x1.6m SAM-BN96-39804B
...
10
Assy Bracket P-Stand Link; 75ju6400,hgi-S SAM-BN96-37262C
...
11
Assy Cover P-Rear; 75ju6400,usa,pc+abs Gf SAM-BN96-35661H
...
12
Assy Guide P-Stand; Ju6400,75" SAM-BN96-35976A
...
13
Assy Stand P-Base; Ju6400,75" SAM-BN96-35981A
