Samsung UN75J630DAFXZA_UH02

Model: UN75J630DAFXZA_UH02

Save Part Not Listed?
product name

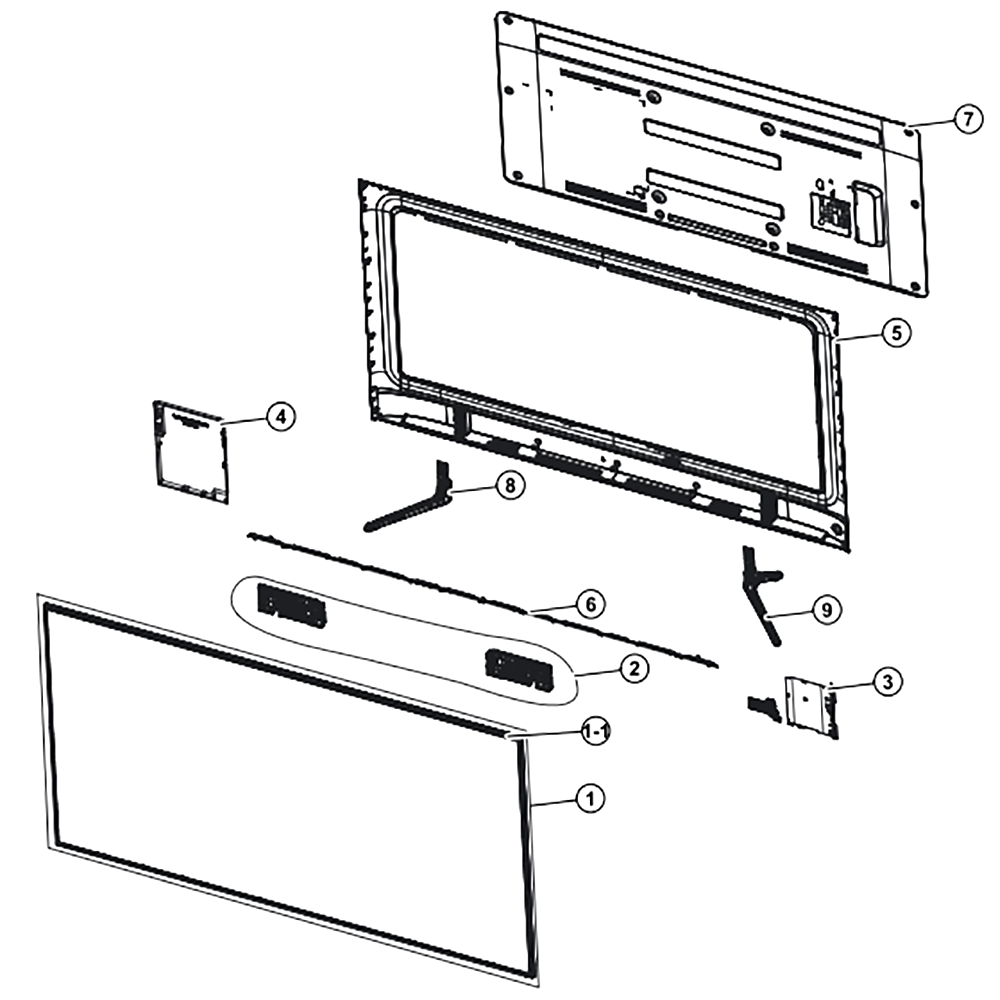

Main

...
...
1-1
Assy Chassis Top P; Y14 Vnb 75 6.3k SAM-BN96-30769A
...
1
Product Lcd-Sdc; Cy-Gh075cslv4h/v,h6300,0 SAM-BN95-01335D
...
2
Assy Speaker P; 6ohm,4pin,10w,j5500 75inc SAM-BN96-30334P
...
3
Assy Pcb Main; Uj9y,88",africa_Atv SAM-BN94-08944S
...
4
Dc Vss-Led Tv Pd Bd; L75s1_Fhs,l75s1_Fhs, SAM-BN44-00723C
...
5
Assy Cover P-Middle; Uh6300,75",abs+pc,v0 SAM-BN96-32394A
...
6
Cover-Holder; J6200 75",pc+abs+gf15%,v1 SAM-BN63-13948A
...
7
Assy Cover P-Rear; J6200,75",bn63-10603l, SAM-BN96-37181A
...
8
Assy Cover Stand Smt-R; J6300 75",light T SAM-BN95-02380A
...
9
Assy Cover Stand Smt-L; J6300 75",light T SAM-BN95-02379A
