product name

Samsung UN75J630DAFXZA_TH01

Model: UN75J630DAFXZA_TH01

Save Part Not Listed?
product name

Main

...
...
1-1
Assy Chassis Top P; Y14 Vnb 75 6.3k SAM-BN96-30769A
...
1
Product Lcd-Amlcd; Lsf750hl03-G,cy-Gh075c SAM-BN95-01335A
...
2
Assy Speaker P; 6ohm,4pin,10w,j5500 75inc SAM-BN96-30334P
...
3
Assy Pcb Main; Led_J6k SAM-BN94-09063C
...
4
Dc Vss-Led Tv Pd Bd; L75s1_Fhs,l75s1_Fhs, SAM-BN44-00723C
...
5
Assy Cover P-Middle; Uh6300,75",abs+pc,v0 SAM-BN96-32394A
...
6
Cover-Holder; J6200 75",pc+abs+gf15%,v1 SAM-BN63-13948A
...
7
Assy Cover P-Rear; J6200,75",bn63-10603l, SAM-BN96-37181A
...
8
Assy Stand P-Base R; H6300 75 SAM-BN96-30930A
...
9
Assy Stand P-Base L; H6300 75 SAM-BN96-30929A

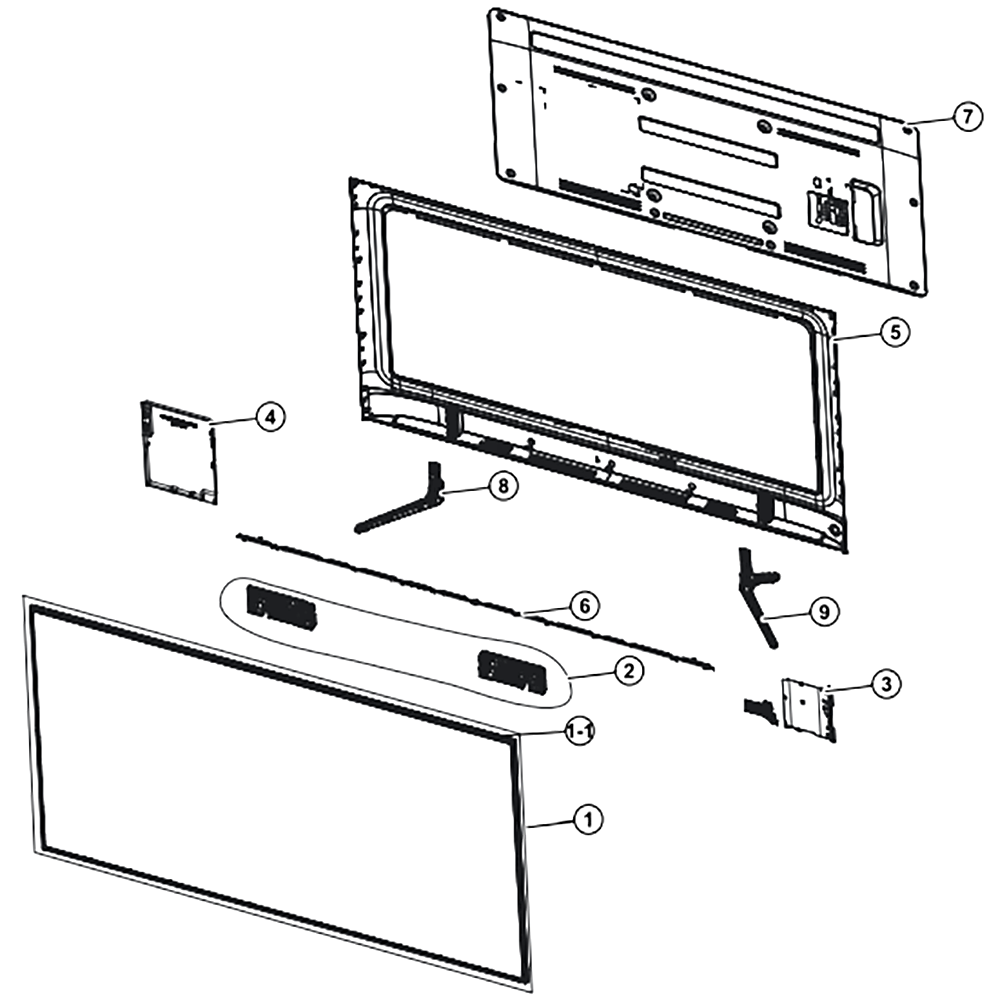

Schematic Image Zoomed
