Samsung UN70KU630DF_EA01

Model: UN70KU630DF_EA01

Save Part Not Listed?
product name

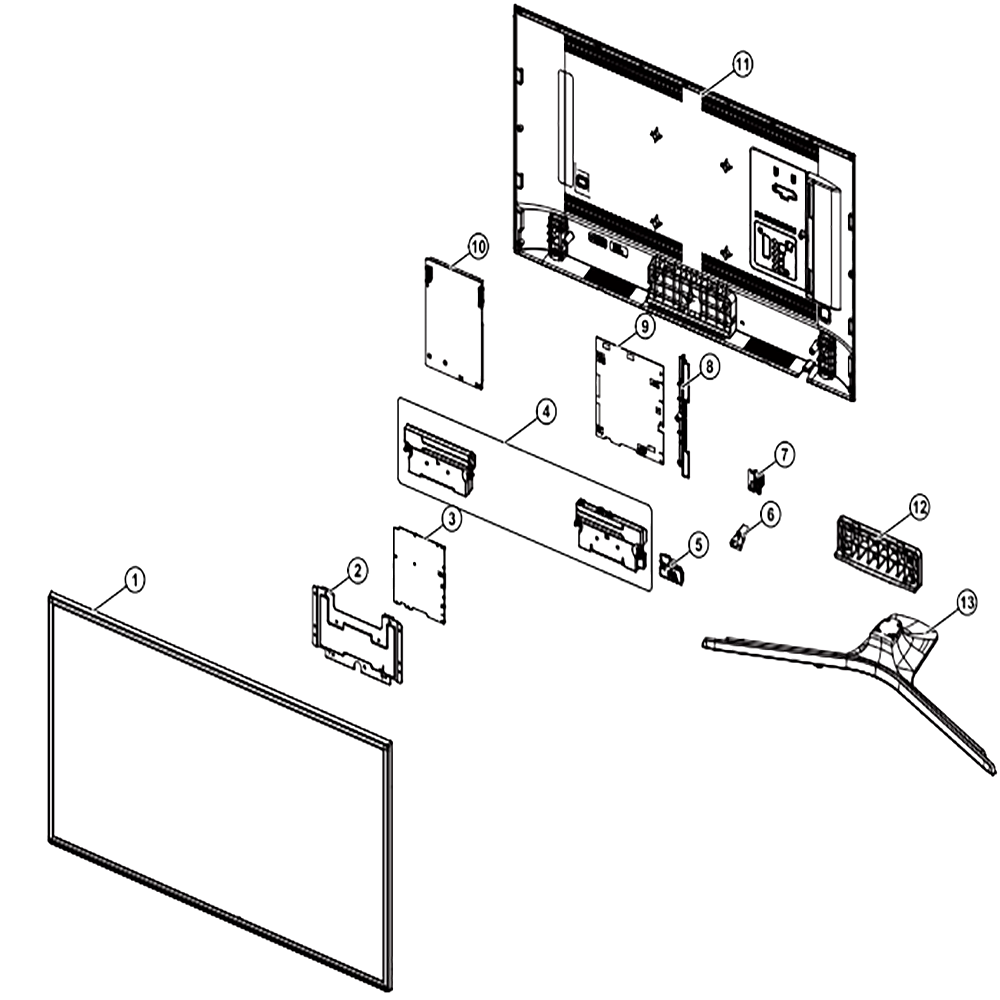

Main

...
...
1
Product Lcd-Sharp; Cy-Gk070hgsv1v/h,ku600 SAM-BN95-02682A
...
2
Bracket-Stand Link; 55ku6400,egi-Secc,t1. SAM-BN61-13606A
...
3
Assy T Con; Ku6000 Sharp 70inch,hawk-Uft SAM-BN95-02753A
...
4
Assy Speaker P-Front; Tv-Spk,ku6000,6ohm, SAM-BN96-35006F
...
5
Network-Wlan Client SAM-BN59-01239A
...
6
Assembly Board P-Ir Function SAM-BN96-39955A
...
7
Assembly Board P-Function Jog SAM-BN96-35345B
...
8
Cover-Terminal Side SAM-BN63-15236A
...
9
Assy Pcb Main; Ledtv 6k SAM-BN94-10804C
...
10
Dc Vss-Pd Board; L75s5n_Khs,ac/dc,357w,10 SAM-BN44-00874A
...
11
Assy Cover P-Rear; 70ku6000,pc+abs+gf15%, SAM-BN96-40431A
...
12
Assy Guide P-Stand; 70ku6000,pc+abs,bk000 SAM-BN96-40158B
...
13
Assy Stand P-Bottom; 65ku6500,hips,titan, SAM-BN96-40162B
