Samsung UN65MU650DFXZA_FA03

Model: UN65MU650DFXZA_FA03

Save Part Not Listed?
product name

Main

...
...
1
Product Lcd-Sdc; Cy-Wk065hglv9v/h,ku6300, SAM-BN95-02925L
...
2
Bracket-Stand Link SAM-BN61-11517A
...
3
Assembly Speaker P-Front SAM-BN96-35008B
...
4
Dc Vss-Pd Board; L65s6nr_Msm,ac/dc,262w,a SAM-BN44-00808E
...
5
Assy Pcb Main; Ledtv 6k SAM-BN94-12428E
...
6
Cover-Terminal Side SAM-BN63-16652A
...
7
Network-Wlan Client SAM-BN59-01264A
...
8
Assembly Board P-Ir SAM-BN96-39955B
...
9
Assembly Board P-Function Jog SAM-BN96-35345B
...
10
Assy Cover P-Rear; 65mu6300,pc+abs+gf15%, SAM-BN96-40430M
...
11
Assembly Guide P-Stand SAM-BN96-40565A
...
12
Assembly Stand P-Bottom SAM-BN96-37971C

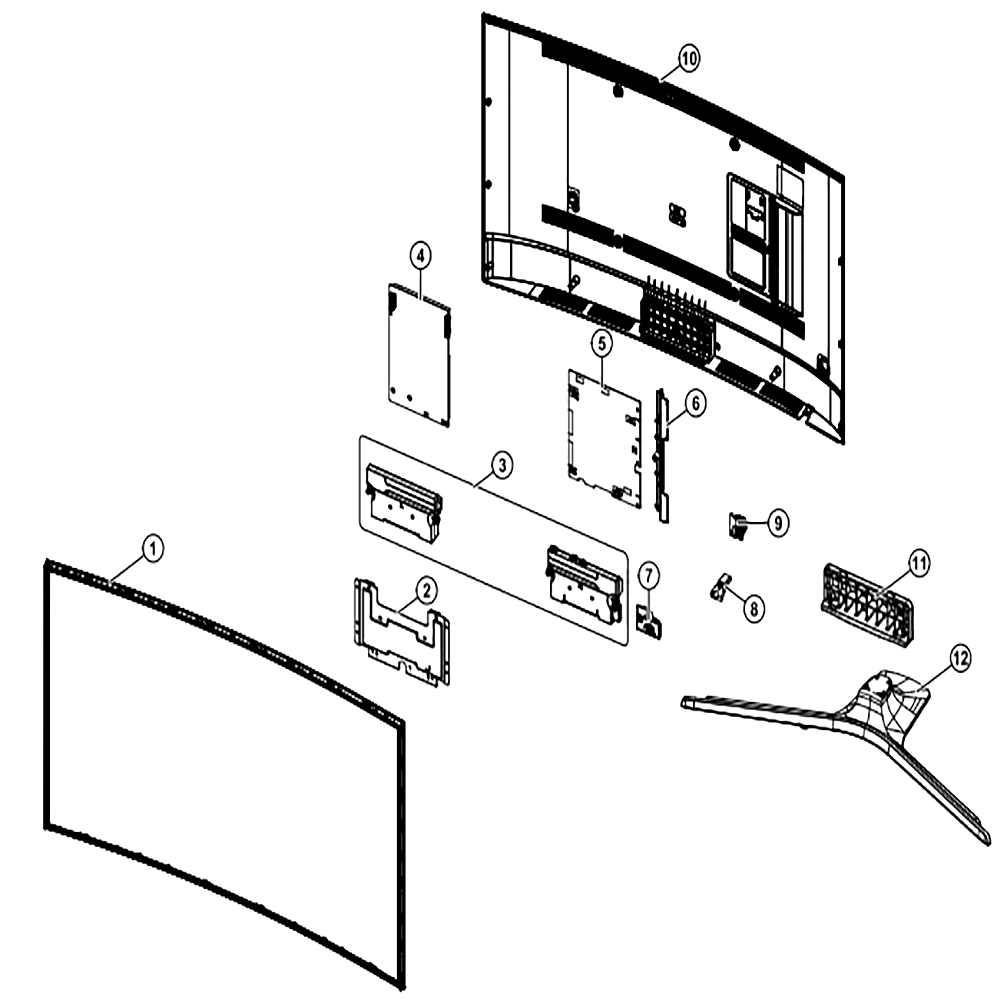

Schematic Image Zoomed
