Samsung UN65KU6290FXZA_DA02

Model: UN65KU6290FXZA_DA02

Save Part Not Listed?
product name

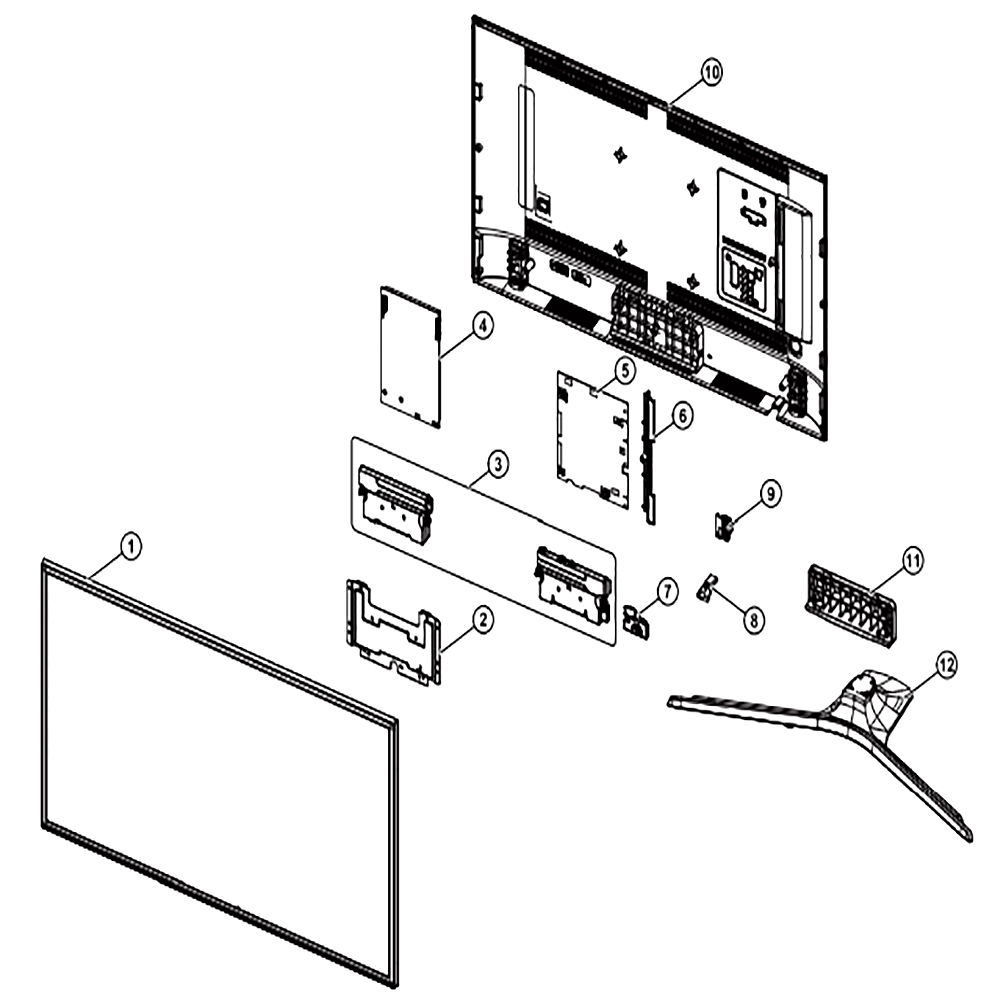

Main

...
...
1
Product Lcd-Inx; Cy-Gk065hgnv2v/h,ku6000, SAM-BN95-02641B
...
2
Bracket-Stand Link SAM-BN61-11517A
...
3
Assy Speaker P-Front; Tv-Spk,mu6100,6ohm, SAM-BN96-35006C
...
4
Dc Vss-Pd Board SAM-BN44-00808D
...
5
Assy Pcb Main; Led 6k Tv SAM-BN94-10834L
...
6
Cover-Terminal Side SAM-BN63-15236A
...
7
Network-Wlan Client SAM-BN59-01174D
...
8
Assembly Board P-Ir Function SAM-BN96-39955A
...
9
Assembly Board P-Function Jog SAM-BN96-35345B
...
10
Assy Cover P-Rear; 65ku6000,pc+abs+gf15%, SAM-BN96-39866A
...
11
Assy Guide P-Stand; 60js6900,north Americ SAM-BN96-38553A
...
12
Assembly Stand P-Bottom SAM-BN96-37971C
