Models

Parts

product name

Samsung UN65KS900DFXZA_FA01

Model: UN65KS900DFXZA_FA01

Save Part Not Listed?
product name

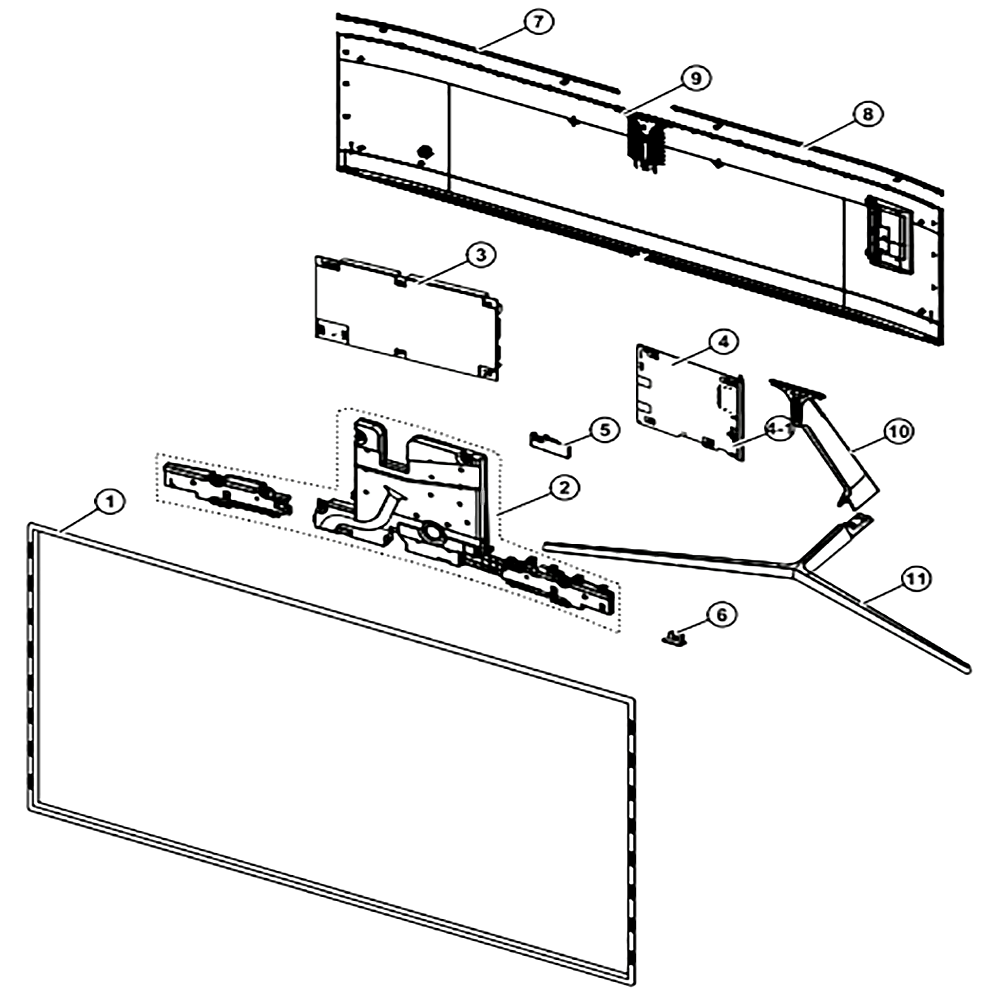

Main

...
...
1
Product Lcd-Sdc; Cy-Qk065fllv4v/h,ks8000, SAM-BN95-02603B
...
2
Assy Speaker P-Front; Tv-Spk,ks8000,6ohm, SAM-BN96-39911A
...
3
Dc Vss-Pd Board; L65e8n_Ksm,ac/dc,237w,10 SAM-BN44-00880A
...
4-1
Cover-Terminal Side; 55ks9000,hips,mold,h SAM-BN63-15050C
...
4
Assy Pcb Main; Uks8000v SAM-BN94-11007A
...
5
Network-Wlan Client SAM-BN59-01239A
...
6
Assy Board P-Function Tact; Ks8000,sj16-0 SAM-BN96-39802D
...
7
Assy Decoration Smt-Rear Left; 65ks8000,s SAM-BN95-02715A
...
8
Assy Decoration Smt-Rear Right; 65ks8000, SAM-BN95-02719A
...
9
Assy Cover P-Rear Bottom; 65ks8000,pc+abs SAM-BN96-39746A
...
10
Assy Stand P-Neck; 65ks800d,aldc,natural, SAM-BN96-39930C
...
11
Assy Stand P-Bottom; 65ks800d,aldc,natura SAM-BN96-39935B

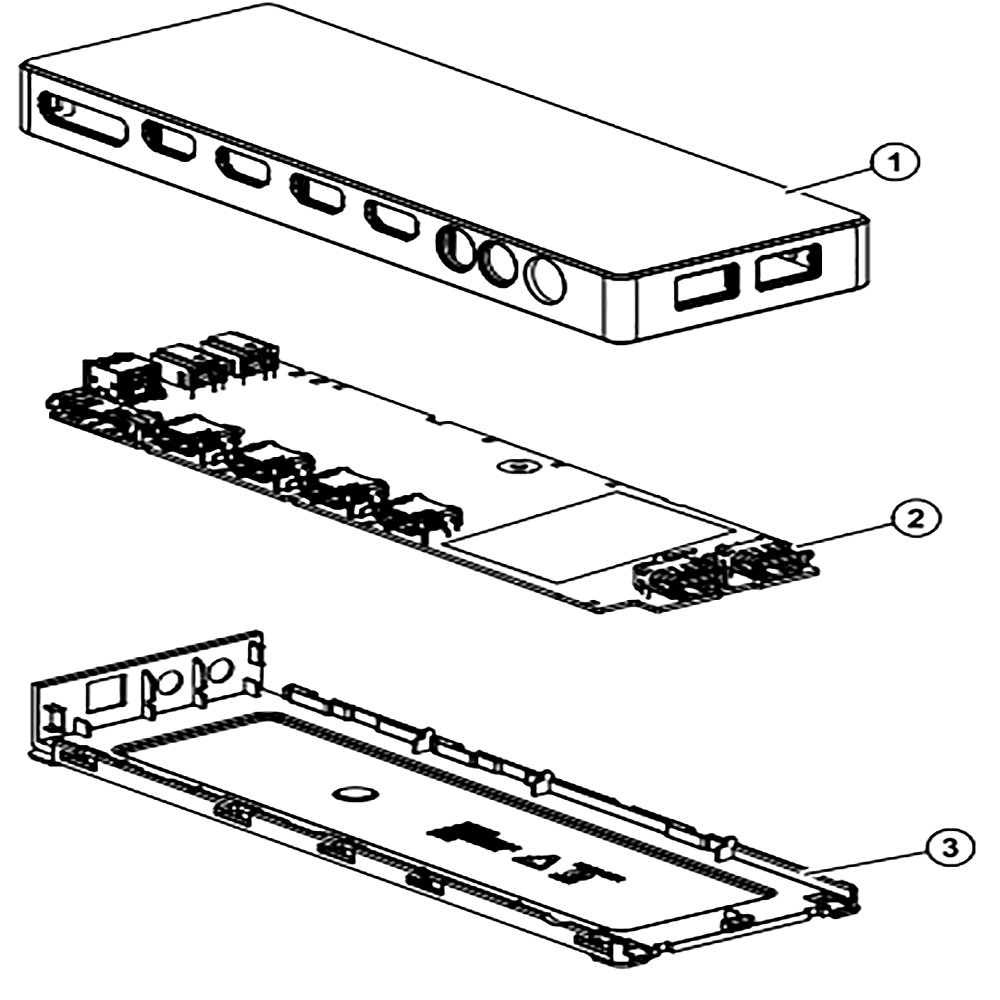

One Connect

...
...
1
Assembly Cover P-Top SAM-BN96-40188B
...
2
Assembly Pcb Misc-One Connect Mini SAM-BN94-10924A
...
3
Cover-Bottom SAM-BN63-15074B
