Samsung UN65KS850DFXZA_AA02

Model: UN65KS850DFXZA_AA02

Save Part Not Listed?
product name

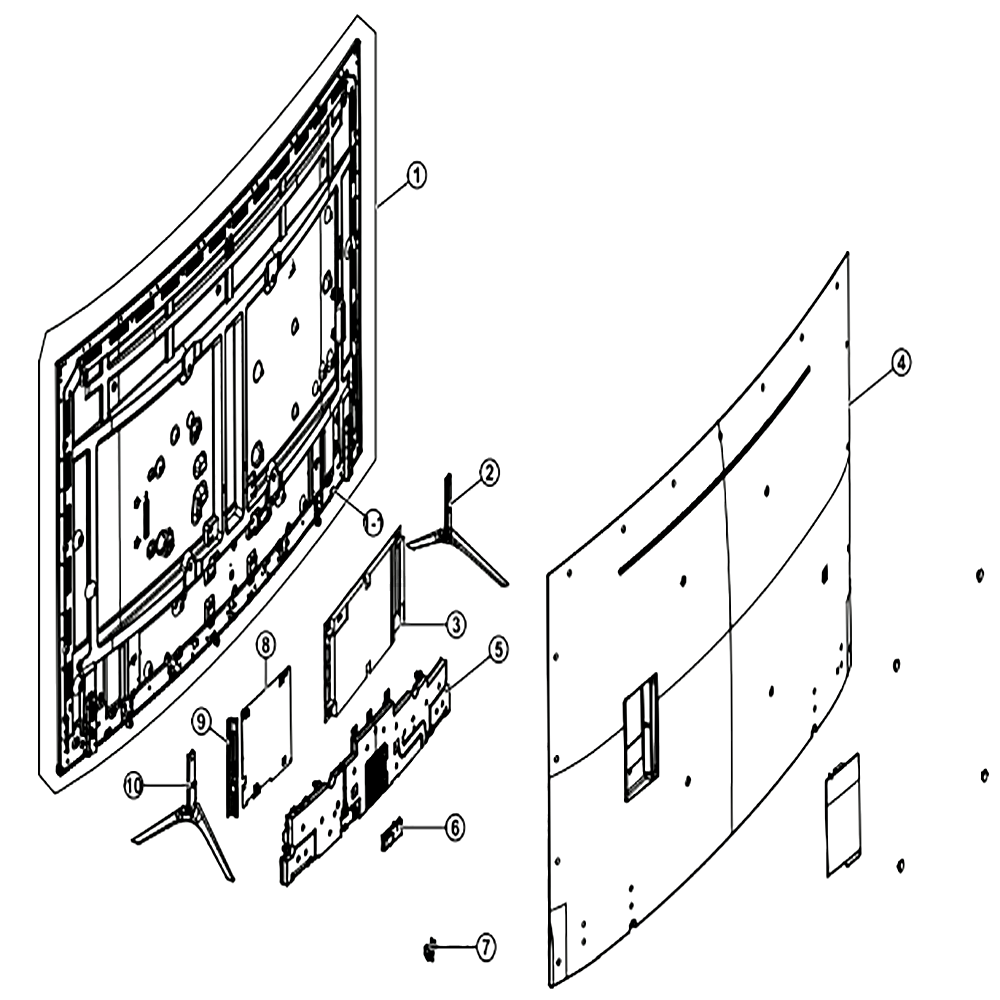

Main

...
...
1-1
Assy Chassis Front P; 65ks7500,al,dark Ti SAM-BN96-40136B
...
1
Product Lcd-Auo; Cy-Xk065flav7v/h,ks7500, SAM-BN95-02612F
...
2
Assy Cover P-Stand Top Right; 65ks750d,al SAM-BN96-39924B
...
3
Dc Vss-Pd Board; L65e8n_Ksm,ac/dc,237w,10 SAM-BN44-00880A
...
4
Assy Cover P-Rear; 65ks7500,pc+abs+gf20%, SAM-BN96-39938A
...
5
Assembly Speaker P-Front SAM-BN96-39889A
...
6
Network-Wlan Client SAM-BN59-01239A
...
7
Assembly Board P-Function Tact SAM-BN96-39802C
...
8
Assy Pcb Main; 7k SAM-BN94-10763C
...
9
Cover-Terminal Side SAM-BN63-15050A
...
10
Assy Cover P-Stand Top Left; 65ks7500,ald SAM-BN96-39921B

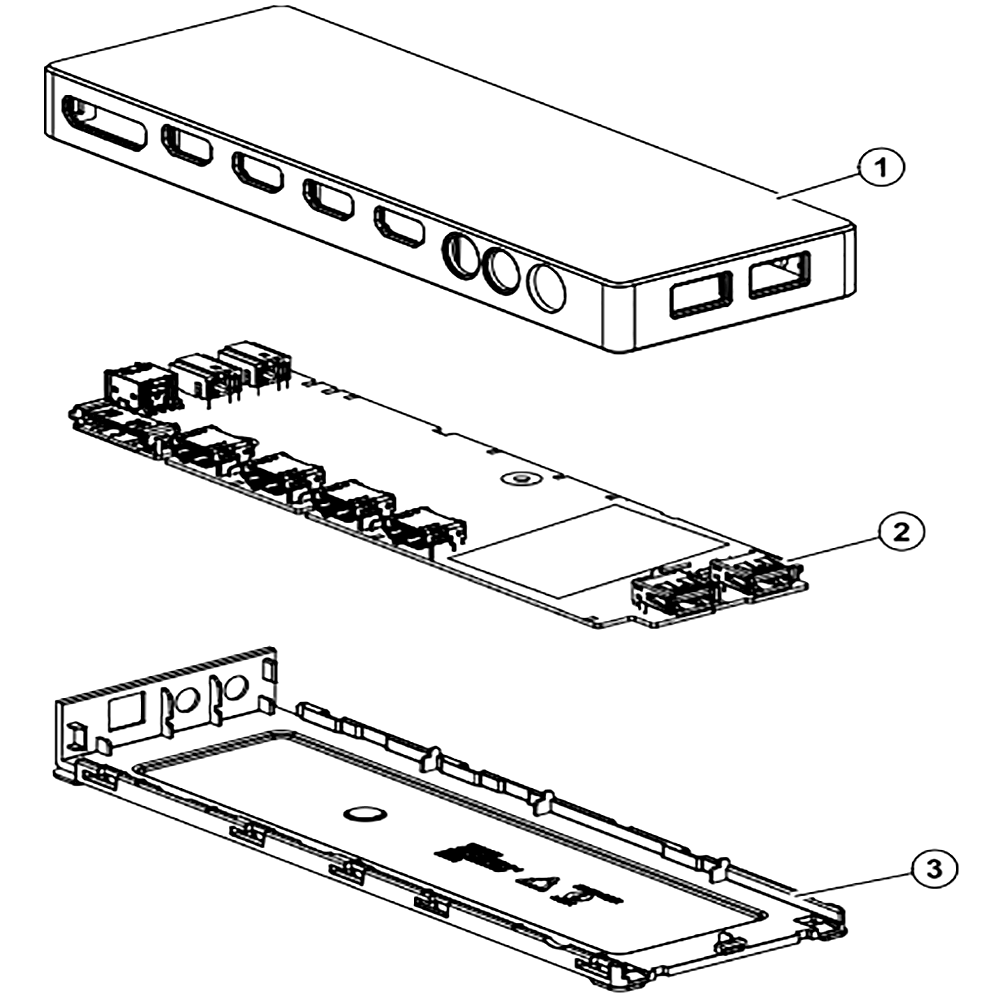

One Connect

...
...
1
Assembly Cover P-Top SAM-BN96-40188B
...
2
Assembly Pcb Misc-One Connect Mini SAM-BN94-10924A
...
3
Cover-Bottom SAM-BN63-15074B
