Samsung UN65JU7500FXZA_IH02

Model: UN65JU7500FXZA_IH02

Save Part Not Listed?
product name

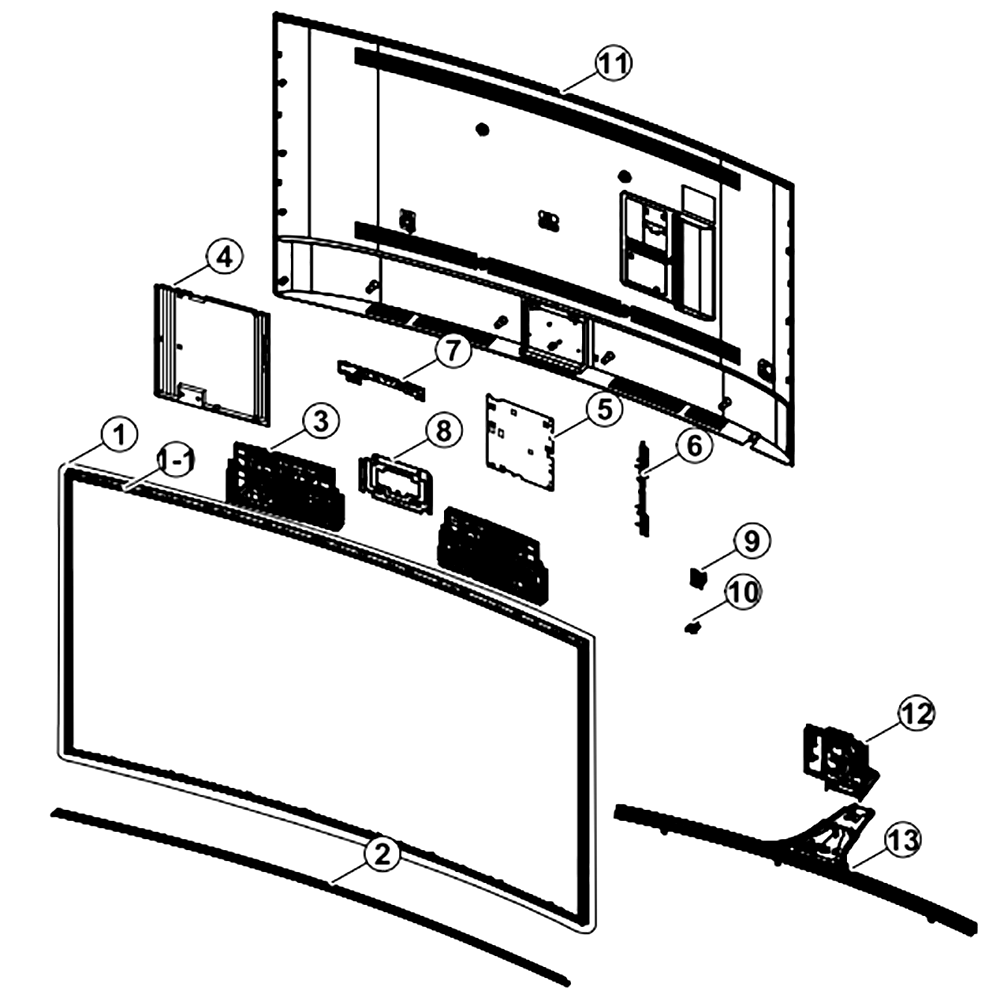

Main

...
...
1-1
Assy Chassis Top P; Y15 Led 65",pc+abs Mf SAM-BN96-35558A
...
1
Product Lcd-Auo; Cy-Wj065flav1v,ju7500,ba SAM-BN95-01967A
...
2
Assembly Cover Stand Smt-Front SAM-BN95-02078A
...
3
Assembly Speaker P-Ju7.5k 65inch SAM-BN96-34998B
...
4
Dc Vss-Led Tv Pd Bd SAM-BN44-00812A
...
5
Assy Pcb Main; Ju7.5k,65",pcb Rev (dcdc) SAM-BN94-09079R
...
6
Holder-Side Av SAM-BN61-11927A
...
7
Network SAM-BN59-01194E
...
8
Bracket-Stand Link SAM-BN61-11517A
...
9
Assy Board P-Jog Switch Pba; Ju7500,funct SAM-BN96-35345F
...
10
Assembly Board P-Function Assy SAM-BN96-35346B
...
11
Assembly Cover P-Rear SAM-BN96-35513A
...
12
Assembly Guide P-Stand Neck SAM-BN96-35526A
...
13
Assembly Stand P-Base SAM-BN96-35518A
