Samsung UN65JU6700FXZA_TD01

Model: UN65JU6700FXZA_TD01

Save Part Not Listed?
product name

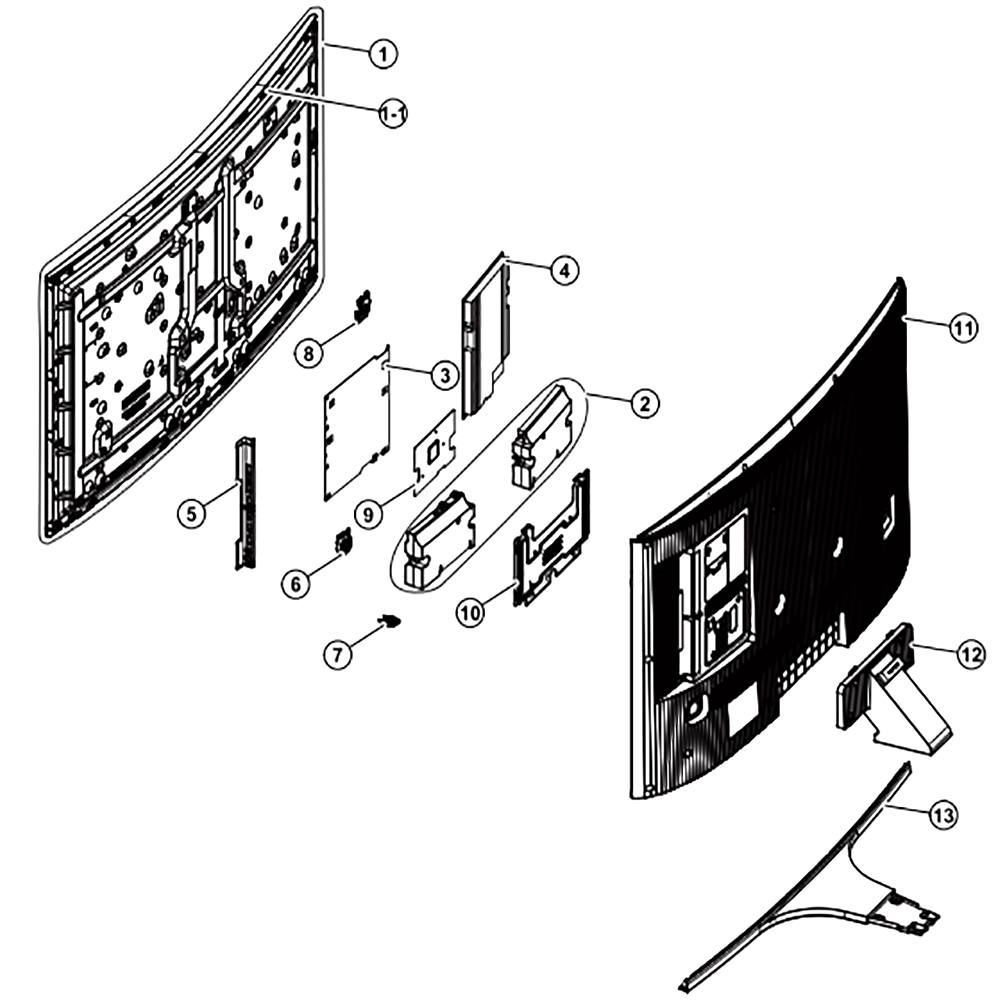

Main

...
...
1-1
Assy Chassis Top P; Y15 Ju6510 65",bn64-0 SAM-BN96-35783B
...
1
Product Lcd-Sdc; Cy-Wj065hglv1v,ju6700,ba SAM-BN95-01991A
...
2
Assembly Speaker P-Front SAM-BN96-35008B
...
3
Assy Pcb Main; Led_J6k SAM-BN94-08214E
...
4
Dc Vss-Led Tv Pd Bd; L65s6n_Fdy,l65s6n_Fd SAM-BN44-00808A
...
5
Holder-Side Av SAM-BN61-11587A
...
6
Assembly Board P-Function Jog SAM-BN96-35345B
...
7
Assembly Board P-Function Assy SAM-BN96-35346B
...
8
Network SAM-BN59-01194E
...
9
Assy T Con; Lsf650fn02-K,65u60hz Curved SAM-BN95-01943A
...
10
Assy Bracket P-Stand Link; Ju7000 65",hgi SAM-BN96-37201A
...
11
Assy Cover P-Rear; Ju6700 65,pc+abs Gf15% SAM-BN96-36253A
...
12
Guide-Stand; Ju6700,abs,black SAM-BN61-11967A
...
13
Assy Stand P-Base; Ju6700 65,abs+pc,blk SAM-BN96-36257A
