Samsung UN65JU650DFXZA_TS07

Model: UN65JU650DFXZA_TS07

Save Part Not Listed?
product name

Main

...
...
1-1
Assy Chassis Top P; Y15_Ju6.4k_65,pc+abs SAM-BN96-35598A
...
1
Product Lcd-Amlcd; Cy-Gj065hglvgv,ju6400, SAM-BN95-01998E
...
2
Assy Speaker P-Front; Tv-Spk,mu6100,6ohm, SAM-BN96-35006C
...
3
Assy Pcb Main; Led Tv SAM-BN94-10520W
...
4
Dc Vss-Led Tv Pd Bd; L65s6n_Fsm,l65s6n_Fs SAM-BN44-00808C
...
5
Holder-Side Av SAM-BN61-11587A
...
6
Assembly Board P-Function Jog SAM-BN96-35345B
...
7
Assembly Board P-Function Assy SAM-BN96-35346D
...
8
Network-Wlan Client SAM-BN59-01194A
...
9
Assy T Con; Lsf650fn01-K,65u60hz Flat SAM-BN95-01939A
...
10
Assy Bracket P-Stand Link; Ju7000 65",hgi SAM-BN96-37201A
...
11
Assy Cover P-Rear; 65ju6400,usa,pc+abs Gf SAM-BN96-35667K
...
12
Assy Guide P-Stand; Ju6400,60"~65" SAM-BN96-35975A
...
13
Assy Stand P-Base; Ju650d/ju6850/ju6430/j SAM-BN96-35980B

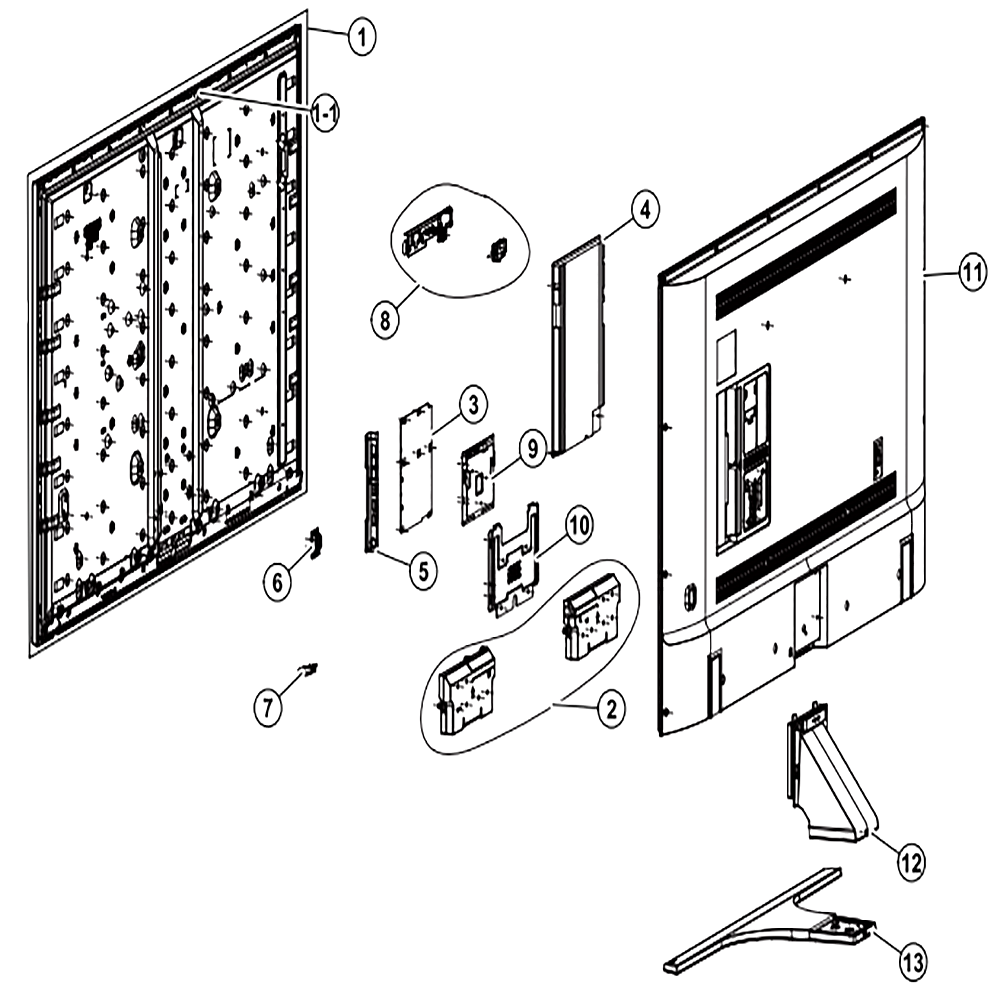

Schematic Image Zoomed
