Samsung UN65JU650DFXZA_ID02

Model: UN65JU650DFXZA_ID02

Save Part Not Listed?
product name

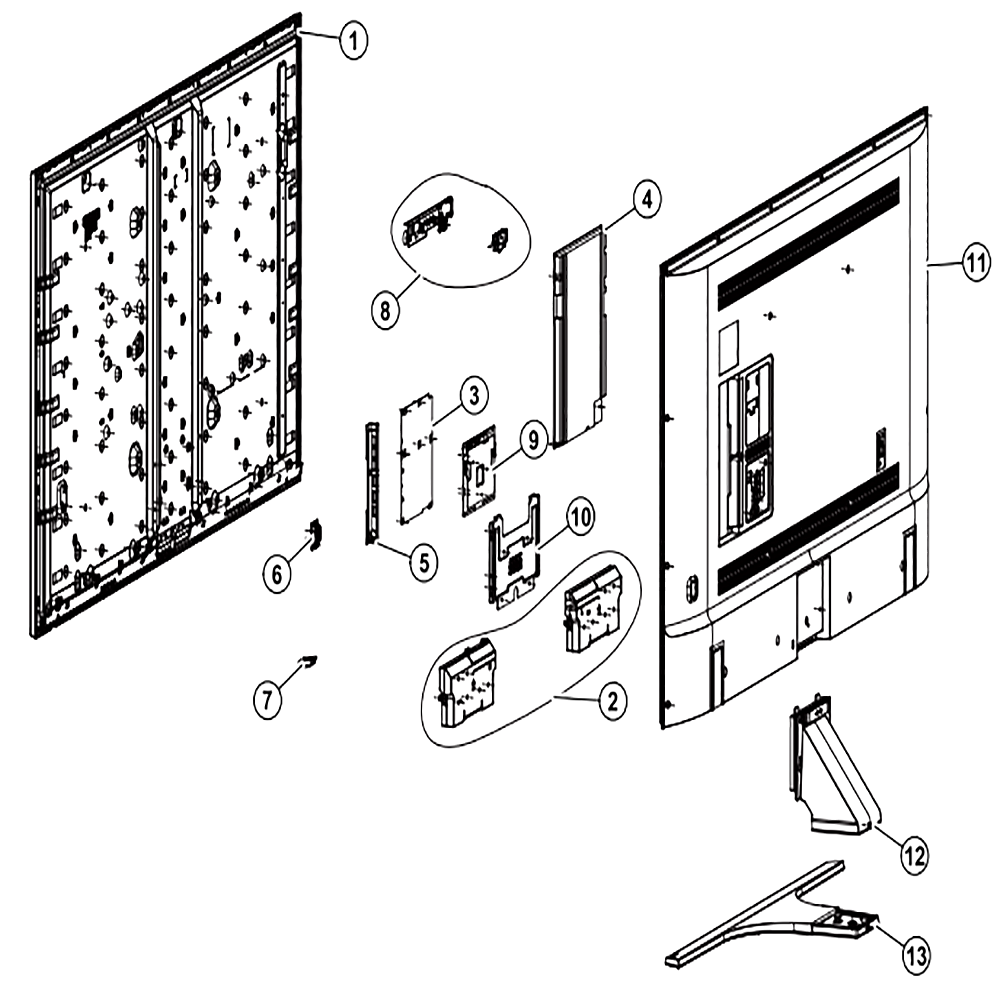

Main

...
...
1
Product Lcd-Inx; Cy-Gj065fgnv1v,ju6400,ba SAM-BN95-02355A
...
2
Assy Speaker P-Front; Tv-Spk,mu6100,6ohm, SAM-BN96-35006C
...
3
Assy Pcb Main; Uhd 6k SAM-BN94-09285N
...
4
Dc Vss-Led Tv Pd Bd; L65s6n_Fdy,l65s6n_Fd SAM-BN44-00808A
...
5
Holder-Side Av SAM-BN61-11587A
...
6
Assembly Board P-Function Jog SAM-BN96-35345B
...
7
Assembly Board P-Function Assy SAM-BN96-35346D
...
8
Network SAM-BN59-01194F
...
9
Assy T Con P; V650dk2-Qs3,v650dk2-Qs3,10b SAM-BN96-37571A
...
10
Assy Bracket P-Stand Link; Ju7000 65",hgi SAM-BN96-37201A
...
11
Assy Cover P-Rear; 65ju6400,usa,pc+abs Gf SAM-BN96-35667K
...
12
Assy Guide P-Stand; Ju6400,60"~65" SAM-BN96-35975A
...
13
Assy Stand P-Base; Ju650d/ju6850/ju6430/j SAM-BN96-35980B
...
99
Remote Control (not Shown) SAM-BN59-01223A
