Samsung UN65J6300AFXZA-AH01

Model: UN65J6300AFXZA-AH01

Save Part Not Listed?
product name

Main Assy

...
...
1-1
Assy Chassis Top P; Y14 Vnb 65 6.3k SAM-BN96-30674A
...
1
Product Lcd-Auo; T650hvn05.7,cy-Gh065csav SAM-BN95-01334A
...
2
Assy Speaker P; 6ohm,4pin,10w,j5500 65inc SAM-BN96-30334N
...
3
Dc Vss-Led Tv Pd Bd; L65s1_Fhs,l65s1_Fhs, SAM-BN44-00706C
...
4
Pcb SAM-BN94-09061F
...
5
Cover-Stnd SAM-BN95-02371A
...
6
Assy Board P-Function Assy; Uh6500,functi SAM-BN96-30902E
...
7
Assy Cover P-Middle; Uh6300,65",abs+pc,v0 SAM-BN96-32029A
...
8
Assy Cover P-Rear; J6200,65",bn63-10185m, SAM-BN96-37180A
...
9
Assy Guide P-Stand; 15y J6200 60",bn61-12 SAM-BN96-37933A
...
10-1
Assy Bracket P-Stand Link; Uh6300,6400,eg SAM-BN96-31500A
...
10-2
Cover-Decoration Stand; 15y J6200 60",abs SAM-BN63-14515A
...
10
Television Stand Base SAM-BN96-37971B

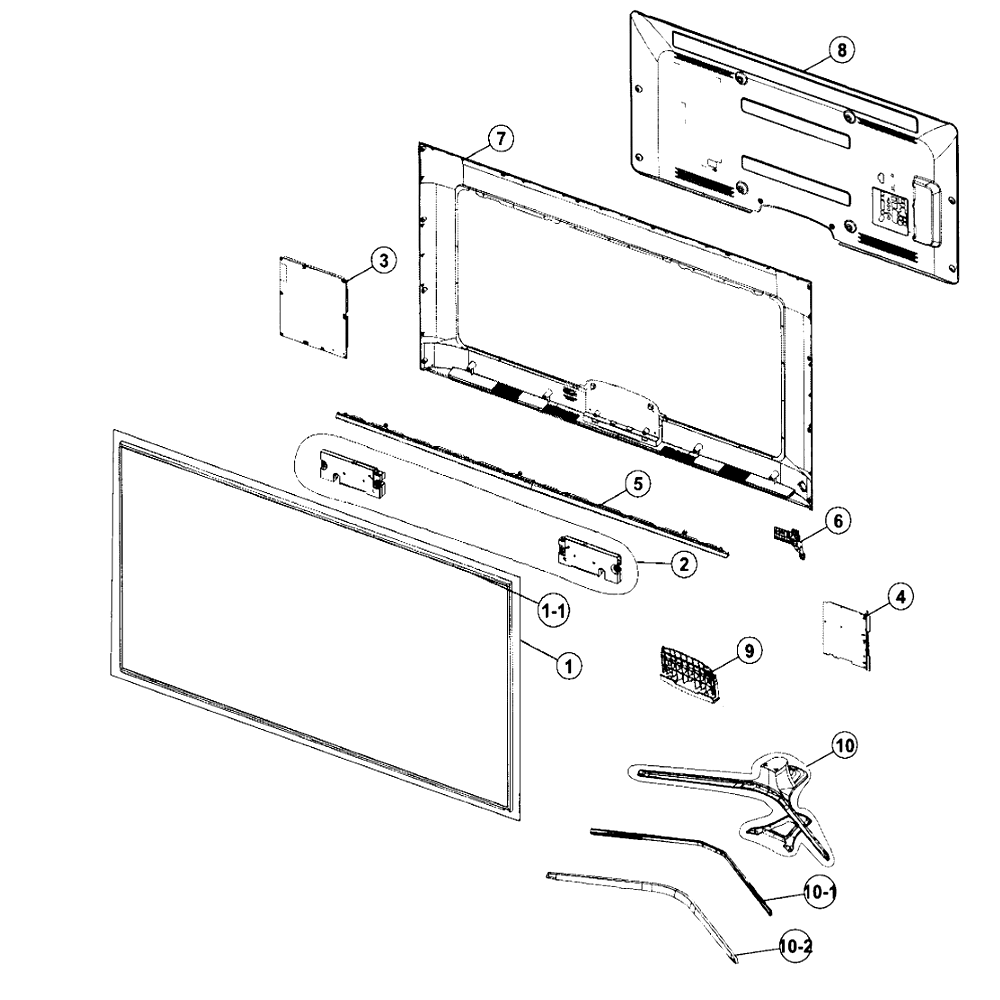

Schematic Image Zoomed
