product name

Samsung UN60KS800DFXZA_EA01

Model: UN60KS800DFXZA_EA01

Save Part Not Listed?
product name

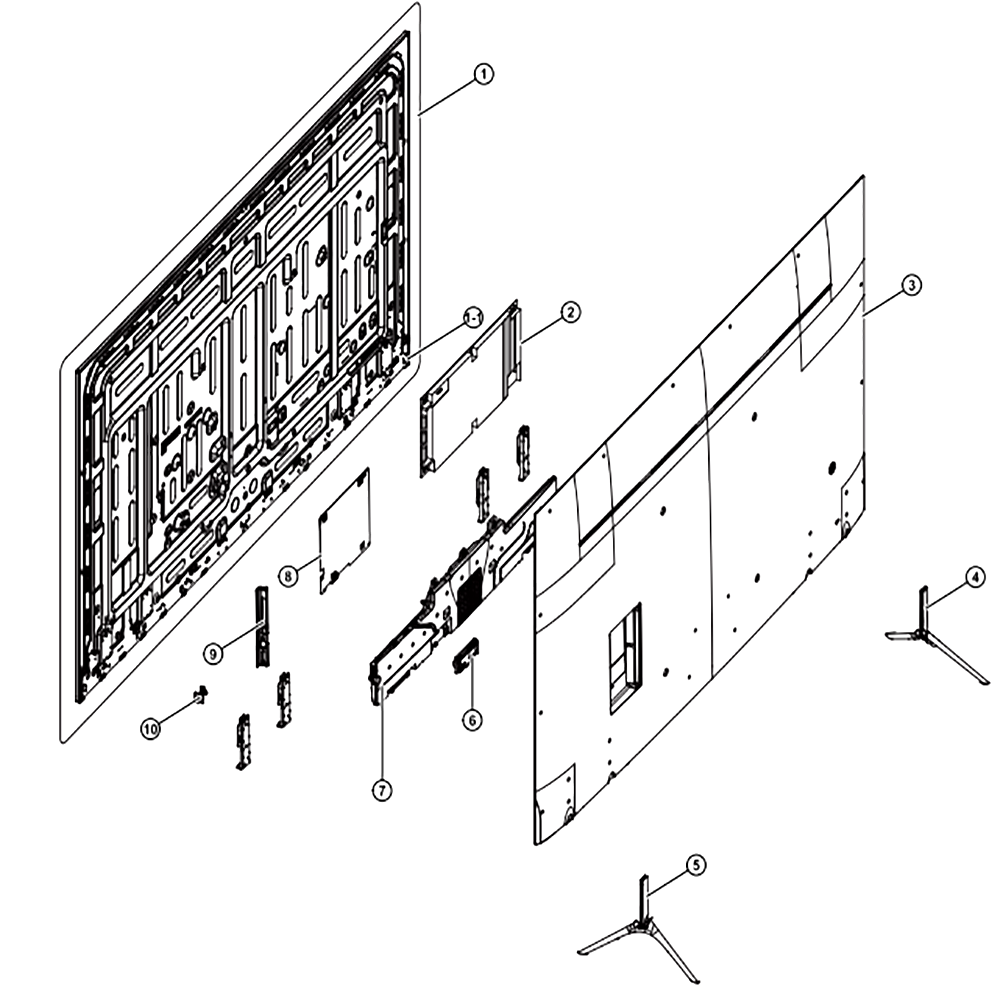

Main

...
...
1-1
Assy Chassis Front P; 60ks7000,al,dark Ti SAM-BN96-39711B
...
1
Product Lcd-Sharp; Cy-Qk060flsv2v/h,ks700 SAM-BN95-02642B
...
2
Dc Vss-Pd Board; L65e8n_Ksm,ac/dc,237w,10 SAM-BN44-00880A
...
3
Assy Cover P-Rear; 60ks8000,pc+abs+ed20%, SAM-BN96-39684A
...
4
Assy Cover P-Stand Top Right; 65ks750d,al SAM-BN96-39924B
...
5
Assy Cover P-Stand Top Left; 65ks7500,ald SAM-BN96-39921B
...
6
Network-Wlan Client SAM-BN59-01239A
...
7
Assembly Speaker P-Front SAM-BN96-39888A
...
8
Assy Pcb Main; 7k SAM-BN94-10757D
...
9
Cover-Terminal Side SAM-BN63-15050A
...
10
Assembly Board P-Function Tact SAM-BN96-39802C

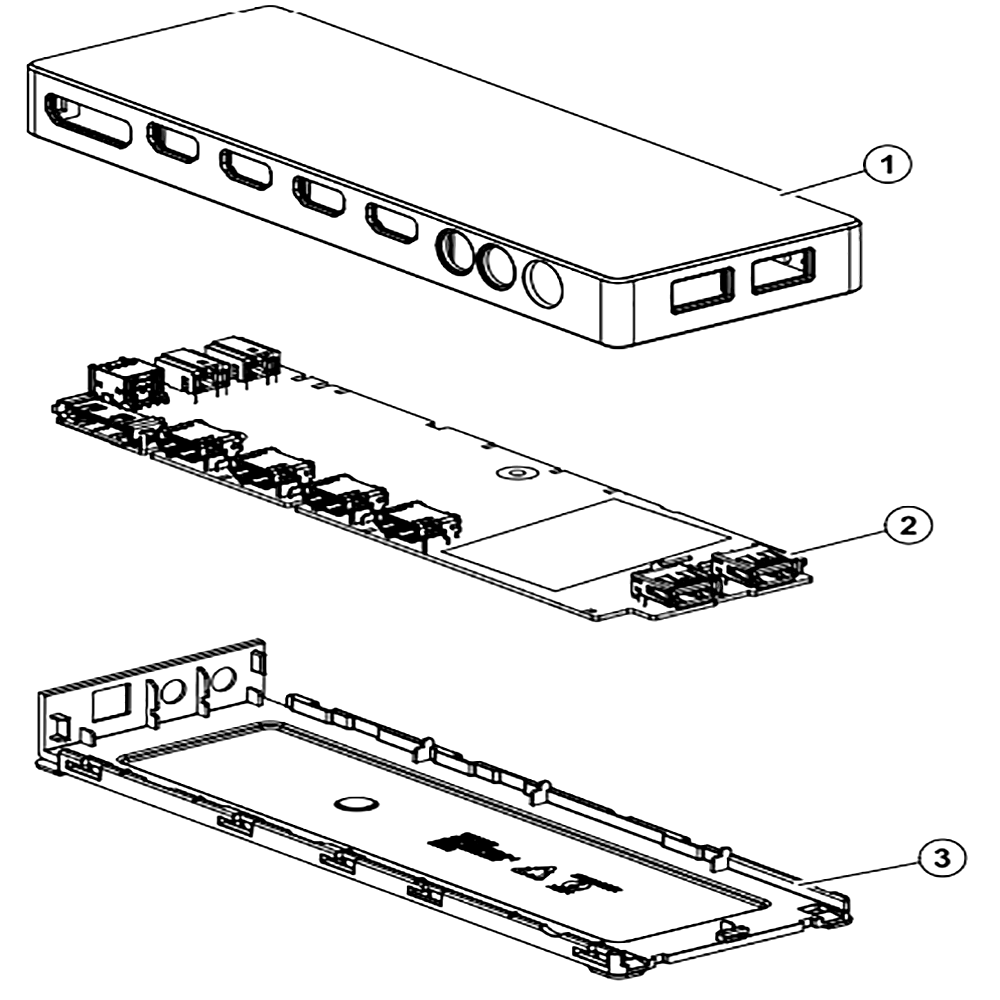

One Connect

...
...
1
Assembly Cover P-Top SAM-BN96-40188B
...
2
Assembly Pcb Misc-One Connect Mini SAM-BN94-10924A
...
3
Cover-Bottom SAM-BN63-15074B
