product name

Samsung UN60JU650DFXZA_HD02

Model: UN60JU650DFXZA_HD02

Save Part Not Listed?
product name

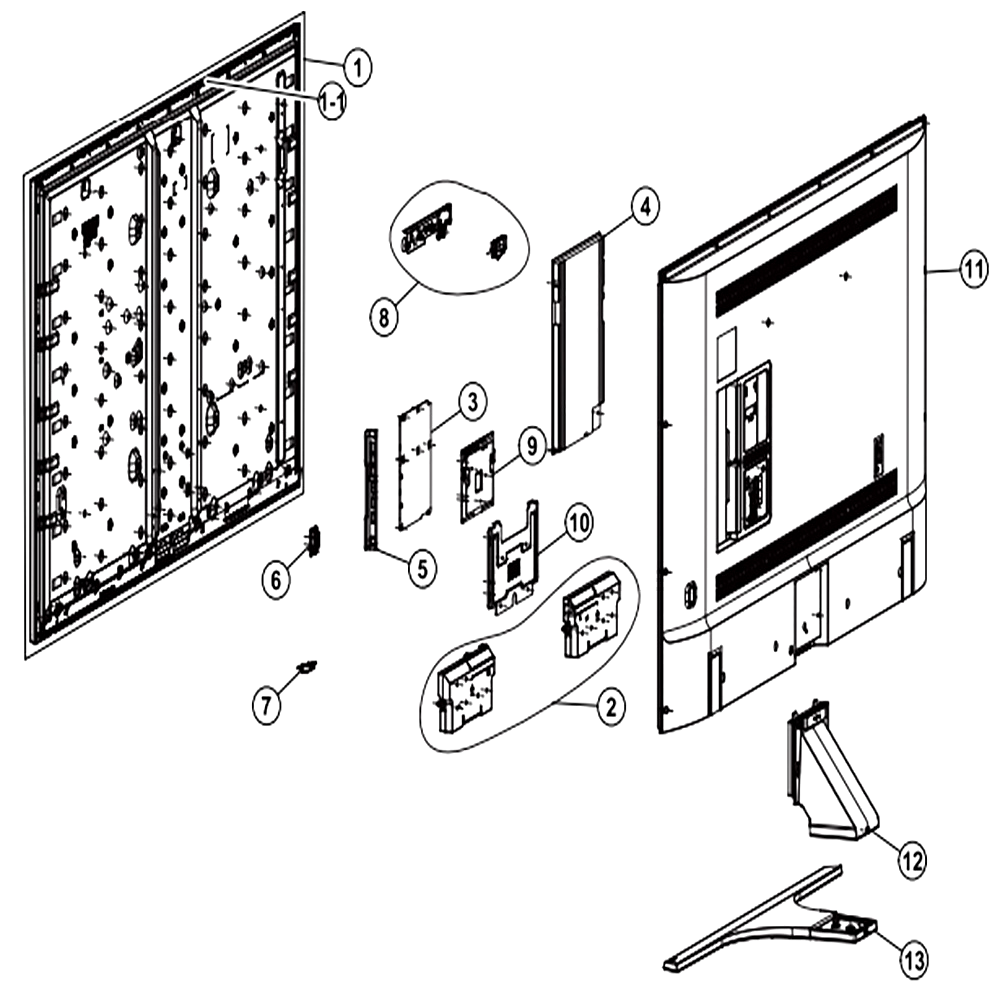

Main

...
...
1-1
Assy Chassis Top P; Y15_Ju6.4k_60,pc+abs SAM-BN96-35597A
...
1
Product Lcd-Sharp; Cy-Gj060hgsv1v,ju6400, SAM-BN95-01997A
...
2
Assy Speaker P; 6ohm,4pin,10w,ju7000 60" SAM-BN96-35006B
...
3
Assy Pcb Main; Un60ju650dfxza SAM-BN94-08935A
...
4
Dc Vss-Led Tv Pd Bd; L65s6n_Fdy,l65s6n_Fd SAM-BN44-00808A
...
5
Holder-Side Av SAM-BN61-11587A
...
6
Assembly Board P-Function Jog SAM-BN96-35345B
...
7
Assembly Board P-Function Assy SAM-BN96-35346D
...
8
Network SAM-BN59-01194F
...
9
Assy T Con; Lq601r3ha6k,uhd Sharp 60",u60 SAM-BN95-02057A
...
10
Assy Bracket P-Stand Link; Ju7000 65",hgi SAM-BN96-37201A
...
11
Assy Cover P-Rear; 60ju6400,usa,pc+abs Gf SAM-BN96-35660G
...
12
Assy Guide P-Stand; Ju6400,60"~65" SAM-BN96-35975A
...
13
Assy Stand P-Base; Ju650d/ju6850/ju6430/j SAM-BN96-35980B
