product name

Samsung UN60JS7000FXZA_MD01

Model: UN60JS7000FXZA_MD01

Save Part Not Listed?
product name

Main

...
...
1-1
Assy Chassis Top P; Js6.9k_60,pc+gf,dark SAM-BN96-38492B
...
1
Product Lcd-Sharp; Cy-Tj060hgsv1v,js6900, SAM-BN95-02449A
...
2
Assy Cover Stand Smt; J6200,60,dark Titan SAM-BN95-02371C
...
3
Assy Speaker P; 6ohm,4pin,10w,ju7000 60" SAM-BN96-35006B
...
4
Dc Vss-Led Tv Pd Bd; L60shn_Fdy,l60shn_Fd SAM-BN44-00860A
...
5
Assy Pcb Misc-Main; Un60js7000fxza SAM-BN94-09273A
...
6
Holder-Side Av SAM-BN61-11587A
...
7
Network SAM-BN59-01194F
...
8
Assembly Board P-Function Jog SAM-BN96-35345B
...
9
Assembly Board P-Function Assy SAM-BN96-35346D
...
10
Assy Bracket P-Stand Link; Ju7000 65",hgi SAM-BN96-37201A
...
11
Assy Cover P-Rear; 60js6900,usa,master,pc SAM-BN96-37241R
...
12
Assy Guide P-Stand; 60js6900,north Americ SAM-BN96-38553A
...
13
Assembly Stand P-Bottom SAM-BN96-37971C

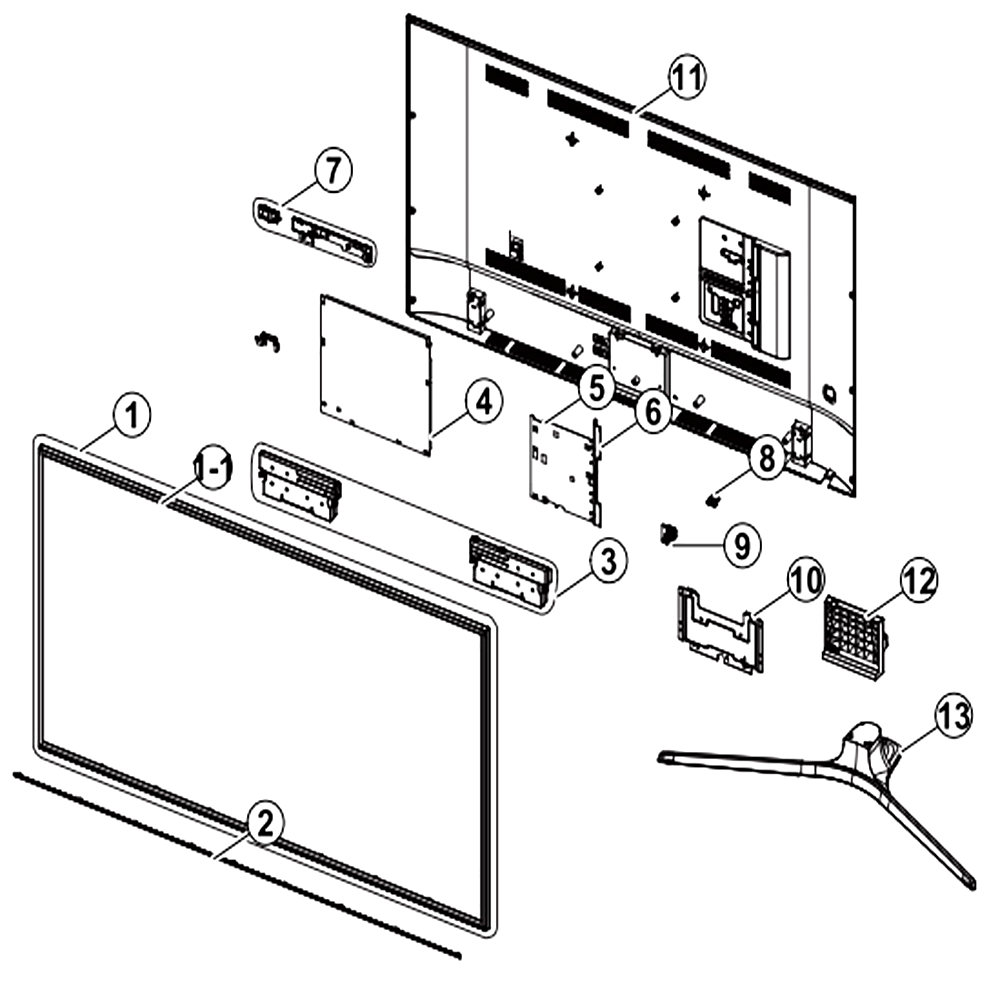

Schematic Image Zoomed
