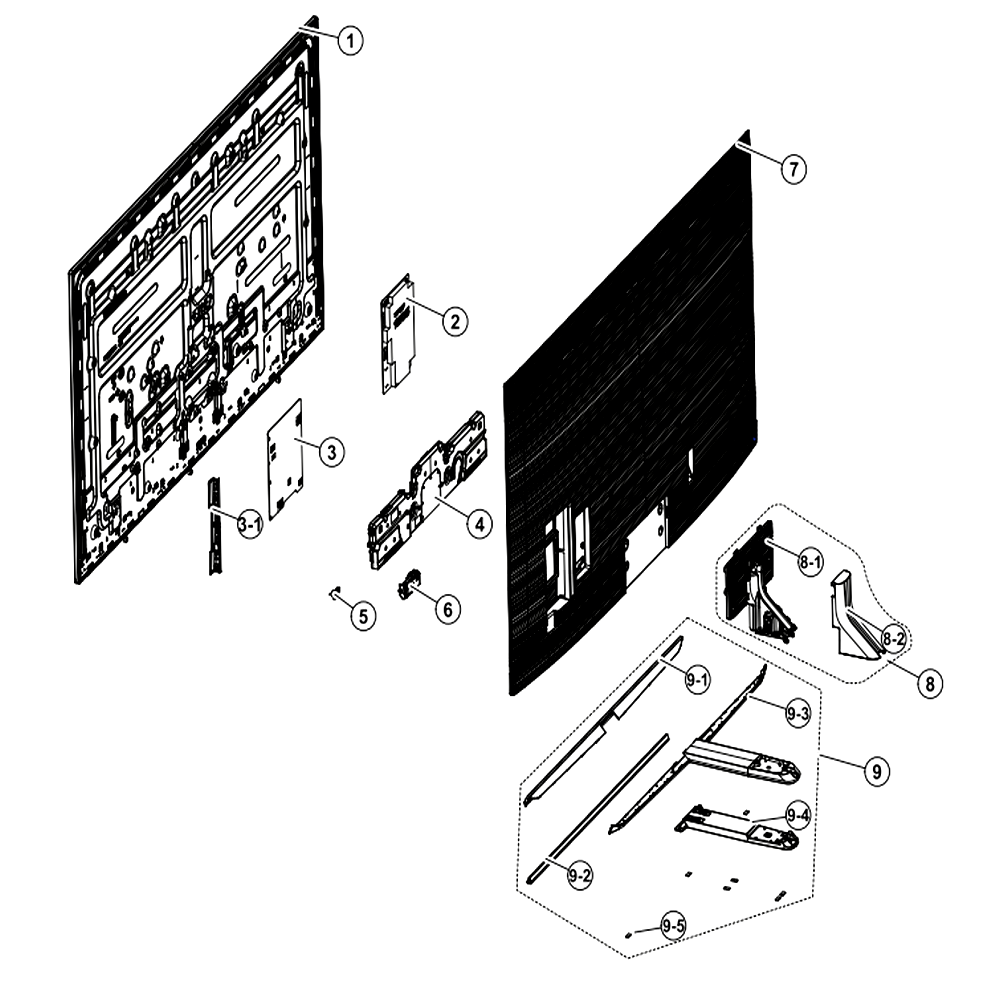

Samsung UN55NU800DFXZA_AA02

Model: UN55NU800DFXZA_AA02

Save Part Not Listed?

Main

Product Lcd-Auo; Cy-Sn055flav2v/h,nu8000, SAM-BN95-04734B

Dc Vss-Pd Board; L55e7r_Nsm,ac/dc,181w,ac SAM-BN44-00878C

3-1

Cover-Terminal Side; 65unu8000f,hips,hb,b SAM-BN63-17513A

Assy Pcb Main; 55unu8000f SAM-BN94-12926M

Assy Speaker P-Front; Tv-Spk,unu8000f,6oh SAM-BN96-45633B

Assy Board P-Function One Key; Y18 Nu8000 SAM-BN96-39802J

Network-Wlan Client; Wcm730q,78.3x29.3x7. SAM-BN59-01264B

Assy Cover P-Rear; 55unu8000f,pc+abs+ed20 SAM-BN96-45827B

8-1

Guide-Stand; 55unu8000f,pc+abs+gf20%,v-1, SAM-BN61-15598A

Assy Stand P-Guide; 55nu8000,pc+abs+gf20% SAM-BN96-45937A

8-2

Cover-Stand Neck Rear; 55unu8000f,abs,hb, SAM-BN63-17525A

9-1

Cover-Stand Decoration; 55unu8500e,mabs,h SAM-BN63-17552B

9-2

Bracket-Stand Bottom Front; 55unu8000f,hg SAM-BN61-15605A

9-3

Cover-Stand Top; 55unu8000f,abs,hb,bk0007 SAM-BN63-17544A

9-4

Bracket-Stand Bottom; 55unu8000f,aldc,nat SAM-BN61-15596A

9-5

Foot-Rubber; Uh6k,rubber,gray,t2,, SAM-BN67-00398L

Assy Stand P-Cover Bottom; 55unu8000f,abs SAM-BN96-45822B

Model: 1AHF08390

$16.00

In Stock

Replaced By :
