Samsung UN55KS800DFXZA_AA02

Model: UN55KS800DFXZA_AA02

Save Part Not Listed?
product name

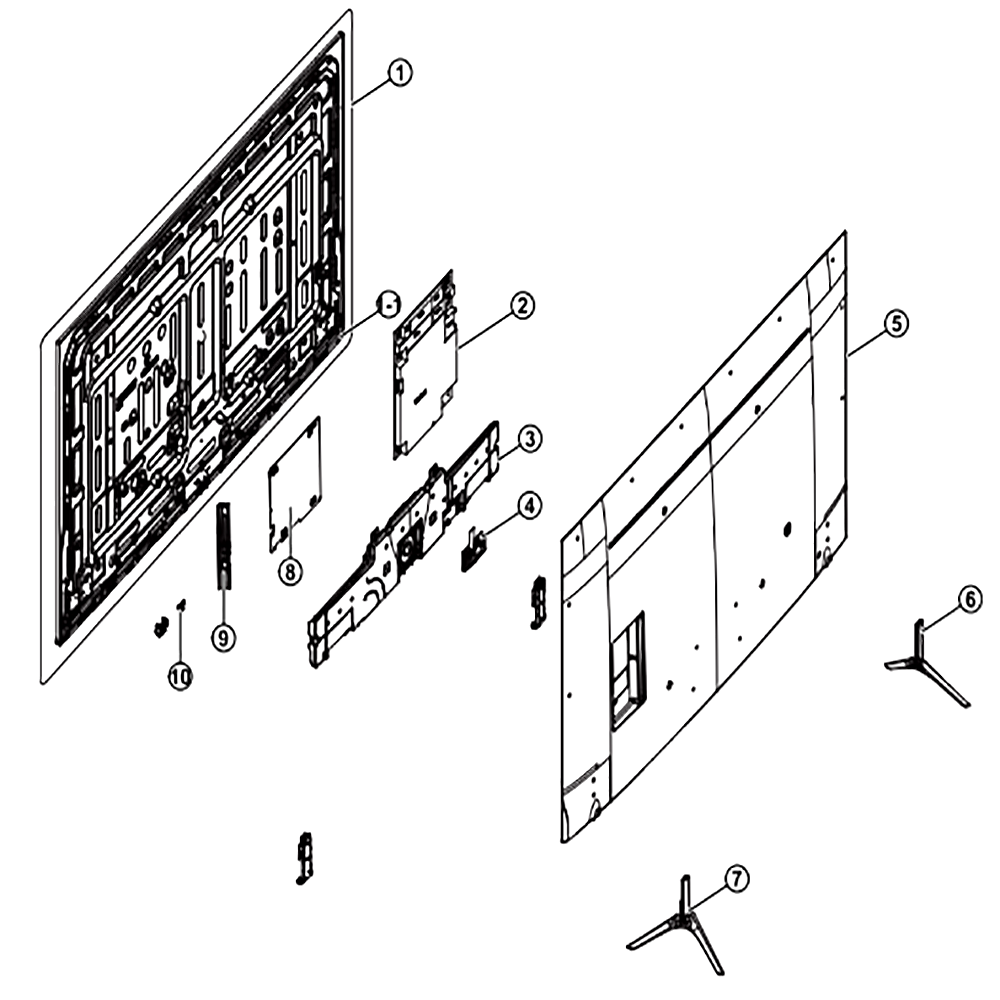

Main

...
...
1-1
Assembly Chassis Front P SAM-BN96-41006A
...
1
Product Lcd-Auo SAM-BN95-02609H
...
2
Dc Vss-Pd Board SAM-BN44-00878A
...
3
Assembly Speaker P-Front SAM-BN96-39888B
...
4
Network-Wlan Client SAM-BN59-01239A
...
5
Assembly Cover P-Rear SAM-BN96-39685K
...
6
Assembly Cover P-Stand Top Right SAM-BN96-39926B
...
7
Assembly Cover P-Stand Top Left SAM-BN96-39927B
...
8
Assembly Pcb Main SAM-BN94-10960Y
...
9
Cover-Terminal Side SAM-BN63-15050A
...
10
Assembly Board P-Function Tact SAM-BN96-39802C

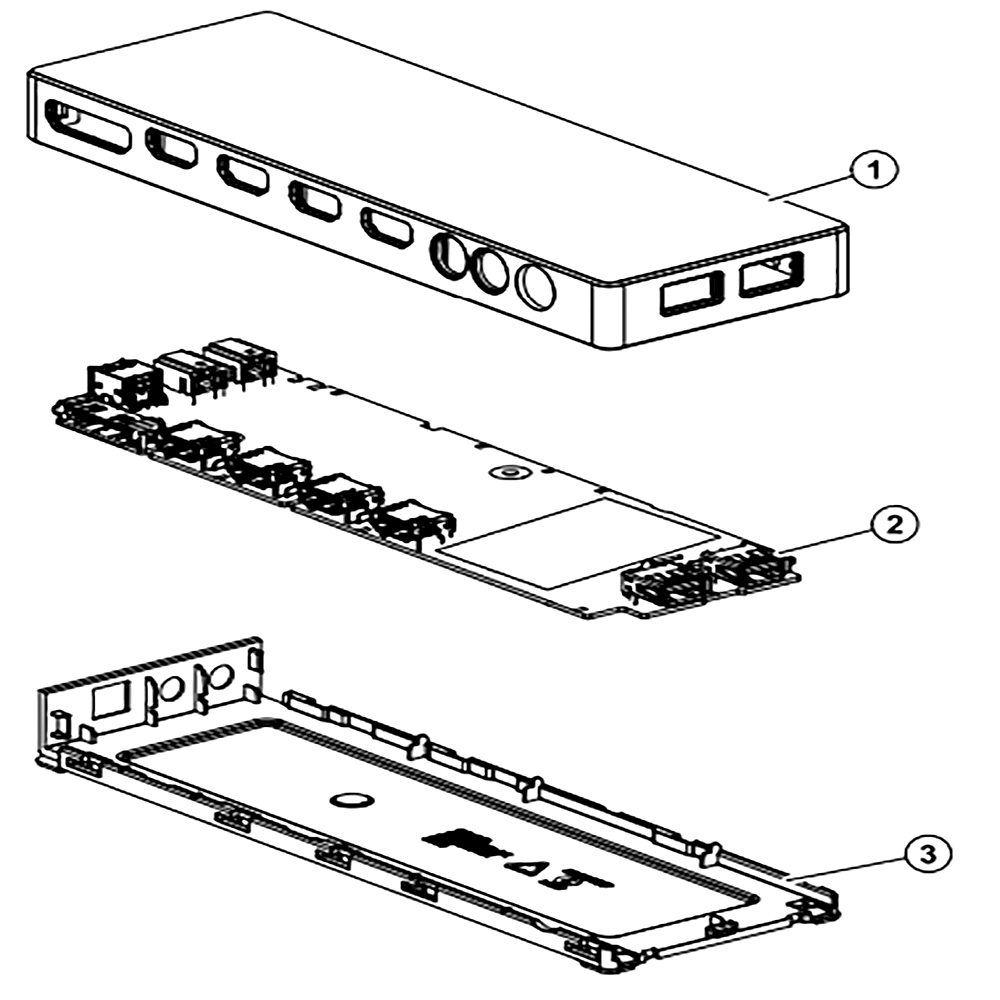

One Connect

...
...
1
Assembly Cover P-Top SAM-BN96-40188B
...
2
Assembly Pcb Misc-One Connect Mini SAM-BN94-10924A
...
3
Cover-Bottom SAM-BN63-15074B
