Samsung UN55KS8000FXZA_AA02

Model: UN55KS8000FXZA_AA02

Save Part Not Listed?
product name

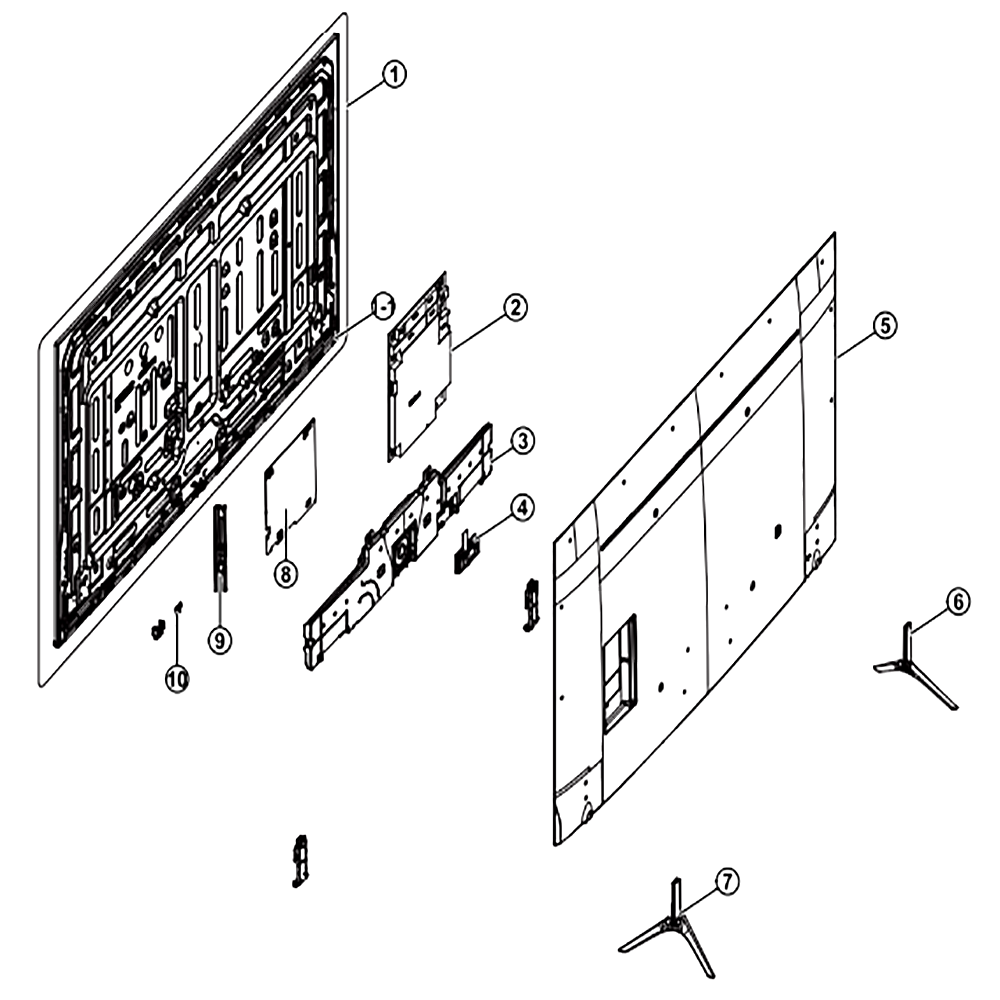

Main

...
...
1-1
Assembly Cover P-Decoration SAM-BN96-39617A
...
1
Product Lcd-Sdc SAM-BN95-02609A
...
2
Dc Vss-Pd Board SAM-BN44-00878A
...
3
Assembly Speaker P-Front SAM-BN96-39888A
...
4
Network-Wlan Client SAM-BN59-01239A
...
5
Assembly Cover P-Rear SAM-BN96-39685A
...
6
Assembly Cover P-Stand Top Right SAM-BN96-39926A
...
7
Assembly Cover P-Stand Top Left SAM-BN96-39927A
...
8
Assembly Pcb Main SAM-BN94-10751A
...
9
Cover-Terminal Side SAM-BN63-15050A
...
10
Assembly Board P-Function Tact SAM-BN96-39802C
