Samsung UN55JU670DFXZA_TS03

Model: UN55JU670DFXZA_TS03

Save Part Not Listed?
product name

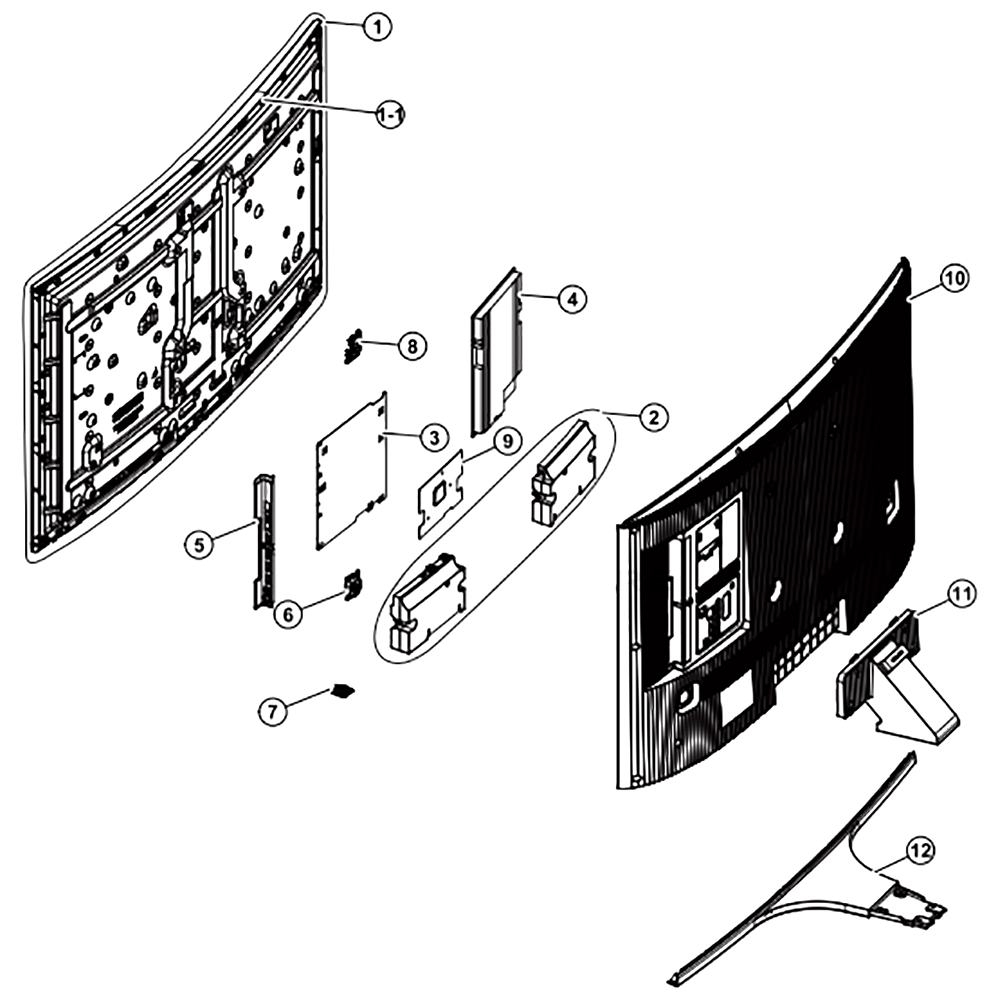

Main

...
...
1-1
Assy Chassis Top P; 55ju6700,bn64-03028b, SAM-BN96-35782B
...
1
Product Lcd-Sdc; Cy-Wj055hglv4v,ju6670,ba SAM-BN95-01990D
...
2
Assy Speaker P-Front; Tv-Spk,ju6700,6ohm, SAM-BN96-35008A
...
3
Assy Pcb Main; Uhd 6k SAM-BN94-10056H
...
4
Dc Vss-Pd Board; L55s6_Fsm,l55s6_Fsm,ac/d SAM-BN44-00807E
...
5
Holder-Side Av SAM-BN61-11587A
...
6
Assembly Board P-Function Jog SAM-BN96-35345B
...
7
Assy Board P-Function Assy; Ju6500,functi SAM-BN96-35346F
...
8
Network-Wlan Client SAM-BN59-01194A
...
9
Assy T Con; Lsf550fn04-K,55u60hz Curved SAM-BN95-01942A
...
10
Assy Cover P-Rear; Ju6700 55,pc+abs Gf15% SAM-BN96-36252A
...
11
Assy Stand P-Neck; Ju6700 40,abs,blk SAM-BN96-36255A
...
12
Assy Stand P-Base; Ju7500,48",abs+pc Blk SAM-BN96-35516A
