product name

Samsung UN55JU650DFXZA_ES04

Model: UN55JU650DFXZA_ES04

Save Part Not Listed?
product name

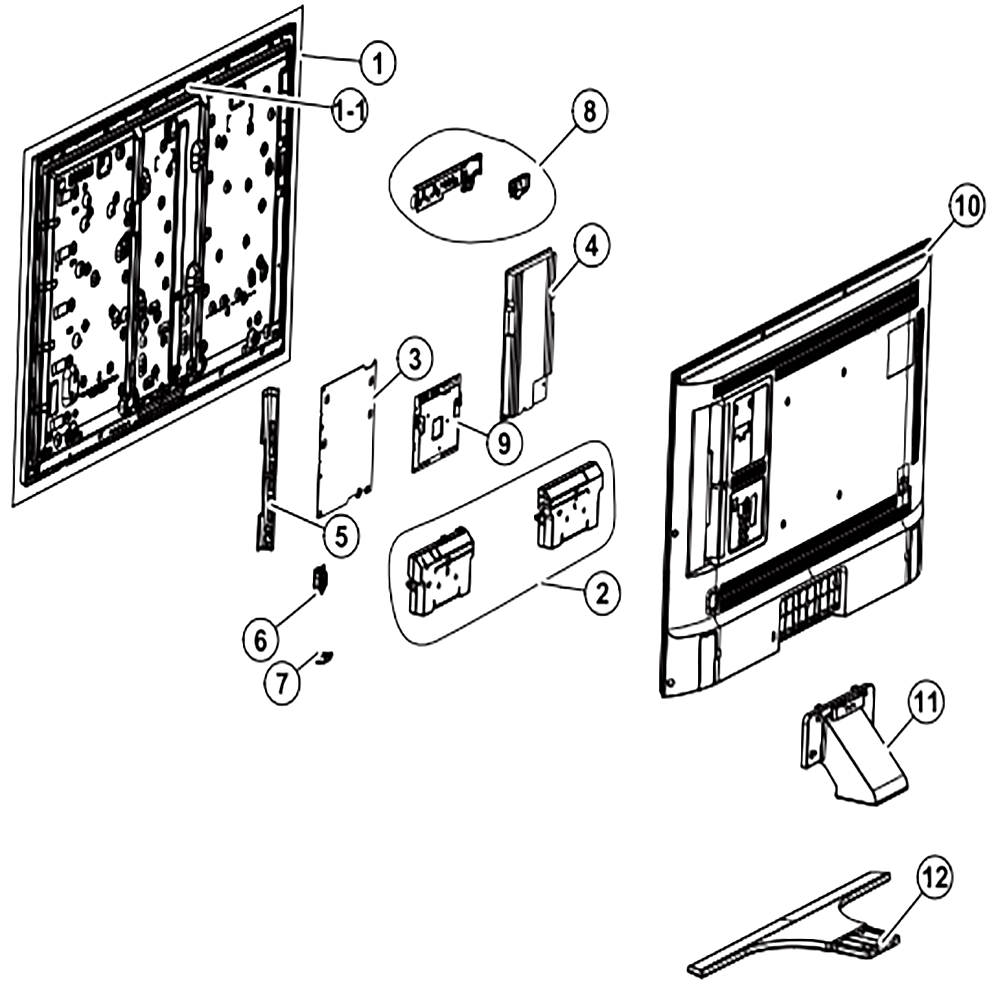

Main

...
...
1-1
Assy Chassis Top P; Ju6400 55,pc+abs+mf 1 SAM-BN96-36732A
...
1
Product Lcd-Boe; Cy-Gj055hgev1v,ju6400,ba SAM-BN95-02005A
...
2
Assembly Speaker P SAM-BN96-35006E
...
3
Assy Pcb Main; Led_J6k SAM-BN94-09402E
...
4
Dc Vss-Pd Board; L55s6_Fsm,l55s6_Fsm,ac/d SAM-BN44-00807E
...
5
Holder-Side Av SAM-BN61-11587A
...
6
Assembly Board P-Function Jog SAM-BN96-35345B
...
7
Assembly Board P-Function Assy SAM-BN96-35346D
...
8
Network-Wlan Client SAM-BN59-01194A
...
9
Assy T Con P; 44-9771079,boe 55inch Ud60, SAM-BN96-35161A
...
10
Assembly Cover P-Rear SAM-BN96-35659M
...
11
Assy Guide P-Stand; Ju6400,40"~55" SAM-BN96-35974A
...
12
Assy Stand P-Base; Ju650d/ju6850/ju6430/j SAM-BN96-35979B
