Samsung UN55JU640DFXZA_ED02

Model: UN55JU640DFXZA_ED02

Save Part Not Listed?
product name

Main

...
...
1-1
Assy Chassis Top P; Ju5910_55,pc+abs+mf15 SAM-BN96-36732D
...
1
Product Lcd-Boe; Cy-Gj055gevbv/h,ju6000,c SAM-BN95-02005E
...
2
Assy Speaker P-Ju6k 55inch; 6ohm,4pin,10w SAM-BN96-35209A
...
3
Assy Pcb Main; Uhd 6k SAM-BN94-10315P
...
4
Assy Smps P-Led Tv Pd Bd; L55s5_Fdyv,l55s SAM-BN96-35336A
...
5
Holder-Side Av; Ju6000,hips,1 Tunner SAM-BN61-11934A
...
6
Assembly Board P-Function Jog SAM-BN96-35345B
...
7
Assembly Board P-Function Assy SAM-BN96-35346D
...
8
Network-Wifi Module; Widt-30q + Holder,in SAM-BN59-01174E
...
9
Assy T Con P; 44-9771079,boe 55inch Ud60, SAM-BN96-35161A
...
10
Assy Cover P-Rear; 55ju6000,usa,pc+abs Gf SAM-BN96-38019C
...
11
Assy Guide P-Stand; Uh6400,40,48,50,55,pc SAM-BN96-31001A
...
12
Assy Stand P-Base; Ju5910 55inch,abs+pc,v SAM-BN96-31876E

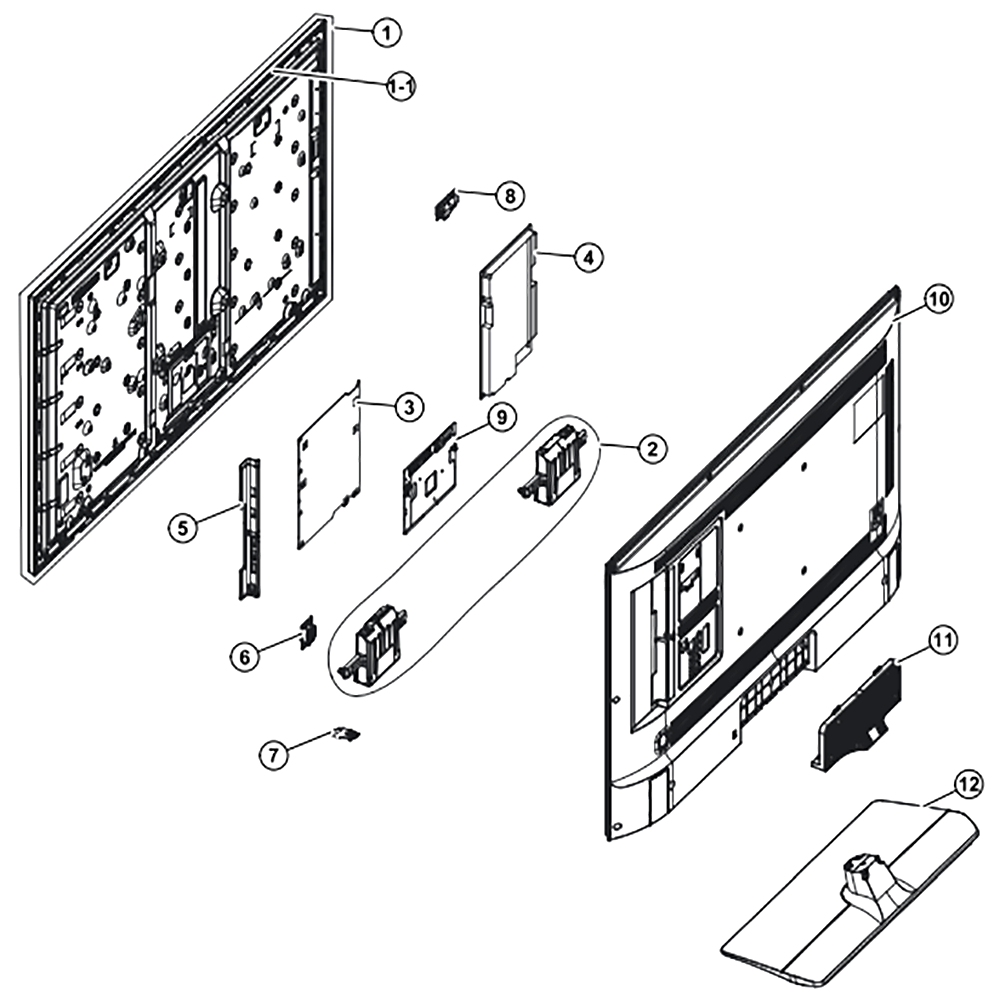

Schematic Image Zoomed
