Samsung UN55JU6400FXZA_UD03

Model: UN55JU6400FXZA_UD03

Save Part Not Listed?
product name

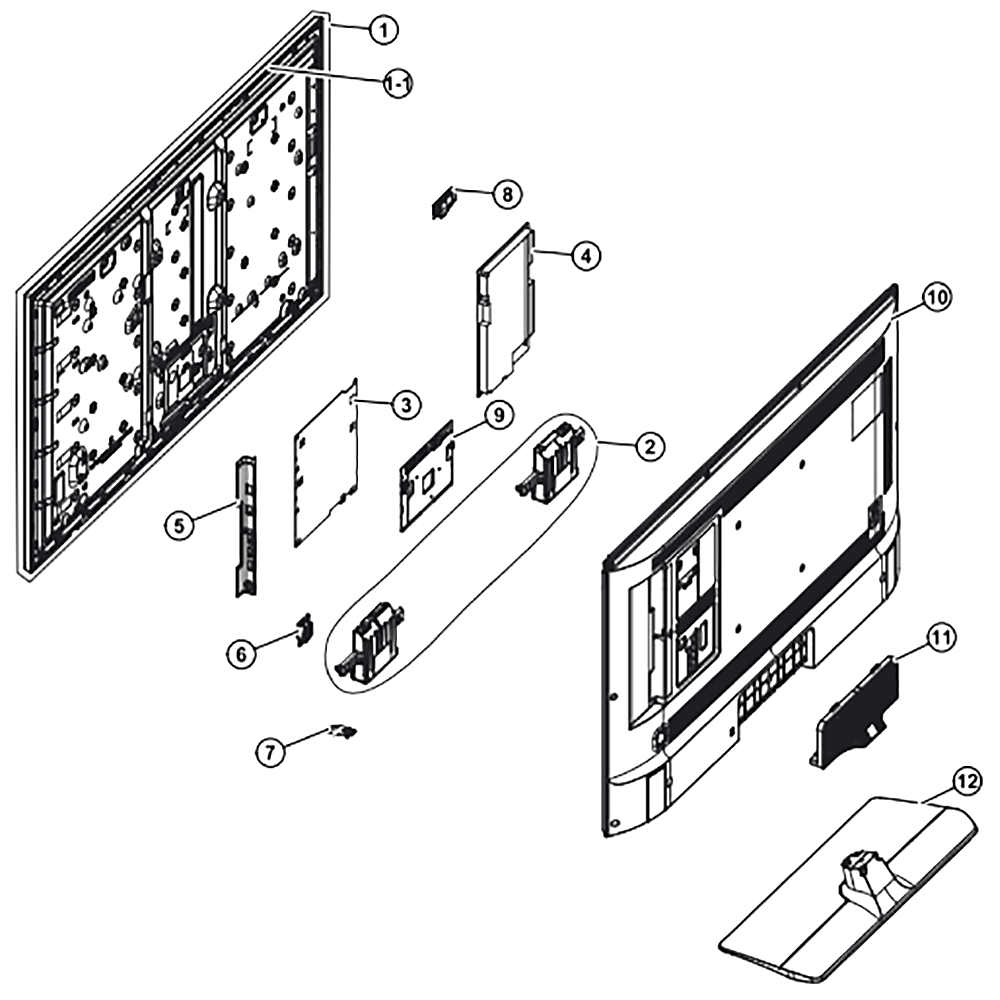

Main

...
...
1-1
Assy Chassis Top P; Ju5900 55,pc+abs+mf 1 SAM-BN96-35596B
...
1
Product Lcd-Amlcd; Cy-Gj055hglv7v/h,ju600 SAM-BN95-02121C
...
2
Assy Speaker P-Ju6k 55inch; 6ohm,4pin,10w SAM-BN96-35209A
...
3
Assy Pcb Main; Ud-Un55ju6400fxza SAM-BN94-10244A
...
4
Assy Smps P-Led Tv Pd Bd; L55s5_Fdyv,l55s SAM-BN96-35336A
...
5
Holder-Side Av; Ju6000,hips,1 Tunner SAM-BN61-11934A
...
6
Assembly Board P-Function Jog SAM-BN96-35345B
...
7
Assembly Board P-Function Assy SAM-BN96-35346D
...
8
Network-Wifi Module; Widt-30q + Holder,in SAM-BN59-01174E
...
9
Assy T Con; Lsf550fn05-K,55u60hz Flat SAM-BN95-01938A
...
10
Assy Cover P-Rear; 55ju6000,usa,pc+abs Gf SAM-BN96-38019C
...
11
Assy Guide P-Stand; Uh6400,40,48,50,55,pc SAM-BN96-31001A
...
12
Assy Stand P-Base; Hu5900,china,dtv, Pc+a SAM-BN96-31876D
