Samsung UN55JS8500FXZC_TH01

Model: UN55JS8500FXZC_TH01

Save Part Not Listed?
product name

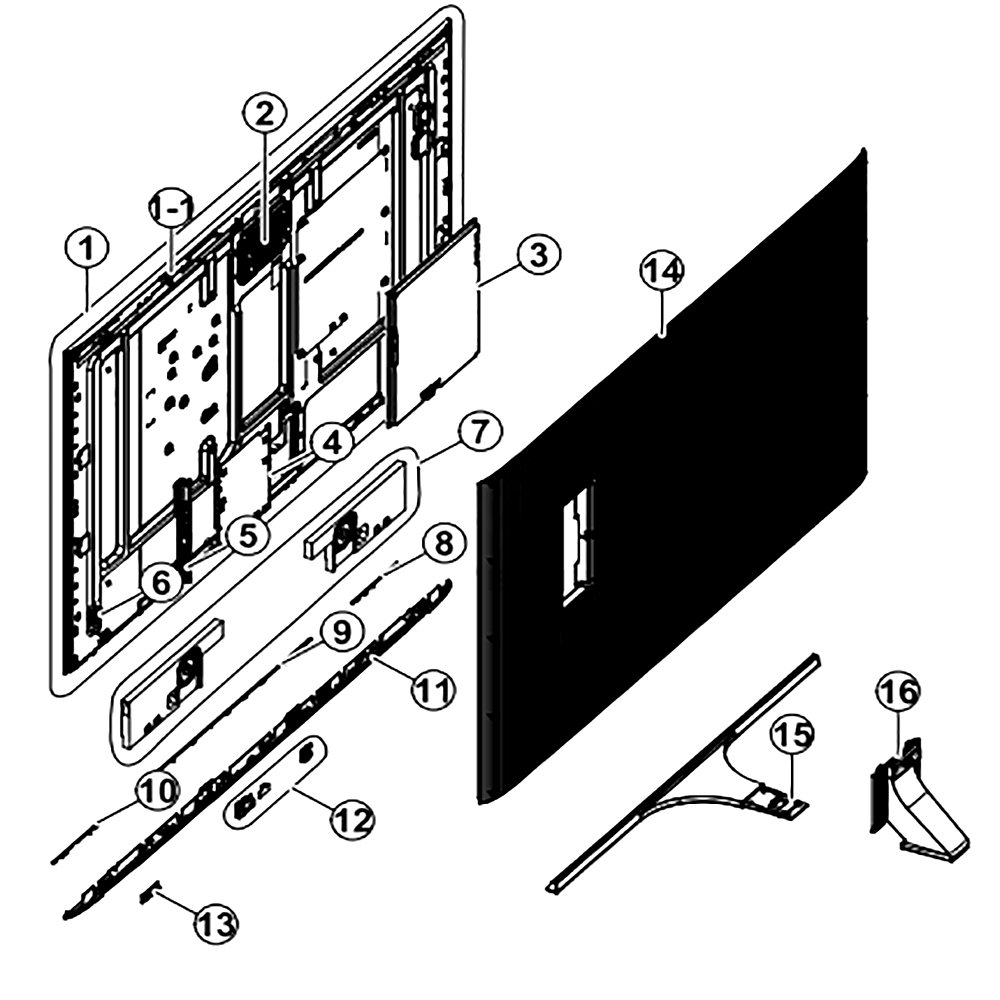

Main

...
...
1-1
Assembly Chassis Top P SAM-BN96-36132A
...
1
Product Lcd-Sdc SAM-BN95-02113A
...
2
Assembly T Con SAM-BN95-01953A
...
3
Dc Vss-Uhd Pd Bd SAM-BN44-00833A
...
4
Assembly Pcb Misc-Main SAM-BN94-08919A
...
5
Holder-Side,av SAM-BN61-12117B
...
6
Assembly Board P-Jog Function SAM-BN96-35345K
...
7
Assembly Speaker P-Jq8.5k 55inch SAM-BN96-35395A
...
8
Cover-Deco,bot_L SAM-BN63-13923A
...
9
Cover-Deco,bot-C SAM-BN63-13771A
...
10
Cover-Deco,bot-Side SAM-BN63-13767A
...
11
Cover-Frame_Bot SAM-BN63-13916A
...
12
Network-Wlan Client SAM-BN59-01194A
...
13
Assembly Board P-Ir SAM-BN96-35851A
...
14
Assembly Cover P-Rear SAM-BN96-38436A
...
15
Assembly Stand P-Base SAM-BN96-36269A
...
16
Assembly Guide P-Stand SAM-BN96-36271D
