Samsung UN55JS7000FXZA_EH03

Model: UN55JS7000FXZA_EH03

Save Part Not Listed?
product name

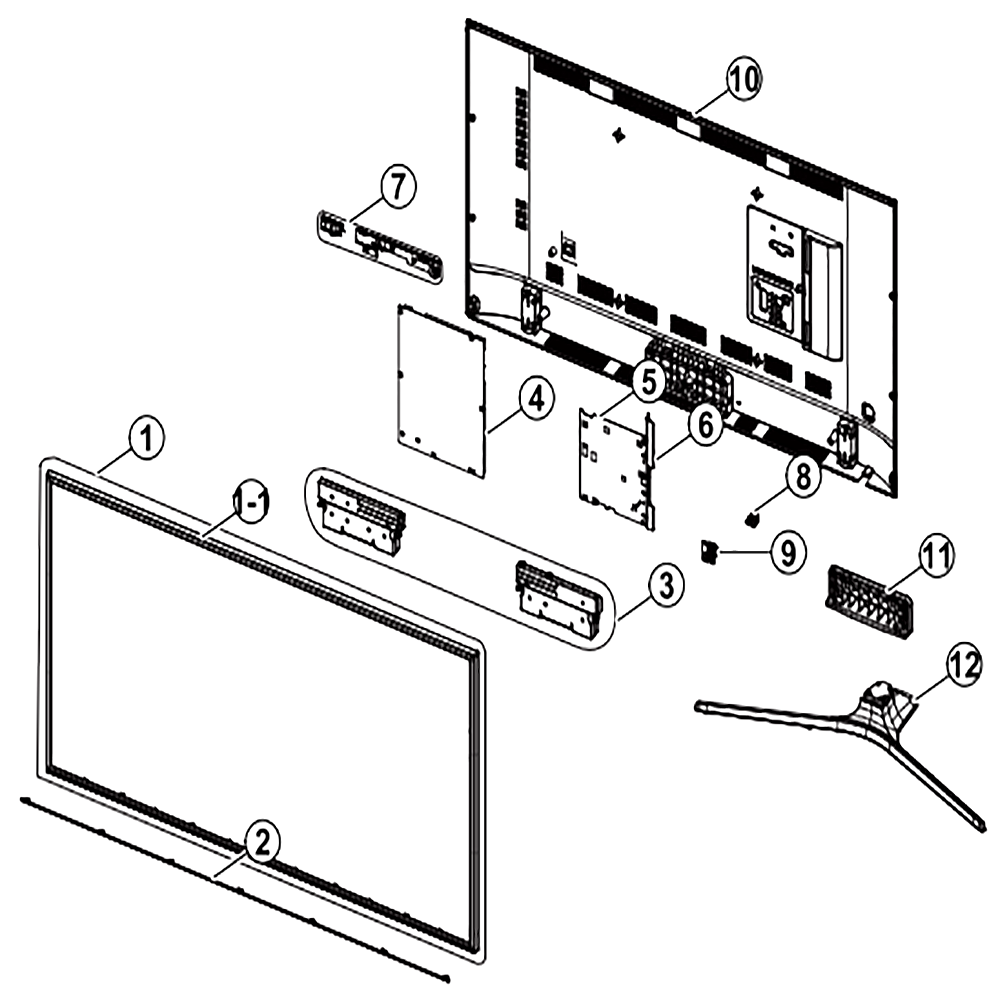

Main

...
...
1-1
Assembly Chassis Front P SAM-BN96-38491H
...
1
Product Lcd-Sdc SAM-BN95-02472C
...
2
Assembly Cover Stand Smt SAM-BN95-02141D
...
3
Assembly Speaker P SAM-BN96-35006E
...
4
Dc Vss-Led Tv Pd Bd SAM-BN44-00859A
...
5
Assy Pcb Main; Uj8j 60 (falt) SAM-BN94-10385D
...
6
Holder-Side Av SAM-BN61-11587A
...
7
Network-Wlan Client SAM-BN59-01194A
...
8
Assembly Board P-Function Jog SAM-BN96-35345B
...
9
Assembly Board P-Function Assy SAM-BN96-35346D
...
10
Assembly Cover P-Rear SAM-BN96-35659M
...
11
Assembly Guide P-Stand SAM-BN96-35223A
...
12
Assembly Stand P-Bottom SAM-BN96-38964J
