Samsung UN55J620DAFXZA_US02

Model: UN55J620DAFXZA_US02

Save Part Not Listed?
product name

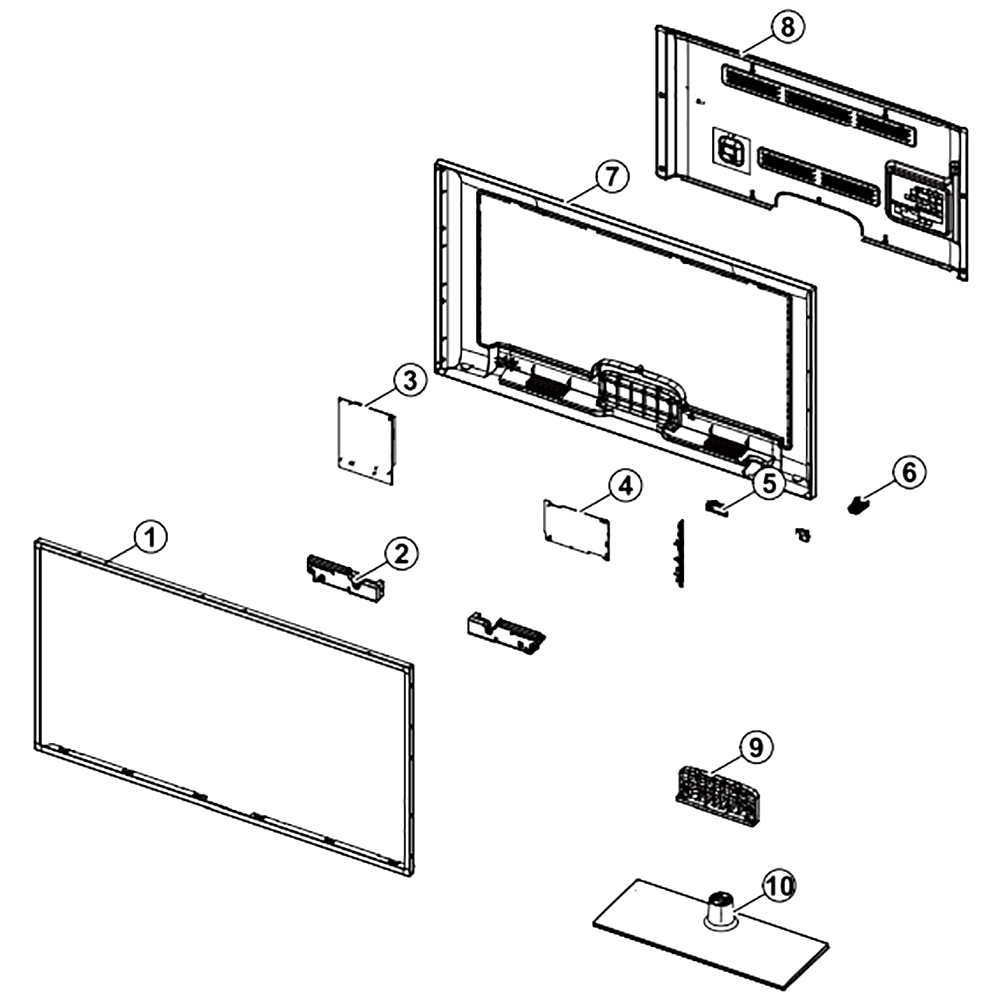

Main

...
...
1
Product Lcd-Sdc; Cy-Df550cslv4v/h,h6203,b SAM-BN95-01163C
...
2
Assy Speaker P-Front; Tv-Spk,eh6003,6ohm, SAM-BN96-21669K
...
3
Dc Vss-Pd Board; L55h1_Esm,ac/dc,142w,100 SAM-BN44-00774A
...
4
Assy Pcb Main; Us-Un55j620dafxza SAM-BN94-09584A
...
5
Network-Wlan Client; Widt30q,58x31.45x8.5 SAM-BN59-01174A
...
6
Assy Board P-Function Jog; Ue6030,ct5000- SAM-BN96-23838A
...
7
Cover-Middle; 55j6200,hips,mold,v-0,dark SAM-BN63-09755F
...
8
Assy Cover P-Rear; 50j6200,hgisghc,press, SAM-BN96-37680A
...
9
Assy Guide P-Stand; Ue5000,40/46/55/60,pc SAM-BN96-21742T
...
10
Assy Stand P-Bottom; 50"55"j6200,abs,dark SAM-BN96-37805A
