Samsung UN50MU630DFXZA_DB02

Model: UN50MU630DFXZA_DB02

Save Part Not Listed?
product name

Main

...
...
1
Product Lcd-Inx; Cy-Gk050hgnvnh,ku6000,ap SAM-BN95-03679A
...
2
Assembly Speaker P-Front SAM-BN96-35007A
...
3
Dc Vss-Pd Board SAM-BN44-00807A
...
4
Assy Pcb Main; Umu6100n,50 SAM-BN94-12036R
...
5
Cover-Terminal Side SAM-BN63-16652A
...
6
Network-Wlan Client SAM-BN59-01264A
...
7
Assembly Board P-Ir Function SAM-BN96-39955A
...
8
Assembly Board P-Function Jog SAM-BN96-35345B
...
9
Assy Cover P-Rear; 50mu6100,hips,v-0,bk00 SAM-BN96-43325A
...
10
Assembly Guide P-Stand SAM-BN96-35223A
...
11
Assembly Stand P-Bottom SAM-BN96-38964J

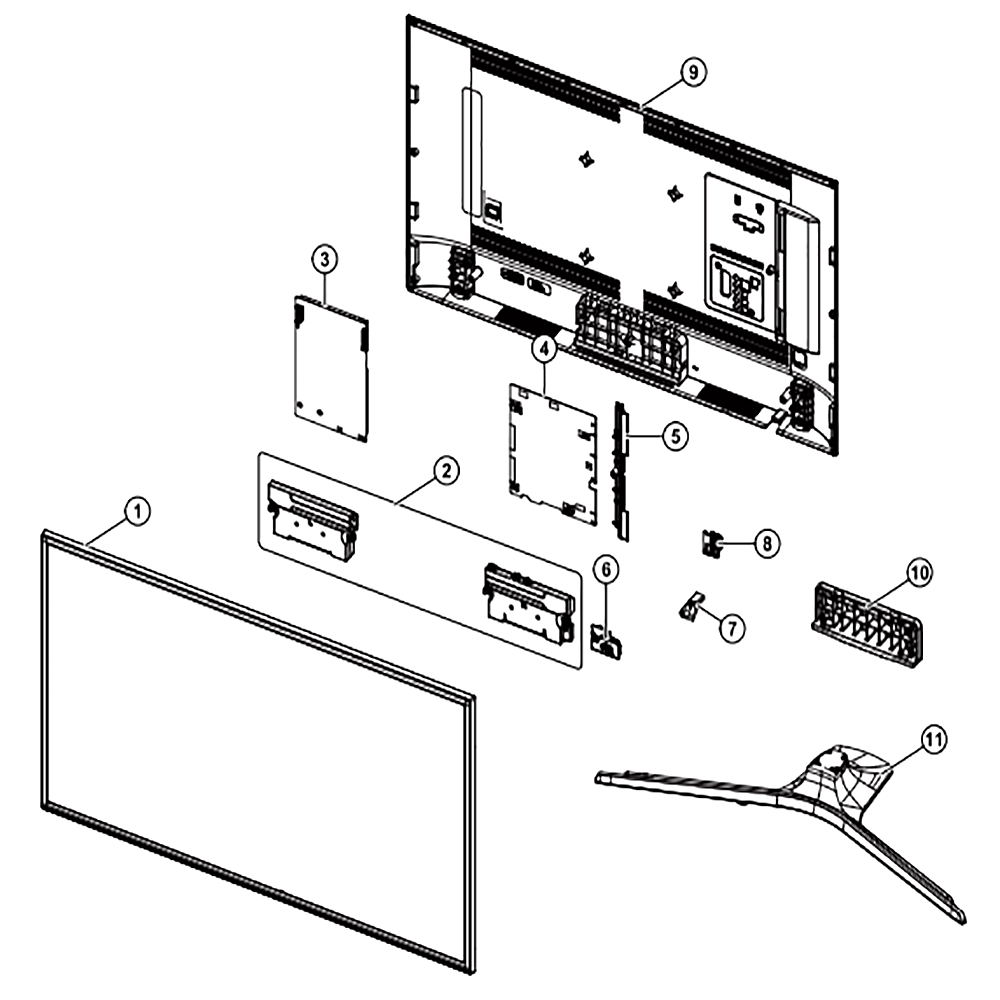

Schematic Image Zoomed
