Samsung UN50J520DAFXZA_ID01

Model: UN50J520DAFXZA_ID01

Save Part Not Listed?
product name

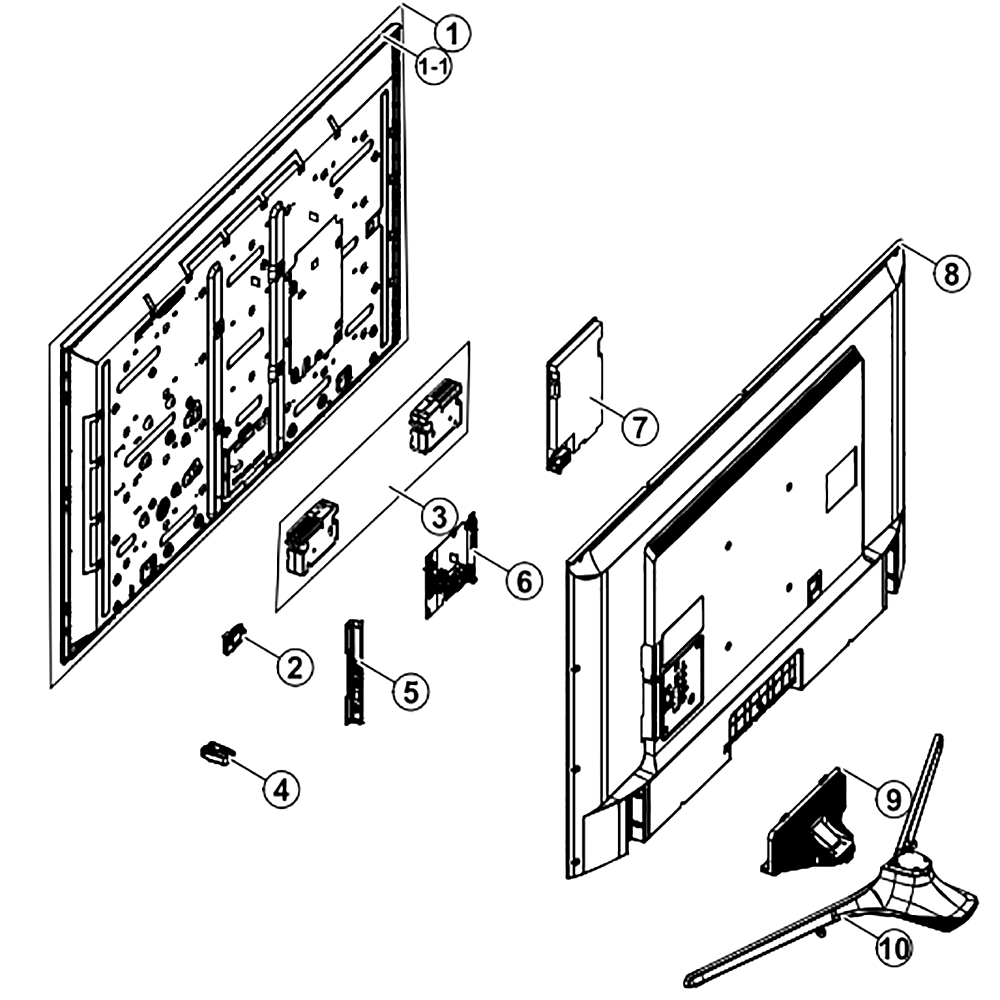

Main

...
...
1-1
Assy Chassis Top P; J5200 50" (auo) SAM-BN96-37146A
...
1
Product Lcd-Inx; Cy-Jj050bgnv1v/h,j5000,b SAM-BN95-02391A
...
2
Network-Wi-Fi Module; Wdf710q,wswlm400a00 SAM-BN59-01196C
...
3
Assy Speaker P; 6ohm,4pin,10w,mega3 SAM-BN96-30337C
...
4
Assy Board P; Ua43j5200awxhc_Function_Ass SAM-BN96-36076H
...
5
Cover-Terminal Side; Hips,hips,mold,black SAM-BN61-09060A
...
6
Assy Pcb Main-Main; J5000 SAM-BN94-09599P
...
7
Dc Vss-Led Tv Pd Bd; L50msf_Fdy,l50msf_Fd SAM-BN44-00856A
...
8
Assy Cover P-Rear; J5200 50,hips,master SAM-BN96-37797P
...
9
Assembly Guide P-Stand SAM-BN96-35223A
...
10
Assy Stand P-Base; J5500 48,pc+abs+gf20% SAM-BN96-35225P
