Samsung UN49MU8000FXZA_FA01

Model: UN49MU8000FXZA_FA01

Save Part Not Listed?
product name

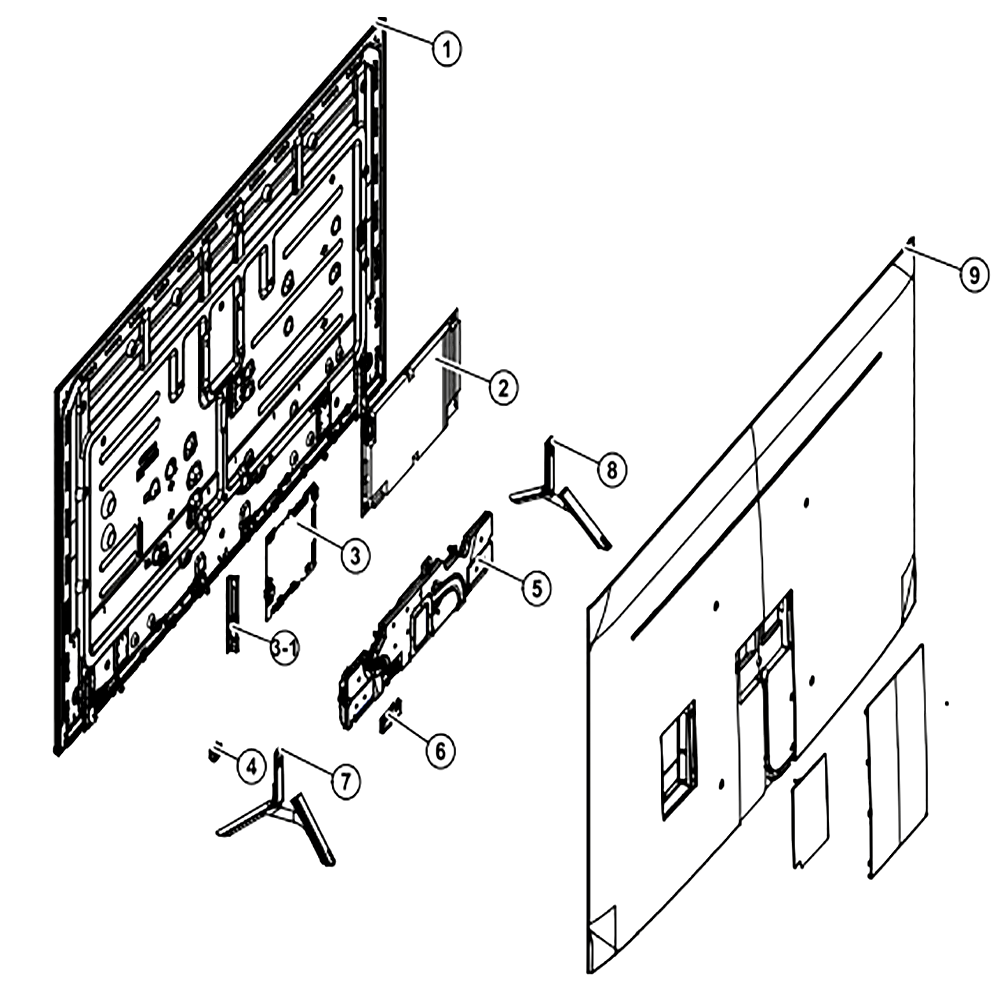

Main

...
...
1
Product Lcd-Sdc; Cy-Sm049hllv6v/h,mu7000, SAM-BN95-03876C
...
2
Dc Vss-Pd Board; L55e8nr_Msm,ac/dc,187w,a SAM-BN44-00911A
...
3-1
Cover-Terminal Side; 55mu7000,hips,hb,bk0 SAM-BN63-16640A
...
3
Assy Pcb Main; 49mu7000 SAM-BN94-11978A
...
4
Assembly Board P-Function Tact SAM-BN96-39802C
...
5
Assy Speaker P-Front; Tv-Spk,mu7000,6ohm, SAM-BN96-42222A
...
6
Network-Wlan Client SAM-BN59-01264A
...
7
Assy Stand P-Bottom Left; 49mu7000,pc+abs SAM-BN96-42372A
...
8
Assy Stand P-Bottom Right; 49mu7000,pc+ab SAM-BN96-42373A
...
9
Assy Cover P-Rear; 49mu7000,pc+abs+ed20%, SAM-BN96-42167A
