Samsung UN49MU6290FXZA_FB02

Model: UN49MU6290FXZA_FB02

Save Part Not Listed?

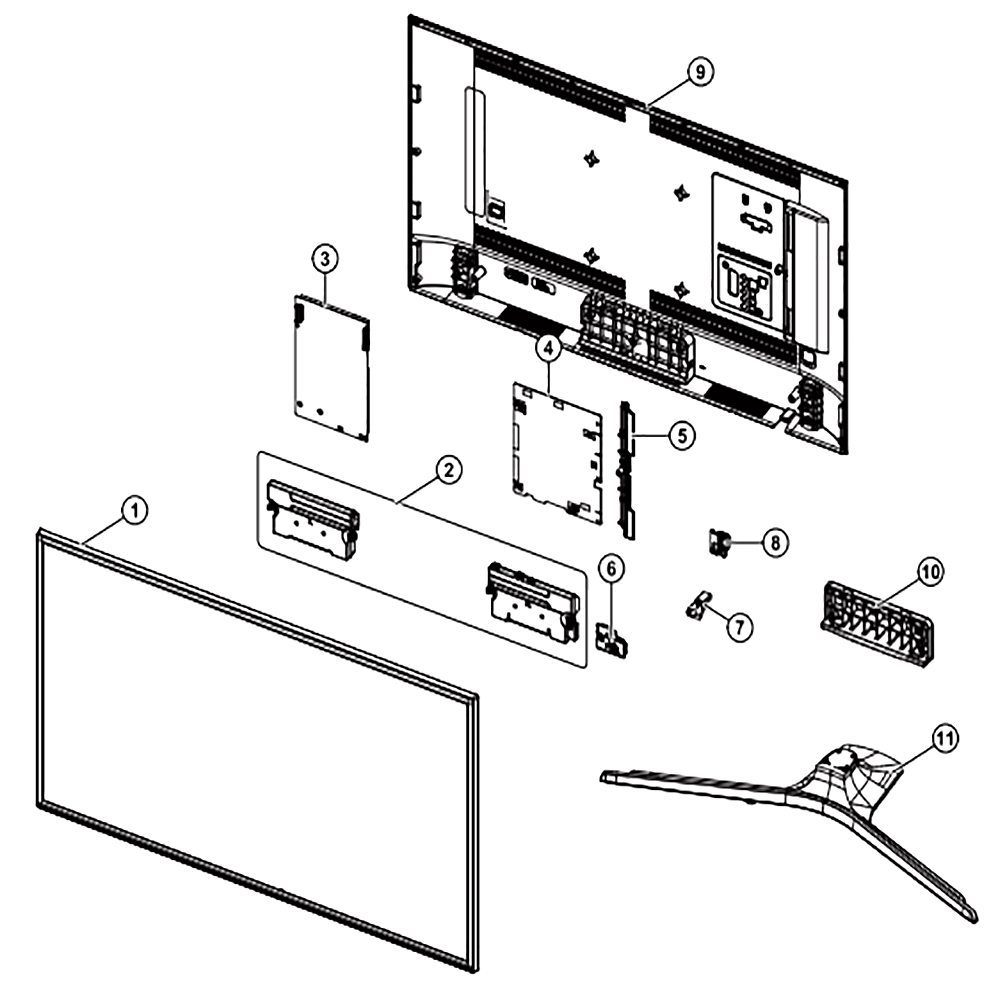

product name

Main

...
...
1
Product Lcd-Sdc; Cy-Gm049hglv8v/h,mu6100, SAM-BN95-04243K
...
2
Assembly Speaker P-Front SAM-BN96-35007A
...
3
Dc Vss-Pd Board; L55s6r_Mhs,ac/dc,203w,ac SAM-BN44-00807F
...
4
Assy Pcb Main; Mu6100 SAM-BN94-12662V
...
5
Cover-Terminal Side SAM-BN63-16652A
...
6
Network-Wlan Client SAM-BN59-01264A
...
7
Assembly Board P-Ir Function SAM-BN96-39955A
...
8
Assembly Board P-Function Jog SAM-BN96-35345B
...
9
Assy Cover P-Rear; 49mu6100,pc+abs+ed20%, SAM-BN96-43450A
...
10
Assy Guide P-Stand; 49m5000,pc+gf20%,bk00 SAM-BN96-43582A
...
11
Assembly Stand P-Bottom SAM-BN96-38964J
