Samsung UN49M530DAFXZA_FA01

Model: UN49M530DAFXZA_FA01

Save Part Not Listed?
product name

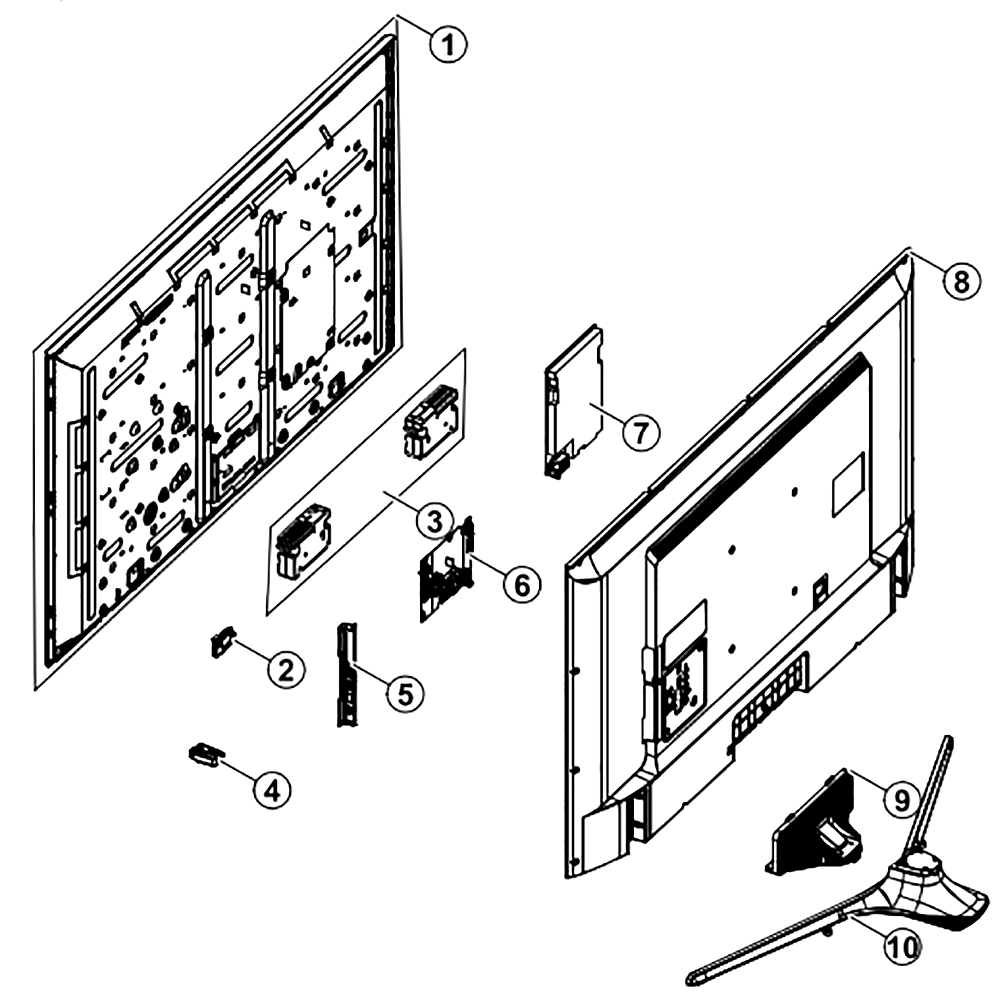

Main

...
...
1
Product Lcd-Sdc; Cy-Jm049bglv2v/h,m5300,b SAM-BN95-04094B
...
2
Network-Wlan Client SAM-BN59-01174D
...
3
Assy Speaker P-Front; Tv-Spk,m5000,6ohm,1 SAM-BN96-30337H
...
4
Assy Board P-Function Tact; M5300,ct15sf1 SAM-BN96-38694D
...
5
Cover-Terminal Side; 40m5000,hips,t1.5,hb SAM-BN63-15392E
...
6
Assy Pcb Main; Un49m530dafxza,bn94-12049d SAM-BN94-12388A
...
7
Dc Vss-Pd Board; L50msfr_Mdy,ac/dc,157w,a SAM-BN44-00856C
...
8
Assy Cover P-Rear; 49m5300,hips,v-0,bk002 SAM-BN96-43900J
...
9
Assy Guide P-Stand; 49m5000,pc+gf20%,bk00 SAM-BN96-43582A
...
10
Assy Stand P-Bottom; 40m530d,pc+abs+gf20% SAM-BN96-38768D
