Samsung UN48JU6500FXZA-TH01

Model: UN48JU6500FXZA-TH01

Save Part Not Listed?
product name

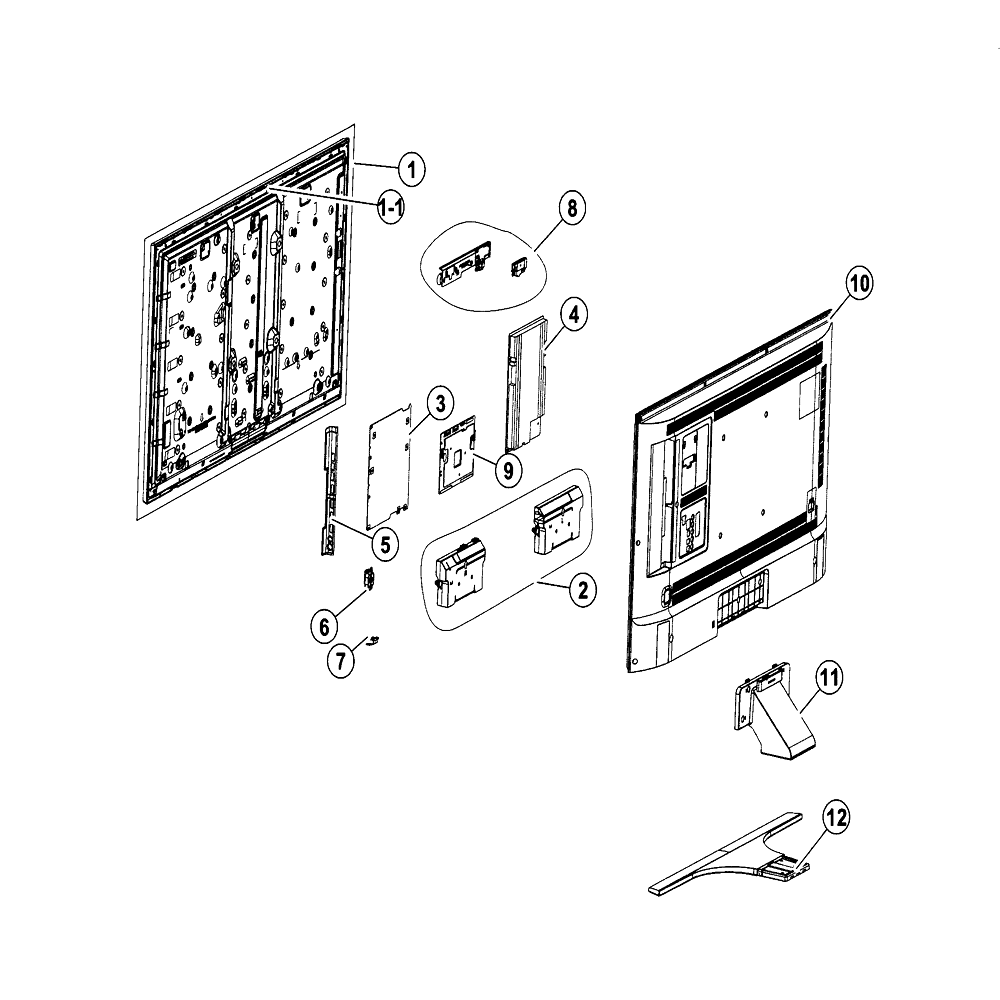

Main Assy

...
...
1-1
Chassis SAM-BN96-35594A
...
1
Lcd Panel SAM-BN95-01993A
...
2
Assembly Speaker P-Front SAM-BN96-35007A
...
3
Pcb Assembly SAM-BN94-08215E
...
4
Dc Vss-Pd Board SAM-BN44-00807A
...
5
Holder-Side Av SAM-BN61-11587A
...
6
Assembly Board P-Function Jog SAM-BN96-35345B
...
7
Assembly Board P-Function Assy SAM-BN96-35346D
...
8
Network SAM-BN59-01194F
...
9
Assy T Con; Lsf480fn05-K,48u60hz Flat SAM-BN95-01937A
...
10
Cover SAM-BN96-35657H
...
11
Assy Guide P-Stand; Ju6400,40"~55" SAM-BN96-35974A
...
12
Assy Stand P-Base; Ju6400,48"~55" SAM-BN96-35978A
