Samsung UN48JU6400FXZA_UD02

Model: UN48JU6400FXZA_UD02

Save Part Not Listed?
product name

Main

...
...
1-1
Assy Chassis Top P; Ju6400 48,pc+abs+mf 1 SAM-BN96-35594C
...
1
Product Lcd-Sdc; Cy-Gj048hglvcv/h,ju6000, SAM-BN95-02281F
...
2
Assy Speaker P; 6ohm,4pin,10w,ju6000 48" SAM-BN96-35210D
...
3
Assy Pcb Main; Ud-Un48ju6400fxza SAM-BN94-10240A
...
4
Assy Smps P-Led Tv Pd Bd; L55s5_Fdyv,l55s SAM-BN96-35336A
...
5
Holder-Side Av; Ju6000,hips,1 Tunner SAM-BN61-11934A
...
6
Assembly Board P-Function Jog SAM-BN96-35345B
...
7
Assembly Board P-Function Assy SAM-BN96-35346D
...
8
Network-Wifi Module; Widt-30q + Holder,in SAM-BN59-01174E
...
9
Assy T Con; Lsf480fn05-K,48u60hz Flat SAM-BN95-01937A
...
10
Assy Cover P-Rear; 48ju6000,uo,hips V0,bl SAM-BN96-38018C
...
11
Assembly Guide P-Stand SAM-BN96-30590A
...
12
Assy Stand P-Base; Ju5900 48inch,pc+abs+g SAM-BN96-31507C

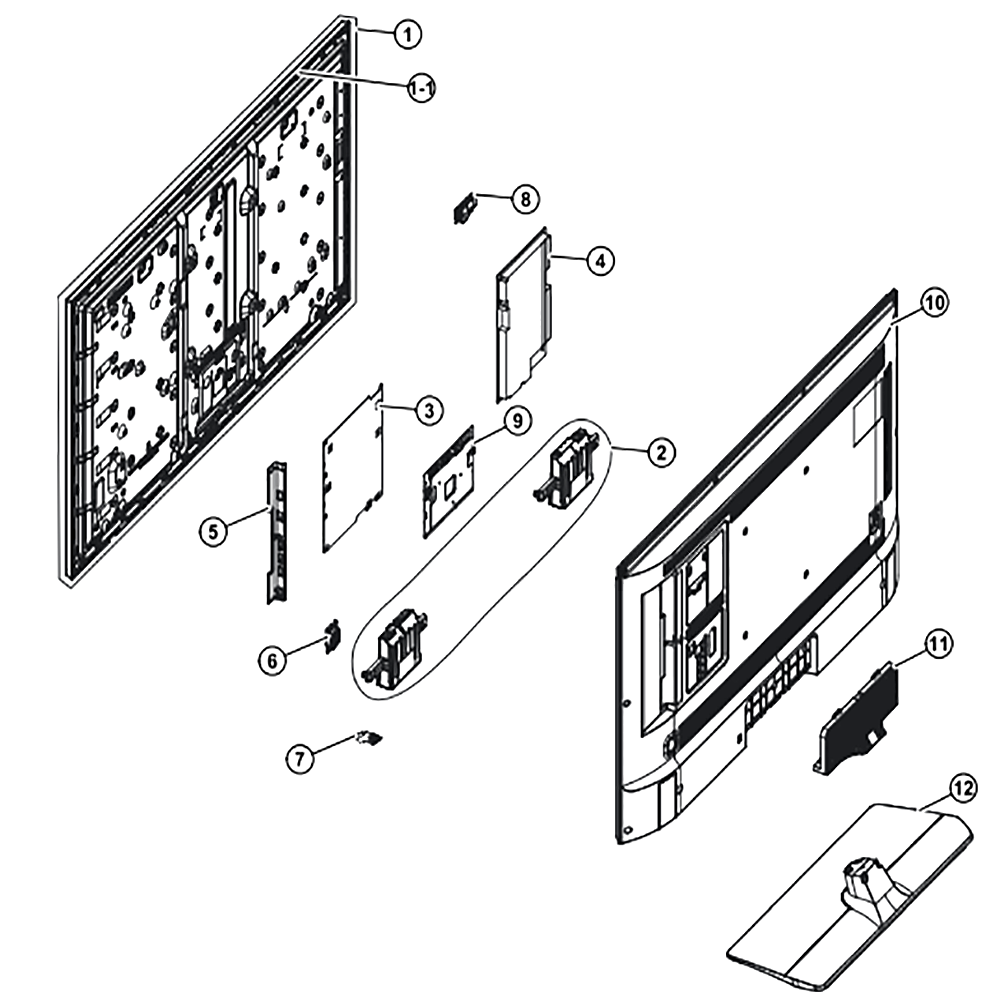

Schematic Image Zoomed
