Samsung UN48J520DAFXZA_ED04

Model: UN48J520DAFXZA_ED04

Save Part Not Listed?
product name

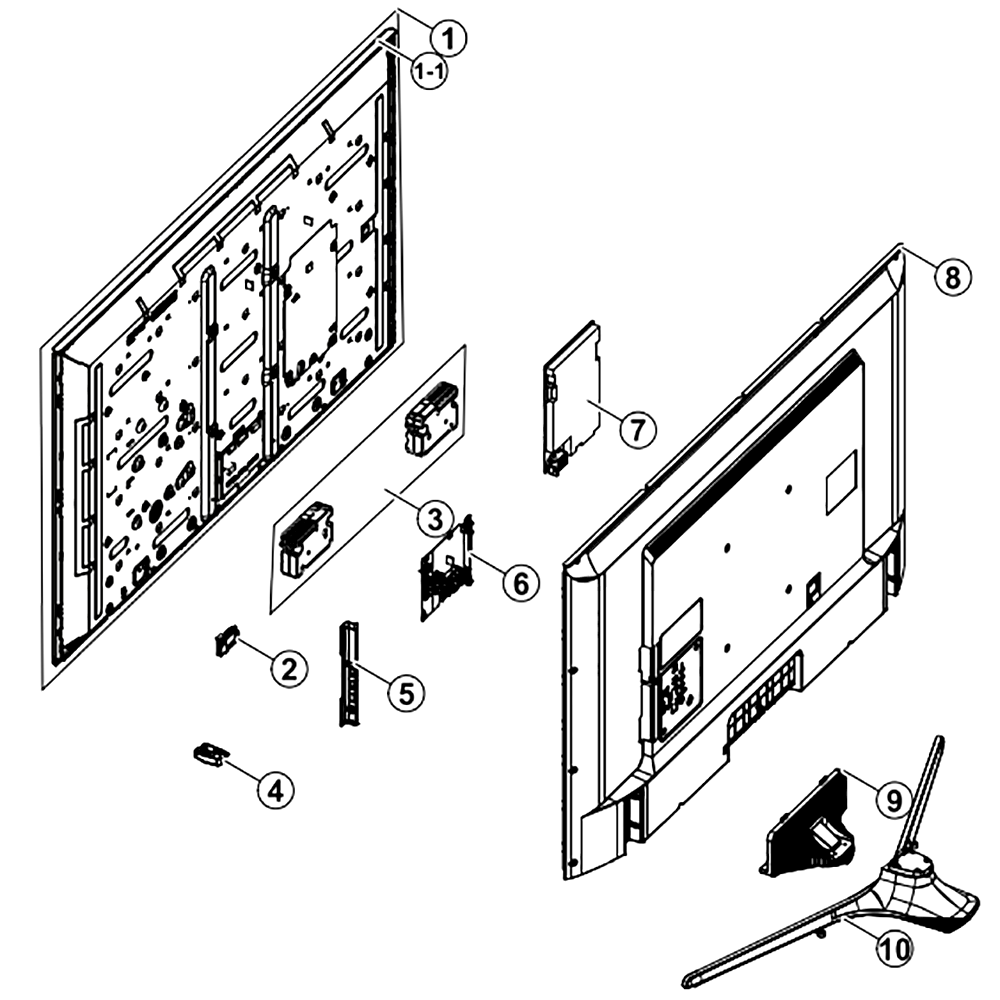

Main

...
...
1-1
Assy Chassis Top P; J5200 48" (boe) SAM-BN96-37147A
...
1
Product Lcd-Boe; Cy-Jj048bgev4v/h,j5000,0 SAM-BN95-02363D
...
2
Network-Wi-Fi Module; Wdf710q,wswlm400a00 SAM-BN59-01196C
...
3
Assy Speaker P; 6ohm,4pin,10w,mega3 SAM-BN96-30337C
...
4
Assy Board P-Function Tact; J5200,ct15sf1 SAM-BN96-38694C
...
5
Cover-Terminal Side; Hips,hips,mold,black SAM-BN61-09060A
...
6
Assy Pcb Main; J520 SAM-BN94-11075K
...
7
Dc Vss-Led Tv Pd Bd; L48msf_Fdy,l48msf_Fd SAM-BN44-00852A
...
8
Assy Cover P-Rear; J5200 48,hips,black SAM-BN96-38076G
...
9
Assembly Guide P-Stand SAM-BN96-35223A
...
10
Assy Stand P-Bottom; J5500 48",pc+abs+gf2 SAM-BN96-38964P
