Samsung UN40M530DAFXZA_DB02

Model: UN40M530DAFXZA_DB02

Save Part Not Listed?
product name

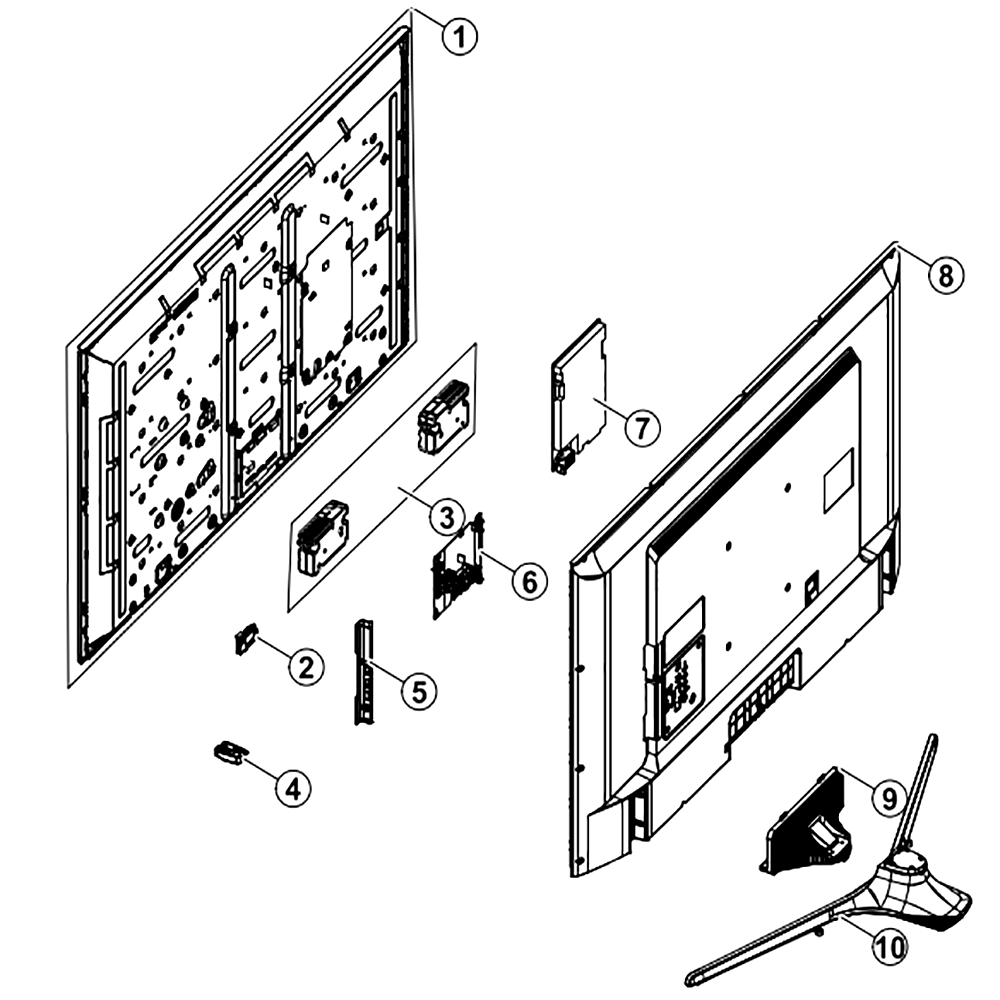

Main

...
...
1
Product Lcd-Inx; Cy-Jm040bgnv6v/h,m5300,p SAM-BN95-04268G
...
2
Network-Wlan Client SAM-BN59-01174D
...
3
Assy Speaker P; 6ohm,4pin,10w,mega3 SAM-BN96-30337C
...
4
Assy Board P-Function Tact; M5300,ct15sf1 SAM-BN96-38694D
...
5
Cover-Terminal Side; 40m5000,hips,t1.5,hb SAM-BN63-15392E
...
6
Assy Pcb Main; 5 Series SAM-BN94-12049B
...
7
Dc Vss-Pd Board; L40msfr_Mhs,ac/dc,88w,ac SAM-BN44-00851C
...
8
Assy Cover P-Rear; 40m5300,hips,v-0,bk002 SAM-BN96-43898Q
...
9
Assy Guide P-Stand; 49m5000,pc+gf20%,bk00 SAM-BN96-43582C
...
10
Assy Stand P-Bottom; 40m530d,pc+abs+gf20% SAM-BN96-38768D
