Samsung UN40JU650DFXZA_TS04

Model: UN40JU650DFXZA_TS04

Save Part Not Listed?
product name

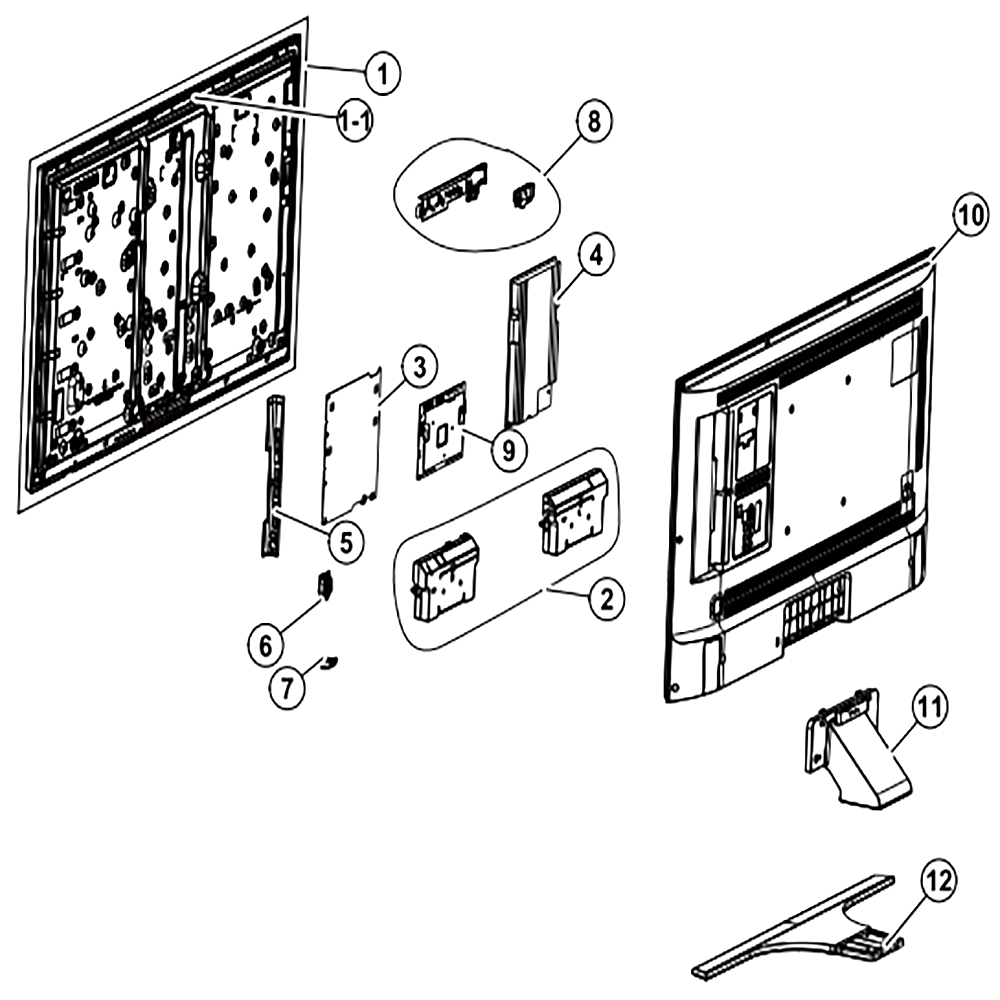

Main

...
...
1-1
Assy Chassis Top P; Y15_Ju6.4k_40,pc+abs SAM-BN96-35593A
...
1
Product Lcd-Sdc; Cy-Gj040hglvgv/h,ju6400, SAM-BN95-01992K
...
2
Assy Speaker P-Front; Tv-Spk,ju6400,6ohm, SAM-BN96-35007D
...
3
Assy Pcb Main; Led Tv SAM-BN94-10519G
...
4
Dc Vss-Led Tv Pd Bd; L40s6_Fsm,l40s6_Fsm, SAM-BN44-00806E
...
5
Holder-Side Av SAM-BN61-11587A
...
6
Assembly Board P-Function Jog SAM-BN96-35345B
...
7
Assembly Board P-Function Assy SAM-BN96-35346D
...
8
Network SAM-BN59-01194F
...
9
Assy T Con; Lsf400fn01-K,40u60hz Flat SAM-BN95-01936B
...
10
Assy Cover P-Rear; 40ju6400,usa,hips V0,b SAM-BN96-35541G
...
11
Assy Guide P-Stand; Ju6400,40"~55" SAM-BN96-35974A
...
12
Assy Stand P-Base; Ju650d/ju6850/ju6430/j SAM-BN96-35977B
