product name

Samsung UN40H5201AFXZA_VF11

Model: UN40H5201AFXZA_VF11

product name

Main

...
...
1
Product Lcd-Sdc; Cy-Df400bglv6v/h,h5303,b SAM-BN95-01139F

...
2
Assy Chassis Top P; Y12 Full Led, 4,y13ve SAM-BN96-21617M

...
3
Assy Speaker P; 6ohm,4pin,10w,enclosure T SAM-BN96-21669B

...
4
Dc Vss-Led Pd Bd; L40hf_Edy U,l40hf_Edy U SAM-BN44-00769C

...
5
Assy Pcb Main; Un40h5201afxza SAM-BN94-07867A

...
6
Bracket-Wall; Ue5000 40",egi-Secc Pl,t1.2 SAM-BN61-07952A

...
7
Holder-Side Av; H6203,hips,america SAM-BN61-10971A

...
8
Assy Board P-Function; Un40h5203,function SAM-BN96-33542B

...
9
Assy Cover P-Middle Rear; H5303,40,uo,pc+ SAM-BN96-33428A

...
10
Cover-Jack; Ue5000,40,pc+abs,v1,bk0007 SAM-BN63-09202A

...
11
Assy Guide P-Stand; Ue5000,40/46/55/60,pc SAM-BN96-21742T

...
12
Assy Stand P-Base; W/w(round),abs,hb,bk00 SAM-BN96-22631E

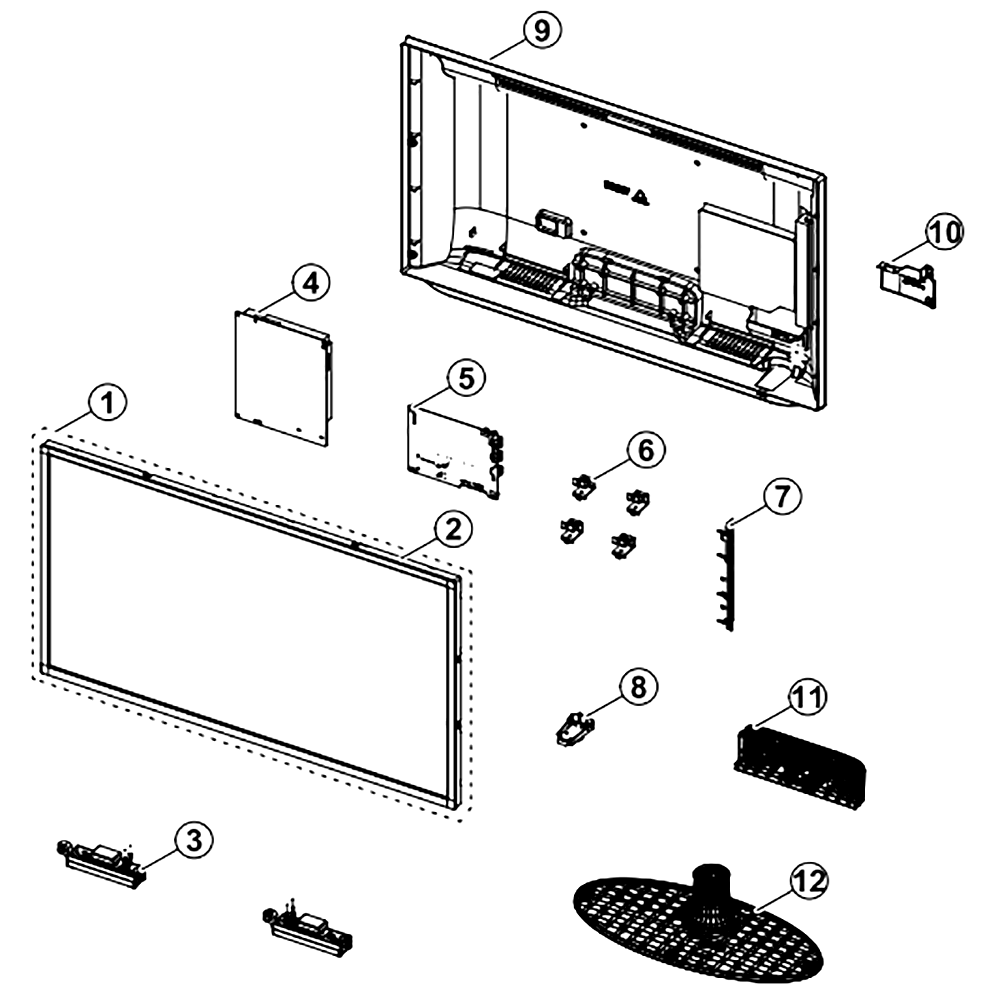

Schematic Image Zoomed
