Samsung UN32M530DAFXZA_FA02

Model: UN32M530DAFXZA_FA02

Save Part Not Listed?
product name

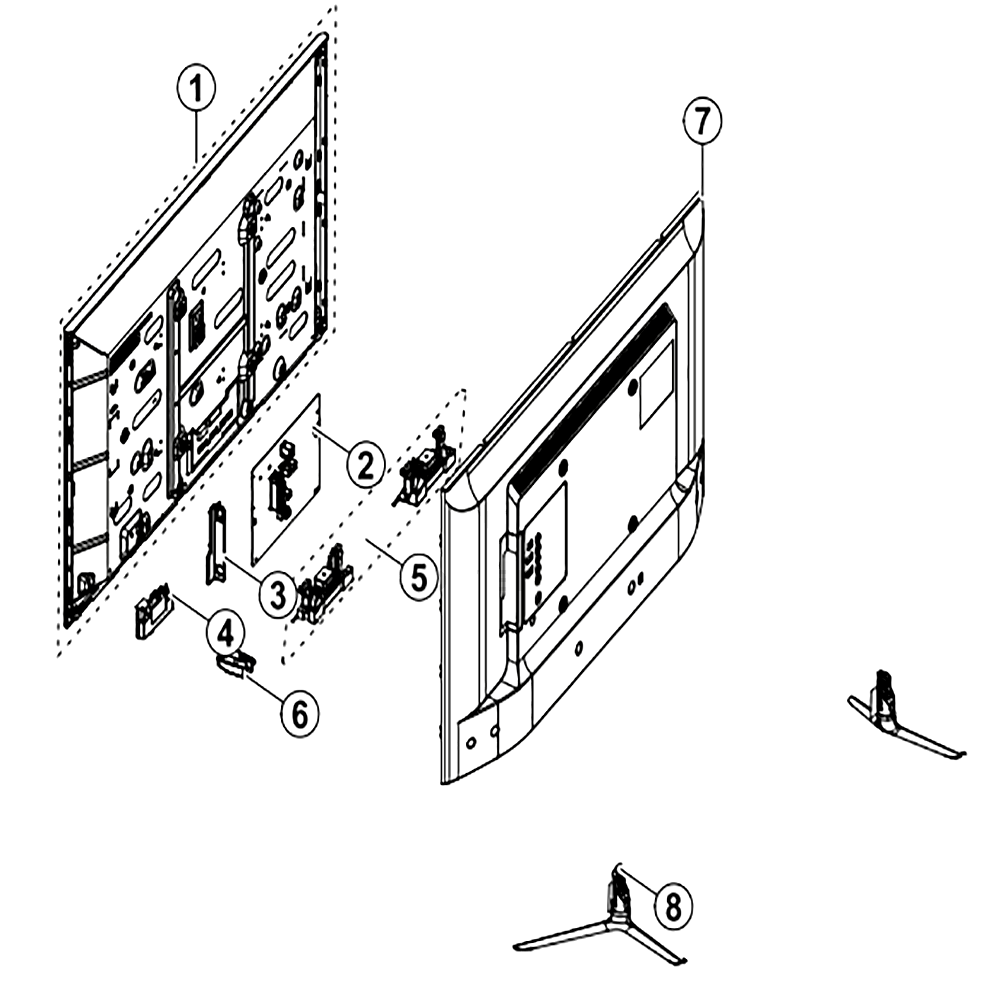

Main

...
...
1
Product Lcd-Sdc; Cy-Jm032bglv2v/h,m5300,p SAM-BN95-04331B
...
2
Assy Pcb Main; 5 Series SAM-BN94-12049M
...
3
Cover-Terminal Side; 40m5000,hips,t1.5,hb SAM-BN63-15392E
...
4
Network-Wlan Client SAM-BN59-01174D
...
5
Assy Speaker P-Front; Tv-Spk,m5000,6ohm,5 SAM-BN96-36052C
...
6
Assy Board P-Function Tact; M5300,ct15sf1 SAM-BN96-38694E
...
7
Assy Cover P-Rear; 32m5300,hips,v-0,bk002 SAM-BN96-43978B
...
8
Assy Stand P-Base; J5003,y-Feet,titan Bla SAM-BN96-37256C
