Samsung UN32J525DAFXZA_LS02

Model: UN32J525DAFXZA_LS02

Save Part Not Listed?
product name

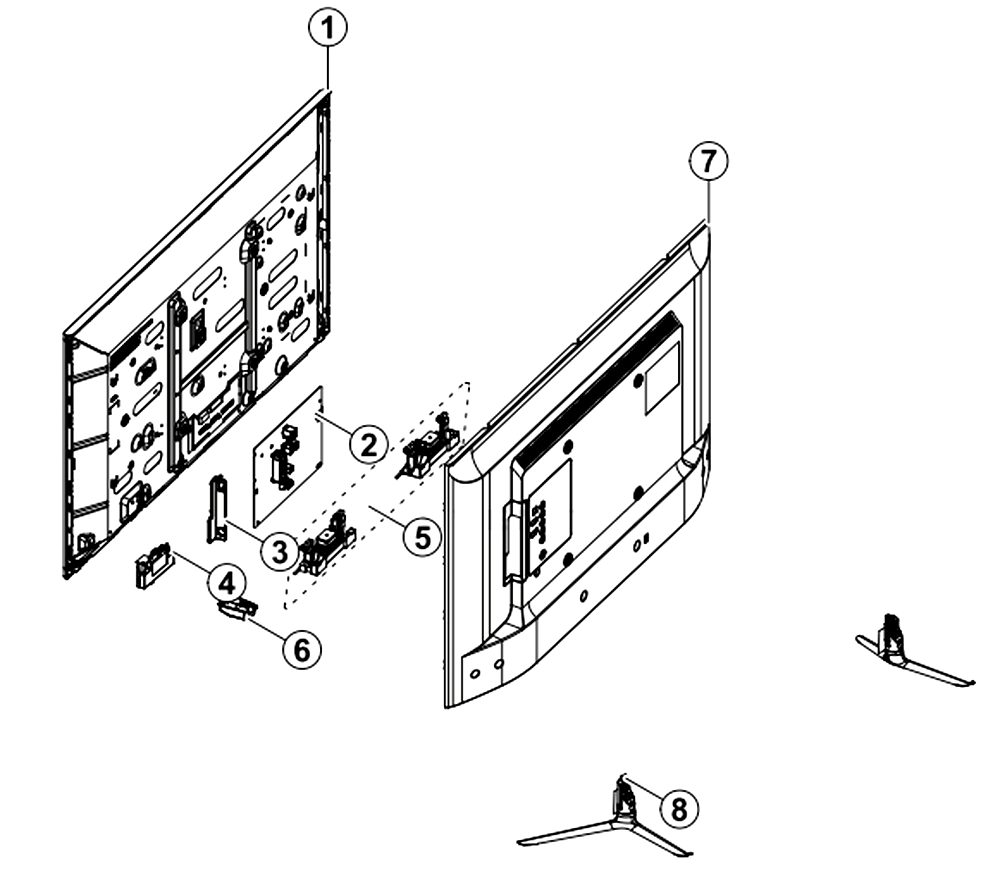

Main

...
...
1
Lcd-Panel Core; Jj032bgl-R2,rjj4bl2,8bit* SAM-BN07-01458B
...
2
Assy Pcb Main; J5000 SAM-BN94-08236W
...
3
Holder-Side Av; J4003 32" W/w Smart,hips SAM-BN61-12291A
...
4
Network-Wi-Fi Module; Wdf710q,wswlm400a00 SAM-BN59-01196C
...
5
Assy Speaker P; 6ohm,4pin,5w,j4003" SAM-BN96-36052A
...
6
Assy Board P; J4303_Function_Assy SAM-BN96-36076C
...
7
Cover-Rear; J5303 32" Uo,hips,v0,bk0020 SAM-BN63-13996K
...
8
Assy Stand P-Base; J5003,y-Feet,titan Bla SAM-BN96-37256C
