Samsung SMX-F40BN/XAA

Model: SMX-F40BN/XAA

Save Part Not Listed?
product name

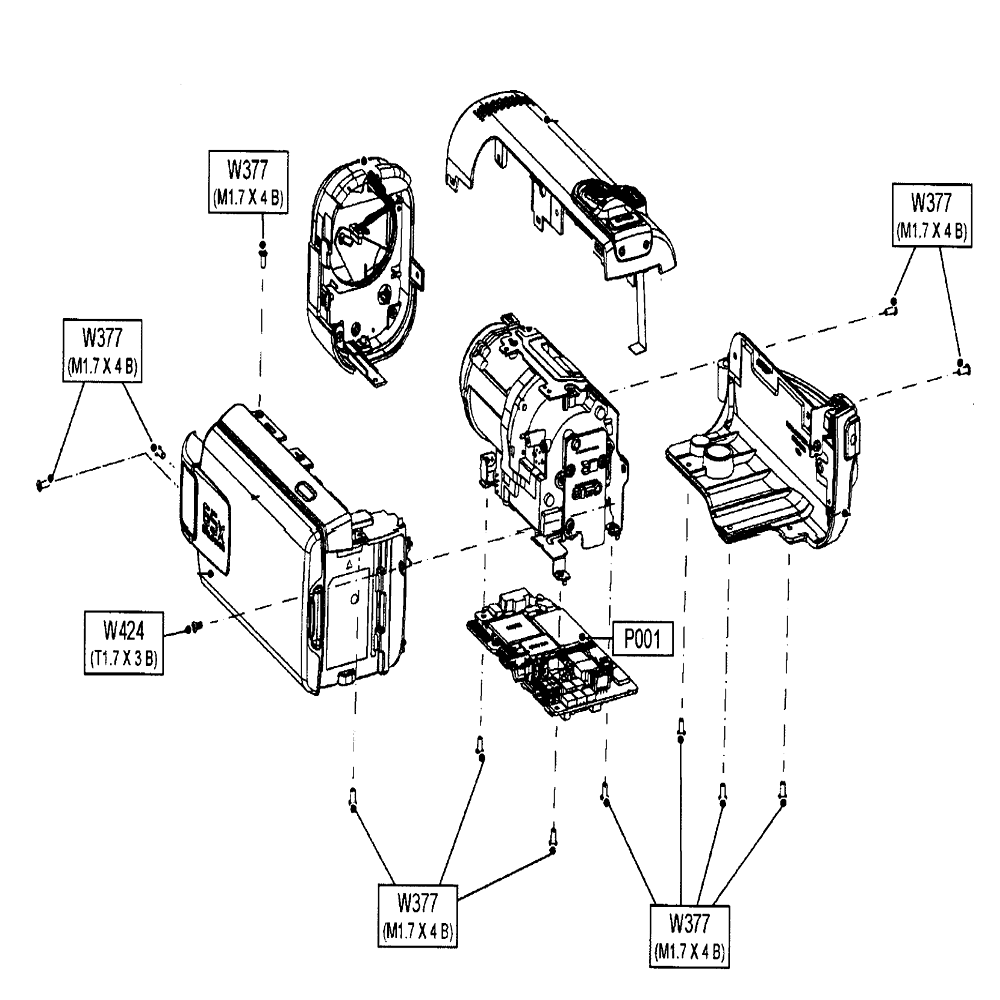

Chassis

...
...
P001
Pcb Assembly SAM-AD92-00981A
...
W377
Screw-M1.7,l4,zpc(blk) SAM-6001-001291
...
W424
Screw SAM-6003-001637

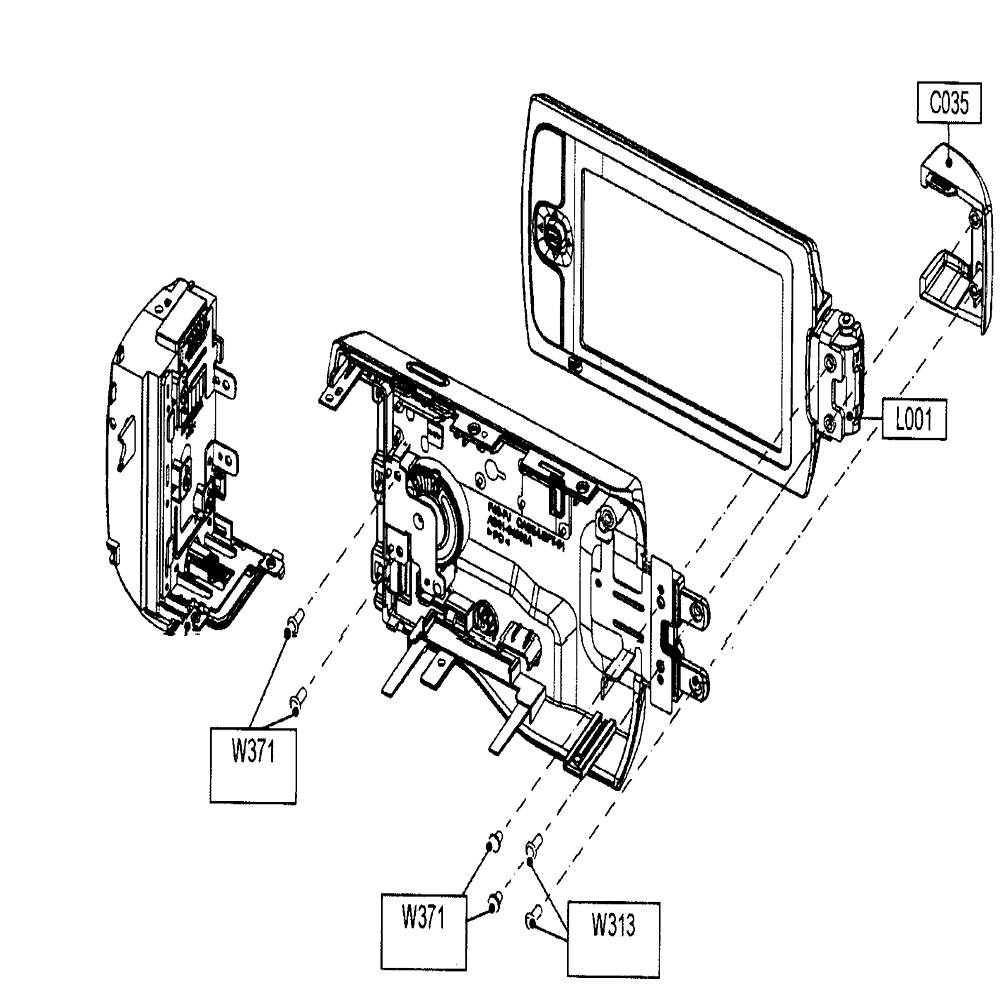

Left Assy

...
...
C035
Cover SAM-AD63-04579A
...
L001
Lcd Assembly SAM-AD97-18198A
...
W313
Screw SAM-6001-001510
...
W371
Screw-M1.7,l4,zpc(blk) SAM-6003-001453

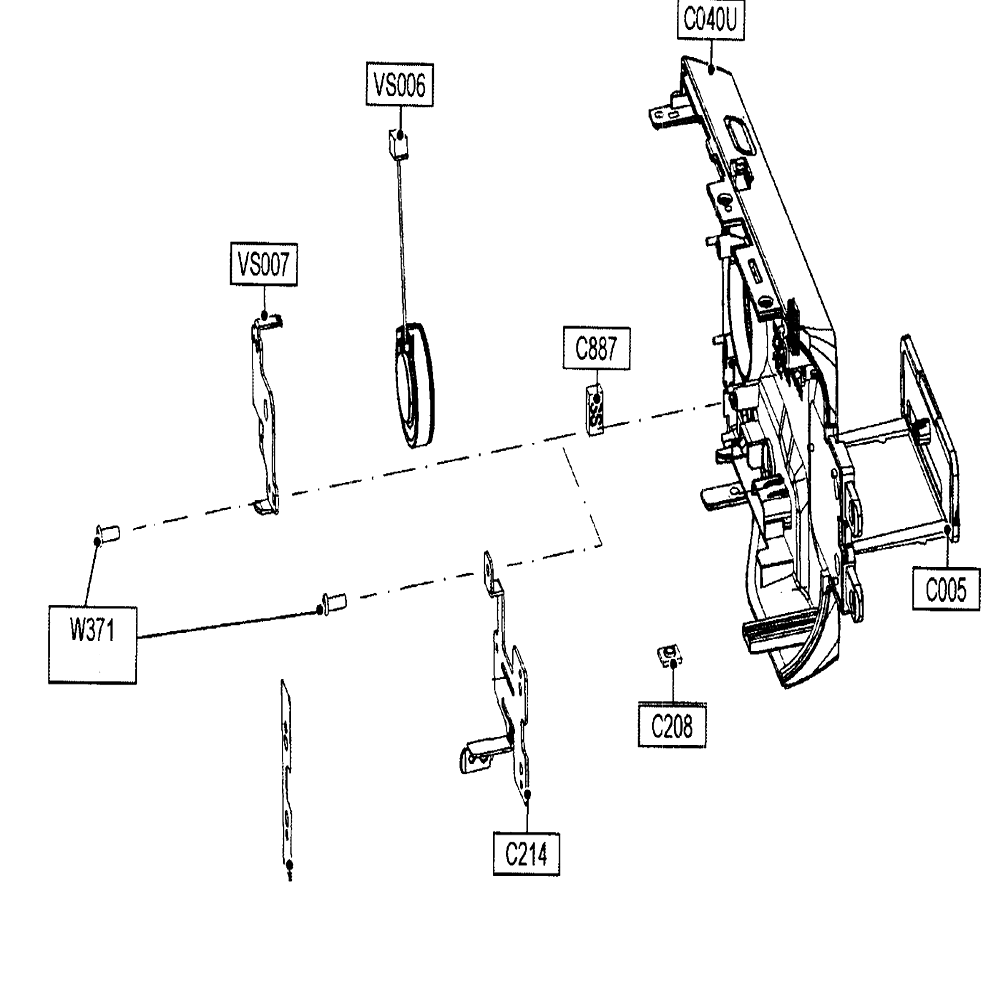

Left Case

...
...
C208
Bracket-Nu SAM-AD61-12033A
...
VS07
Bracket SAM-AD61-04681A
...
VS06
Speaker Assembly SAM-AD97-18175A
...
C887
Magnet SAM-AD61-02519A
...
C40U
Case Unit SAM-AD97-18880A
...
C214
Bracket SAM-AD61-04401A
...
C005
Door Cover SAM-AD63-05003A

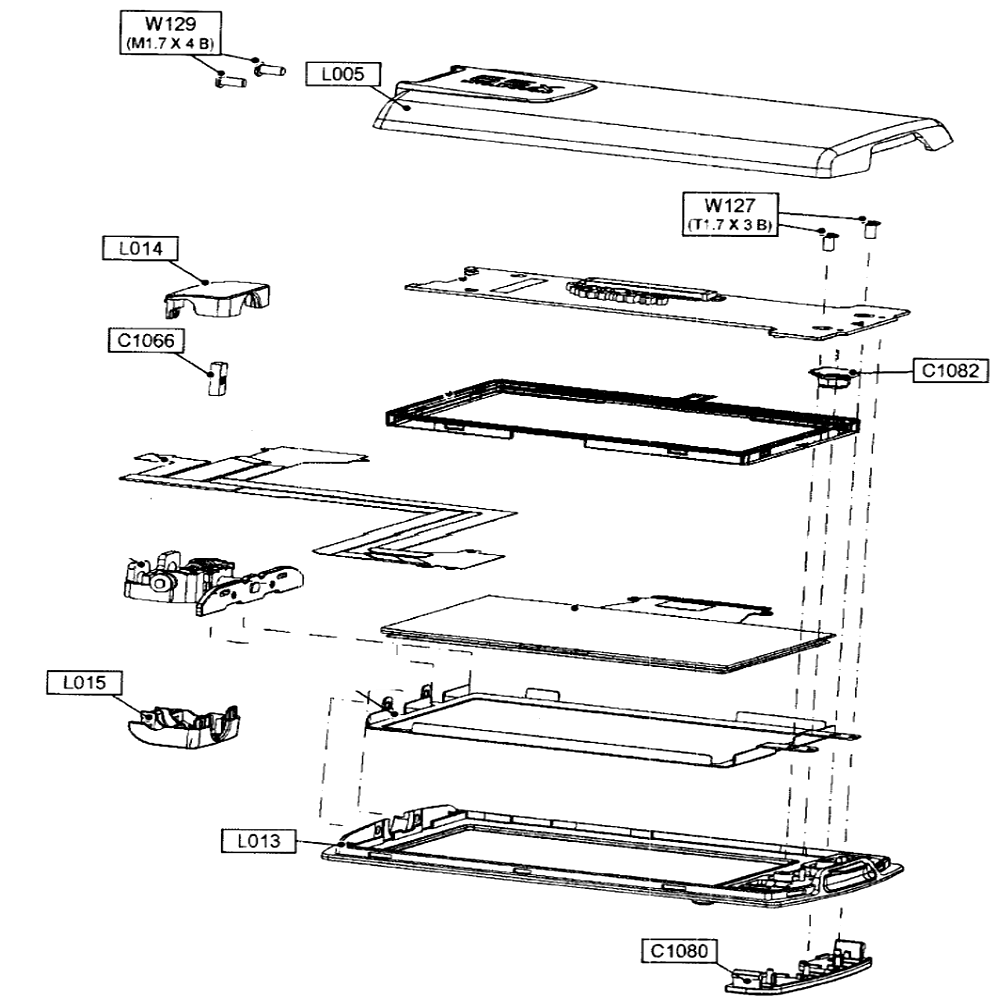

Lcd Assy

...
...
C066
Lcd Magnet SAM-AD61-04473A
...
W129
Screw SAM-6001-001719
...
W127
Screw SAM-6003-001292
...
L015
Hinge Cover SAM-AD63-04584A
...
L014
Hinge Cover SAM-AD63-04583A
...
L013
Case Lcd SAM-AD61-04397A
...
L005
Case Lcd SAM-AD97-18878A
...
C082
Knob SAM-AD64-02461A
...
C080
Lcd Button SAM-AD64-02771A

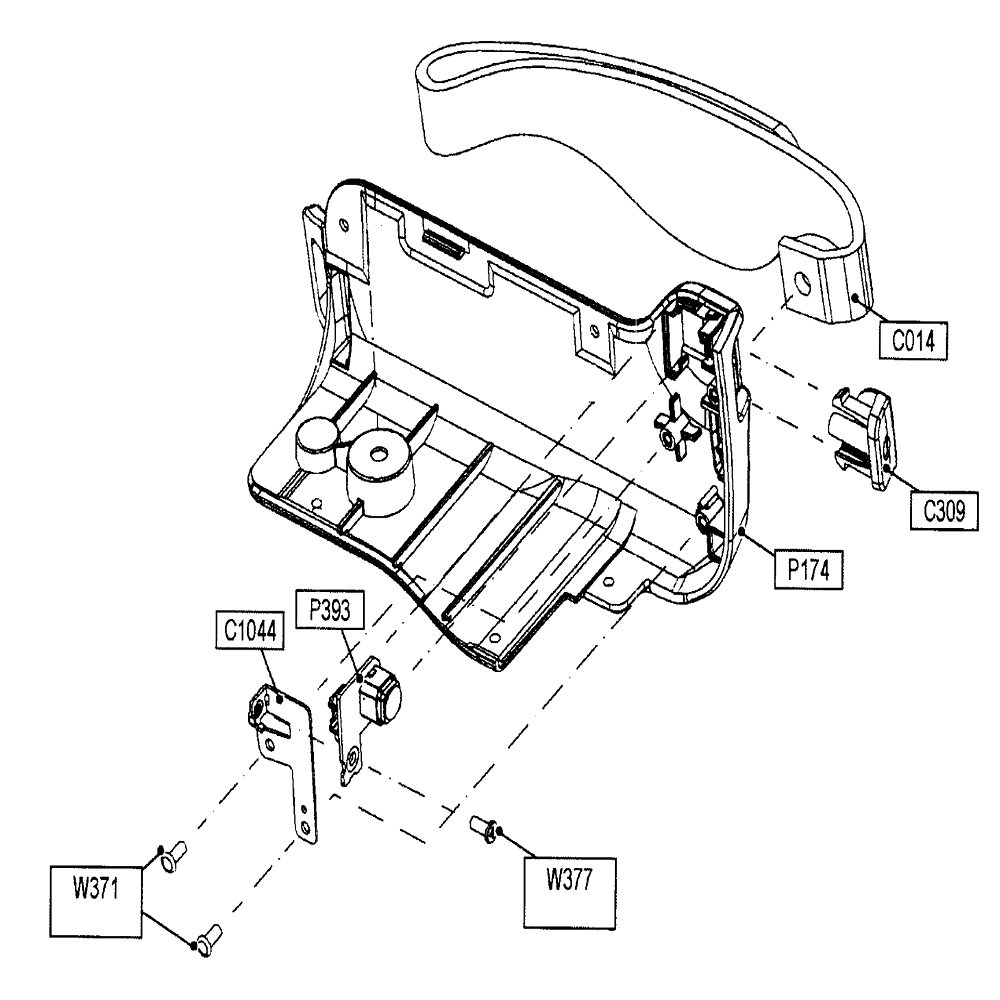

Right Assy

...
...
C014
Grip Belt SAM-AD97-18291A
...
C044
Bracket SAM-AD61-04408A
...
C309
Record Button SAM-AD64-02772A
...
P174
Case Unit SAM-AD97-18992A
...
P393
Pcb Assembly SAM-AD92-00995A

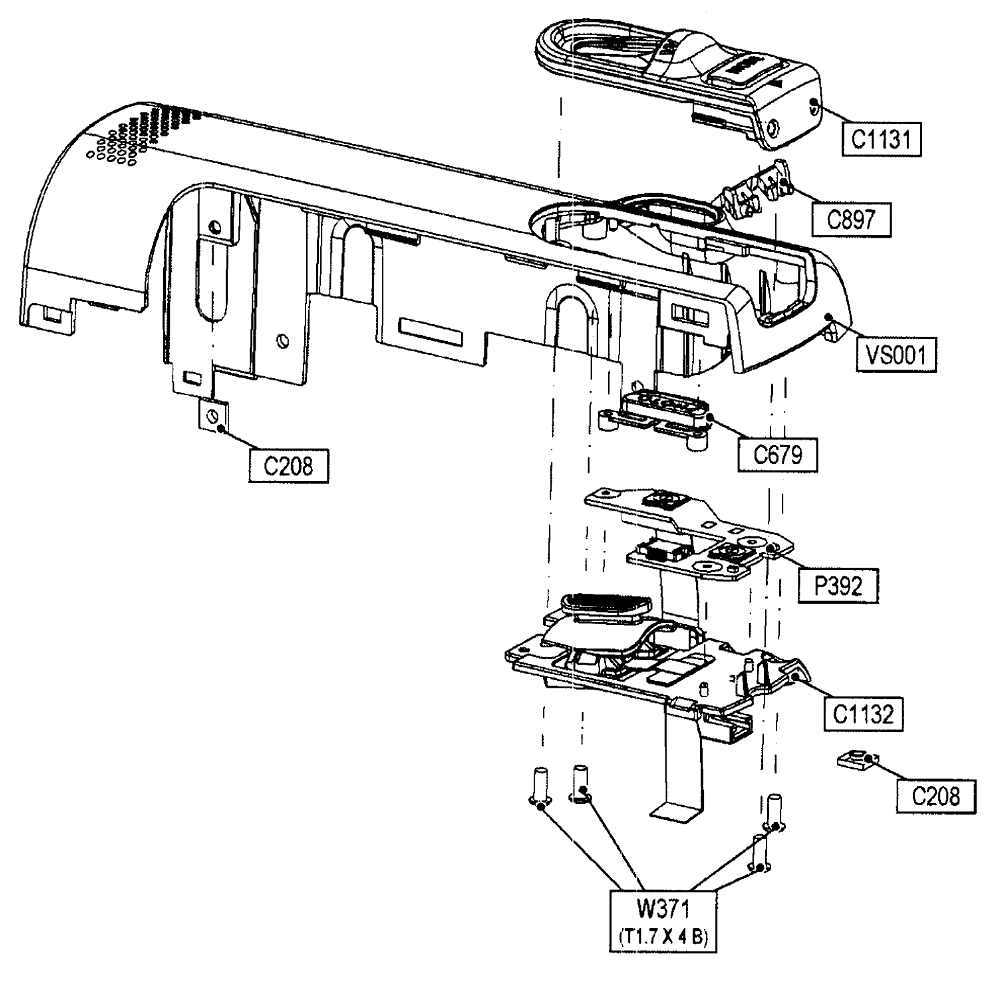

Top Assy

...
...
VS01
Case-Top SAM-AD61-04370A
...
P392
Pcb Assembly SAM-AD92-00994A
...
C897
Indicator SAM-AD64-02776A
...
C132
Assy Inner SAM-AD97-18925A
...
C131
Cover-Zoom SAM-AD97-18879A
...
C679
Button SAM-AD64-02769A

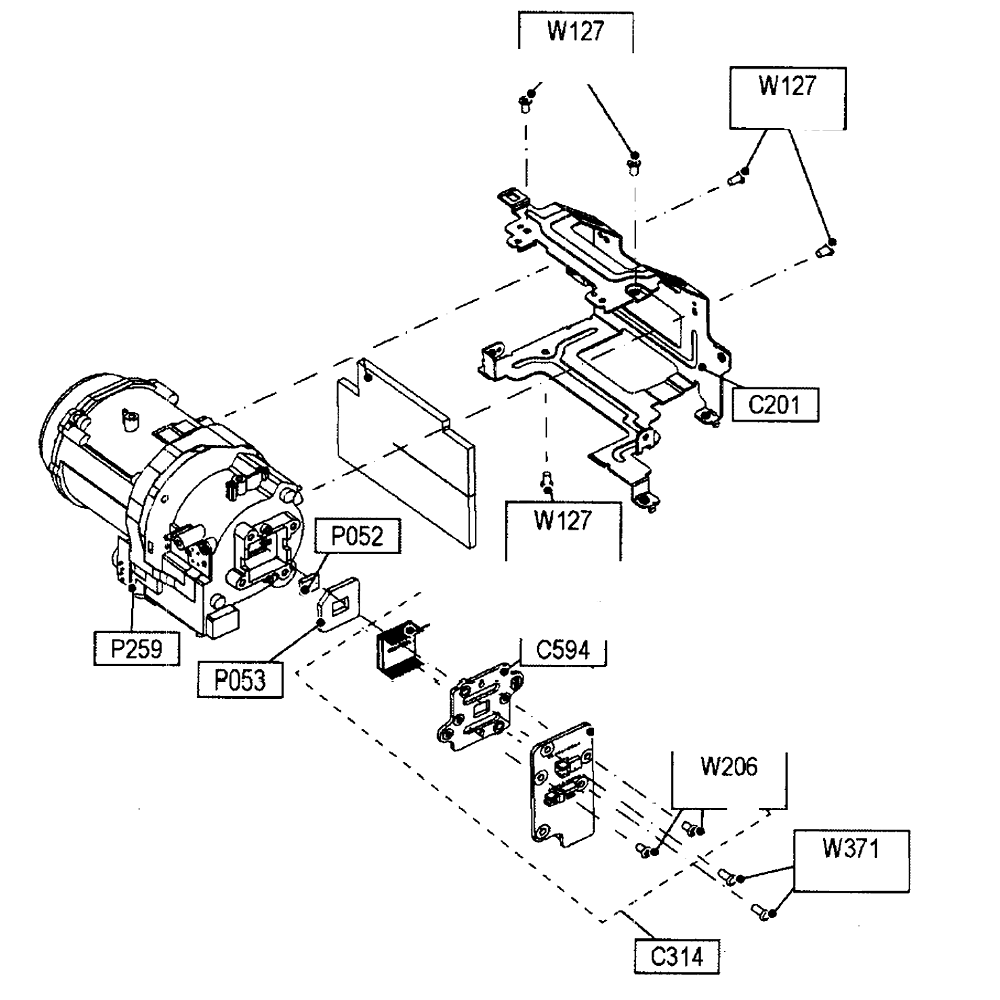

Lens Assy

...
...
C201
Bracket Lens SAM-AD61-04400A
...
C314
Assy Ccd SAM-AD97-18203A
...
C594
Ccd Plate SAM-AD61-02368A
...
P052
Lens Filtr SAM-AD67-01651A
...
P053
Spacer Camcorder SAM-AD60-00073A
...
P259
Assy Lens SAM-AD97-18638A
...
W206
Screw SAM-6001-001373

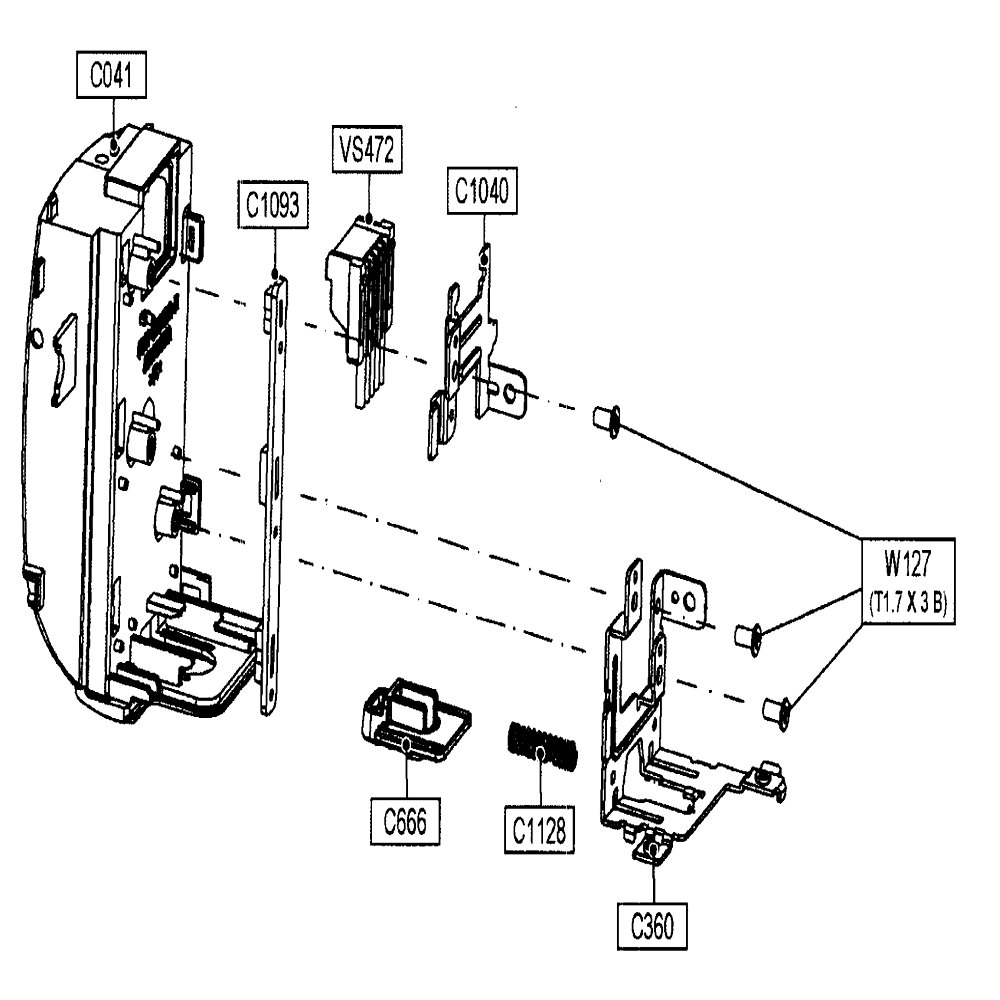

Rear Assy

...
...
C093
Battery Cover SAM-AD63-04585A
...
VS72
Wi.harness SAM-AD39-00176A
...
C666
Battery Knob SAM-AD64-02775A
...
C360
Bracket SAM-AD61-04406A
...
C128
Spring SAM-AD61-04392A
...
C041
Case Rear SAM-AD61-04398A
...
C040
Bracket SAM-AD61-04407A

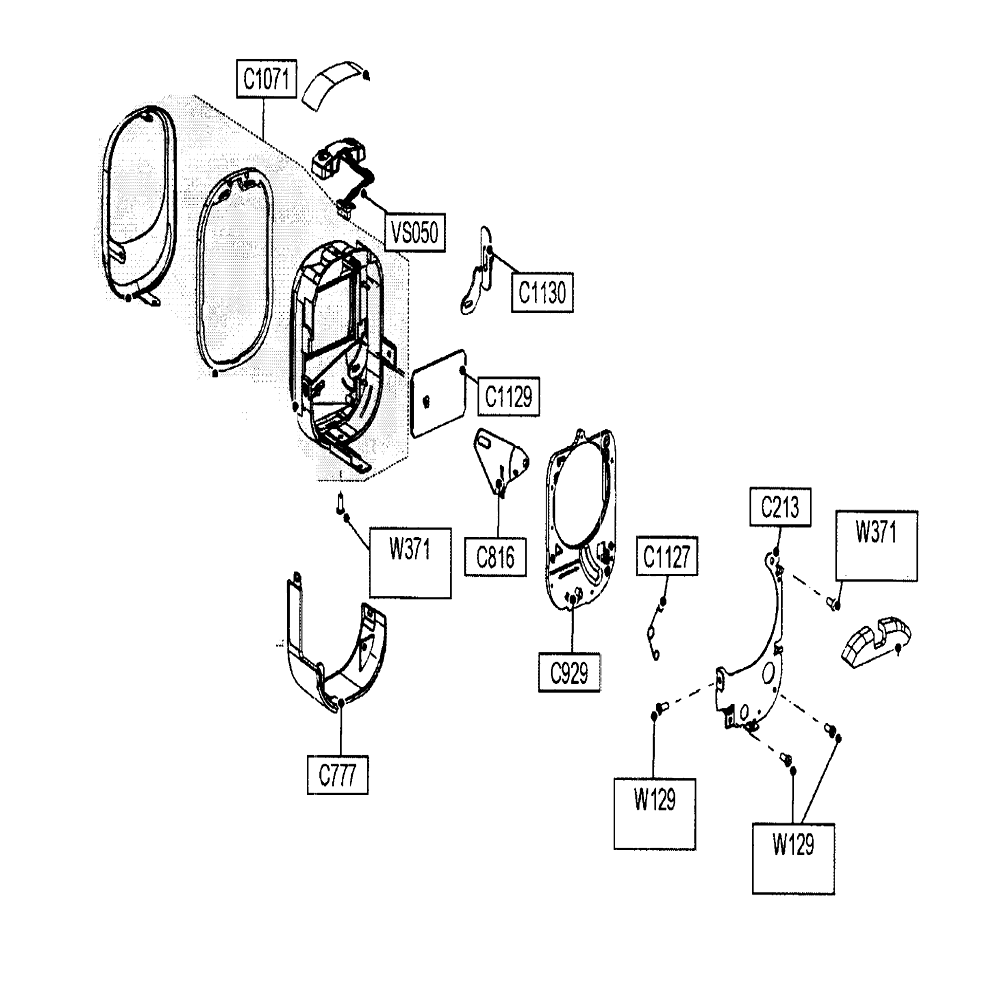

Front Assy

...
...
C071
Assembly Front SAM-AD97-18961A
...
C127
Spring Blade SAM-AD61-02916A
...
C129
Lens Cover SAM-AD63-04578A
...
C130
Knob Cover SAM-AD64-02774A
...
C213
Bracket-Fr SAM-AD61-04409A
...
C777
Cover SAM-AD63-04580A
...
C816
Holder SAM-AD61-04411A
...
C929
Holder SAM-AD61-04410A
...
VS50
Assy Mic SAM-AD97-18174A
