Samsung SMH9151B_XAA

Model: SMH9151B_XAA

Save Part Not Listed?
product name

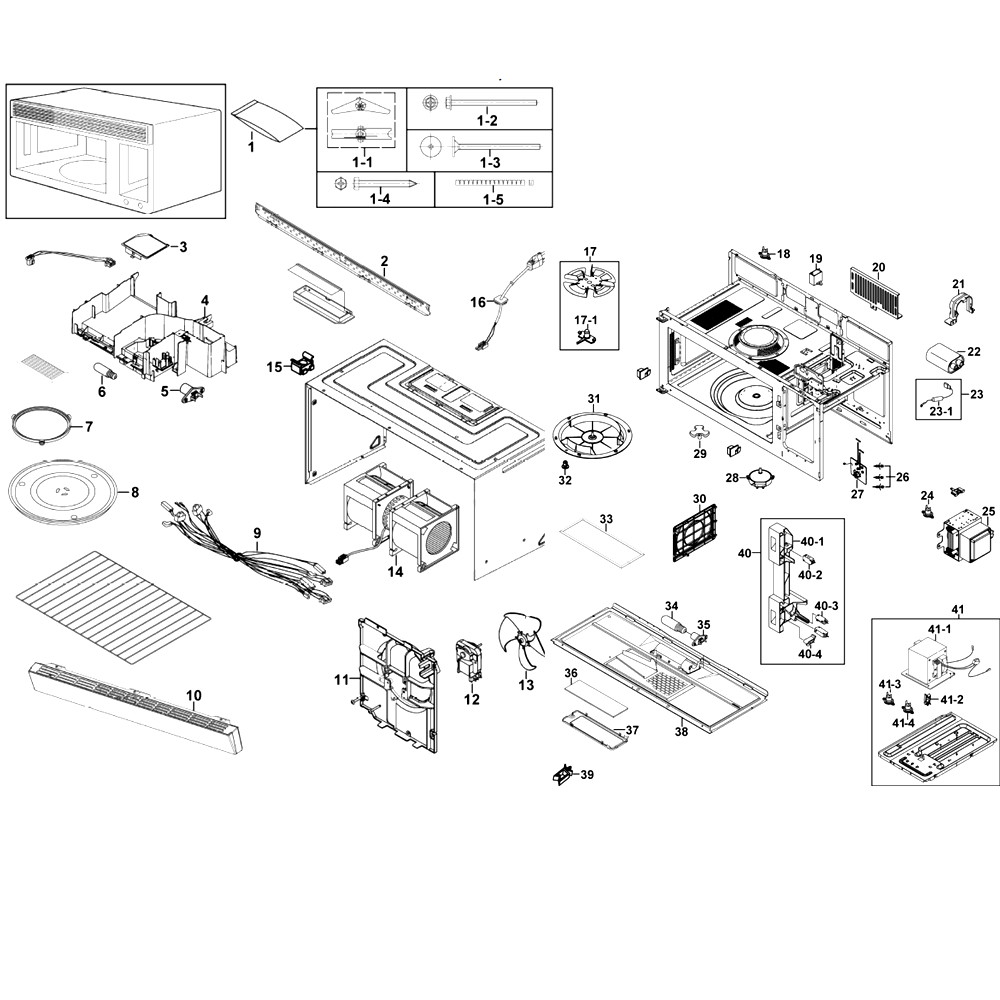

Assy Cabinet

...
...
1-1
Nut-Toggle SAM-DE60-30022A
...
1
Assembly Hard Ware SAM-DE92-90505G
...
1-5
Grommet SAM-DE63-10011A
...
1-3
Bolt-Flat SAM-DE60-20066A
...
1-4
Screw-Lag SAM-DE60-10111A
...
1-2
Bolt-Toggle SAM-DE60-20022A
...
2
Plate-Mounting SAM-DE70-00561A
...
3
Cover-Lamp SAM-DE63-00541A
...
4
Duct-Upper SAM-DE67-00273B
...
5
Socket-Lamp SAM-DE47-00006A
...
6
Lamp-Incandescent SAM-4713-001013
...
7
Assembly Guide Roller SAM-DE92-90495C
...
8
Tray-Cooking SAM-DE63-00536A
...
9
Assembly Wire Harness-A SAM-DE96-00740A
...
10
Grille SAM-DE64-02139A
...
11
Cover-Motor SAM-DE63-00533B
...
12
Motor Fan SAM-DE31-10155T
...
13
Blade-Fan SAM-DE31-90051A
...
14
Motor Ventilation SAM-DE31-00028L
...
15
Assy-Holder Nut SAM-DE92-90508A
...
16
Assembly Power Cord SAM-DE96-00218C
...
17-1
Holder-Stirrer SAM-DE61-01061A
...
17
Assembly Stirrer SAM-DE94-01917A
...
18
Thermostat SAM-DE47-20196A
...
19
Capacitor-Motor SAM-DE59-50002A
...
20
Cover Front SAM-DE63-00549A
...
21
Bracket-Hvc SAM-DE61-00115A
...
22
C-Oil SAM-2501-001011
...
23-1
Diode-H.v SAM-DE59-00002A
...
23
Assy-Hvd SAM-DE91-70063D
...
24
Thermostat SAM-DE47-20007A
...
25
Assembly Mgt SAM-OM75P-21-ESGN
...
26
Support-Pcb SAM-DE61-30129A
...
27
Assembly Noise Filter SAM-DE96-00400A
...
28
Motor Synchronous SAM-DE31-10172B
...
29
Coupler SAM-DE67-00236A
...
30
Cover-Mgt SAM-DE63-00532A
...
31
Cover-Stirrer SAM-DE63-00534A
...
32
Button-Locking SAM-DE66-20095B
...
33
Filter-Air SAM-DE63-00196A
...
34
Lamp-Incandescent SAM-4713-001013
...
35
Socket-Lamp SAM-DE47-00006A
...
36
Glass-Cook Top Lamp SAM-DE67-40063A
...
37
Cover-Cooktop Lamp SAM-DE63-00100B
...
38
Base-Bottom SAM-DE61-00857E
...
39
Wire-Saddle SAM-DE66-00123A
...
40-1
Latch-Body SAM-DE66-00168A
...
40-2
Switch-Micro SAM-3405-001034
...
40-3
Switch-Micro SAM-3405-001033
...
40-4
Lever-Switch Lower SAM-DE66-90106B
...
40
Assembly Body Latch SAM-DE96-00414A
...
41
Assembly Base Plate SAM-DE94-01926C
...
41-4
Thermostat SAM-DE47-20034A
...
41-2
Wire-Saddle SAM-DE66-00123A
...
41-1
Trans H.v SAM-DE26-00143C
...
41-3
Thermostat SAM-DE47-20059A

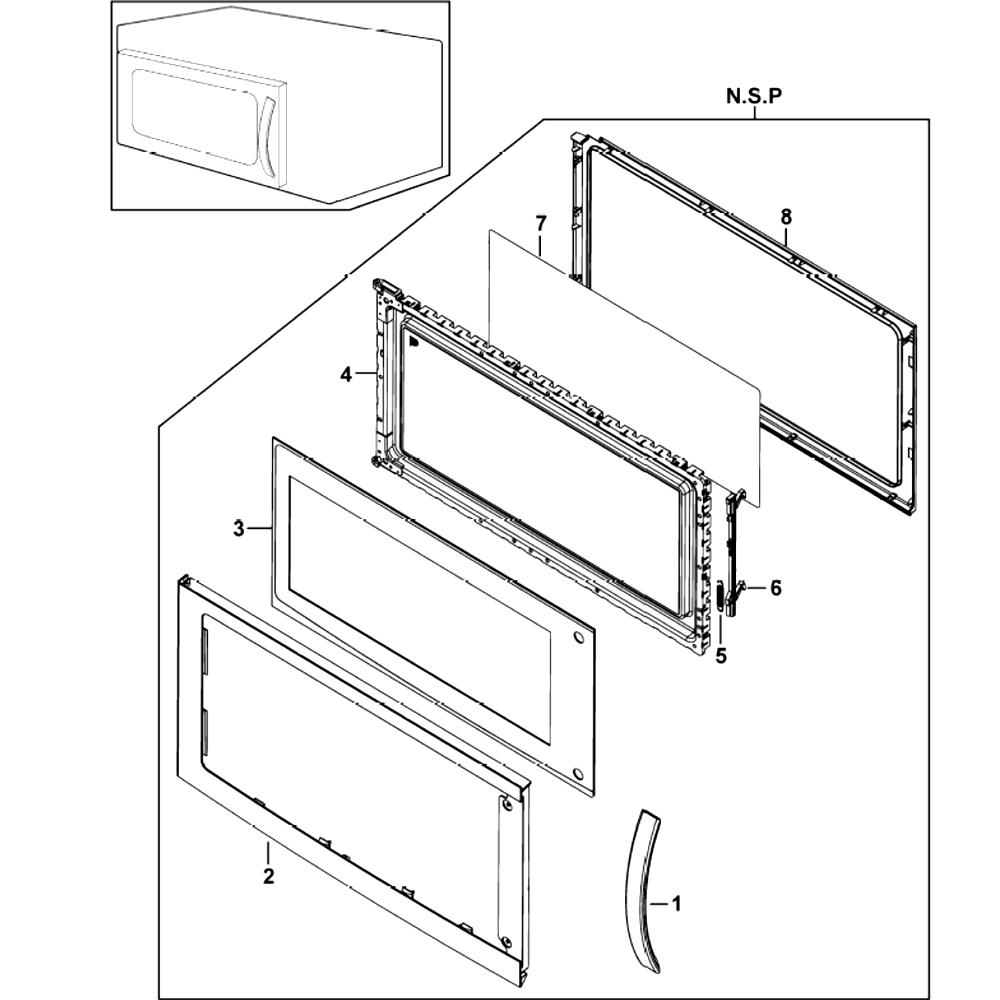

Assy Door

...
...
1
Assembly Handle SAM-DE94-01814A
...
2
Door-A SAM-DE64-01949A
...
3
Screen-Door(b) SAM-DE64-02053A
...
4
Assembly Door E SAM-DE94-01469G
...
5
Spring-Key SAM-DE61-00048A
...
6
Door-Key SAM-DE64-01308A
...
7
Film-Door SAM-DE01-00091A
...
8
Door-C SAM-DE64-02056A

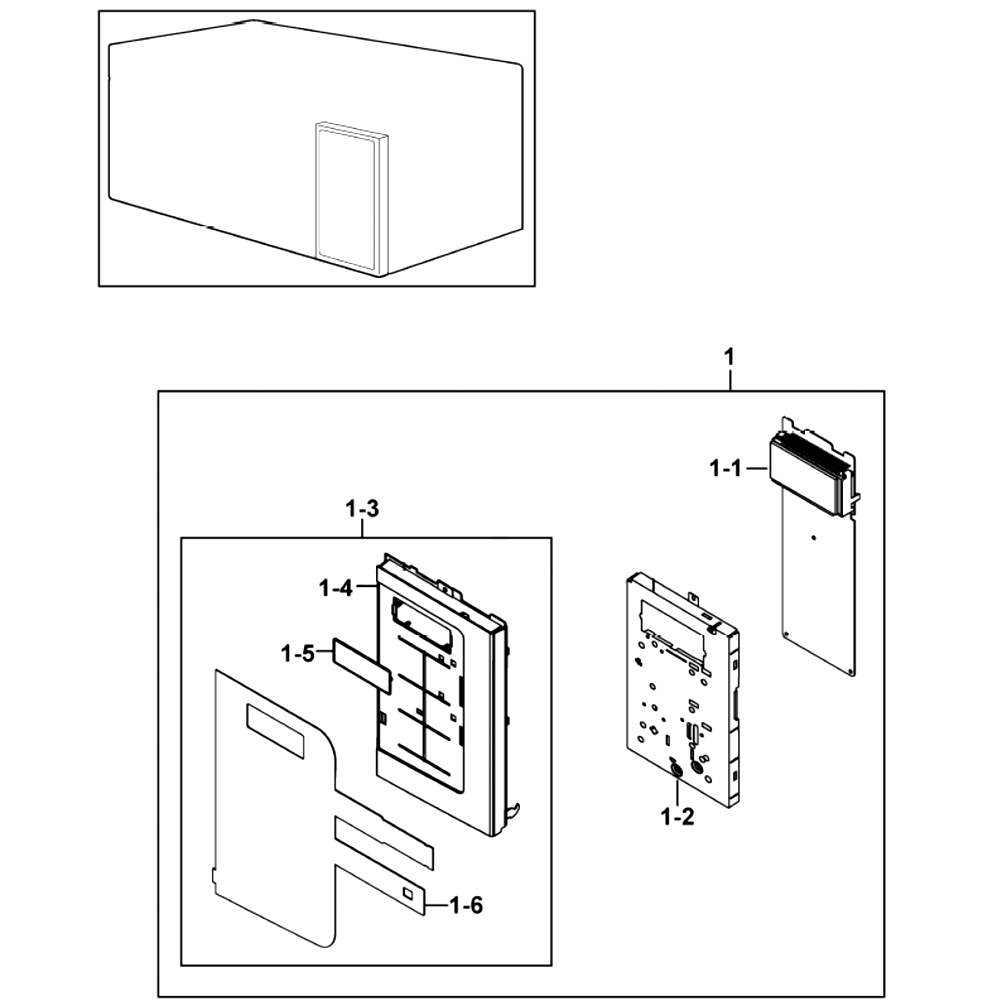

Assy Control

...
...
1-1
Assembly Pcb Parts SAM-RAS-SM6L-01
...
1-2
Assembly Bracket C/panel SAM-DE94-01810B
...
1-3
Assembly Control Panel SAM-DE94-01806H
...
1-4
Control-Panel SAM-DE64-01950E
...
1-5
Window-Display SAM-DE64-00766A
...
1-6
Switch Membrane SAM-DE34-00304F
...
1
Assembly Control Box SAM-DE94-01807L
