Samsung SMH7178STD

Model: SMH7178STD

Save Part Not Listed?

Popular Parts

Key-Door SAM-DE64-00760A

Switch-Micro SAM-3405-001034

Bolt-Toggle SAM-DE60-20022A

Damper-Main SAM-DE72-40022A

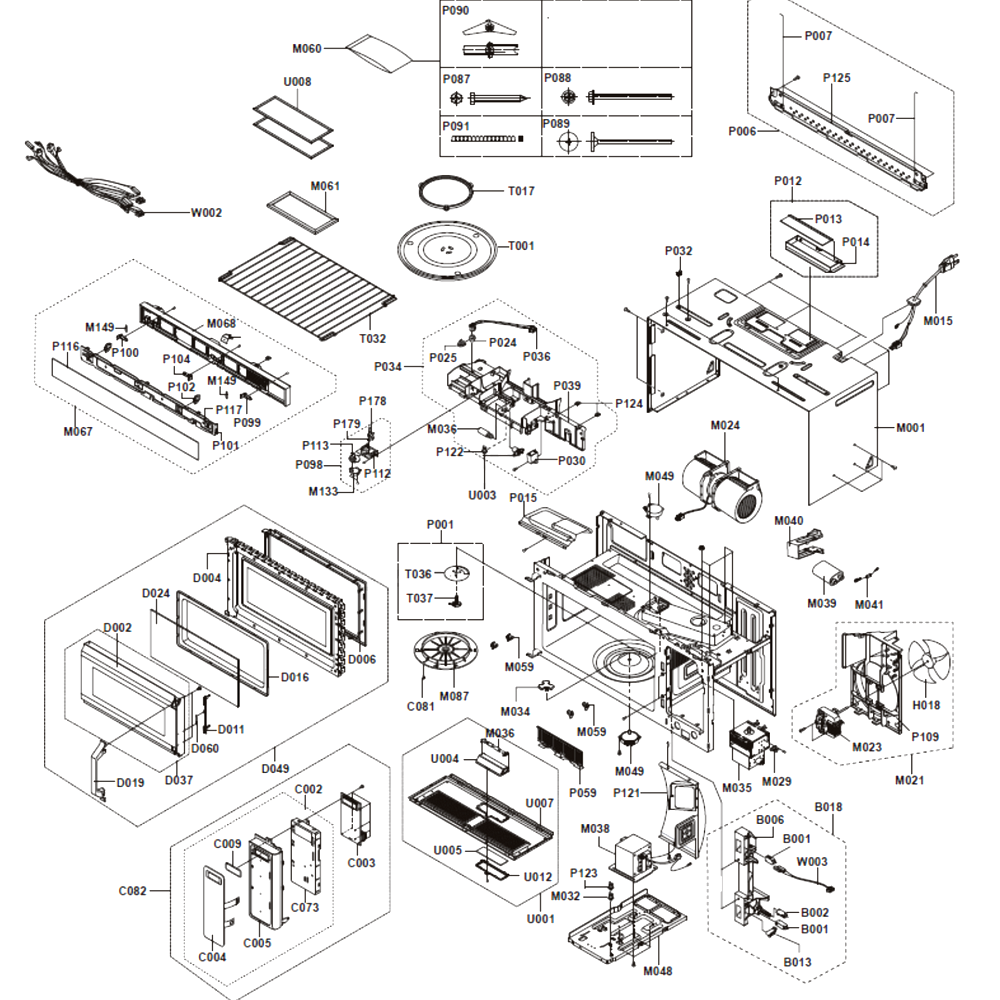

Main

P059

Cover-Front SAM-DE63-00138A

P109

Cover-Motor SAM-DE63-00141A

P104

Hinge-Grille(m) SAM-DE61-00177A

P102

Bracket-Barrier Gr SAM-DE61-00150A

P101

Assy-Cover Grille SAM-DE97-00497A

P100

Hinge-Grille(l) SAM-DE61-00129A

P099

Hinge-Grille(r) SAM-DE61-00128A

P098

Assy-Cam Louver SAM-DE97-00181A

P091

Grommet SAM-DE63-10011A

P090

Nut-Toggle SAM-DE60-30022A

P089

Bolt-Flat SAM-DE60-20066A

P088

Bolt-Toggle SAM-DE60-20022A

P087

Screw-Lag SAM-DE60-10111A

P112

Bracket-Cam Plate SAM-DE61-00118A

P039

Duct-Upper SAM-DE67-00168A

P036

Wire Harness-S SAM-DE39-40678A

P034

Assy-Duct Upper SAM-DE97-00366B

P032

Assy-Holder Nut SAM-DE92-90508A

P030

Capacitor-Motor SAM-DE59-50002A

P025

Holder-Sensor SAM-DE61-90111A

P024

Sensor-Gas SAM-DE32-60011A

P015

Assy-Bkt Duct Upper SAM-DE97-00411A

P014

Damper-Main SAM-DE72-40022A

P013

Cover-Damper SAM-DE71-60051A

P012

Assy-Hood Damper SAM-DE92-90242A

T017

Assy-Guide Roller SAM-DE97-00368A

W003

Wire Harness-B SAM-DE39-40674A

W002

Wire Harness-A SAM-DE39-00024C

U012

Cover-Glass Cooktop SAM-DE63-00137B

U008

Filter-Air SAM-DE63-00196A

U007

Base-Bottom SAM-DE61-00406B

U005

Glass-Cooktop Lamp SAM-DE64-00911A

U004

Bracket-Bottom Lamp SAM-DE61-00407A

U003

Socket-Lamp SAM-DE47-00006A

U001

Assy-Base Bottom SAM-DE97-00360A

T037

Holder-Stirrer SAM-DE61-00505A

T036

Blade-Stirrer SAM-DE31-00023A

T032

Assy-Wire Rack SAM-DE97-00369A

P007

Plate-Mounting SAM-DE70-00378A

T001

Tray-Cooking SAM-DE74-20002A

P179

Switch-Micro SAM-3405-001051

P178

Switch-Micro SAM-3405-001050

P125

Wire-Mounting SAM-DE66-00121A

P124

Nut-Mounting SAM-DE60-30063A

P123

Thermostat SAM-DE47-20034A

P122

Thermostat SAM-DE47-20059A

P121

Bracket-Duct Rear SAM-DE61-00411A

P117

Bracket-Cover Grille SAM-DE61-00672A

P116

Cover-Grille SAM-DE64-01296A

P113

Cam-Louver SAM-DE72-00145A

C081

Button-Locking SAM-DE66-20095B

M001

Panel-Outer SAM-DE64-00754A

H018

Blade-Fan SAM-DE31-90051A

D060

Spring-Es SAM-6107-001175

D049

Assembly Door SAM-DE94-01118A

D037

Assembly Door-A SAM-DE94-01117A

D024

Screen-Door(b) SAM-DE64-01292A

D019

Handle-Door SAM-DE64-01293A

D011

Key-Door SAM-DE64-00760A

D006

Door-C SAM-DE64-00759A

D004

Assembly Door-E(coating) SAM-DE94-00882B

D002

Door-A SAM-DE64-01295A

C082

Assembly Control-Box SAM-DE94-01120A

M015

Assy-Power Cord SAM-DE96-00218A

C073

Assy-Bracket C/panel SAM-DE97-00498A

C009

Window-Display SAM-DE64-00766B

C005

Panel-Control SAM-DE64-01302A

C004

Switch Membrane SAM-DE34-00205A

C003

Assembly Pcb Parts SAM-RAS-SOTR2-03

C002

Assembly Control-Panel SAM-DE94-01119A

B018

Assembly Body Latch SAM-DE96-00082A

B013

Lever-Switch Lower SAM-DE66-90106B

B006

Body-Latch SAM-DE66-00084A

B002

Switch-Micro SAM-3405-001034

B001

Switch-Micro SAM-3405-001033

M041

Assy-Hvd SAM-DE91-70063D

P006

Assy-Mounting Plate SAM-DE97-00363A

P001

Assy-Stirrer SAM-DE97-00367A

M149

Spring-Louver SAM-DE61-00527A

M133

Motor Drive SAM-DE31-10154C

M087

Cover-Stirrer SAM-DE71-60121A

M068

Grille SAM-DE64-01294A

M067

Assy-Grille SAM-DE97-00496A

M061

Filter-Charcoal SAM-DE63-30016D

M060

Assy-Hard Ware SAM-DE92-90505E

M059

Holder-Rack SAM-DE61-00375A

M049

Motor-Synchronous SAM-DE31-10173A

M048

Base-Plate SAM-DE61-00415A

M040

Bracket-Hvc SAM-DE61-00115A

M039

C-Oil SAM-2501-001011

M038

Trans H.v SAM-DE26-00082A

M036

Lamp-Incandescent SAM-4713-001013

M035

Assy-Magnetron SAM-OM75P(10)MSMN

M034

Coupler SAM-DE67-00179A

M032

Thermostat SAM-DE47-20059A

M029

Thermostat SAM-DE47-20007A

M024

Motor Ventilation SAM-DE31-00029A

M023

Motor Fan SAM-DE31-10177E

M021

Assy-Cover Motor SAM-DE97-00365A
