Samsung SLM3870FW/XAA

Model: SLM3870FW/XAA

Save Part Not Listed?
product name

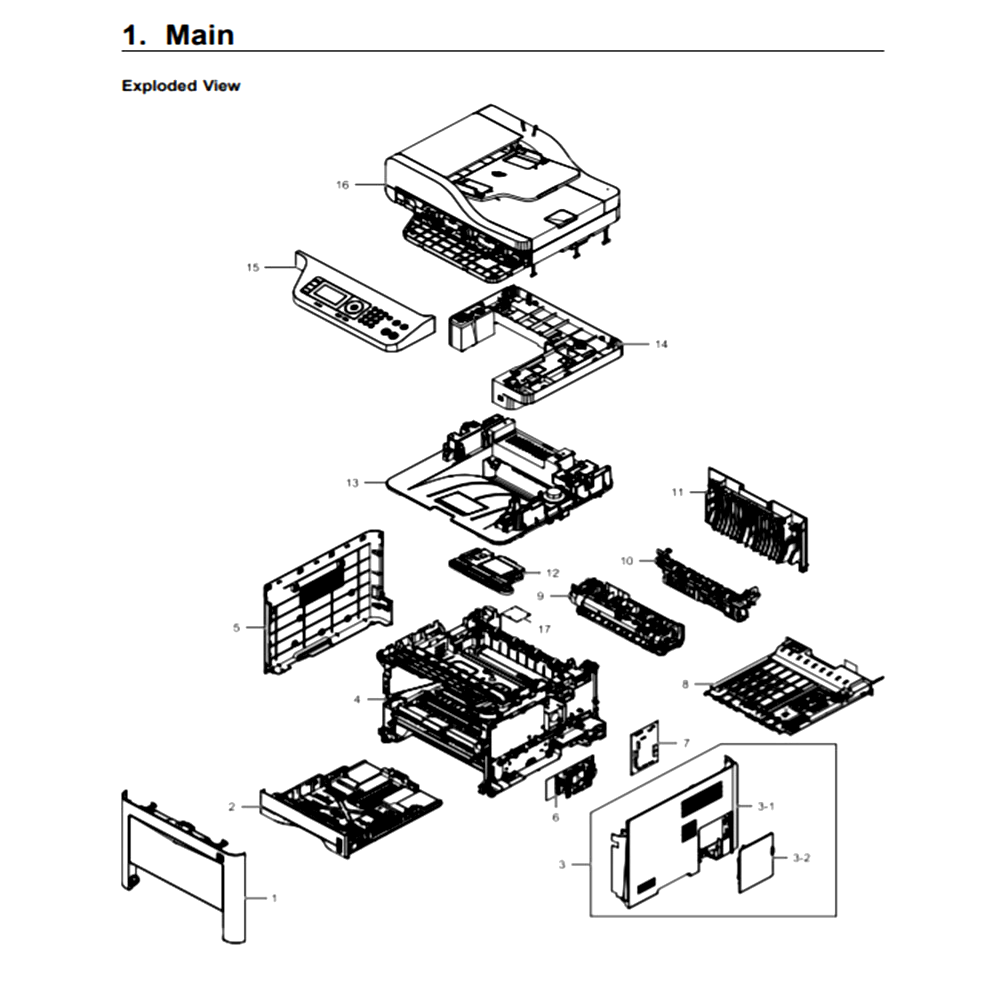

Main

...
...
1
Cover-Front SAM-JC95-01840C
...
2
Cassette SAM-JC90-01143B
...
3-1
Cover-Right SAM-JC63-04140A
...
3-2
Cover-Dimm SAM-JC63-04141A
...
3
Cover-Right SAM-JC95-01838A
...
4
Frame SAM-JC93-00835Q
...
5
Cover-Left SAM-JC63-04137A
...
6
Smps-V1 SAM-JC44-00097E
...
7
Pba-Main SAM-JC92-02603S
...
8
Duplex SAM-JC90-01031C
...
9
Fuser SAM-JC91-01023A
...
10
Frame-Rear SAM-JC93-00334A
...
11
Cover-Rear SAM-JC95-01303C
...
12
Lsu SAM-JC97-04065A
...
13
Cover-Middle Lower SAM-JC95-01847A
...
14
Cover-Middle Upper Radf SAM-JC95-01846A
...
15
Ope SAM-JC97-04321K
...
16
Scanner SAM-JC97-04302A
...
17
Pba-Wnpc SAM-JC92-02510A

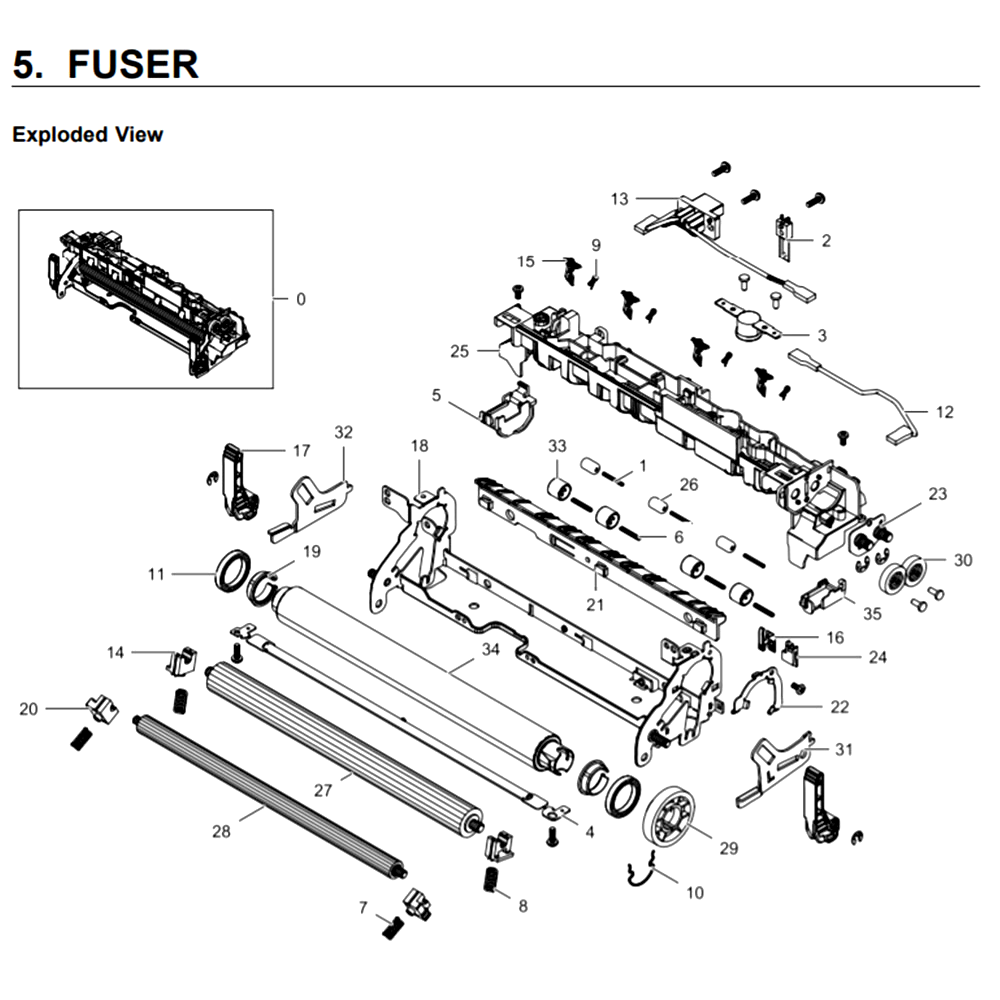

Fuser

...
...
0
Fuser SAM-JC91-01023A
...
1
Shaft SAM-JC70-20901A
...
2
Thermistor-Ntc Assy SAM-1404-001640
...
3
Thermostat SAM-4712-001091
...
4
Lamp-Halogen SAM-4713-001566
...
5
Cap-Lamp_R SAM-JC67-00499A
...
6
Spring-Etc SAM-6107-001188
...
7
Spring-Cs SAM-6107-001246
...
8
Spring-Cs SAM-6107-001267
...
9
Spring-Etc SAM-6107-002817
...
10
Spring-Etc SAM-6107-002818
...
11
Bearing-Ball SAM-6601-001725
...
12
Harness-Fuser Joint SAM-JC39-01487A
...
13
Harness-Fuser Con SAM-JC39-01488A
...
14
Bush-Pr_1st SAM-JC61-01960A
...
15
Guide-Claw SAM-JC61-02154A
...
16
Ground-Pr_M SAM-JC63-02885A
...
17
Holder-Jam SAM-JC61-04085A
...
18
Frame-Fuser SAM-JC61-04092A
...
19
Bush-Hr SAM-JC61-04093A
...
20
Bush-Pr_2nd SAM-JC61-04095A
...
21
Guide-Input SAM-JC61-04096A
...
22
Bracket-Bearing SAM-JC61-04114A
...
23
Bracket-Gear SAM-JC61-04122A
...
24
Guide-Ground_Pr SAM-JC61-02631A
...
25
Cover-Fuser SAM-JC63-02899A
...
26
Roller-Idle SAM-JC66-01312A
...
27
Roller-Pressure SAM-JC66-01663A
...
28
Roller-Pressure_2nd SAM-JC66-01664A
...
29
Gear-Fuser SAM-JC66-02775A
...
30
Gear-Idle-Exit SAM-JC66-02776A
...
31
Lever-Link_Jam_L SAM-JC66-02795A
...
32
Lever-Link_Jam_R SAM-JC66-02796A
...
33
Roller-Idle_Exit SAM-JC66-02844A
...
34
Roller-Heat SAM-JC66-02846A
...
35
Cap-Lamp_L SAM-JC67-00498A

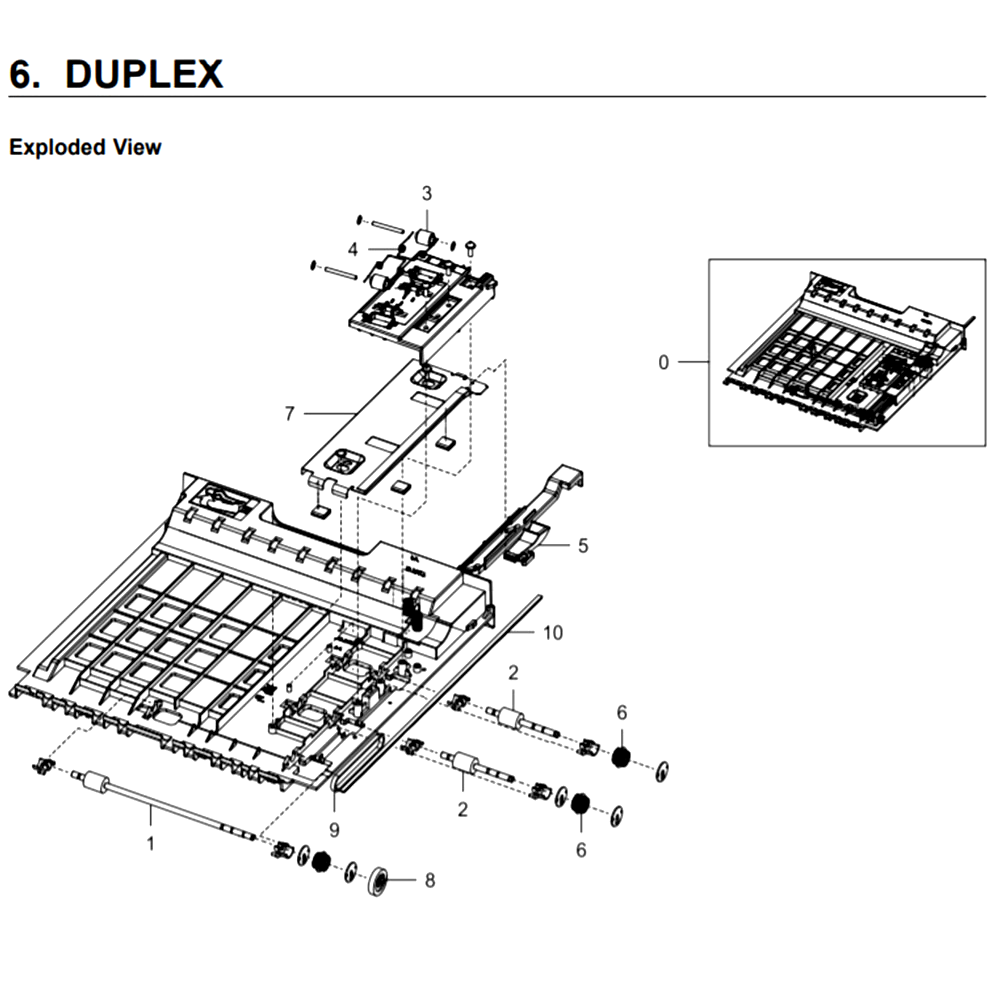

Duplex

...
...
0
Duplex SAM-JC90-01031C
...
1
Roller-Feed_Dup2 SAM-JC66-01657A
...
2
Roller-Feed_Dup SAM-JC66-00901A
...
3
Roller-Duplex_Idle SAM-JC66-02980A
...
4
Spring-Ts SAM-6107-003256
...
5
Guide-Paper_Duplex SAM-JC61-04055A
...
6
Pulley-18_Dup SAM-JC66-00899A
...
7
Bracket-Duplex_Align SAM-JC61-04053A
...
8
Gear-Exit F/down SAM-JC66-00038A
...
9
Belt-Timing Gear SAM-6602-001588
...
10
Belt-Flat Rubber SAM-JC66-20901A

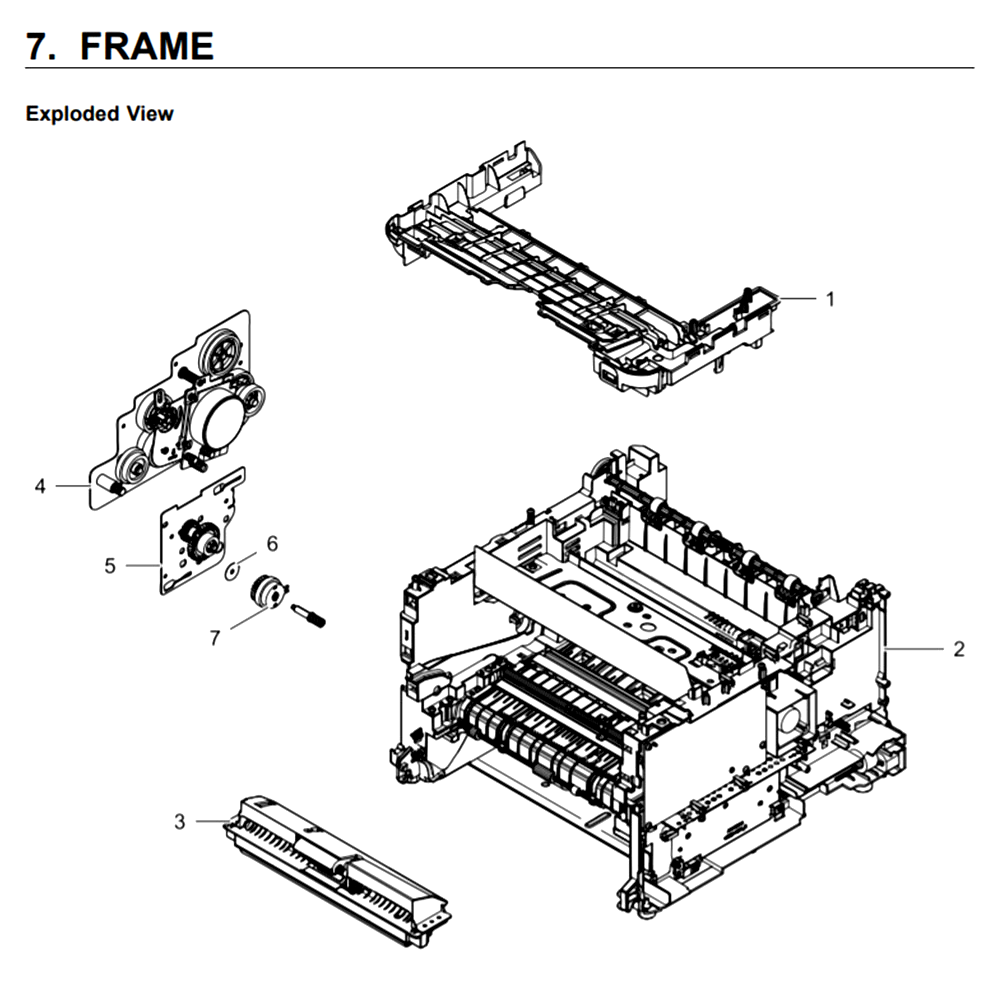

Frame

...
...
1
Cover-Top_Inner SAM-JC63-04144A
...
2
Frame-Etc SAM-JC93-00836C
...
3
Mp SAM-JC90-01043C
...
4
Drive SAM-JC93-00544B
...
5
Drive-Feed SAM-JC93-00545A
...
6
Spacer-Clutch SAM-JC60-00037A
...
7
Clutch-Electric SAM-JC47-00033A

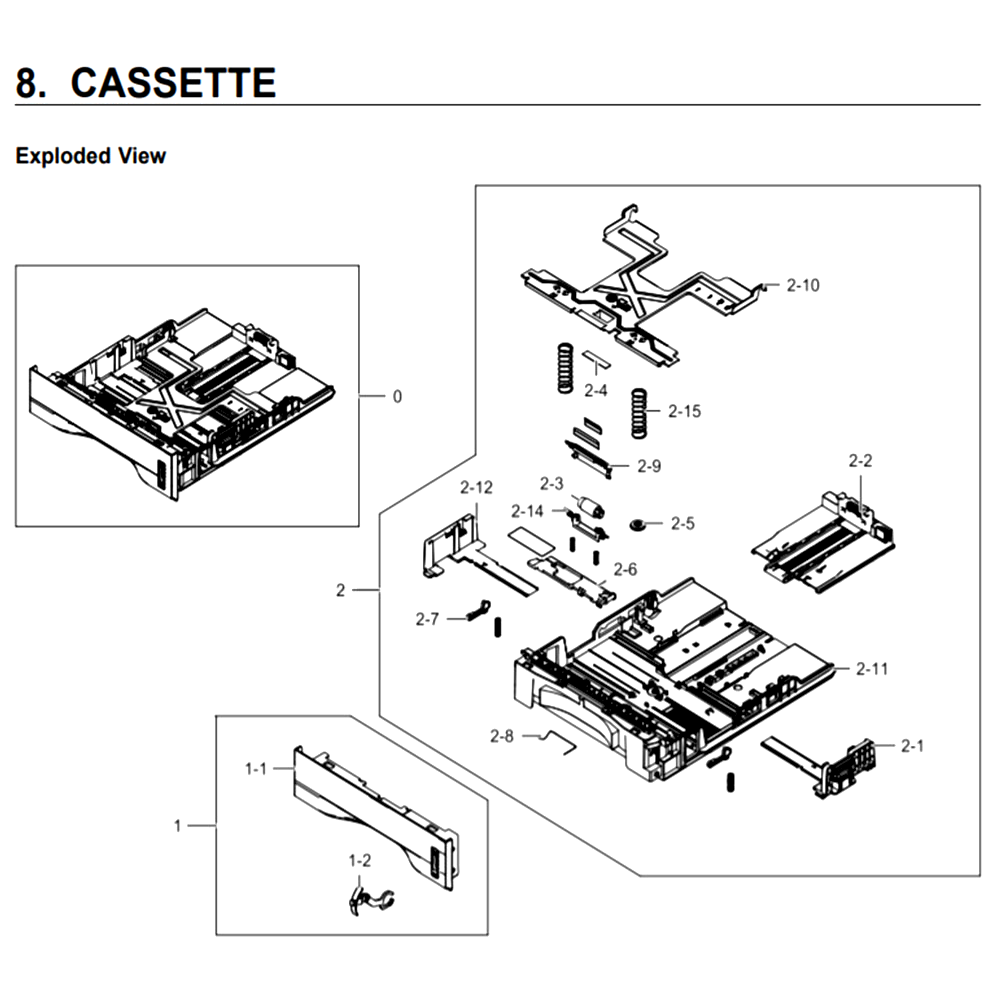

Cassette

...
...
0
Cassette SAM-JC90-01143B
...
1-1
Handle-Cassette SAM-JC64-00890A
...
1-2
Indicator-Paper SAM-JC64-00609D
...
1
Cassette-Cover Handle SAM-JC90-01174D
...
2-1
Cassette-Guide Right SAM-JC90-01106A
...
2-2
Cassette-Guide Rear SAM-JC90-01105C
...
2-3
Cassette Sub-Retard SAM-JC90-01063B
...
2-4
Rpr-Pad Cassette SAM-JC73-00141A
...
2-5
Gear-Pinion SAM-JC66-03004A
...
2-6
Locker-Plate SAM-JC64-00611A
...
2-7
Locker-Cassette SAM-JC64-00610A
...
2-8
Ground-Cassette SAM-JC63-02932A
...
2-9
Cover-Cassette SAM-JC63-02917D
...
2-10
Plate-Knock Up SAM-JC61-04922A
...
2-11
Frame-Cassette SAM-JC61-04920D
...
2-12
Guide-Adjust_L SAM-JC61-04397A
...
2-14
Holder-Roller SAM-JC61-04327A
...
2-15
Spring-Cs SAM-6107-002779
...
2
Cassette-Frame SAM-JC90-01173C

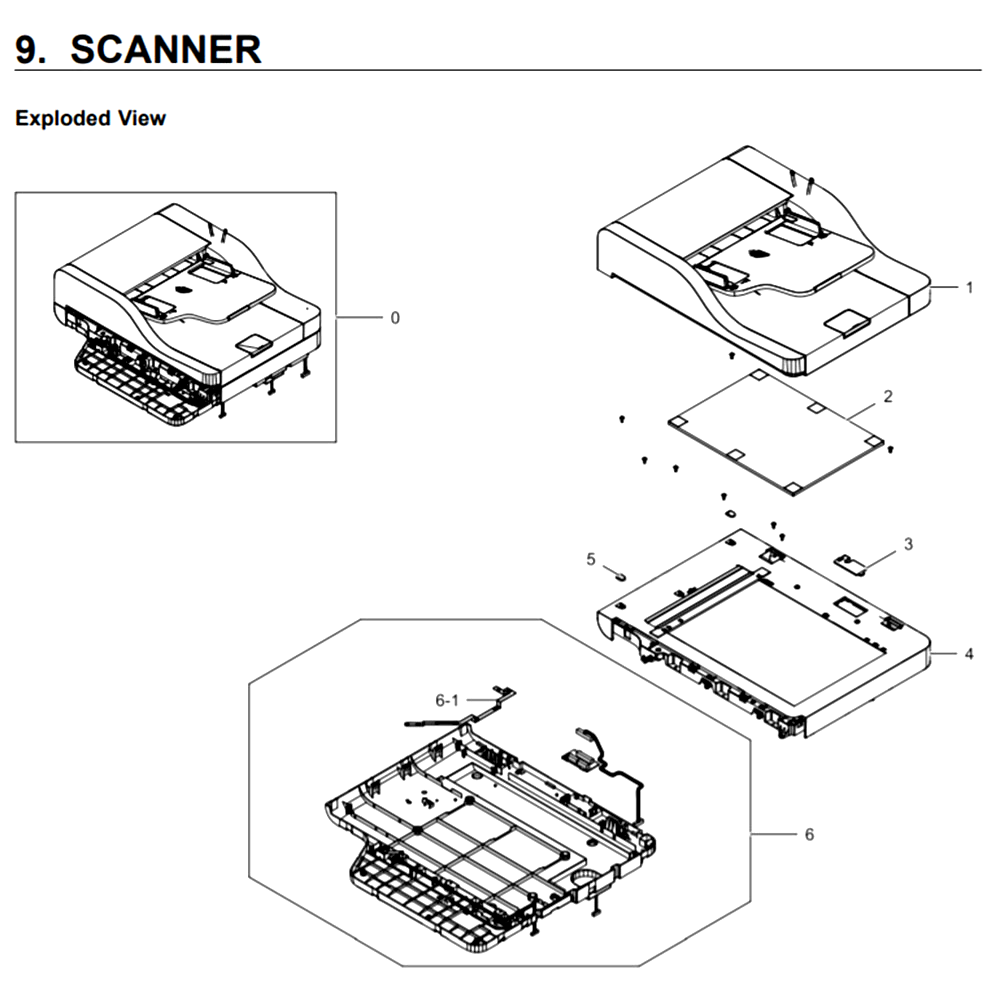

Scanner

...
...
0
Scanner SAM-JC97-04302A
...
1
Dadf SAM-JC97-04348A
...
2
Sheet-White Sponge SAM-JC63-00209A
...
3
Cover-Connector SAM-JC63-03836A
...
4
Platen SAM-JC97-04306A
...
5
Cover-Scan SAM-JC63-03834A
...
6-1
Plate-Ground Scan Hinge SAM-JC61-05780A
...
6
Platen-Lower Radf SAM-JC97-04344A

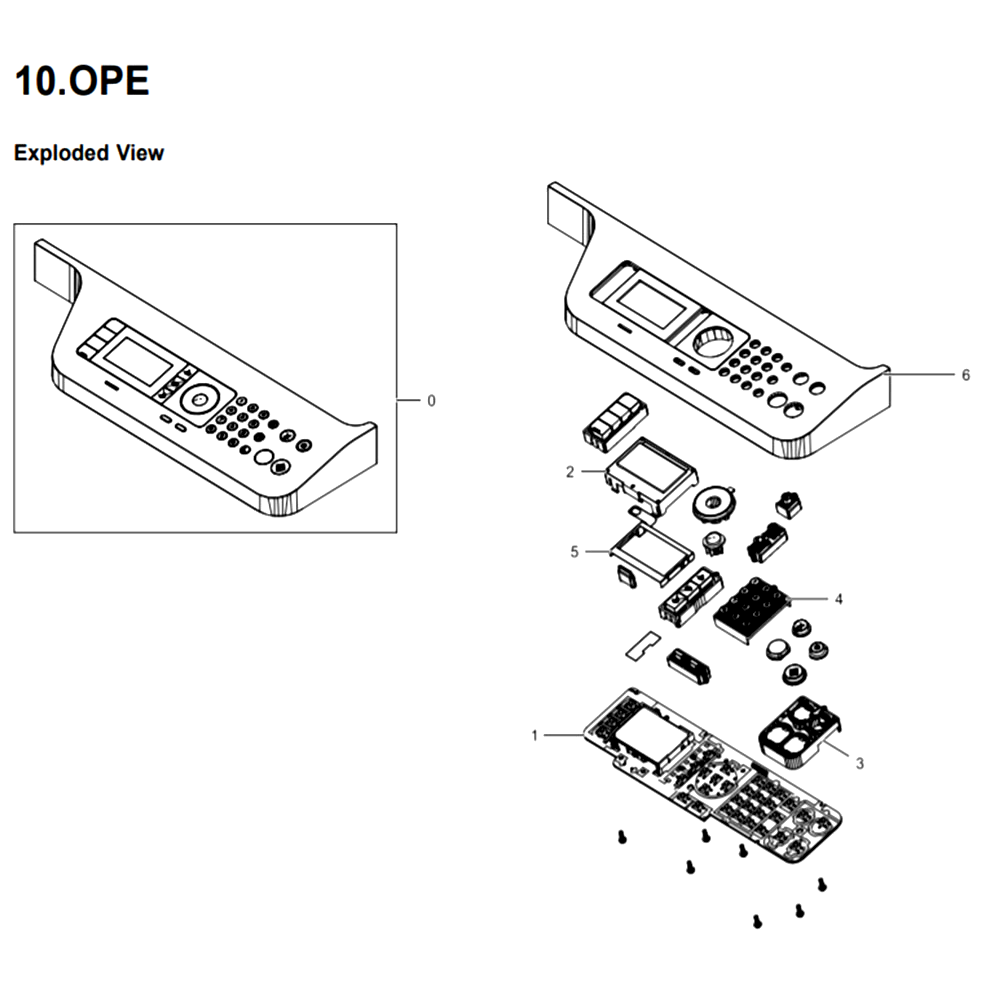

OPE

...
...
0
Ope SAM-JC97-04321K
...
1
Pba-Ope SAM-JC92-02522A
...
2
Cover-Lcd SAM-JC63-03728A
...
3
Holder-Key SAM-JC61-05625A
...
4
Key-Numerical SAM-JC64-00817A
...
5
Ground-Lcd SAM-JC63-03718A
...
6
Cover-Ope SAM-JC63-03800Q

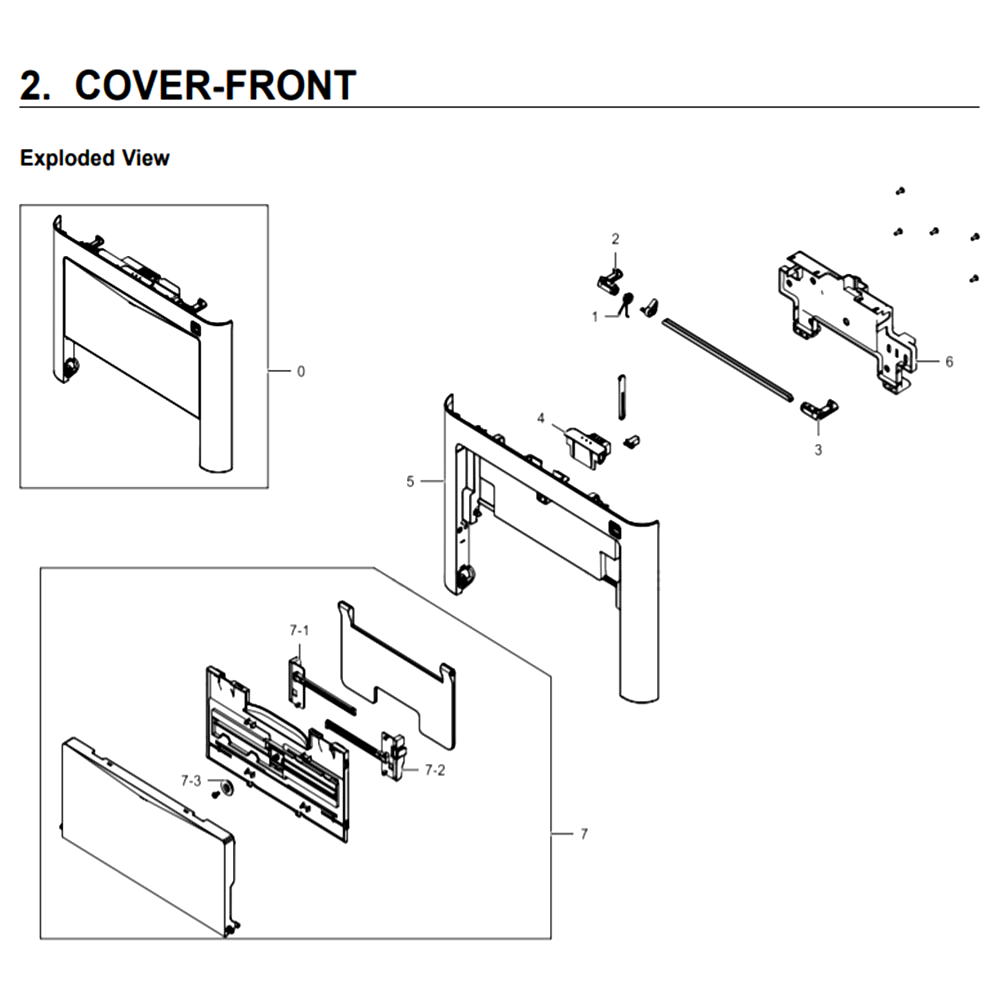

Front Cover

...
...
0
Cover-Front SAM-JC95-01840C
...
1
Spring-Ts SAM-6107-003474
...
2
Locker-Front_R SAM-JC64-00368A
...
3
Locker-Front_L SAM-JC64-00367A
...
4
Button-Front SAM-JC64-00888A
...
5
Cover-Front SAM-JC63-04134A
...
6
Cover SAM-JC63-04192A
...
7-1
Adjust-Mp_Left SAM-JC70-00561B
...
7-2
Adjust-Mp_Right SAM-JC70-00562B
...
7-3
Gear-Rack_Pinion SAM-JC66-00387A
...
7
Mp-Guide Tray SAM-JC90-01037B

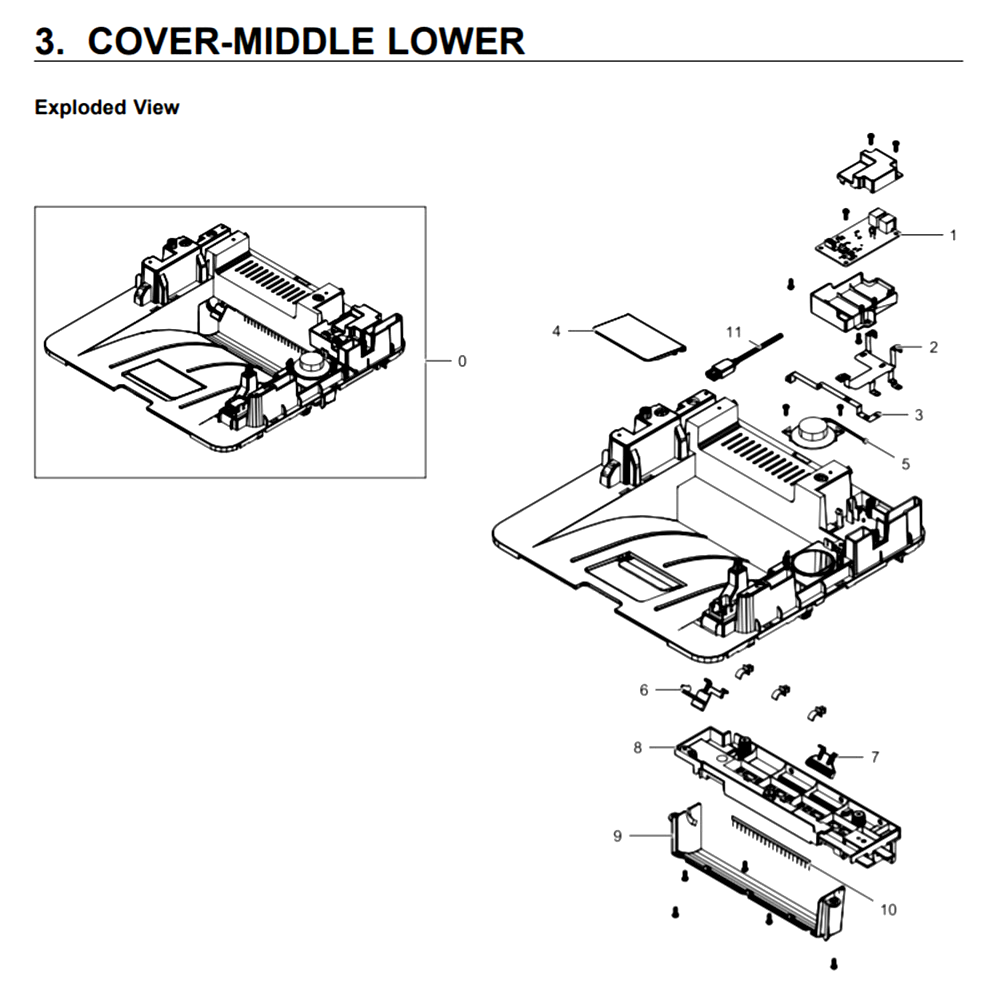

Middle Lower Cover

...
...
0
Cover-Middle Lower SAM-JC95-01847A
...
1
Pba-Liu SAM-JC92-02569A
...
2
Ground-Fax SAM-JC63-04068A
...
3
Ground-Exit SAM-JC63-03090A
...
4
Stacker-Main SAM-JC61-05515A
...
5
Speaker SAM-3001-002262
...
6
Stacker-Bin_Full SAM-JC61-04098A
...
7
Pmo-Sub_M_Stacker SAM-JC72-01343A
...
8
Cover-Path SAM-JC63-04185A
...
9
Cover-Exit SAM-JC63-04136A
...
10
Brush-Antistatic SAM-JC67-00055B
...
11
Harness-Usb Host SAM-JC39-02016A

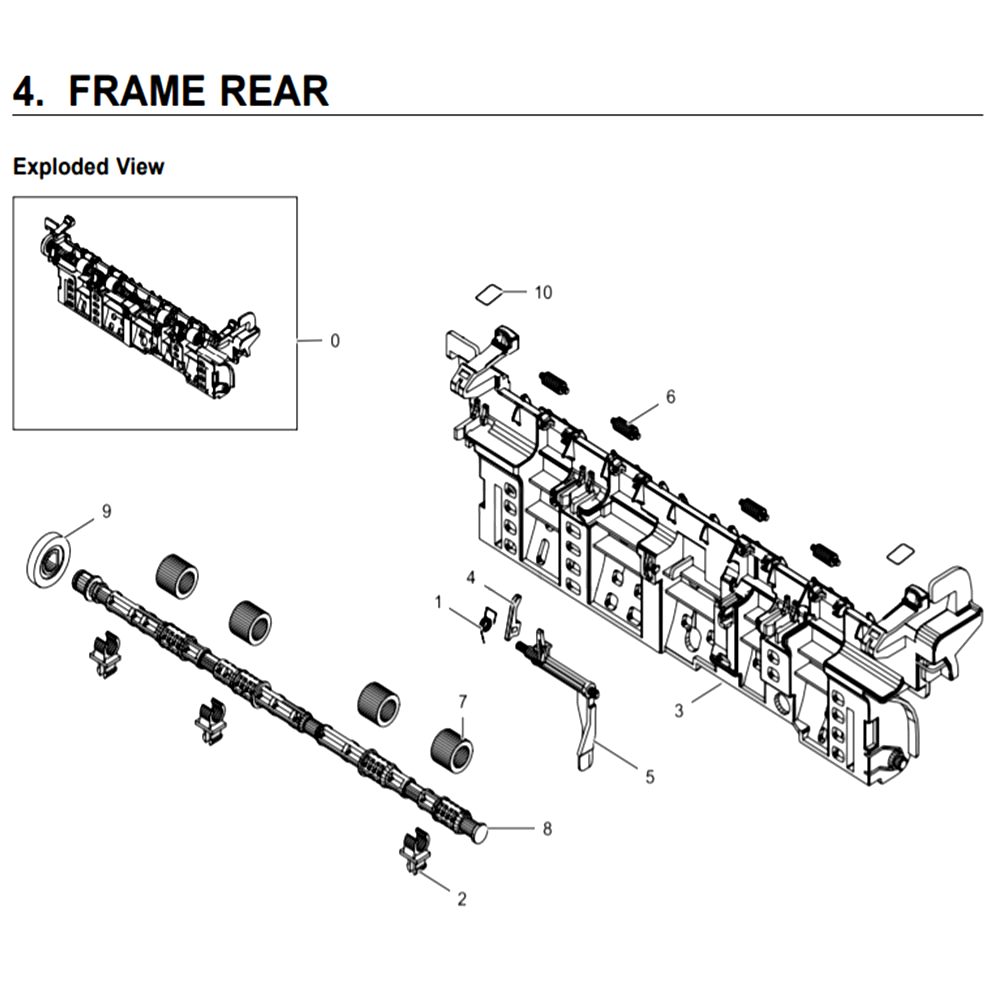

Rear Frame

...
...
0
Frame-Rear SAM-JC93-00334A
...
1
Spring-Etc SAM-6107-002670
...
2
Bush-Tx SAM-JC61-02158A
...
3
Guide-Rear SAM-JC61-04084A
...
4
Holder-Actuator SAM-JC61-04133A
...
5
Actuator-Exit SAM-JC66-02774A
...
6
Roller-Idle_Exit SAM-JC66-01661A
...
7
Roller-Silicon_Exit SAM-JC66-02955A
...
8
Shaft-Exit_F/up SAM-JC66-02773A
...
9
Gear-Exit_Z19 SAM-JC66-02777A
...
10
Label-One Touch SAM-JC68-02610A

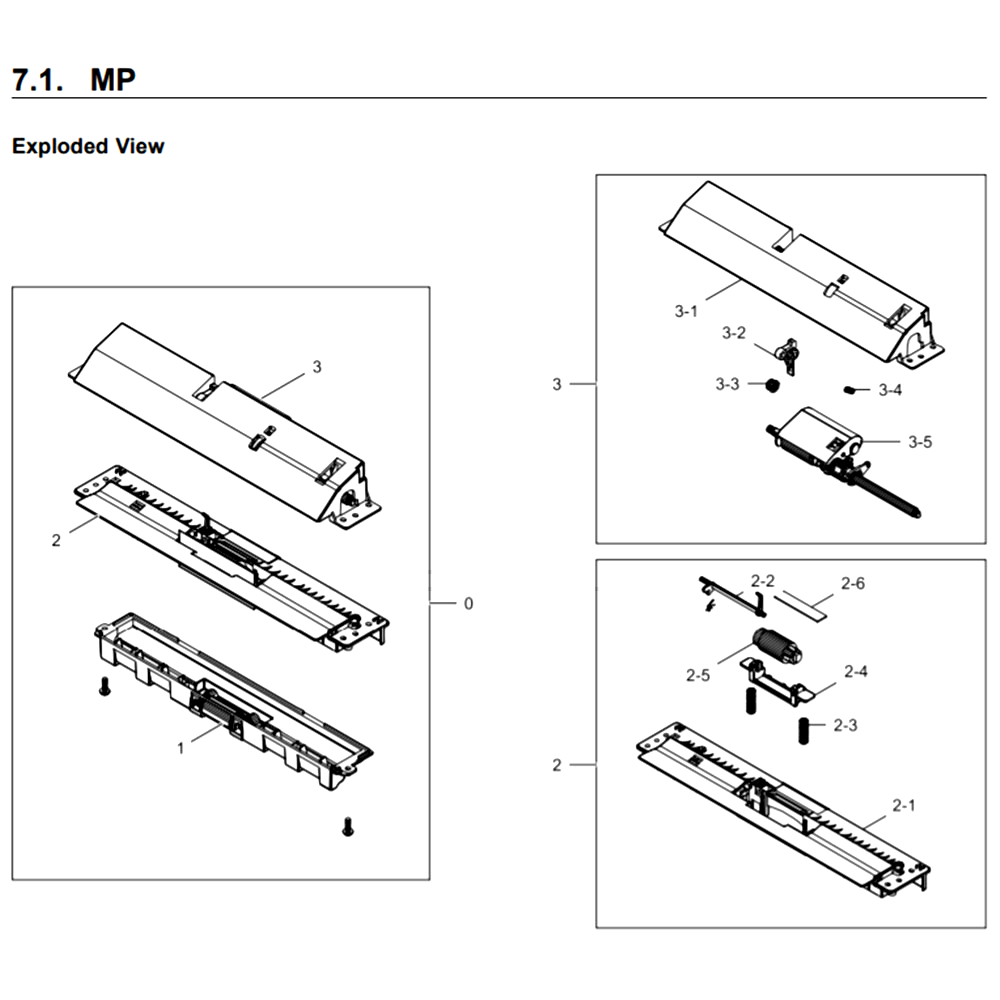

MP

...
...
0
Mp SAM-JC90-01043C
...
1
Mp-Holder Idle SAM-JC90-01038C
...
2-1
Guide-Lower Mp SAM-JC61-04061D
...
2-2
Actuator-Empty_Mp SAM-JC66-02766A
...
2-3
Spring-Cs SAM-6107-002776
...
2-4
Holder-Retard_Shaft SAM-JC61-04101A
...
2-5
Cassette-Roller Retard SAM-JC90-01032A
...
2-6
Rpr-Pad Cassette SAM-JC73-00141A
...
2
Mp-Lower SAM-JC90-01039C
...
3-1
Guide-Upper Mp SAM-JC61-04058D
...
3-2
Actuator-Arm_Mp SAM-JC66-02767A
...
3-3
Bush SAM-JB72-00819A
...
3-4
Spring-Es SAM-6107-002780
...
3-5
Mp-Pickup SAM-JC90-01041C
...
3
Mp-Upper SAM-JC90-01040C

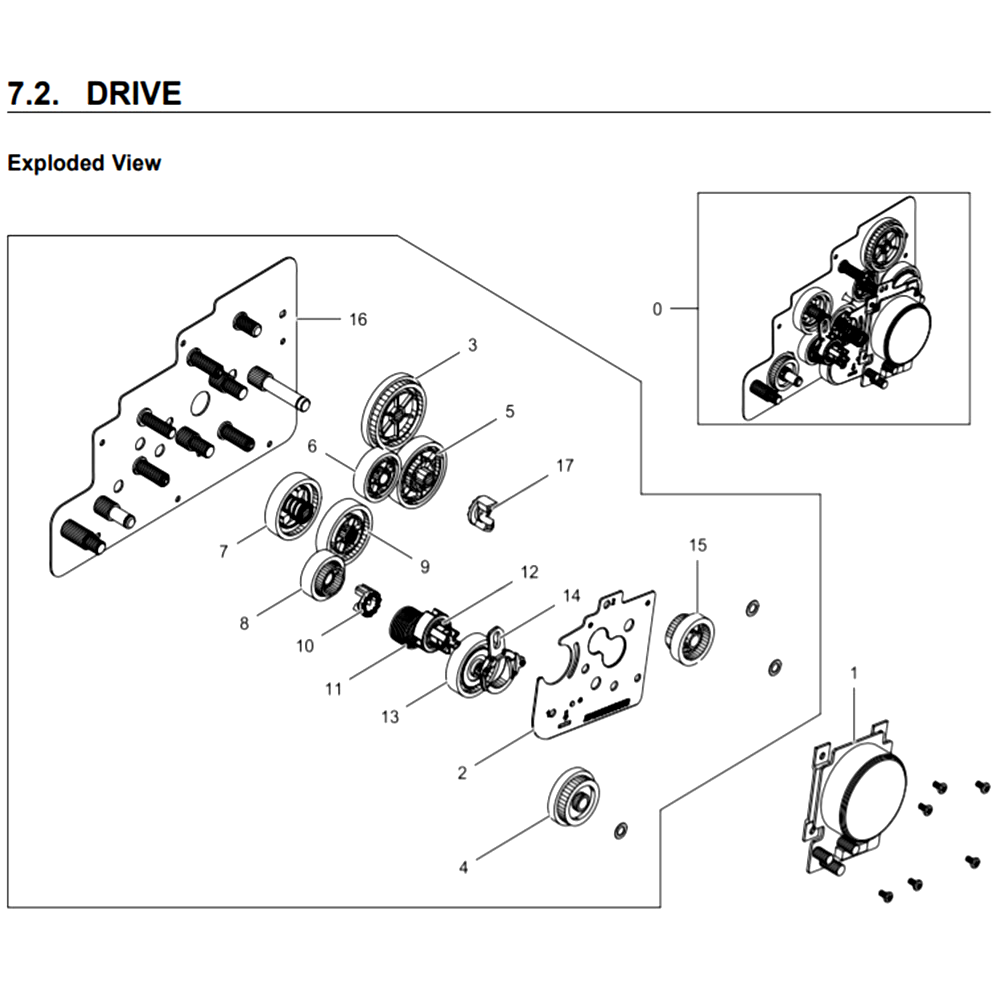

Drive

...
...
0
Drive SAM-JC93-00544B
...
1
Motor Bldc SAM-JC31-00075B
...
2
Bracket-Motor SAM-JC61-04918A
...
3
Gear-Exit 95-81 SAM-JC66-02779A
...
4
Gear-Feed 65-28 SAM-JC66-02790A
...
5
Gear-Fuser Dr In 79 SAM-JC66-02781A
...
6
Gear-Idle 59 SAM-JC66-02785A
...
7
Gear-Coupler 73 SAM-JC66-02787A
...
8
Gear-Opc Dr Out 53 SAM-JC66-02788A
...
9
Gear-Idle 73 SAM-JC66-02786A
...
10
Hub-Clutch SAM-JC70-00589A
...
11
Spring-Cs SAM-6107-002785
...
12
Coupler SAM-JC67-00504A
...
13
Gear-Opc Dr In 69 SAM-JC66-02789A
...
14
Coupler-Cam SAM-JC67-00503A
...
15
Gear-Fuser Dr 29 SAM-JC66-02782A
...
16
Bracket-Gear SAM-JC61-04916A
...
17
Gear-Hub Clutch SAM-JC66-00340A

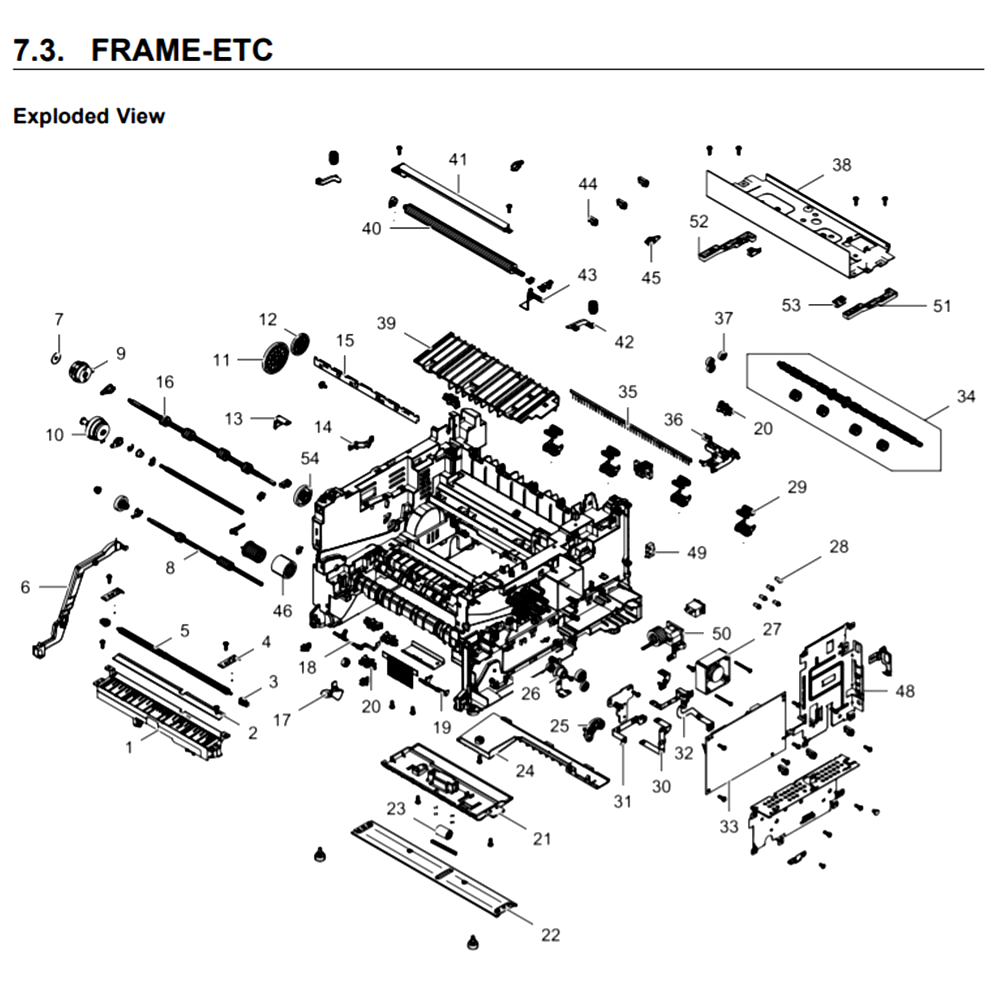

Frame, etc

...
...
1
Guide-Frame Duplex SAM-JC61-04064A
...
2
Sheet-Duplex Path SAM-JC63-02956A
...
3
Bush-M-Feed Idle SAM-JC61-00585A
...
4
Plate-P-Push Bushing SAM-JC61-00914A
...
5
Shaft-Feed Idle SAM-JC66-00527A
...
6
Lever-Coupling SAM-JC66-02770A
...
7
Spacer-Clutch SAM-JC60-00037A
...
8
Roller-Feed SAM-JC66-02797A
...
9
Clutch-Electric SAM-JC47-00033A
...
10
Clutch-Electric SAM-JC47-00036B
...
11
Gear-Exit Idle 96 SAM-JC66-02778A
...
12
Gear-Exit 65 SAM-JC66-02780A
...
13
Ground-Brkt Gear SAM-JC63-02875A
...
14
Lock Slider SAM-JC72-00983A
...
15
Plate-P-Saw SAM-JC61-00604A
...
16
Roller-Feed Regi SAM-JC66-02834A
...
17
Actuator-Empty SAM-JC66-02762A
...
18
Actuator-Regi SAM-JC66-02763A
...
19
Actuator-Feed SAM-JC66-02764A
...
20
Photo-Interrupter SAM-0604-001393
...
21
Frame-Duplex Path_Ex SAM-JC61-02752A
...
22
Plate-Frame Bottom SAM-JC61-04069A
...
23
Roller-M_Idle Scf SAM-JC66-01022A
...
24
Cap-Harness SAM-JC67-00291A
...
25
Bracket-Swing Duplex SAM-JC61-02265A
...
26
Gear-Rdcn 23/23 SAM-JC66-01651A
...
27
Fan SAM-JC31-00146A
...
28
Shaft SAM-JC70-40912A
...
29
Frame-Roller Decurl SAM-JC93-00324A
...
30
Ground-Brkt Paper SAM-JC63-02874A
...
31
Ground-Hvps SAM-JC63-02876A
...
32
Ground-Bracket Lsu SAM-JC63-02877A
...
33
Hvps SAM-JC44-00197A
...
34
Frame-Roller Exit SAM-JC93-00323A
...
35
Brush-Antistatic 531p SAM-JC67-00055A
...
36
Holder-Exit Sensor SAM-JC61-04067A
...
37
Gear-Swing Dr 19 SAM-JC66-01635A
...
38
Bracket-Lsu SAM-JC61-04915A
...
39
Guide-Tr Rib SAM-JC61-04091A
...
40
Roller-Transfer SAM-JC66-02842A
...
41
Plate-Earth-Transfer SAM-JC61-02236A
...
42
Core Rotor SAM-JC72-00985A
...
43
Terminal-Tr SAM-JC65-00047A
...
44
Cable Clamp SAM-6502-001130
...
45
Shaft SAM-JC72-41191B
...
46
Rubber-Pick Up SAM-JC73-00340A
...
48
Shield-Controller SAM-JC63-04078A
...
49
Harness-Rearcover & Binfull Sensor SAM-JC39-01469A
...
50
Harness-Ac Inlet-1 SAM-JC39-01482A
...
51
Holder-Brkt_Lsu_Right SAM-JC61-04912A
...
52
Holder-Brkt_Lsu_Left SAM-JC61-04911A
...
53
Ground-Brkt Extension SAM-JC63-03449A
...
54
Gear-Feed Idle 29 SAM-JC66-03311A

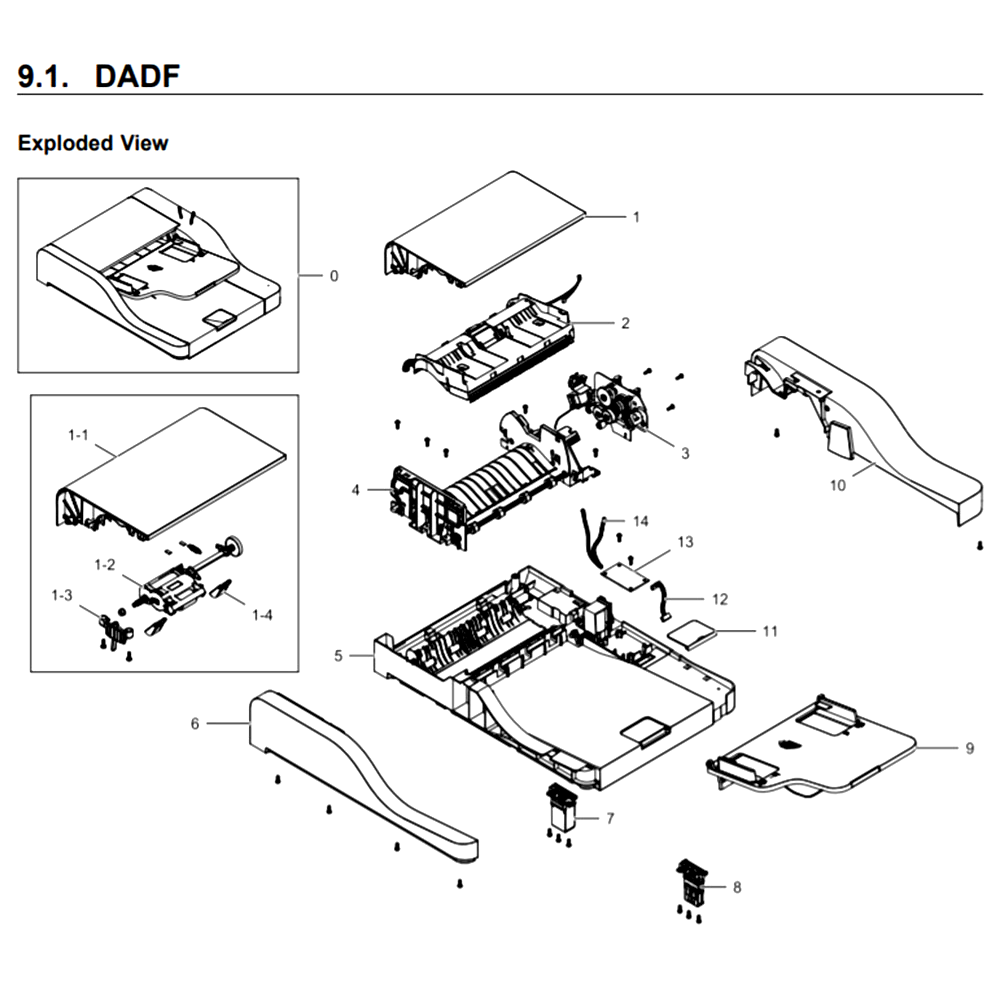

DADF

...
...
0
Dadf SAM-JC97-04348A
...
1-1
Cover-Open SAM-JC63-03818A
...
1-2
Dadf-Pick Up SAM-JC97-04199A
...
1-3
Mea Unit-Stopper SAM-JC97-03060A
...
1-4
Guide-Doc Sensor SAM-JC61-00788C
...
1
Dadf-Cover Open SAM-JC97-04158A
...
2
Dadf-Upper SAM-JC97-04196A
...
3
Drive-Dadf SAM-JC93-00761A
...
4
Dadf-Lower SAM-JC97-04160A
...
5
Dadf-Platen SAM-JC97-04159A
...
6
Cover-Front SAM-JC63-03821A
...
7
Dadf-Hinge_R SAM-JC97-04198A
...
8
Dadf-Hinge_L SAM-JC97-04197A
...
9
Dadf-Stacker SAM-JC97-04161A
...
10
Cover-Radf Rear SAM-JC63-03822A
...
11
Guide-Extention_P SAM-JC61-05635A
...
12
Harness-Dadf SAM-JC39-01493A
...
13
Pba-Dadf SAM-JC92-02625A
...
14
Harness-Dadf Gnd SAM-JC39-00892A

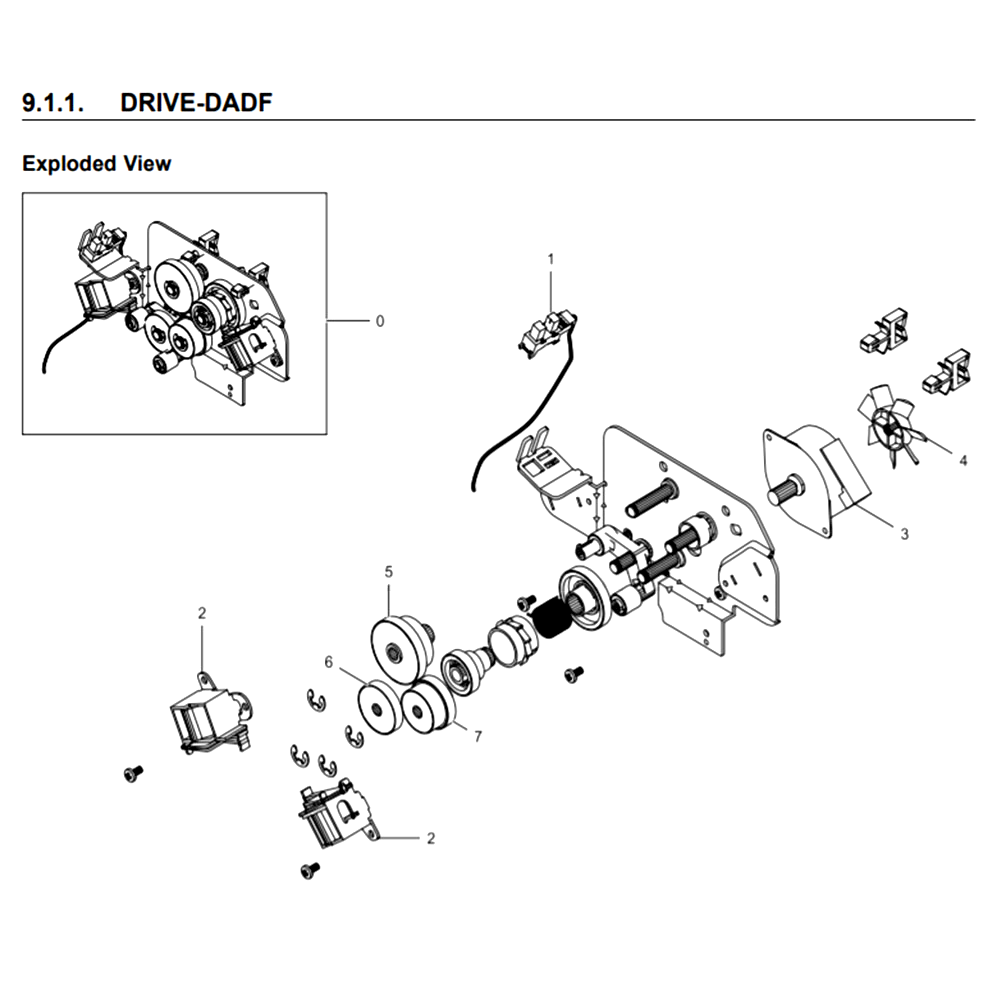

DADF Drive

...
...
0
Drive-Dadf SAM-JC93-00761A
...
1
Photo-Interrupter SAM-0604-001095
...
2
Solenoid-Dadf SAM-JC33-00030A
...
3
Motor Step SAM-JC31-00116A
...
4
Impeller-Adf SAM-JC66-00556A
...
5
Gear-Pickup Idle SAM-JC66-01758A
...
6
Gear-Feed Idle B SAM-JC66-01753A
...
7
Gear-Feed Idle A SAM-JC66-01752A

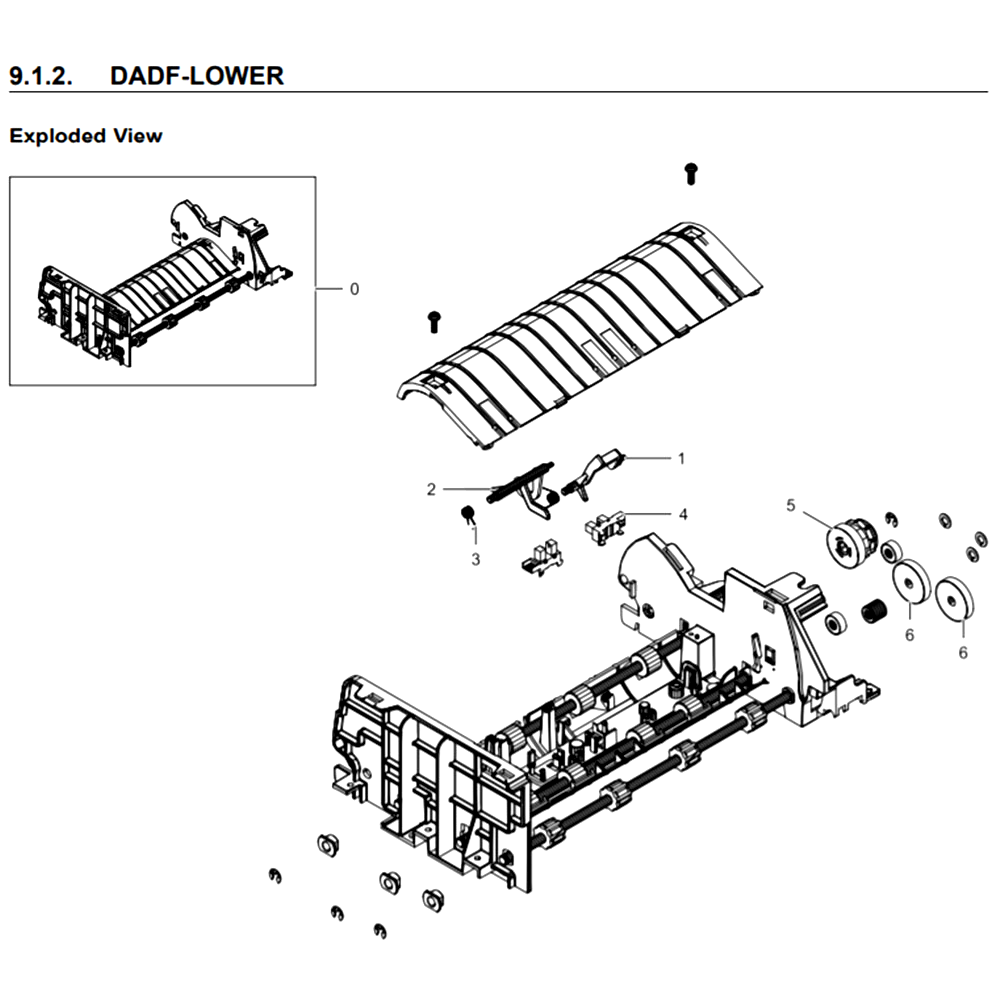

Lower DADF

...
...
0
Dadf-Lower SAM-JC97-04160A
...
1
Actuator-Feed SAM-JC66-01766A
...
2
Actuator-Regi SAM-JC66-01762A
...
3
Spring Etc-Torsion Doc (cc2-F) SAM-JB61-00076A
...
4
Photo-Interrupter SAM-0604-001415
...
5
Drive-Gear Feed SAM-JC93-00762A
...
6
Gear-Exit SAM-JC66-01757A

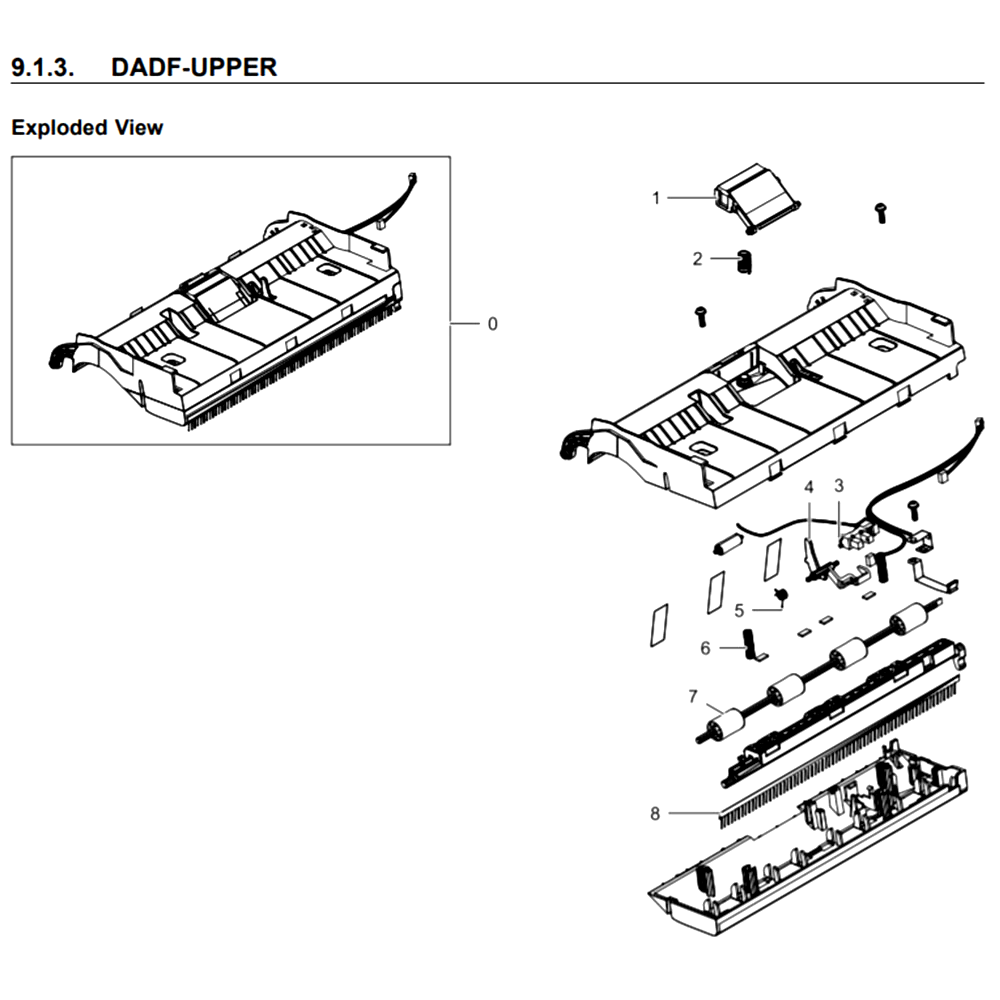

Upper DADF

...
...
0
Dadf-Upper SAM-JC97-04196A
...
1
Mea Unit-Dadf Rubber SAM-JC97-03069A
...
2
Spring Etc-Pad SAM-JC61-00387A
...
3
Photo-Interrupter SAM-0604-001095
...
4
Actuator-Empty SAM-JC66-01765A
...
5
Spring Etc-Torsion Doc (cc2-F) SAM-JB61-00076A
...
6
Spring Etc-Exit Idle SAM-JC61-02428A
...
7
Roller-M_Idle Scf SAM-JC66-01022A
...
8
Mec-Brush Antistatic SAM-JC75-00095A

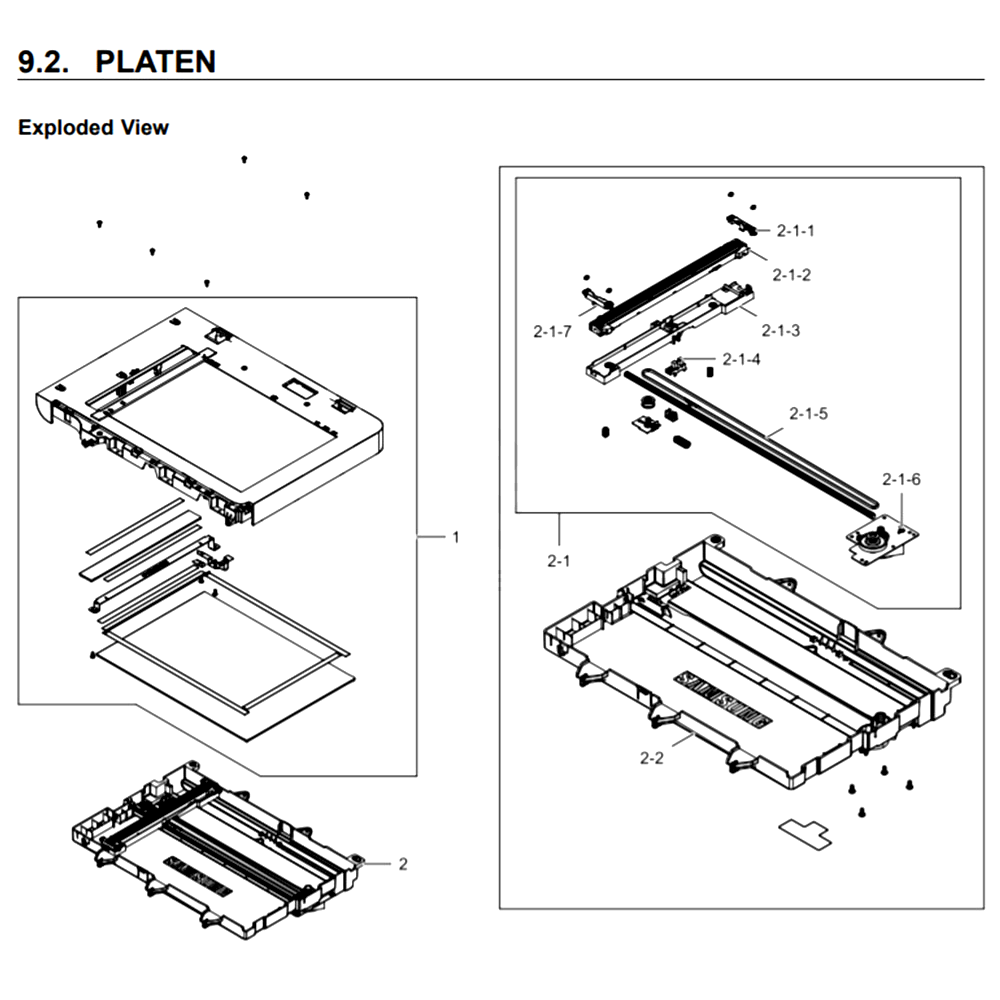

Platen

...
...
1
Platen-Upper Dadf SAM-JC97-04357A
...
2-1-1
Guide-Cis Rear SAM-JC61-05641A
...
2-1-2
Contact Image Sensor SAM-0609-001482
...
2-1-3
Bracket-Cis SAM-JC61-05646A
...
2-1-4
Photo-Interrupter SAM-0604-001415
...
2-1-5
Belt-Timing Gear SAM-6602-002970
...
2-1-6
Platen-Drivetrain SAM-JC97-04170A
...
2-1-7
Guide-Cis Front SAM-JC61-05634A
...
2-1
Platen- Fh SAM-JC97-04307A
...
2-2
Frame-Platen SAM-JC61-05632A
...
2
Platen-Frame SAM-JC97-04305A
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
