Samsung SC-HMX10C

Model: SC-HMX10C

Save Part Not Listed?

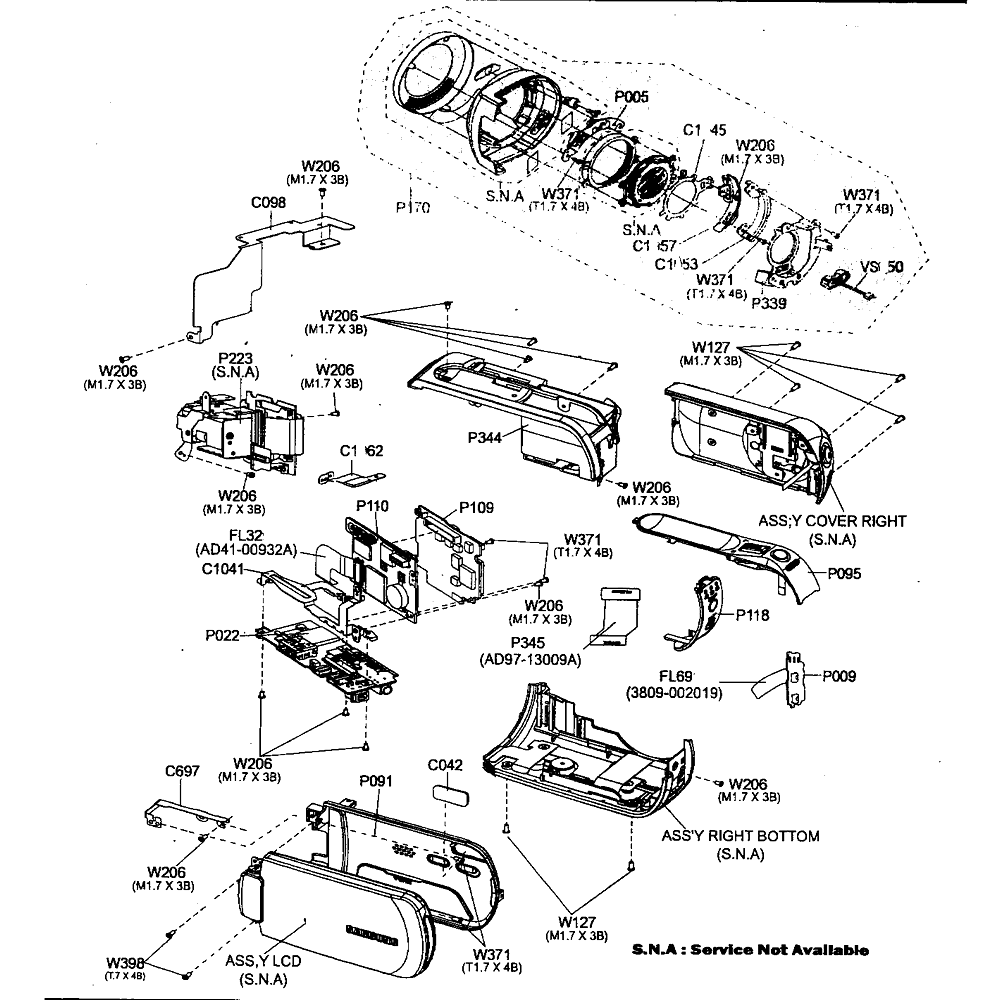

product name

Chassis Assy

...
...
C042
Jig Cover SAM-AD63-01120A
...
W398
Screw-Tap SAM-6003-001300
...
W371
Screw-M1.7,l4,zpc(blk) SAM-6003-001453
...
W206
Screw SAM-6001-001373
...
W127
Screw SAM-6003-001292
...
VSS0
Microphone Assembly SAM-AD97-13005A
...
PO22
Pcb Assembly SAM-AD92-00113A
...
P345
Cable Assembly SAM-AD97-13009A
...
P339
Assembly SAM-AD97-12973A
...
P170
Assembly SAM-AD97-12985A
...
P118
Assembly SAM-AD97-12990A
...
P110
Pcb Assembly SAM-AD92-00121A
...
P091
Assembly Case SAM-AD97-12978A
...
P009
Pcb Assembly SAM-AD92-00117A
...
P005
Pcb Assembly SAM-AD92-00116A
...
FL69
Ffc Cable SAM-3809-002019
...
FL32
Fpc-Jack SAM-AD41-00932A
...
C697
Plate SAM-AD61-03030A
...
C162
Heat Plate SAM-AD61-02996A
...
C157
Knob SAM-AD64-01697A
...
C153
Holder SAM-AD61-02871A
...
C145
Bracket SAM-AD61-02849A
...
C098
Heat Plate SAM-AD61-02995A
...
P109
Asy Pcb SAM-D92-00111A

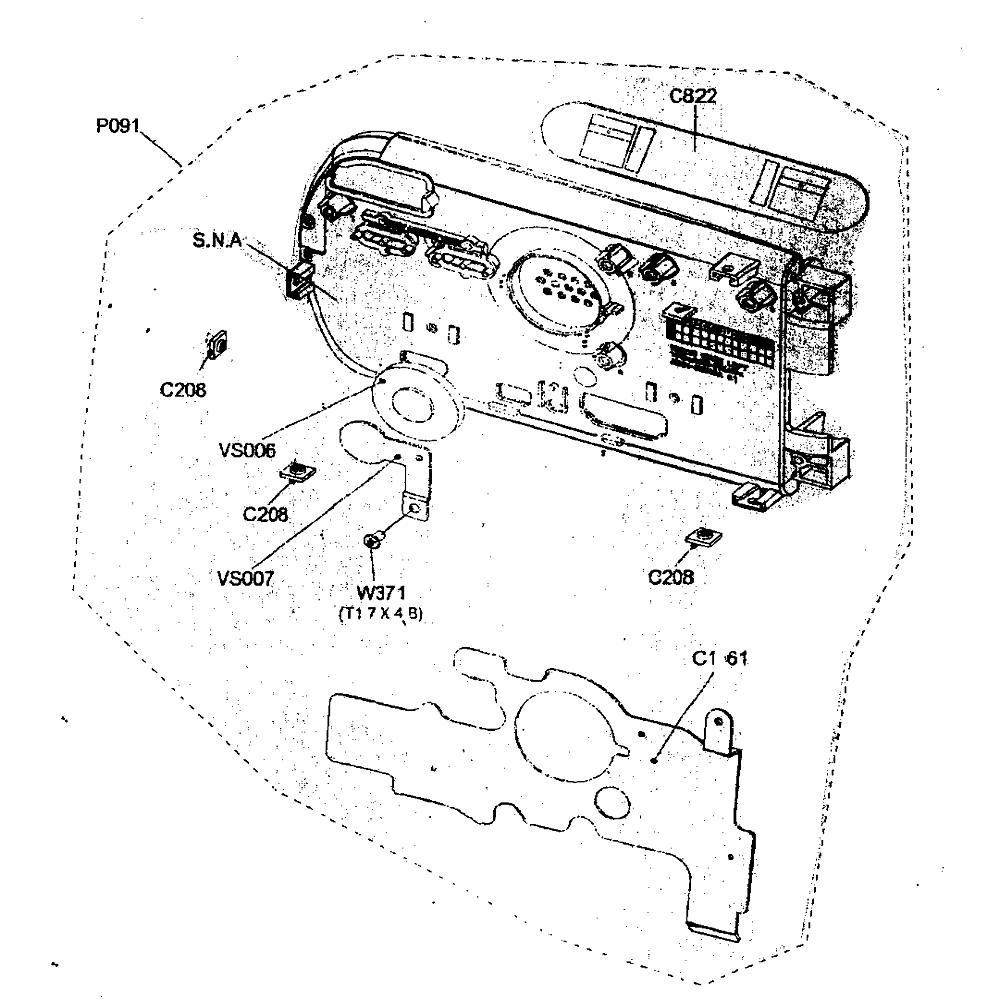

Case Lt Assy

...
...
VS6
Camcorder Speaker Assembly SAM-AD97-13006A
...
VS7
Bracket Speaker SAM-AD61-02838A
...
C822
Jack Cover SAM-AD63-01172A
...
C161
Heat Plate SAM-AD61-03024A
...
C208
Bracket-Nu SAM-AD61-12033A

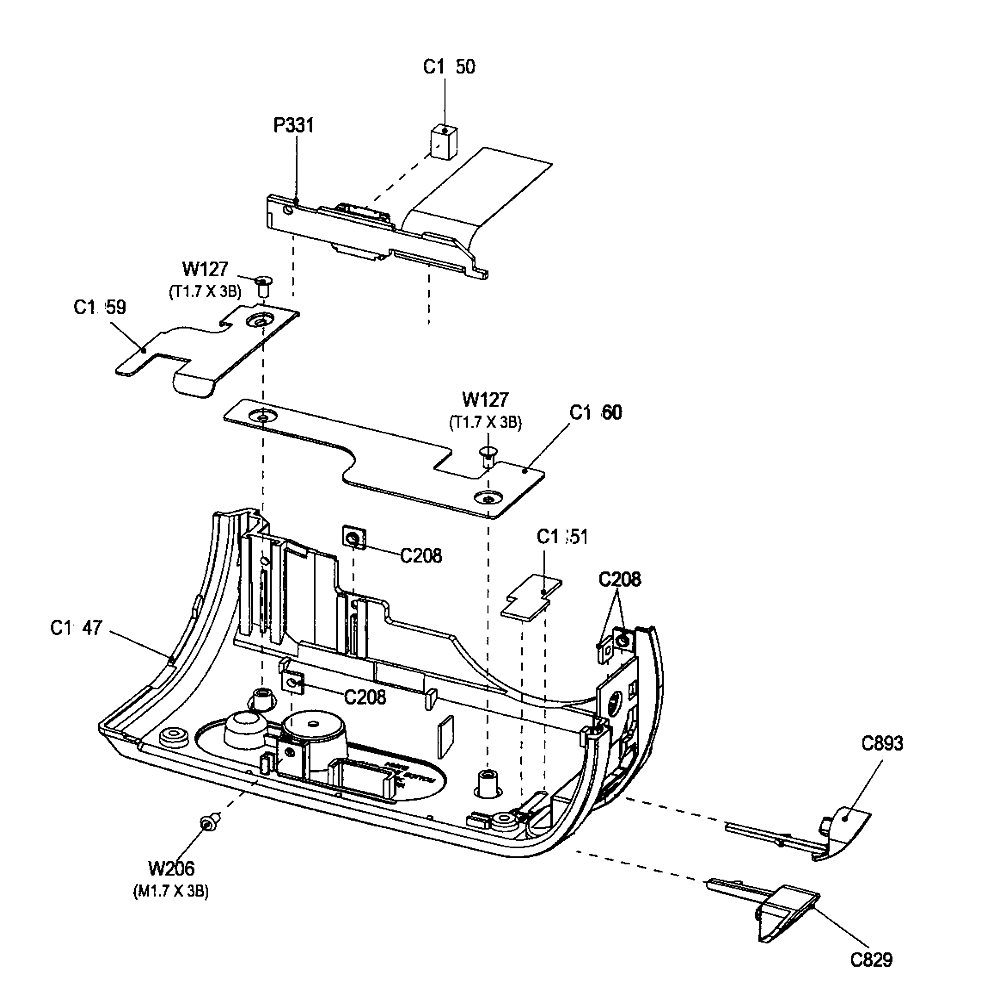

Bottom Rt Assy

...
...
C160
Plate-Heat SAM-AD61-02997A
...
P331
Main Pcb SAM-AD92-00139A
...
C893
Microphone Cover SAM-AD63-01126A
...
C829
Dc Cover SAM-AD63-01125A
...
C159
Plate-Heat SAM-AD61-03026A
...
C151
Gasket SAM-AD63-01183A
...
C150
Gasket SAM-AD63-01191A
...
C147
Case-Right SAM-AD61-02861A

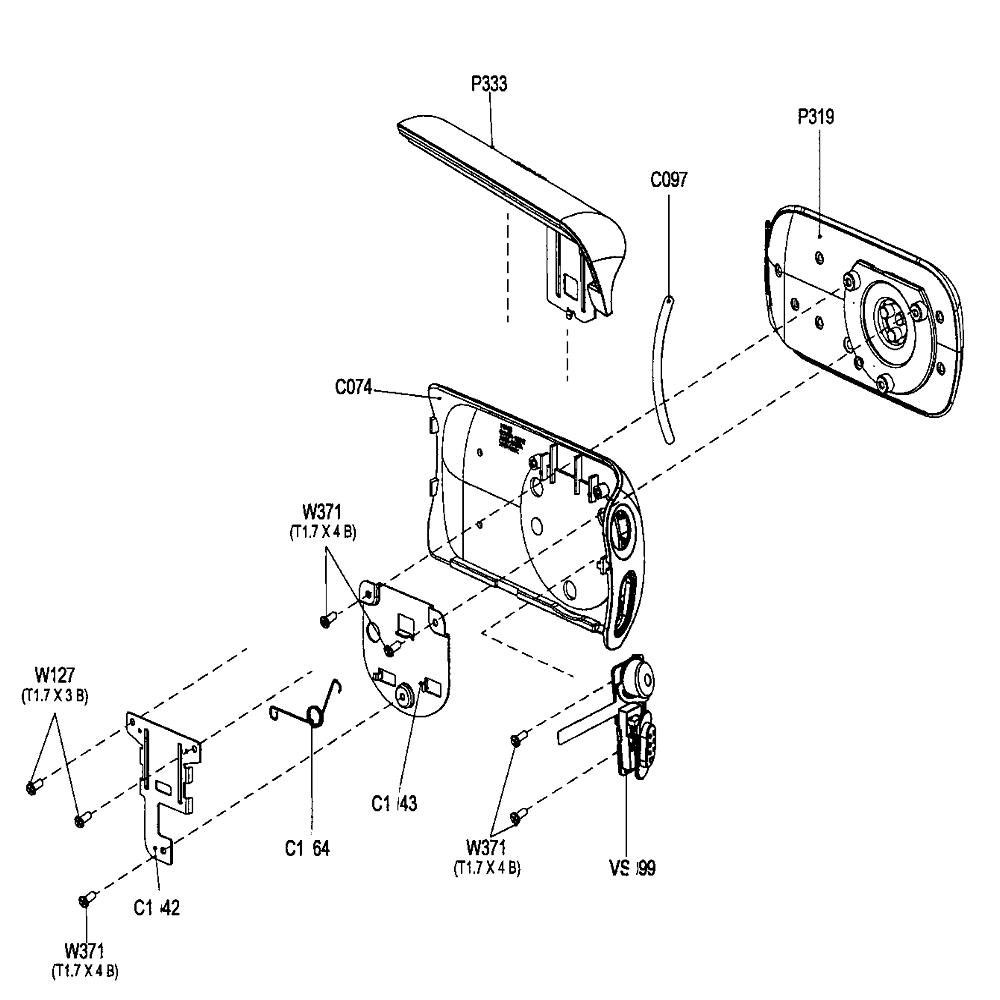

Cover Rt Assy

...
...
VS99
Asy-Pwr SAM-AD97-12974A
...
P333
Battery Door SAM-AD97-12976A
...
C097
Grip Sheet SAM-AD63-01189A
...
P319
Grip Assembly SAM-AD97-12975A
...
C164
Spring Etc SAM-AD61-02985A
...
C142
Brckt-Fix SAM-AD61-02841A
...
C074
Cover-Rght SAM-AD63-01127A
...
C143
Brckt-Grip SAM-AD61-02844A

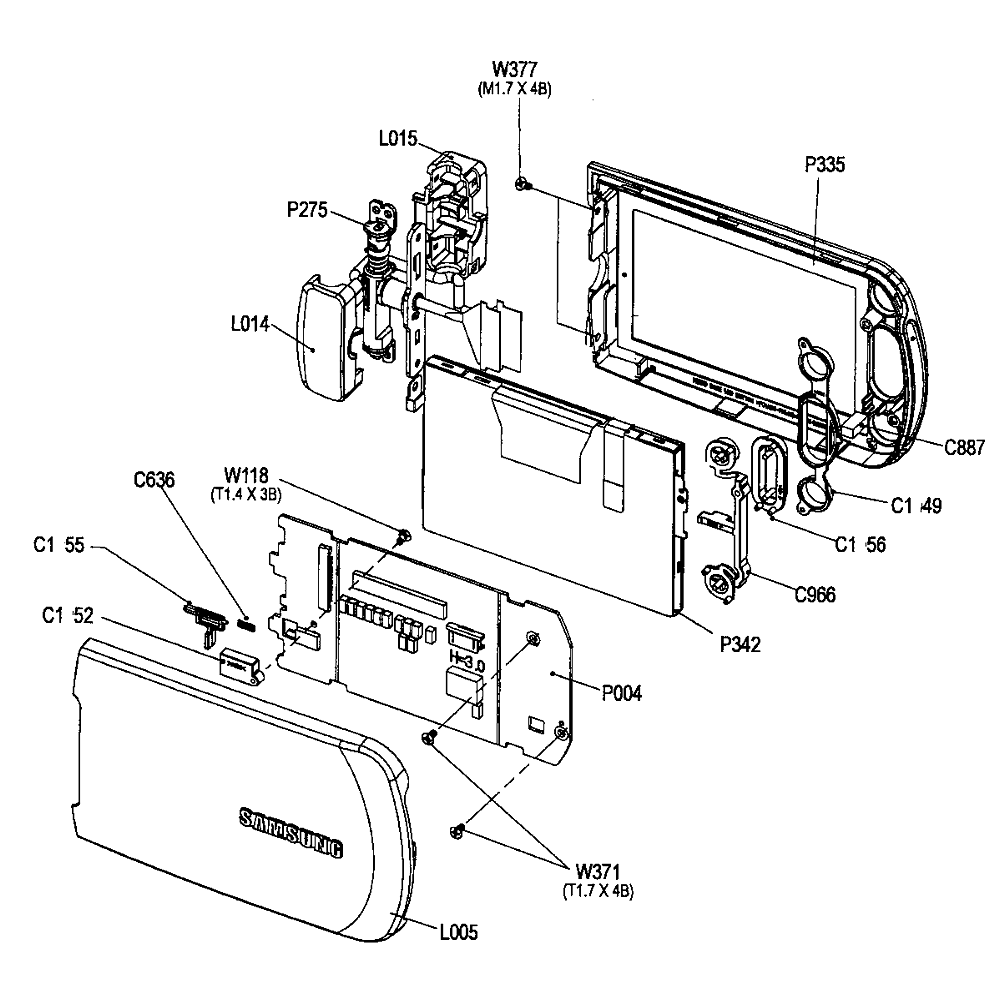

Lcd Assy

...
...
W118
Screw SAM-6003-001291
...
W377
Screw-M1.7,l4,zpc(blk) SAM-6001-001291
...
P342
Lcd Assembly SAM-AD97-13011A
...
P335
Case Assembly SAM-AD97-12982C
...
P275
Hinge Assembly SAM-AD97-12992A
...
P004
Pcb-Lcd Ay SAM-AD92-00112A
...
L015
Hinge Cover SAM-AD63-01117A
...
L014
Hinge Cover SAM-AD63-01118A
...
C966
Lcd Button SAM-AD64-01651A
...
C887
Magnet SAM-AD61-02519A
...
C636
Spring SAM-AD61-02006A
...
C156
Knob-Lcd SAM-AD64-01660A
...
C155
Knob SAM-AD64-01596A
...
C152
C-Ta,chip SAM-2404-001254
...
C149
Decoration Cover SAM-AD63-01116A
...
L005
Case Assembly SAM-AD97-12981A

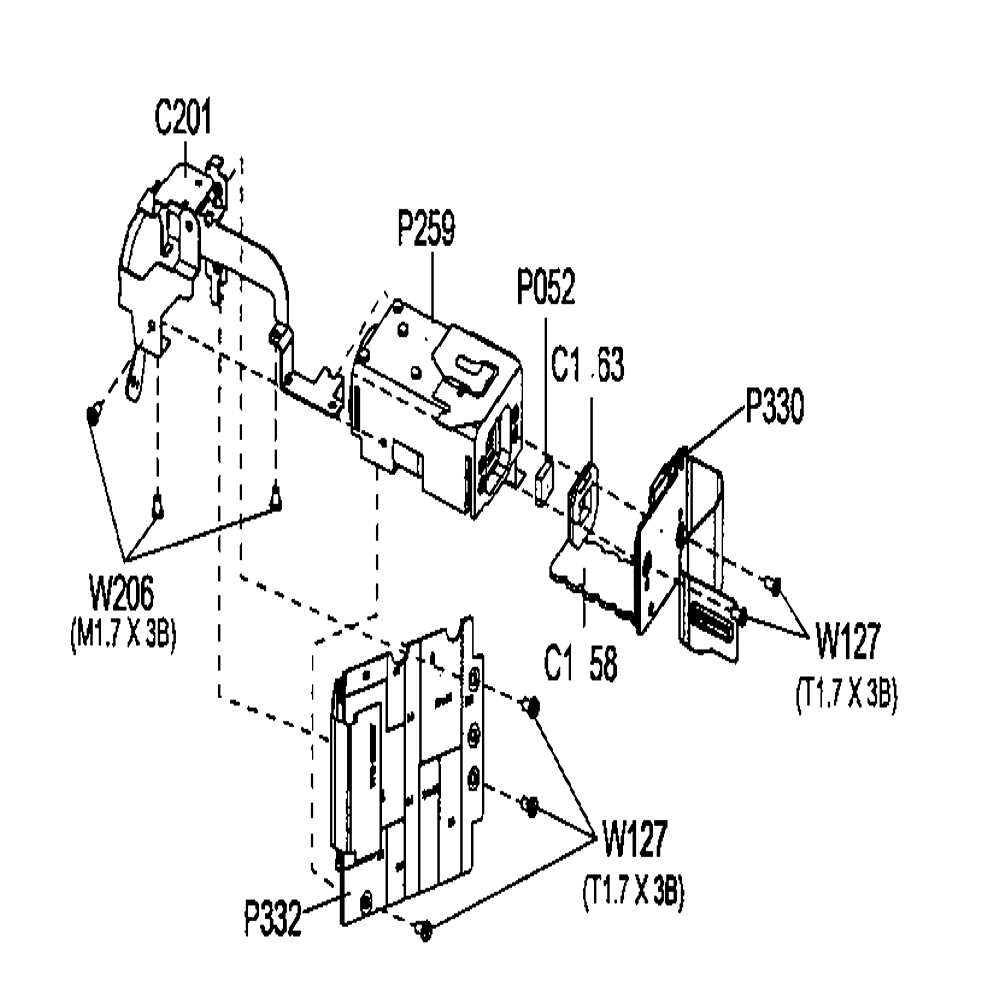

Camera Assy

...
...
P052
Lens Filtr SAM-AD67-00433A
...
P332
Pcb-Socket SAM-AD92-00114A
...
P330
Pcb-Cmos SAM-AD92-00115A
...
C201
Brckt.lens SAM-AD61-03002A
...
C163
Rubber-Cis SAM-AD73-00212A
...
C158
Plate-Cis SAM-AD61-02873A

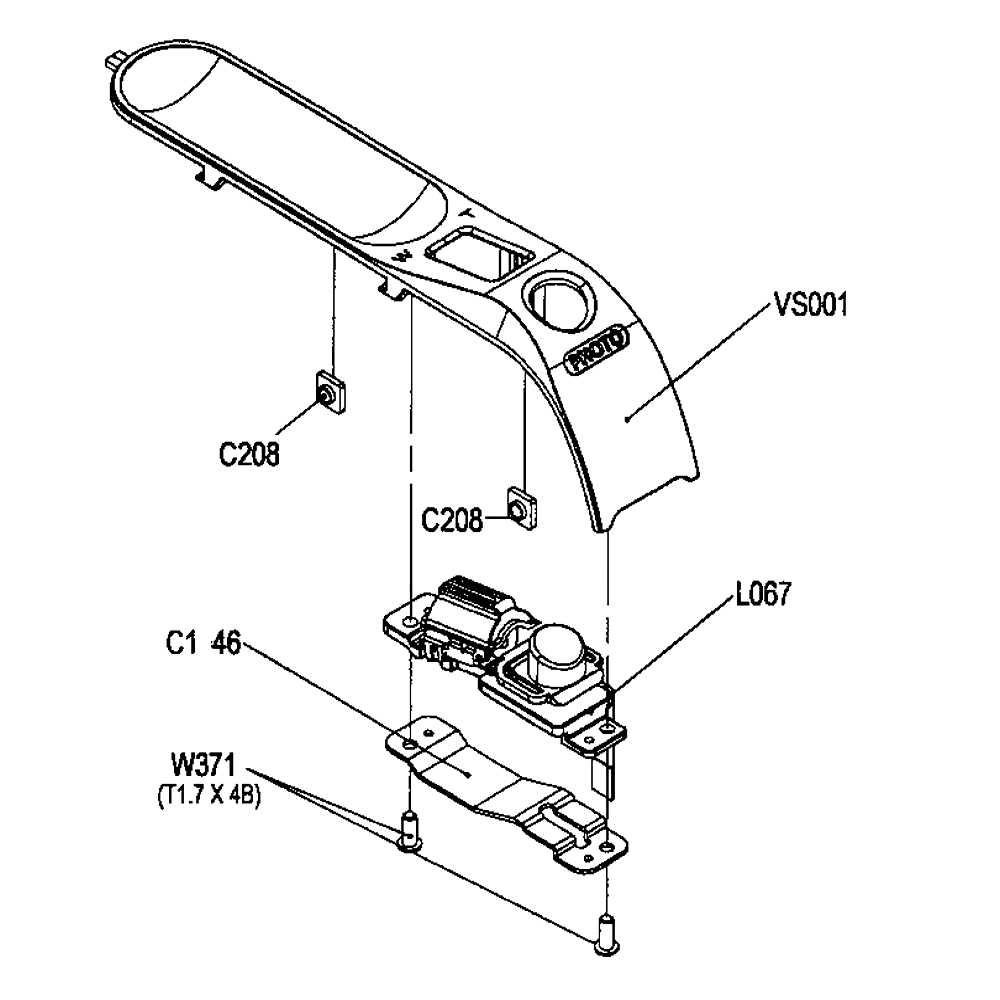

Top Assy

...
...
C146
Bracket SAM-AD61-03014A
...
L067
Asy-Zoom SAM-AD97-12944A
...
VS1
Case-Top SAM-AD61-02857A

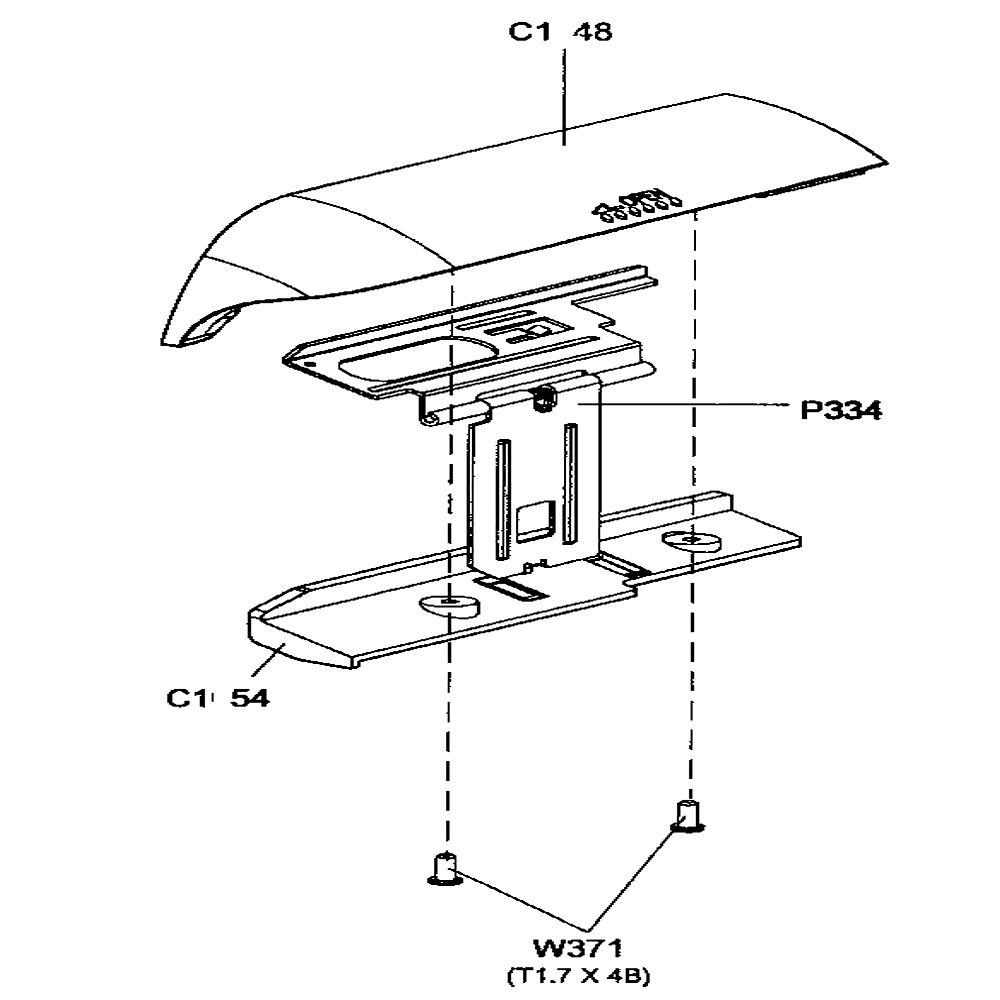

Battery Door Assy

...
...
C148
Battery Cover SAM-AD63-01128A
...
C154
Holder SAM-AD61-02870A
...
P334
Bracket Assembly SAM-AD97-12977A

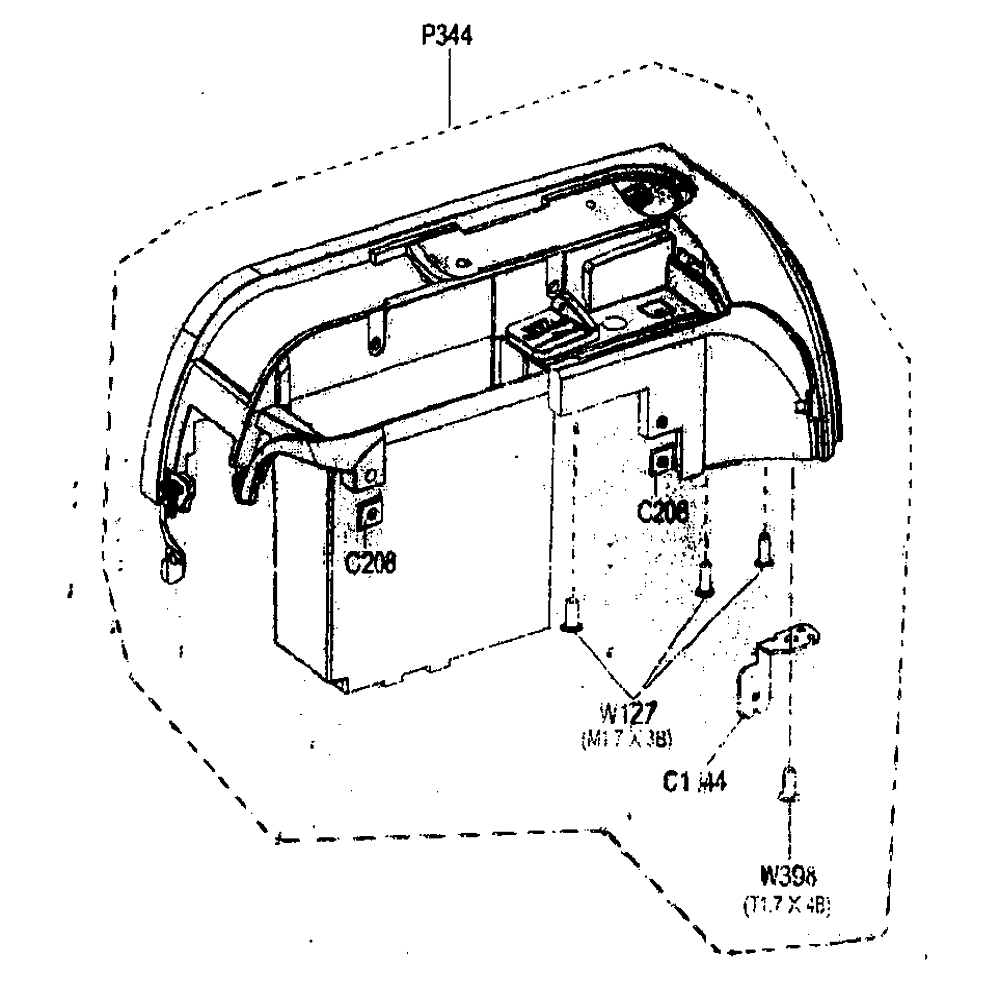

Top Rt Assy

...
...
C144
Bracket SAM-AD61-02848A
...
P344
Assembly SAM-AD97-12991A
