Samsung RT21M6215WW/AA_0002

Model: RT21M6215WW/AA_0002

Save Part Not Listed?
product name

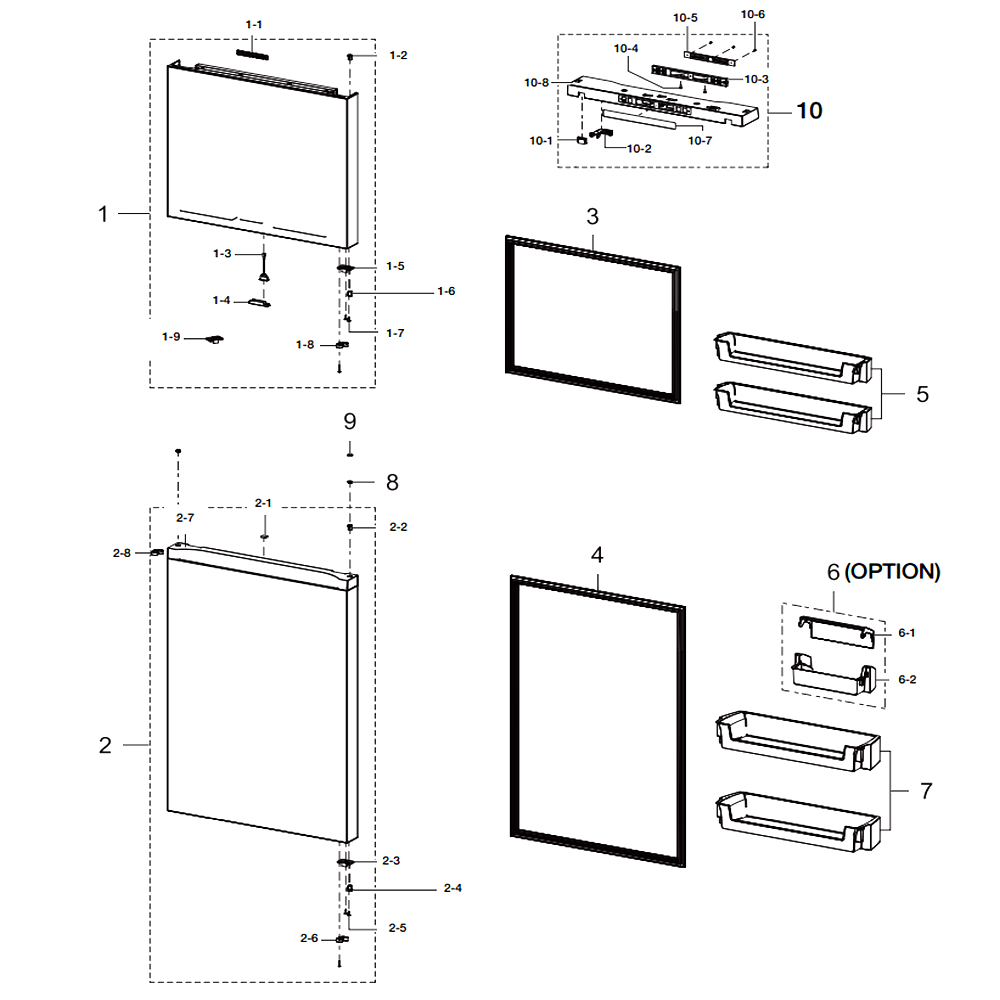

Door Compartment

...
...
1-1
Mascot SAM-DA64-04020A
...
1-2
Grommet Hinge; Barosa,pa66,17,ntr SAM-DA63-07329A
...
1-3
Switch Reed SAM-DA34-00043J
...
1-4
Cap-Reed Switch; Sveta-Pjt,pp,t1.5,75.5,1 SAM-DA67-02385B
...
1-5
Bracket-Stopper Door; Barosa-Pjt,po-Sphc, SAM-DA61-08570A
...
1-6
Grommet-A; Mouton12,si,cool White,name Ta SAM-DA63-07538A
...
1-7
Screw-Tapping SAM-6002-001122
...
1-8
Stopper-Door Ref Low; Barosa-Pjt,pom,h11. SAM-DA61-08650A
...
1
Assy Door Foam-Fre; Rt6500m,21cu Ft,black SAM-DA91-04694A
...
2-1
Magnet SAM-DA61-03769B
...
2-2
Grommet Hinge; Barosa,pa66,17,ntr SAM-DA63-07329A
...
2-3
Bracket-Stopper Door; Barosa-Pjt,po-Sphc, SAM-DA61-08570A
...
2-4
Grommet-A; Mouton12,si,cool White,name Ta SAM-DA63-07538A
...
2-5
Screw-Tapping SAM-6002-001122
...
2-6
Stopper-Door Ref Low; Barosa-Pjt,pom,h11. SAM-DA61-08650A
...
2-7
Cover Cap Door-Fre Up; Rt6500m,abs,t2.0,h SAM-DA63-08703A
...
2-8
Cap Hinge-Up Right; Barosa-Pjt,pp,hb,740j SAM-DA67-03459D
...
2
Assy Door Foam-Ref; Rt6500m,black Caviar, SAM-DA91-04686A
...
3
Assy Gasket-Fre; Rt6500m,black,502*773,rt SAM-DA97-17218E
...
4
Assy Gasket-Ref; Rt6500m,black,1017*773,r SAM-DA97-17218G
...
5
Guard-Fre; Rt6500m,gpps,t3.0,tp Blue,21 C SAM-DA63-08648A
...
6-1
Cover Dairy; Rt6500m,gpps,t3.0,tp Blue SAM-DA63-08649A
...
6-2
Guard-Dairy; Rt6500m,hips,t3.0,cool White SAM-DA63-08653A
...
6
Assy Guard Dairy; Rt6500m SAM-DA97-17194A
...
7
Guard-Jumbo; Rt6500m,gpps,t3.0,tp Blue,21 SAM-DA63-08646A
...
8
Cap Hinge-Hole; Rt6500m,abs,hb,hg-0760gp, SAM-DA67-03149M
...
9
Grommet Ring; Rt6500m,pom SAM-DA63-08955A
...
10-1
Cap Hole-Hinge Upp; Barosa-Pjt,abs,hb,hg- SAM-DA67-03124G
...
10-2
Cap Hinge-Up Left; Barosa-Pjt,pp,hb,740j, SAM-DA67-03460D
...
10-3
Case Pba SAM-DA61-11365A
...
10-4
Screw-Tapping SAM-6002-001122
...
10-5
Assy Module; Pba-Fuse Block,rt6500m,30*55 SAM-DA92-00945C
...
10-6
Screw-Tapping SAM-6002-001122
...
10-7
Inlay Control; Rt6500m,pc,black,inner, Ai SAM-DA64-05231B
...
10-8
Cap Table SAM-DA67-04535A
...
10
Assy Cap Table; Rt6500m,i Black,rt21,auto SAM-DA97-17330A

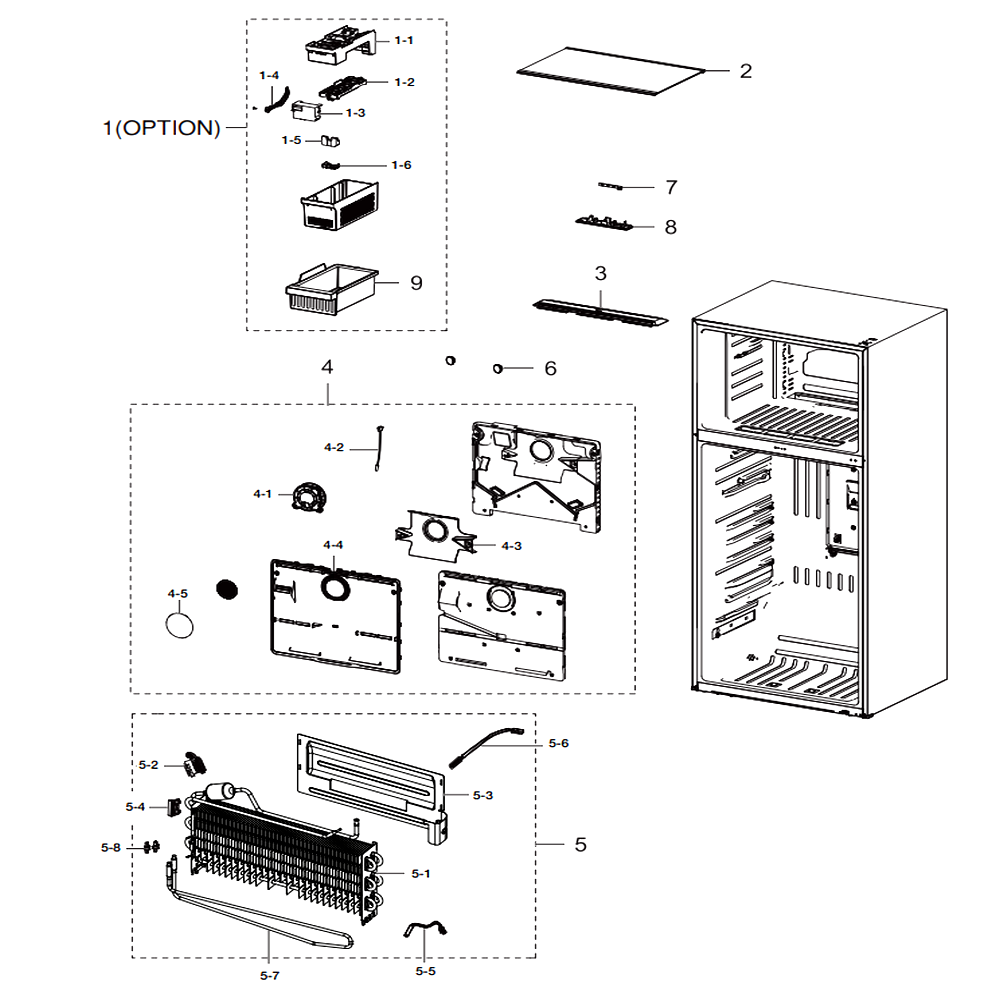

Freezing Compartment

...
...
1-1
Support-Ice Maker Fre; Aw2 Cd,hips,s834s1 SAM-DA61-05227A
...
1-2
Ad,pp,hb,natural SAM-DA63-02284B
...
1-4
Guide-Ice Full; Aw,abs,cool White SAM-DA61-05435A
...
1-5
Fixer Sensor; Ad,urethane,-,-,- SAM-DA61-01800A
...
1-6
Cover Sensor SAM-DA63-02183A
...
1
Assy Ice Maker SAM-DA90-10589A
...
2
Assy Shelf Glass-Fre; Rt6500m,21cu SAM-DA97-17480A
...
3
Cover-Air Fre; Rt380/350,pp,cool White SAM-DA63-07355A
...
4-1
Motor Bldc Fan; 12035ge-12m-Yt,17757%,1 SAM-DA31-00334B
...
4-2
Sensor Temp; Sc41198-021a,900mm,13.2kohm SAM-DA32-00070A
...
4-3
Guide Air-Up; Hips,s834s1,natural SAM-DA61-10968A
...
4-4
Cover Evap-Fre; Rt6500m,pp,hb,cool White SAM-DA63-08652A
...
4-5
Cover-Twin Cooling; Gpps,hb,gentle Blue,s SAM-DA63-08326B
...
4
Assy Cover Evap-Fre; Rt6500m,twin Cooling SAM-DA97-17189A
...
5-1
Evaporator-Fre; Fin Tube,rt6000k_Rt50,53, SAM-DA59-00588B
...
5-2
Fixer Sensor; Ad,urethane,-,-,- SAM-DA61-01800A
...
5-3
Plate Evap-Right SAM-DA61-09621A
...
5-4
Fixer-Fuse; Nw2,pp,natural,bj750 SAM-DA61-07411A
...
5-5
Sensor Temp SAM-DA32-00066B
...
5-6
Thermo Fuse-Assy; Ac250v,10a,109~110s SAM-DA47-00301F
...
5-7
Heater Metal Sheath; Ac120v,3050 Tmf, 90o SAM-DA47-00460G
...
5-8
Nw2,pp,natural,bj750 SAM-DA61-07410A
...
5
Assy Evap-Fre SAM-DA96-01038P
...
6
Cap-Screw SAM-DA67-30266K
...
7
Pba-Led Lamp SAM-DA41-00519R
...
8
Cover-Lamp; 3050,gpps,t2.0,tp Blue,g116hv SAM-DA63-07368A
...
9
Assy Case Ice; Rt6500m,case Ice Cube SAM-DA97-17589A

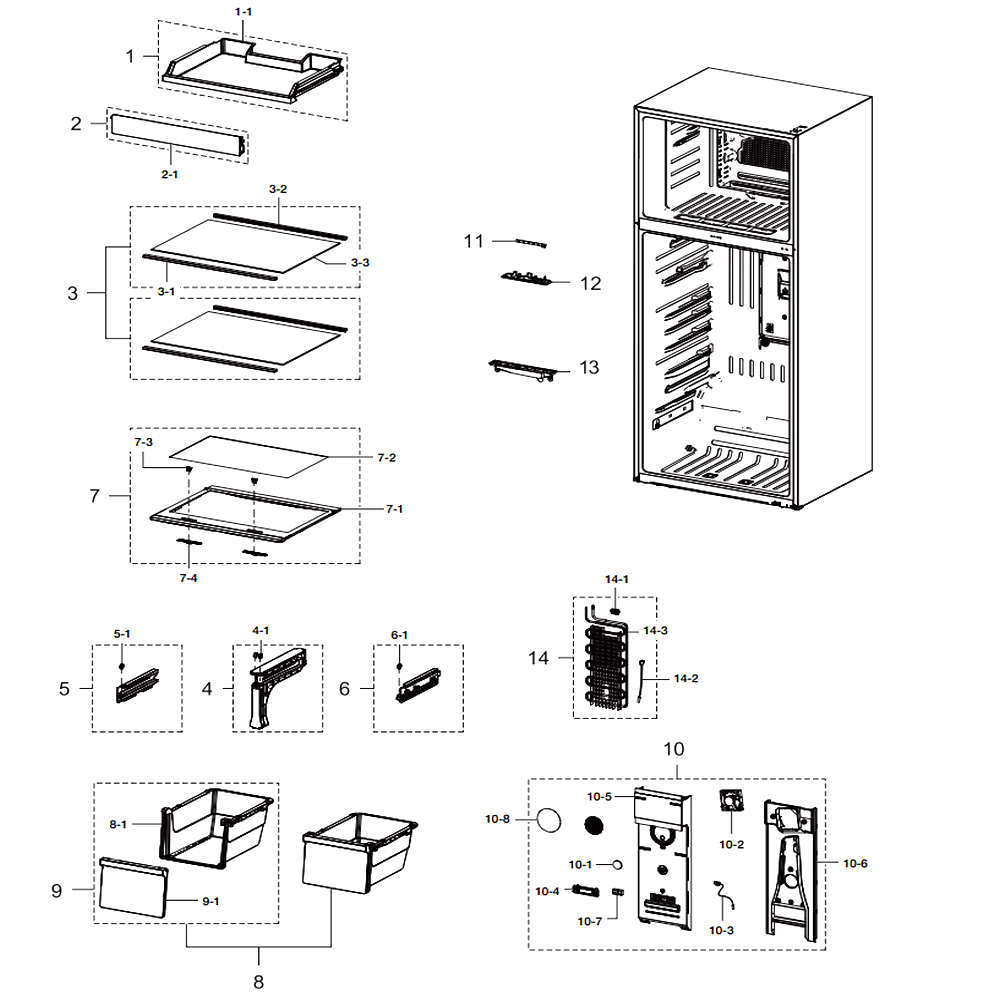

Fridge Compartment

...
...
1-1
Tray Chilled Room; Rt6500m,gpps,tp Blue,r SAM-DA63-08669A
...
1
Assy Tray Chilled Room; Rt6500m,tp Blue,r SAM-DA97-17795A
...
2-1
Cover Chilled Room; Rt6500m,gpps,tp Blue, SAM-DA63-08668A
...
2
Assy Cover Chilled Room; Rt6500m,rt21,tp SAM-DA97-17940B
...
3-1
Trim Shelf-Ref Front; Rt6500m,hips,s834s1 SAM-DA64-05295D
...
3-2
Trim Shelf-Ref Rear; Rt6500m,hips,s834s1, SAM-DA64-04634F
...
3-3
Glass-Shelf Ref; Rt6500m,glass,4,731.4,42 SAM-DA64-05299A
...
3
Assy Shelf Glass-Ref; Rt6500m,21cu SAM-DA97-17477A
...
4-1
Roller-Fre SAM-DA66-10104A
...
4
Assy Rail-Middle; Rt6500m SAM-DA97-17528A
...
5-1
Roller-Fre SAM-DA66-10104A
...
5
Assy Rail-Basket L; Barosa,natural SAM-DA97-13163A
...
6-1
Roller-Fre SAM-DA66-10104A
...
6
Assy Rail-Basket R; Barosa,natural SAM-DA97-13164A
...
7-1
Shelf Vegetable-Low; Rt6500m,abs,cool Whi SAM-DA67-04358A
...
7-2
Glass-Shelf Ref Low; Rt6500m,glass,4,717. SAM-DA64-05330A
...
7-3
Ibaci,hips,cool White(sc-0 SAM-DA64-04173B
...
7-4
Lever-Humidity SAM-DA66-00718A
...
7
Assy Shelf Cover Veg; Rt6500m,21cf SAM-DA97-17525A
...
8-1
Case Veg; Rt6500m,pp,cool White,bj730,rt2 SAM-DA61-11370A
...
8
Assy Case Veg; Rt6500m,21cf SAM-DA97-17512A
...
9-1
Cover Veg-Low SAM-DA63-08304C
...
9
Assy Cover Veg; Rt6500m,rt21,tp Blue SAM-DA97-17939B
...
10-1
Cap-Knob; Max-Pjt,pp,white (sc-93437r),we SAM-DA67-00738A
...
10-2
Motor Bldc Fan; 92mm Box-Fan Motor,3350 SAM-DA31-00338A
...
10-3
Sensor Temp; Sc41198-021a,500mm,13.2kohm SAM-DA32-00070B
...
10-4
Cover-Deodorizer; 3050,pp,cool White,bj75 SAM-DA63-07423B
...
10-5
Cover Evap-Ref A; Rt6000k 43/46/50/53,pp, SAM-DA63-08319A
...
10-6
Cover Evap-Ref B SAM-DA63-08324B
...
10-8
Cover-Twin Cooling; Gpps,hb,gentle Blue,s SAM-DA63-08326B
...
10
Assy Cover Evap-Ref SAM-DA97-16256M
...
11
Assy Lamp Led; 5ea,cem-1,100*20,white,sma SAM-DA41-00519B
...
12
Cover-Lamp; 3050,gpps,t2.0,tp Blue,g116hv SAM-DA63-07368A
...
13
Plate Drain-Ref; Rt7000k,pp,t1.5,natural, SAM-DA61-10876A
...
14-1
Fixer-Sensor; Nw2,pp,natural,m1600 SAM-DA61-07408A
...
14-2
Sensor Temp; Sc41200-021a,250mm,11.73kohm SAM-DA32-00070C
...
14-3
Evaporator-Ref SAM-DA59-00598A
...
14
Assy Evap-Ref; Rt6500m,fin Tube SAM-DA96-01210A

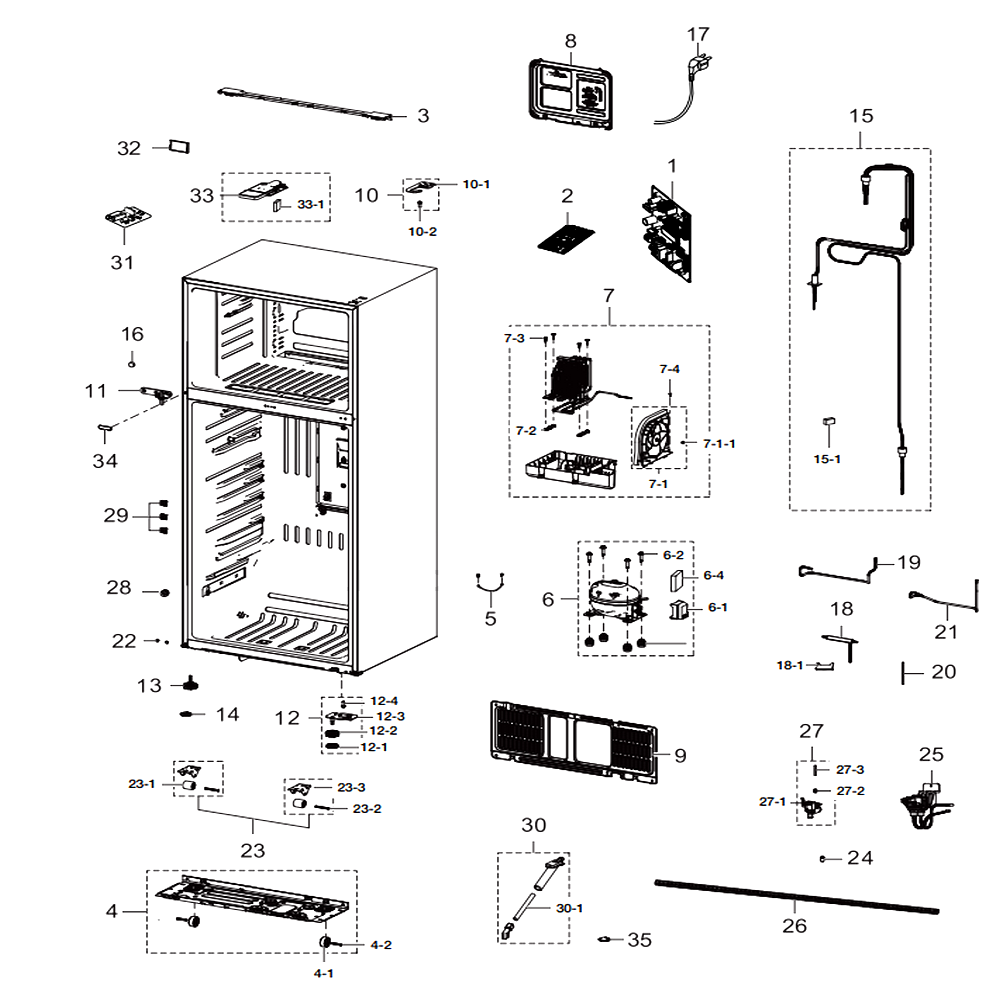

Cabinet Compartment

...
...
1
Assy Pcb Main; Twin Cooling,rt6500m,160*1 SAM-DA92-00979C
...
2
Assy Pcb Inverter; Inverter,3050,148*98.5 SAM-DA92-00459X
...
3
Cap Door-Fre Up SAM-DA67-04398A
...
4-1
Caster-Rear SAM-DA61-40126B
...
4-2
Pin-Caster SAM-DA60-90146A
...
4
Assy Chassis Comp; Rt7000k SAM-DA97-16204A
...
5
Assy Wire Harness-Earth; All,free Volt,ul SAM-DA39-20389A
...
6-1
Cover Relay; Msv,mppo,t2.0,5v-A,black,m-H SAM-DA63-06122A
...
6-2
Bolt-Hex SAM-6011-001546
...
6-3
Grommet Comp SAM-DA63-02617A
...
6-4
Seal Cutt-Rubber; Rubber,black,t3,w40,l70 SAM-DA62-00960A
...
6
Cmp,comp,refrigerator,r-600a; Cmp,comp,refrigerator,r-600a SAM-MSV4A1AL1R/TT3
...
7-1-1
Spring Etc-Fan SAM-DA61-20128A
...
7-1
Assy Support-Circuit Motor; Rt6500m SAM-DA97-17321D
...
7-2
Grommet-Sub Cond SAM-DA63-40128A
...
7-3
Screw-Special SAM-6009-001252
...
7-4
Screw-Tapping SAM-6002-001122
...
7
Assy Tray Drain Water; Rt6500m SAM-DA97-17301A
...
8
Assy Cover Pcb-Panel; Rt29/32/35/38,twin SAM-DA97-13545F
...
9
Assy Cover Comp; Rt6500m-Rt21 SAM-DA97-13257B
...
10-1
Hinge-Upp; Barosa-Pjt,shp1,t4.0,w62,l135. SAM-DA61-08574A
...
10-2
Shaft-Hinge; Barosa,swch10a SAM-DA66-00999A
...
10
Assy Hinge-Upp; Barosa-Pjt,black SAM-DA97-13026A
...
11
Assy Hinge-Middle; Rt6500m,zpc SAM-DA97-17215A
...
12-1
Cover-Foot; Super Star,rt7000k,pp SAM-DA63-06285A
...
12-2
Foot-Front; Super Star,rt7000k,pp,black,( SAM-DA61-07280A
...
12-3
Hinge-Low SAM-DA61-11374A
...
12-4
Shaft-Hinge; Barosa,swch10a SAM-DA66-00999A
...
12
Assy Hinge-Low; Rt6500m,black Electrodepo SAM-DA97-17216A
...
13
Foot-Front; Super Star,rt7000k,pp,black,( SAM-DA61-07280A
...
14
Foot SAM-DA61-07973B
...
15-1
Seal Cutt-Rubber; Rubber,black,t3,w40,l70 SAM-DA62-00960A
...
15
Assy Pipe Suction; Rt6500m SAM-DA97-17307A
...
16
Cap-Screw SAM-DA67-30266K
...
17
Cbf-Power Cord; At,usa,us3f-1,3c,125v,15a SAM-3903-001003
...
18-1
Seal-Dryer SAM-DA62-04105A
...
18
Dryer; C1220t-H,114,single Mouth,r-600a O SAM-DA62-04309D
...
19
Pipe Connect-Suction; Rt6500m,cu,6.35,0.6 SAM-DA62-04851A
...
20
Pipe Connect SAM-DA62-04940A
...
21
Pipe Connect-Disc; Rf8000mc,cu,od6.35,t0. SAM-DA73-10190Y
...
23-1
Caster-Front; Td,pp,black,pp Scrap SAM-DA61-07901A
...
23-2
Rivet SAM-DA60-90124A
...
23-3
Reinf-Caster SAM-DA61-07925A
...
23
Assy-Caster Front; Td-Pjt,-,-,- SAM-DA97-02361A
...
24
Rubber-Cap Hose SAM-DA73-00211A
...
25
Valve Step; Dc12v,module,2way,left/left B SAM-DA62-04678D
...
26
Pipe-Water Line Out SAM-DA62-00160C
...
27-1
Ac110~127v,-,1way,#187,1,1,no SAM-DA62-01477A
...
27-2
Valve-Fitting Nut SAM-DA74-00070B
...
27-3
Pipe-Water Line SAM-DA62-01368B
...
27
Ibaci,ibaci,110~12 SAM-DA97-13268A
...
28
Fitting-Lokring 43 SAM-DA60-00281A
...
29
Fixer-Hose SAM-DA61-03467B
...
30-1
Pipe-Water Ice; A-Top,al,-,-,-,-,-,- SAM-DA62-00040A
...
30
Assy Pipe Water Ice; Rt6500 SAM-DA97-17219A
...
31
Assy Module; Pba-Fuse Block,rt6500m,30*55 SAM-DA92-00945C
...
32
Cap Space-Door; Rt6500m,abs,t2.0,hb,hg-07 SAM-DA67-04441A
...
33-1
Seal Water-Pipe SAM-DA62-02645A
...
33
Cover-Fixer Water Line; Rt6500m,pp,hb,bla SAM-DA63-08864A
...
34
Cap Screw-Middle; Rt6500m,abs,hb,hg-0760g SAM-DA67-04497A
...
35
Cover-Urethane SAM-DA63-03809A
