Samsung RSG307AARS/XAA

Model: RSG307AARS/XAA

Save Part Not Listed?
product name

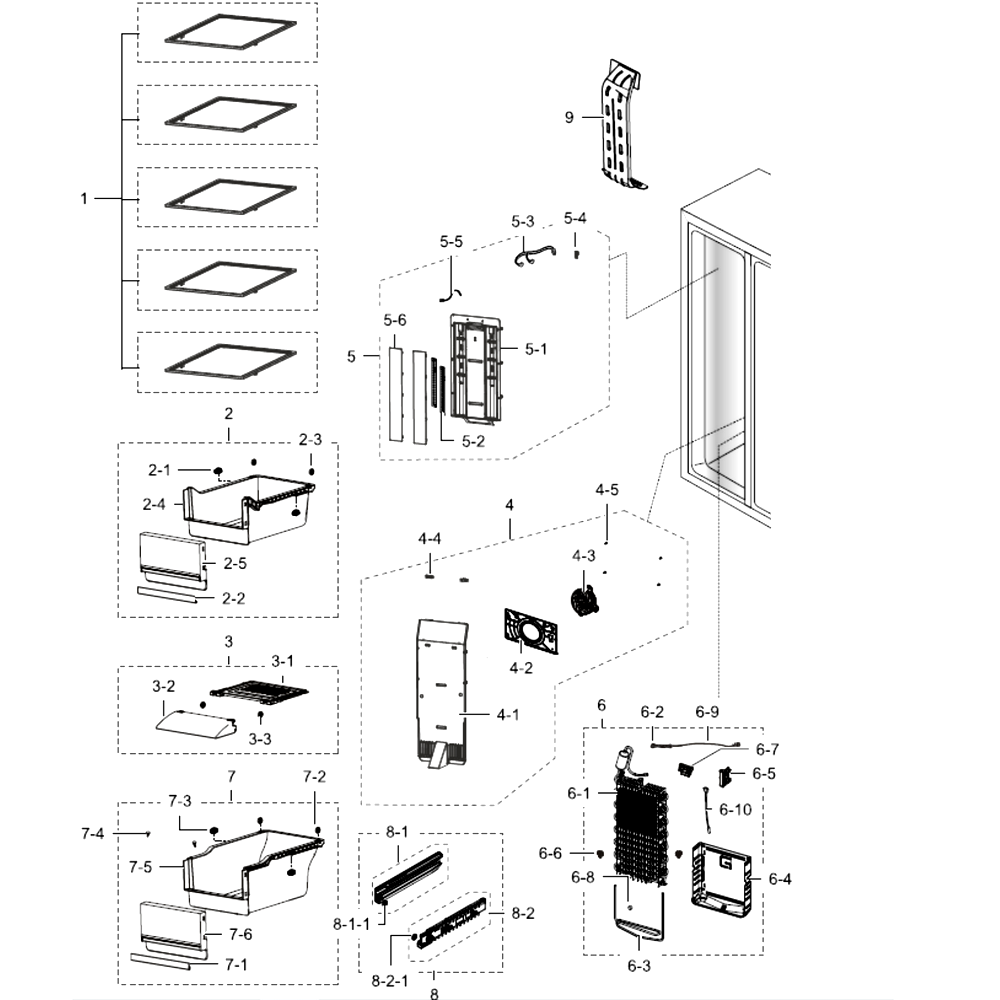

Freezer

...
...
1
Shelf-Fre SAM-DA67-03088A
...
2-1
Grommet-Drawer Roller SAM-DA63-06108A
...
2-2
Trim-Drawer Fre SAM-DA64-03802A
...
2-3
Roller-Fre SAM-DA66-10104C
...
2-4
Case-Drawer Fre High SAM-DA61-06812B
...
2-5
Cover-Drawer Fre SAM-DA63-06003B
...
2
Assembly Case-Drawer Fre High SAM-DA97-10881E
...
3-1
Fixer-Cover Flip Fre SAM-DA61-07792A
...
3-2
Cover-Drawer Fre Flip SAM-DA63-06005B
...
3-3
Roller-Fre SAM-DA66-10104C
...
3
Assembly Cover-Drawer Fre Flip SAM-DA97-12009B
...
4-1
Cover Evap-Fre SAM-DA63-06058B
...
4-2
Case-Motor Fre SAM-DA61-08425A
...
4-3
Motor Bldc-Fan SAM-DA31-00287B
...
4-4
Fixer-Cover Damper SAM-DA61-06851A
...
4-5
Screw-Tapping SAM-6002-000215
...
4
Assembly Cover Evap-Fre SAM-DA97-13388B
...
5-1
Cover-Multi Fre SAM-DA63-06489A
...
5-2
Pba-Led Lamp SAM-DA41-00676B
...
5-3
Assembly W/harness-Led Lamp SAM-DA96-00768H
...
5-4
Fixer-Cover Damper SAM-DA61-06851A
...
5-5
Sensor Temp SAM-DA32-00066A
...
5-6
Cover Lamp-Fre SAM-DA63-06491A
...
5
Assembly Cover Multi-Fre SAM-DA97-11580A
...
6-1
Evap Fre SAM-DA59-00522A
...
6-2
Thermo Bimetal-Protector SAM-DA47-00285S
...
6-3
Heater Sheath-Metal Fre SAM-DA47-00320P
...
6-4
Plate-Drain Evap Fre SAM-DA61-06843A
...
6-5
Fixer-Sensor Evap SAM-DA61-02901A
...
6-6
Fixer-Heater Fre SAM-DA61-04921B
...
6-7
Fixer-Fuse SAM-DA61-05160A
...
6-8
Fixer-Sheath Heater SAM-DA61-07085A
...
6-9
Thermo Fuse-Assy SAM-DA47-00301H
...
6-10
Sensor Temp SAM-DA32-00029P
...
6
Assembly Evap-Fre SAM-DA96-00788B
...
7-1
Trim-Drawer Fre SAM-DA64-03802A
...
7-2
Roller-Fre SAM-DA66-10104C
...
7-3
Grommet-Drawer Roller SAM-DA63-06108A
...
7-4
Grommet-Drawer Flip SAM-DA63-06107A
...
7-5
Case-Drawer Fre Low SAM-DA61-06818B
...
7-6
Cover-Drawer Fre SAM-DA63-06003B
...
7
Assembly Case-Drawer Fre Low SAM-DA97-10884E
...
8-1-1
Roller-Fre SAM-DA66-10104C
...
8-1
Assembly Rail-Drawer L SAM-DA97-10870B
...
8-2-1
Roller-Fre SAM-DA66-10104C
...
8-2
Assembly Rail-Drawer R SAM-DA97-10880B
...
8
Assembly Liner Ref SAM-DA94-00539C
...
9
Assembly Guide-Air Fre SAM-DA97-11567C

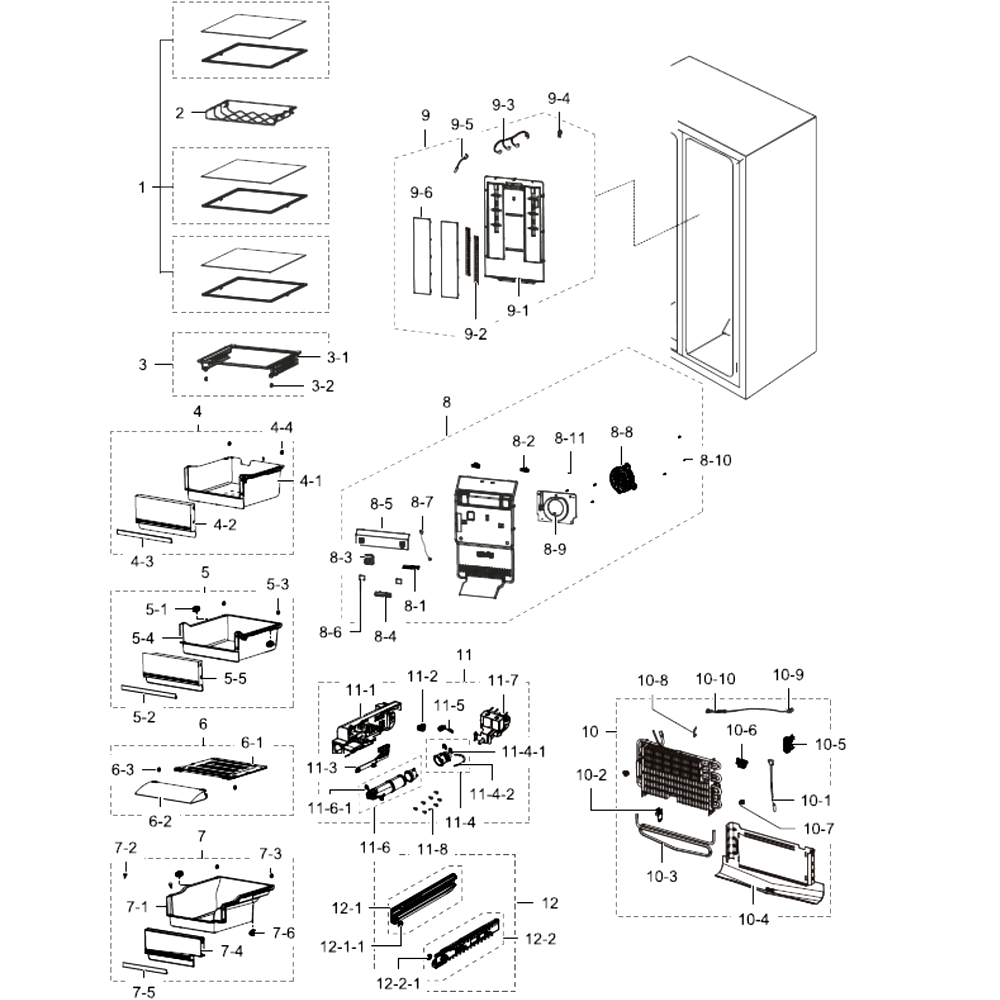

Fridge

...
...
1
Shelf-Ref SAM-DA67-03087A
...
2
Rack-Wine SAM-DA75-00257B
...
3-1
Shelf-Chilled SAM-DA67-02816A
...
3-2
Roller-Fre SAM-DA66-10104C
...
3
Assembly Shelf-Chilled SAM-DA97-10902B
...
4-1
Case-Chilled SAM-DA61-06850B
...
4-2
Cover-Chilled SAM-DA63-06027B
...
4-3
Trim-Drawer Ref SAM-DA64-03802B
...
4-4
Roller-Fre SAM-DA66-10104C
...
4
Assembly Case-Chilled SAM-DA97-10906B
...
5-1
Grommet-Drawer Roller SAM-DA63-06108A
...
5-2
Trim-Drawer Ref SAM-DA64-03802B
...
5-3
Roller-Fre SAM-DA66-10104C
...
5-4
Case-Drawer Ref High SAM-DA61-06820B
...
5-5
Cover-Drawer Ref SAM-DA63-06004B
...
5
Assembly Case-Drawer Ref High SAM-DA97-10887E
...
6-1
Fixer-Cover Flip Ref SAM-DA61-06823A
...
6-2
Cover-Drawer Ref Flip SAM-DA63-06006B
...
6-3
Roller-Fre SAM-DA66-10104C
...
6
Assembly Cover-Drawer Ref Flip SAM-DA97-10894B
...
7-1
Case-Drawer Ref Low SAM-DA61-07576A
...
7-2
Grommet-Drawer Flip SAM-DA63-06107A
...
7-3
Roller-Fre SAM-DA66-10104A
...
7-4
Cover-Drawer Ref Low SAM-DA63-06483A
...
7-5
Trim-Drawer Ref Low SAM-DA64-03802C
...
7-6
Grommet-Drawer Roller SAM-DA63-06108A
...
7
Assembly Case-Drawer Ref Low SAM-DA97-11526A
...
8-1
Pba-Led Lamp SAM-DA41-00519R
...
8-2
Fixer-Cover Damper SAM-DA61-06851A
...
8-3
Guide Air-Chilled SAM-DA61-06976A
...
8-4
Cover-Led SAM-DA63-03056B
...
8-5
Cover-Purifier SAM-DA63-06030B
...
8-6
Cap-Cover Evap SAM-DA67-02878A
...
8-7
Assembly W/harness-Photosynthesis Led SAM-DA96-00263E
...
8-8
Motor Bldc-Fan SAM-DA31-00287B
...
8-9
Plate-Motor Ref SAM-DA61-08438A
...
8-10
Screw-Tapping SAM-6002-000471
...
8-11
Screw-Tapping SAM-6002-001204
...
8
Assembly Cover Evap-Ref SAM-DA97-13389F
...
9-1
Cover-Multi Ref SAM-DA63-06488A
...
9-2
Pba-Led Lamp SAM-DA41-00676B
...
9-3
Assembly W/harness-Led Lamp SAM-DA96-00768H
...
9-4
Fixer-Cover Damper SAM-DA61-06851A
...
9-5
Sensor Temp SAM-DA32-00066A
...
9-6
Cover Lamp-Ref SAM-DA63-06490A
...
9
Assembly Cover Multi-Ref SAM-DA97-11581A
...
10-1
Sensor Temp SAM-DA32-00029M
...
10-2
Plate-Evap Bracket Ref SAM-DA61-06062A
...
10-3
Heater Sheath-Metal Ref SAM-DA47-00321P
...
10-4
Plate-Drain-Evap Ref SAM-DA61-06844B
...
10-5
Fixer-Senser SAM-DA61-03683A
...
10-6
Fixer-Fuse SAM-DA61-05160A
...
10-7
Fixer-Heater Ref SAM-DA61-06063A
...
10-8
Fixer-Wire SAM-DA61-06013A
...
10-9
Thermo Fuse-Assy SAM-DA47-00301J
...
10-10
Thermo Bimetal-Protector SAM-DA47-00285R
...
10
Assembly Evap-Ref SAM-DA96-00787C
...
11-1
Cover-Filter SAM-DA63-06457A
...
11-2
Tube-Fitting L SAM-DA62-03103A
...
11-3
Cover-Plate SAM-DA63-06462A
...
11-4-1
Clip-Fitting Lock SAM-DA61-04522A
...
11-4-2
Pipe-Water Line SAM-DA62-02429G
...
11-4
Assembly Case-Filter SAM-DA97-08006E
...
11-5
Assy-Fitting Tube L SAM-DA97-11272A
...
11-6-1
Clip-Fitting Lock SAM-DA61-04522A
...
11-6
Assembly Tank Water SAM-DA97-11441A
...
11-7
Valve Water-2way SAM-DA62-03150C
...
11-8
Screw-Tapping SAM-6002-000471
...
11
Assembly Case-Water Filter Tank Side SAM-DA97-11527A
...
12-1-1
Roller-Fre SAM-DA66-10104C
...
12-1
Assembly Rail-Drawer L SAM-DA97-10870B
...
12-2-1
Roller-Fre SAM-DA66-10104C
...
12-2
Assembly Rail-Drawer R SAM-DA97-10880B
...
12
Assembly Liner Ref SAM-DA94-00539C

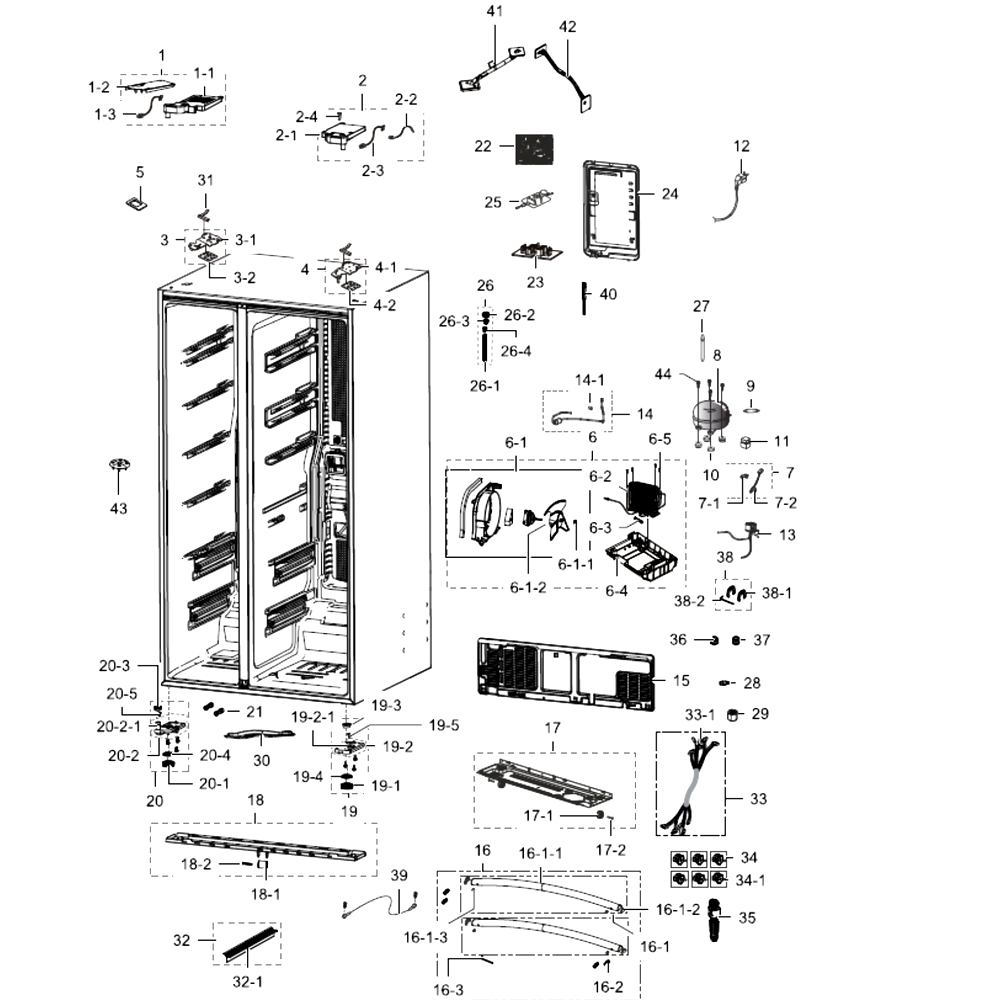

Cabinet

...
...
1-1
Cover-Hinge Fre SAM-DA63-06465A
...
1-2
Plate-Cover Hinge Fre SAM-DA61-06854A
...
1-3
Switch Reed-Ass'y SAM-DA34-00043D
...
1
Assembly Cover Hinge-Fre SAM-DA97-11462A
...
2-1
Cover-Hinge Ref SAM-DA63-06464A
...
2-2
Sensor Humidity SAM-DA32-00034B
...
2-3
Switch Reed-Ass'y SAM-DA34-00043D
...
2-4
Screw-Tapping SAM-6002-000466
...
2
Assembly Cover-Hinge Ref SAM-DA97-11461D
...
3-1
Hinge-Top Fre SAM-DA61-07533A
...
3-2
Shim Hinge-Top SAM-DA63-06071A
...
3
Assembly Hinge-Top Fre SAM-DA97-11463A
...
4-1
Hinge-Top Ref SAM-DA61-07532A
...
4-2
Shim Hinge-Top SAM-DA63-06071A
...
4
Assembly Hinge-Top Ref SAM-DA97-11464A
...
5
Cap-Guide Air Fre SAM-DA67-03099A
...
6-1-1
Spring Etc-Fan SAM-DA61-20128A
...
6-1-2
Fan SAM-DA31-00320A
...
6-1
Assembly Support-Circuit Motor SAM-DA97-15765A
...
6-2
Assembly Pipe-Condenser SAM-DA97-08464F
...
6-3
Grommet-Sub Cond SAM-DA63-40128A
...
6-4
Tray-Drain Water SAM-DA63-05084B
...
6-5
Screw-Special SAM-6009-001252
...
6
Assembly Tray Drain Water SAM-DA97-13310B
...
7-1
Relay Protector O/l SAM-DA34-00004D
...
7-2
Wire Harness-Comp SAM-DA39-00154J
...
7
Assembly Comp-Sub SAM-DA97-08310H
...
8
Compressor SAM-MKV190CL2B/E01
...
9
Dryer SAM-DA62-04309A
...
10
Grommet Comp SAM-DA63-02617A
...
11
Cover Relay SAM-DA63-01866A
...
12
Cbf-Power Cord SAM-3903-000786
...
13
Assembly Motor-Step Valve SAM-DA97-08630A
...
14-1
Grommet-Suct Pipe B SAM-DA63-40171D
...
14
Assembly Pipe Connect SAM-DA97-08458G
...
15
Assembly Cover-Comp SAM-DA97-10907B
...
16-1-1
Handle Bar-Ref SAM-DA64-03699C
...
16-1-2
Cap-Handle Ref SAM-DA67-02673A
...
16-1-3
Screw-Set SAM-6009-001526
...
16-1
Assembly Handle-Ref Fixer SAM-DA97-10686C
...
16-2
Fixer-Handle SAM-DA61-03734A
...
16-3
Wrench-Spanner SAM-DA80-00026B
...
16
Assembly Cushion Handle SAM-DA99-03478C
...
17-1
Caster-Rear SAM-DA61-04703B
...
17-2
Shaft-Caster SAM-DA66-00649B
...
17
Assembly Chassis-Comp SAM-DA97-07547F
...
18-1
Caster-Front SAM-DA61-04702A
...
18-2
Caster-Rivet SAM-DA61-01920A
...
18
Assembly Reinf-Bott Front SAM-DA97-10899Q
...
19-1
Foot-Front SAM-DA61-07972B
...
19-2-1
Shaft-Leg Front SAM-DA66-00793A
...
19-2
Hinge-Low Ref SAM-DA61-07534A
...
19-3
Cam-Hinge Riser Low R SAM-DA66-00815A
...
19-4
Foot SAM-DA61-07973B
...
19-5
Screw-Taptype SAM-6003-001435
...
19
Assembly Hinge-Low Ref SAM-DA97-11466B
...
20-1
Foot-Front SAM-DA61-07972B
...
20-2-1
Shaft-Leg Front SAM-DA66-00793A
...
20-2
Hinge-Low Fre SAM-DA61-07535B
...
20-3
Cam-Hinge Riser Fre Low SAM-DA66-00809B
...
20-4
Foot SAM-DA61-07973B
...
20-5
Screw-Taptype SAM-6003-001435
...
20
Assembly Hinge-Low Fre SAM-DA97-11465D
...
21
Fitting-Tube SAM-DA60-00258B
...
22
Assembly Pcb Main SAM-DA92-00175B
...
23
Assembly Pcb Inverter SAM-DA92-00215C
...
24
Assembly Cover-Pba Main SAM-DA97-11120E
...
25
Coil Filter-Emi SAM-DA27-00022B
...
26-1
Tube Pvc SAM-DA62-01266B
...
26-2
Grommet-Drain SAM-DA63-02761A
...
26-3
Fixer-Drain SAM-DA61-05021A
...
26-4
Cap-Drain SAM-DA67-01301A
...
26
Assembly Cap-Drain SAM-DA97-04049E
...
27
Pipe-Connect Disc,b SAM-DA73-10190U
...
28
Valve-Fitting Pu SAM-DA62-00305A
...
29
Valve-Fitting Nut SAM-DA74-00070B
...
30
Cover-Hose Bott SAM-DA63-06599A
...
31
Fixer Hinge-Upp SAM-DA61-04932A
...
32-1
Trim-Blade SAM-DA64-02605B
...
32
Assy-Trim Blade SAM-DA97-11236A
...
33-1
Sensor Temp SAM-DA32-10109Q
...
33
Assembly W/harness-Main SAM-DA96-00796D
...
34-1
Screw-Tapping SAM-6002-001122
...
34
Assy-Grommet Fixer SAM-DA97-10898B
...
35
Assembly Drain-Hose Low SAM-DA97-11843A
...
36
Fitting-Lokring 33 SAM-DA60-00280A
...
37
Fitting-Lokring 43 SAM-DA60-00281A
...
38-1
Clip-Fitting Lock SAM-DA61-04522A
...
38-2
Wrench-Spanner SAM-DA80-00002F
...
38
Assembly Install-Accessory SAM-DA99-03490J
...
39
Wire Harness-Earth SAM-DA39-20389L
...
40
Assembly Pipe-Suction SAM-DA97-11221A
...
41
Assembly Guide-Water Hose Lower SAM-DA97-11546B
...
42
Assembly Guide-Water Hose Rear SAM-DA97-11547B
...
43
Cover-Urethane SAM-DA63-03809A
...
44
Bolt-Hex SAM-6011-004061

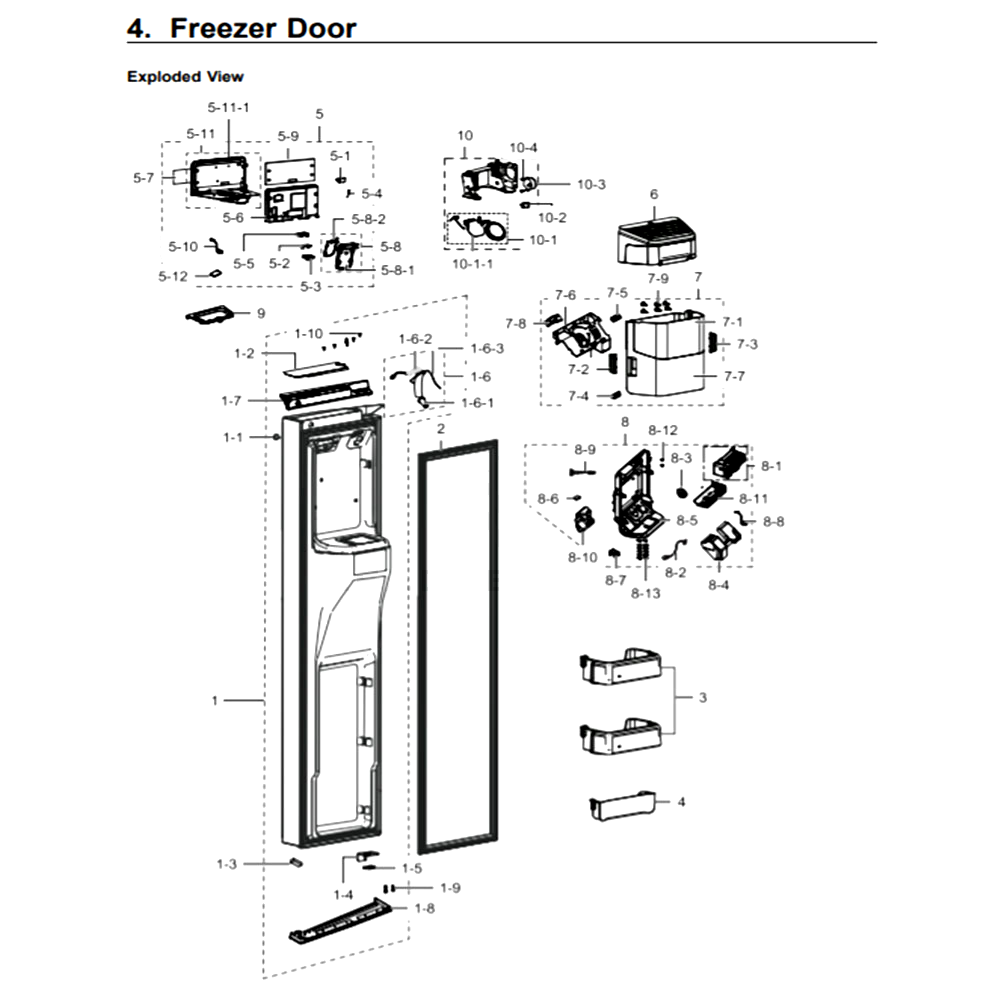

Freezer Door

...
...
1-1
Switch Door-Interlock SAM-DA34-00066C
...
1-2
Cover-Cap Door Fre High SAM-DA63-06467D
...
1-3
Magnet-A SAM-DA61-03769A
...
1-4
Stopper-Door Fre Low SAM-DA61-07527A
...
1-5
Cam Hinge-Riser Upp L SAM-DA66-00558B
...
1-6-1
Fixer-Valve Water B SAM-DA71-20208A
...
1-6-2
Heater-Water Pipe SAM-DA47-00104M
...
1-6-3
Pipe-Water Line SAM-DA62-01368L
...
1-6
Assembly Pipe-Water Ice SAM-DA97-06542H
...
1-7
Cap Door-Fre High SAM-DA67-03081A
...
1-8
Cap Door-Fre Low SAM-DA67-03089A
...
1-9
Screw-Machine SAM-6001-000715
...
1-10
Screw-Tapping SAM-6002-001122
...
1
Assembly Door Foam Fre SAM-DA91-03633J
...
2
Assy-Gasket Door Fre SAM-DA97-04568W
...
3
Assembly Guard-Fre Mid SAM-DA97-11501A
...
4
Guard-Fre Low SAM-DA63-06497A
...
5-1
Switch Micro SAM-DA34-00011B
...
5-2
Assembly Pcb Kit SAM-DA41-00217A
...
5-3
Case Lamp-Led SAM-DA61-05687A
...
5-4
Spring Etc-Lever Disp Ice SAM-DA61-06033B
...
5-5
Cover-Lamp-Led SAM-DA63-02446A
...
5-6
Cover Pcb-Panel Rear SAM-DA63-06377A
...
5-7
Inlay-Display SAM-DA64-03911A
...
5-8-1
Lever-Dispenser SAM-DA66-00850A
...
5-8-2
Plate-Lever Dispenser SAM-DA61-07362A
...
5-8
Assembly Lever Disp SAM-DA97-11867A
...
5-9
Assembly Pcb Kit Led SAM-DA92-00197A
...
5-10
Assy-W/harness Disp SAM-DA96-00106G
...
5-11-1
Cover Dispenser SAM-DA63-06373A
...
5-11
Assembly Cover Disp-Sub SAM-DA97-12275A
...
5-12
Cover-Switch SAM-DA63-05449A
...
5
Assembly Cover Dispenser SAM-DA97-12088T
...
6
Assembly Cover-Ice Maker SAM-DA97-06568C
...
7-1
Window-Bucket SAM-DA64-02587A
...
7-2
Lever-Bucket L SAM-DA66-00587A
...
7-3
Lever-Bucket R SAM-DA66-00588A
...
7-4
Magnet-Ass'y SAM-DA61-02738A
...
7-5
Spring Etc-Bucket Lever SAM-DA61-04378A
...
7-6
Cover-Crusher Bucket SAM-DA63-04354C
...
7-7
Tray Ice-Bucket Front SAM-DA63-04359C
...
7-8
Clamper Core-Helix SAM-DA65-00051A
...
7-9
Screw-Tapping SAM-6002-000473
...
7
Assembly Case Ice-Bucket SAM-DA97-06569S
...
8-1
Assembly Ice Maker SAM-DA97-11092B
...
8-2
Switch Reed-Ass'y SAM-DA34-00043C
...
8-3
Cam-Lever Cube SAM-DA66-00589A
...
8-4
Cover Motor-Auger Sub SAM-DA63-04362B
...
8-5
Case-Auger Motor SAM-DA61-04363B
...
8-6
Magnet SAM-DA33-10011A
...
8-7
Cover-Motor Auger Coil SAM-DA63-05515A
...
8-8
Assy-Wire Harness Sub SAM-DA96-00036P
...
8-9
Switch Reed SAM-DA97-00151B
...
8-10
Motor Geared-Auger SAM-DA31-00210D
...
8-11
Cover-Heater Ice Maker SAM-DA63-04355A
...
8-12
Screw-Tapping SAM-6002-000217
...
8-13
Screw-Tapping SAM-6002-000471
...
8
Assembly Case-Auger Motor SAM-DA97-11095E
...
9
Tray-Dispenser SAM-DA63-05506D
...
10-1-1
Cover-Ice Route A SAM-DA63-04647A
...
10-1
Assembly Cover-Ice Route SAM-DA97-05368A
...
10-2
Switch-Micro SAM-3405-001117
...
10-3
Motor Geared-Disp SAM-DA31-00079D
...
10-4
Screw-Tapping SAM-6002-001364
...
10
Assembly Case-Ice Route SAM-DA97-08680C

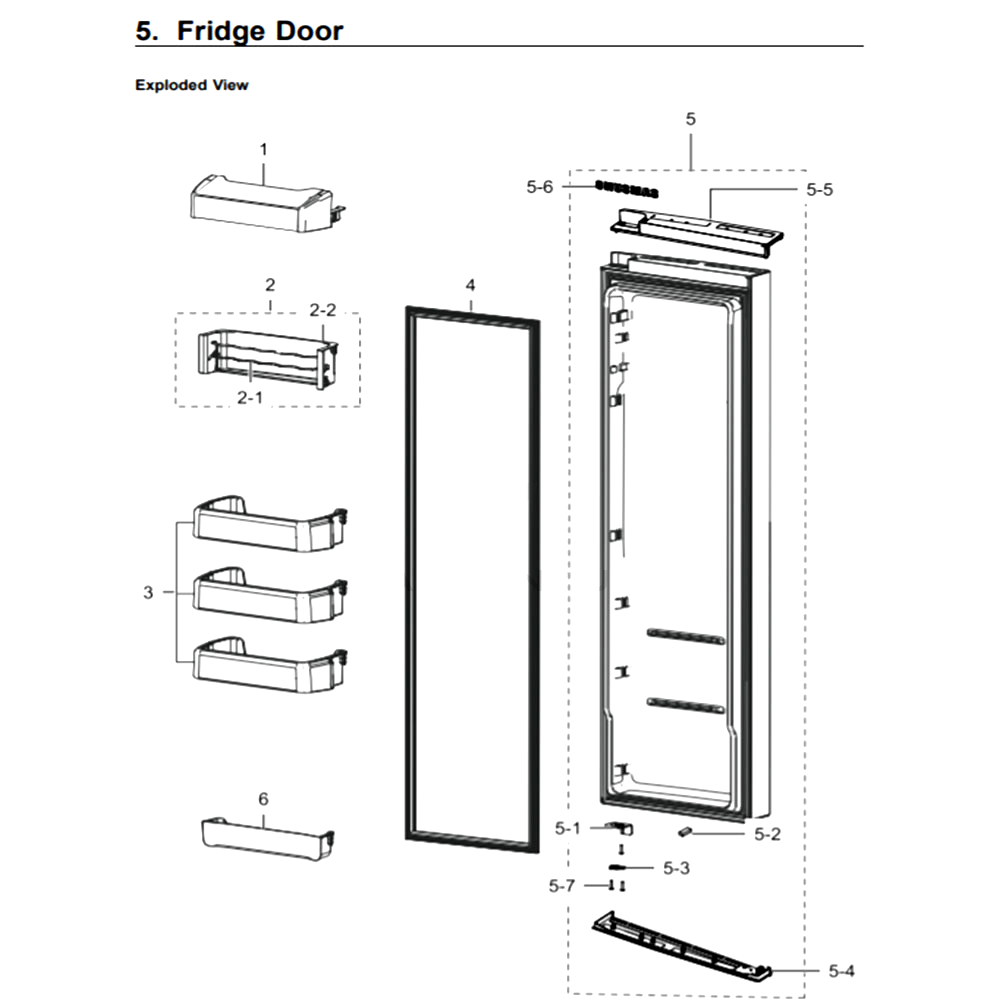

Fridge Door

...
...
1
Assembly Guard-Dairy SAM-DA97-11503A
...
2-1
Support-Rack Can Carry SAM-DA61-07569A
...
2-2
Rack-Can Carry SAM-DA75-00209C
...
2
Assembly Guard Can Carry SAM-DA97-11504B
...
3
Assembly Guard-Ref Bottle SAM-DA97-11500A
...
4
Assy-Gasket Door Ref SAM-DA97-04568V
...
5-1
Stopper-Door Ref Low SAM-DA61-07526A
...
5-2
Magnet-A SAM-DA61-03769A
...
5-3
Cam Hinge-Riser Upp R SAM-DA66-00557A
...
5-4
Cap Door-Ref Low SAM-DA67-03090A
...
5-5
Cap Door-Ref High SAM-DA67-03082A
...
5-6
Mascot SAM-DA64-04021C
...
5-7
Screw-Machine SAM-6001-001377
...
5
Assembly Door Foam Ref SAM-DA91-03634L
...
6
Guard-Ref Low SAM-DA63-06496A
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
