Samsung RS265TDRS_XAA_0002

Model: RS265TDRS_XAA_0002

Save Part Not Listed?
product name

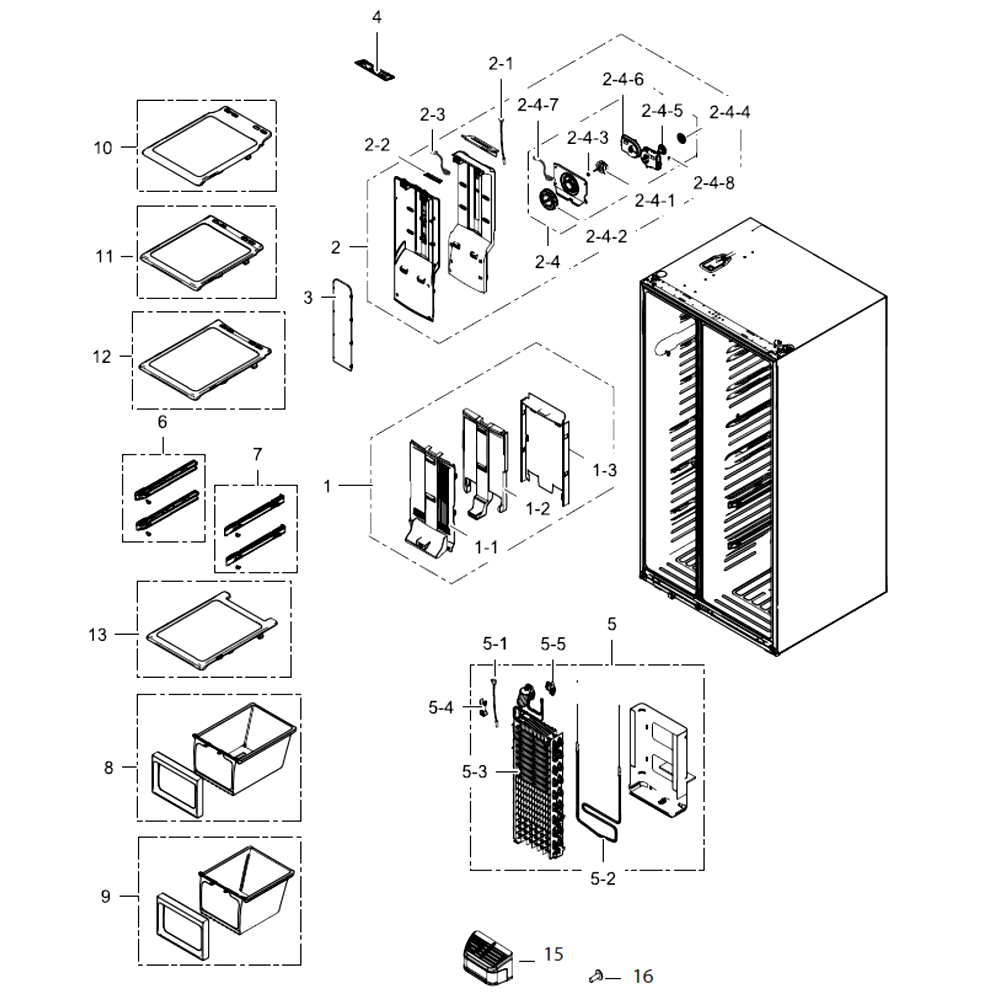

Freezer

...
...
1-1
Cover Evap-Fre SAM-DA63-05333A
...
1-2
Insulation-Evap Fre SAM-DA62-02422A
...
1-3
Plate-Evap Heater Fre SAM-DA61-05768A
...
1
Assembly Cover Evap-Fre SAM-DA97-08689A
...
2-1
Sensor Temp SAM-DA32-10109W
...
2-2
Assembly Lamp Led SAM-DA41-00519Z
...
2-3
Assembly W/harness-Led Lamp SAM-DA96-00424S
...
2-4-1
Motor Bldc Fan SAM-DA31-00146E
...
2-4-2
Fan-Turbo SAM-DA31-00242A
...
2-4-3
Spring Etc-Fan SAM-DA61-20128A
...
2-4-4
Grommet-Motor,rear SAM-DA63-01146A
...
2-4-5
Grommet Motor SAM-DA63-01808A
...
2-4-6
Cover Motor-Bldc SAM-DA63-04651B
...
2-4-7
Assembly W/harness-Motor SAM-DA96-00042Q
...
2-4-8
Grommet-Cover Chill SAM-DA63-40167A
...
2-4
Assembly Motor Fan SAM-DA96-00880C
...
2
Assembly Cover Multi-Fre SAM-DA97-08690E
...
3
Cover-Lamp Fre SAM-DA63-05335A
...
4
Cap-Ice Duct Fre SAM-DA67-02480B
...
5-1
Sensor Temp SAM-DA32-00029Q
...
5-2
Heater-Sheath-Metal Fre SAM-DA47-00324C
...
5-3
Evap-Fre SAM-DA59-00402B
...
5-4
Fixer-Evap Fre SAM-DA61-05475A
...
5-5
Fixer-Sensor SAM-DA61-05587A
...
5
Assembly Evap Fre SAM-DA96-00679L
...
6
Assembly Rail-Basket L SAM-DA97-08121A
...
7
Assembly Rail-Basket R SAM-DA97-08122A
...
8
Assembly Case-Basket Fre Upp SAM-DA97-08372B
...
9
Assembly Case-Basket Fre Low SAM-DA97-08373B
...
10
Assembly Shelf Fre-Top SAM-DA97-08368A
...
11
Assembly Shelf Fre-Up SAM-DA97-08369A
...
12
Assembly Shelf Fre-Mid SAM-DA97-08370A
...
13
Assembly Shelf Fre-Low SAM-DA97-08371A
...
14-1
Fastener-Ring SAM-DA60-00231A
...
14-2
Magnet-Ass'y SAM-DA61-02738A
...
14-3
Clamper Core-Helix SAM-DA65-00051A
...
14-4
Lever-Bucket L SAM-DA66-00870A
...
14-5
Guide-Crusher Bucket SAM-DA61-07697B
...
14-6
Fastener-Pin Spiral SAM-DA60-90136B
...
14
Assembly Tray-Ice Bucket SAM-DA97-11889B
...
15
Assembly Cover-Ice Maker SAM-DA97-11888A
...
16
Screw-Tapping SAM-6002-001406

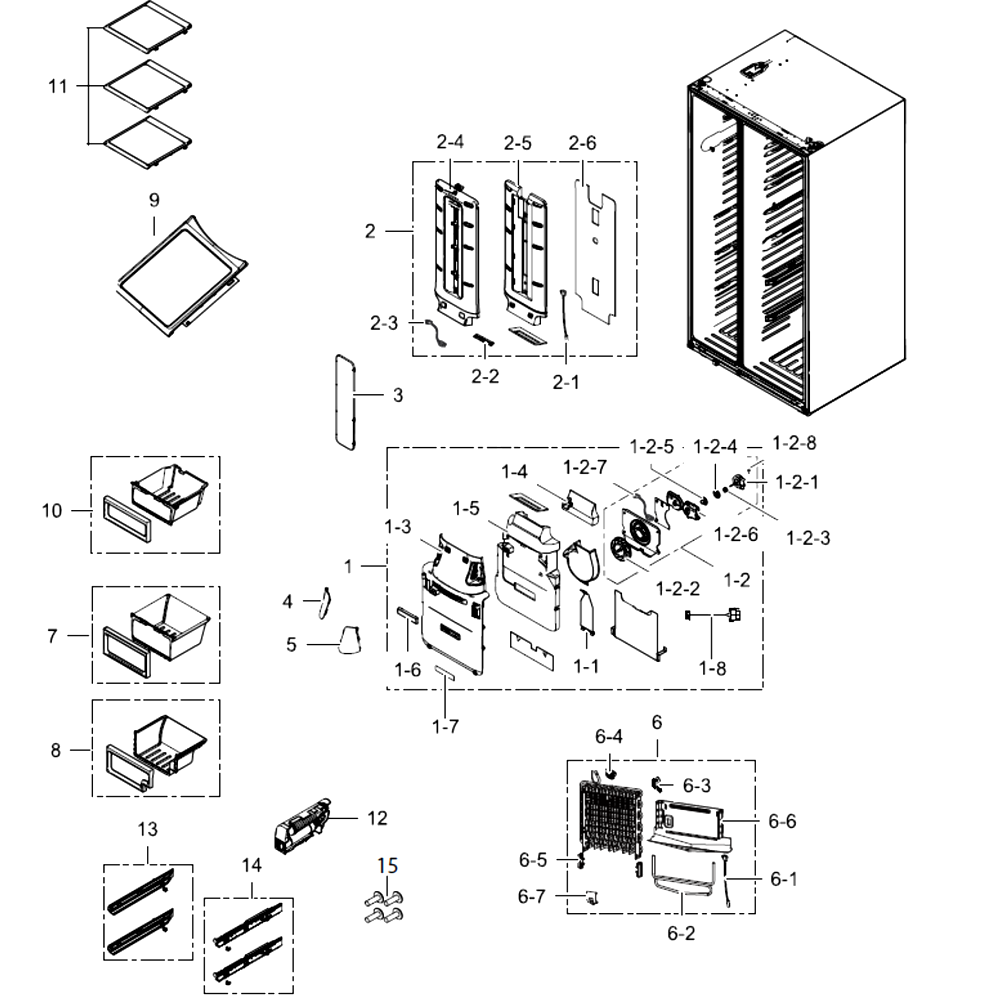

Refrigerator

...
...
1-1
Plate-Drain Ins Evap Ref SAM-DA61-06185A
...
1-2-1
Motor Bldc SAM-DA31-00146J
...
1-2-2
Fan-Turbo SAM-DA31-00242A
...
1-2-3
Spring Etc-Fan SAM-DA61-20128A
...
1-2-4
Grommet-Motor,rear SAM-DA63-01146A
...
1-2-5
Grommet Motor SAM-DA63-01808A
...
1-2-6
Cover Motor-Bldc SAM-DA63-04651B
...
1-2-7
Wire Harness-Motor SAM-DA39-00060L
...
1-2-8
Grommet-Cover Chill SAM-DA63-40167A
...
1-2
Assembly Motor Fan SAM-DA96-00880D
...
1-3
Cover Evap-Ref SAM-DA63-05533A
...
1-4
Insulation-Evap Ref B SAM-DA62-02582A
...
1-5
Insulation-Evap Ref A(fan) SAM-DA62-02581A
...
1-6
Cover-Led Ref Low SAM-DA63-05341A
...
1-7
Assembly Lamp Led SAM-DA41-00519X
...
1-8
Assembly Wire Harness-Led Lampall, SAM-DA96-00424X
...
1
Assembly Cover-Evap Ref SAM-DA97-08724H
...
2-1
Sensor Temp SAM-DA32-10105U
...
2-2
Pba-Led Lamp SAM-DA41-00676B
...
2-3
Assembly W/harness-Led Lamp SAM-DA96-00768B
...
2-4
Cover-Multi Ref SAM-DA63-05532A
...
2-5
Insulation-Multi Ref SAM-DA62-02580A
...
2-6
Plate-Multi Ref Rear SAM-DA61-06900B
...
2
Assembly Cover-Multi Ref SAM-DA97-08725F
...
3
Cover-Lamp Ref SAM-DA63-05342A
...
4
Cover-Lamp Ref Mid L SAM-DA63-05343A
...
5
Cover-Lamp Ref Mid R SAM-DA63-05344A
...
6-1
Sensor Temp SAM-DA32-00029Q
...
6-2
Heater-Sheath Metal Ref SAM-DA47-00322J
...
6-3
Fixer-Sensor SAM-DA61-00603A
...
6-4
Fixer-Wire SAM-DA61-05925A
...
6-5
Fixer-Heater Sub SAM-DA61-06031A
...
6-6
Plate-Drain Evap Ref SAM-DA61-06071A
...
6-7
Plate-Evap Ref Sub SAM-DA61-06147A
...
6
Assembly Evap Ref SAM-DA96-00681J
...
7
Assembly Case Veg-Upp SAM-DA97-08067B
...
8
Assembly Case Veg-Low SAM-DA97-08069B
...
9
Assembly Shelf-Chilled Room SAM-DA97-10592A
...
10
Assembly Tray-Chilled Room SAM-DA97-08383B
...
11
Shelf-Ref Up SAM-DA67-02417A
...
12
Assembly Case-Water Filter Tank SAM-DA97-08043H
...
13
Tank SAM-DA97-08115A
...
14
Assembly Rail-Veg R SAM-DA97-08116A
...
15
Screw-Tapping SAM-6002-001406
...
16
Screw-Tapping SAM-DA96-00680C

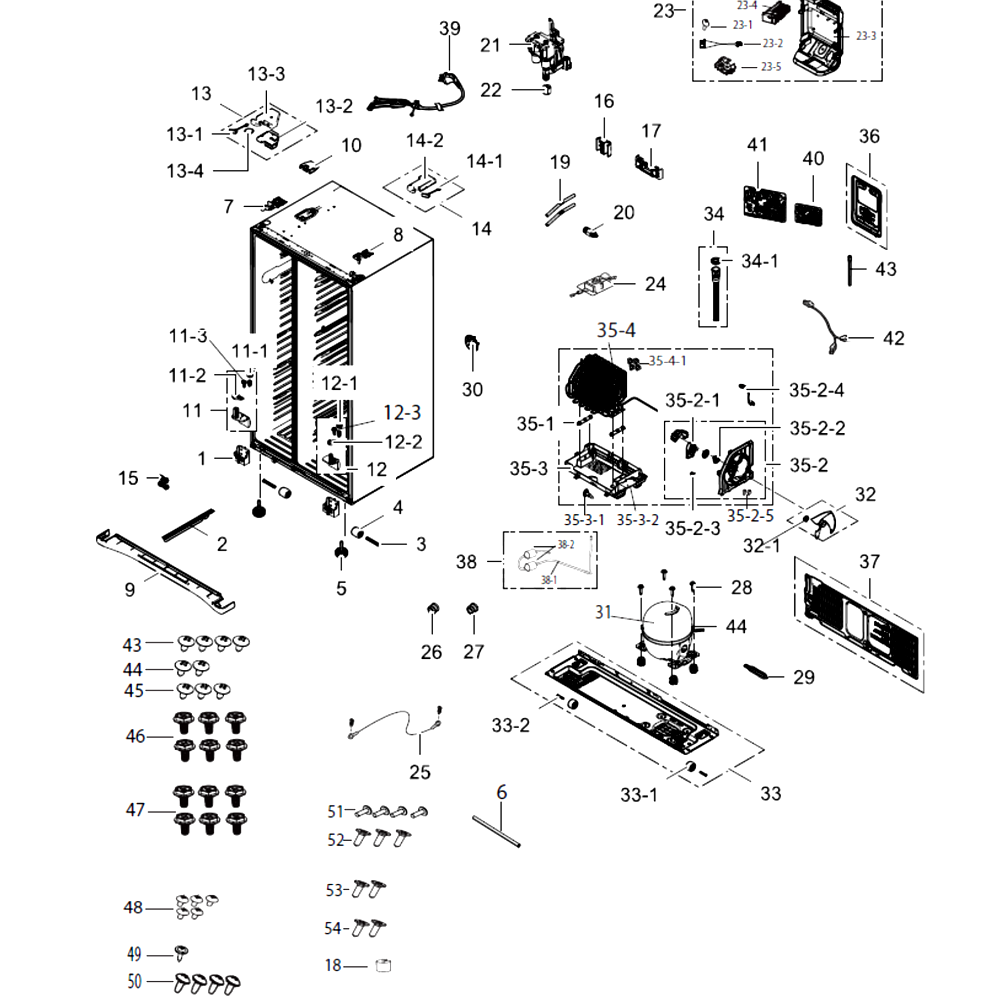

Cabinet

...
...
1
Bracket-Hinge Low SAM-DA61-05546A
...
2
Trim-Blade SAM-DA64-02631A
...
3
Caster-Rivet SAM-DA61-01920A
...
4
Caster-Front SAM-DA61-04702A
...
5
Foot-Front SAM-DA61-04721D
...
6
Pipe-Connect SAM-DA62-00314C
...
7
Hinge-Upp L SAM-DA61-05572A
...
8
Hinge-Upp R SAM-DA61-05573A
...
9
Cover-Leg Front SAM-DA63-05232A
...
10
Assembly Cover-Tube Filter SAM-DA97-08131B
...
11-1
Nut-Hexagon SAM-6021-001125
...
11-2
Cam Hinge-Riser Low L SAM-DA66-00696A
...
11-3
Screw-Taptype SAM-6003-001435
...
11
Assembly Hinge Low-L SAM-DA97-08162A
...
12-1
Nut-Hexagon SAM-6021-001125
...
12-2
Cam-Riser SAM-DA66-00401A
...
12-3
Screw-Taptype SAM-6003-001435
...
12
Assembly Hinge Low-R SAM-DA97-08163A
...
13-1
Switch Reed-Ass'y SAM-DA34-00043B
...
13-2
Plate-Cover Hinge SAM-DA61-06092A
...
13-3
Cover Hinge-Up L SAM-DA63-05559F
...
13-4
Cap-Interlock Switch Holemouton- SAM-DA67-03218B
...
13
Assembly Cover Hinge-Up SAM-DA97-08706Q
...
14-1
Switch Reed-Ass'y SAM-DA34-00043C
...
14-2
Cover Hinge-Up R SAM-DA63-05560F
...
14
Assembly Cover Hinge-Upp R SAM-DA97-08707F
...
15
Fitting-Tube SAM-DA60-00258B
...
16
Fixer-Hose SAM-DA61-04712C
...
17
Fixer Hose SAM-DA61-05346C
...
18
Grommet-Suct Pipe A SAM-DA63-40171B
...
19
Pipe-Water Line Out SAM-DA62-00160C
...
20
Valve-Fitting Pu SAM-DA62-00305A
...
21
Valve Water SAM-DA62-02291D
...
22
Valve-Fitting Nut SAM-DA74-00070B
...
23-1
Screw-Tapping SAM-6002-000217
...
23-2
Switch Reed-Ass'y SAM-DA34-00043C
...
23-3
Case-Auger Motor SAM-DA61-06974B
...
23-4
Assembly Ice Maker SAM-DA97-11092B
...
23-5
Cover-Motor Geared SAM-DA63-06128A
...
23
Assembly Case-Auger Motor SAM-DA97-11447C
...
24
Coil Filter-Emi SAM-DA27-00019L
...
25
Wire Harness-Earth SAM-DA39-20389E
...
26
Fitting-Lokring 33 SAM-DA60-00280A
...
27
Fitting-Lokring 43 SAM-DA60-00281A
...
28
Screw-Hex SAM-DA60-10123E
...
29
Dryer-Single SAM-DA62-04187B
...
30
Cover-Urethane SAM-DA63-04598B
...
31
Compressor SAM-MKV190CL2J/SM1
...
32-1
Spring Etc-Fan SAM-DA61-20128A
...
32
Assembly Fan-Circuit SAM-DA96-00504A
...
33-1
Caster-Rear SAM-DA61-04703A
...
33-2
Shaft-Caster SAM-DA66-00649A
...
33
Assembly Chassis-Comp SAM-DA97-06969A
...
34-1
Grommet-Drain SAM-DA63-02761A
...
34
Assembly Cap-Drain SAM-DA97-06970A
...
35-1
Grommet-Sub Cond SAM-DA63-40128A
...
35-2-1
Motor Bldc SAM-DA31-00146B
...
35-2-2
Grommet-Motor,rear SAM-DA63-01146A
...
35-2-3
Grommet-Cover Chill SAM-DA63-40167A
...
35-2-4
Assembly W/harness-Motor SAM-DA96-00042P
...
35-2-5
Screw-Tapping SAM-6002-000217
...
35-2
Assembly Support-Circuit Motorsseda/ SAM-DA97-07824C
...
35-3-1
Screw-Special SAM-6009-001252
...
35-3-2
Tray Drain-Water SAM-DA63-05078B
...
35-3
Assembly Tray Drain Water SAM-DA97-07825F
...
35-4-1
Screw-Tapping SAM-6002-000239
...
35-4
Assembly Pipe Spiral Cond SAM-DA97-06988D
...
36
Assembly Cover-Pcb Panel SAM-DA97-07852A
...
37
Assembly Cover Comp SAM-DA97-08384E
...
38-1
Pipe-Connect Suction SAM-DA62-03601B
...
38-2
Grommet-Suct Pipe B SAM-DA63-40171D
...
38
Assembly Pipe Connect-Suction SAM-DA97-12410B
...
39
Cbf-Power Cord SAM-3903-000503
...
40
Assembly Pcb Inverter SAM-DA92-00111B
...
41-1
Relay-Power SAM-3501-001265
...
41
Assembly Pcb Main SAM-DA41-00670C
...
42
Harness-Comp SAM-DA39-00154B
...
43
Screw-Tapping SAM-6002-000213
...
44
Screw-Tapping SAM-6002-000213
...
45
Screw-Tapping SAM-6002-000213
...
46
Screw-Hex SAM-DA60-10123E
...
47
Screw-Hex SAM-DA60-10123E
...
48
Screw-Tapping SAM-6002-000217
...
49
Screw-Tapping SAM-6006-001083
...
50
Screw-Tapping SAM-6006-001170
...
51
Screw-Tapping SAM-6002-001406
...
52
Screw-Tapping SAM-6002-001122
...
53
Screw-Tapping SAM-6002-001122
...
54
Screw-Tapping SAM-6002-001122
...
55-1
Screw-Tapping SAM-6002-000217
...
55-2
Cover-Noise Filter SAM-DA63-05081B
...
55
Assembly Cover-Noise Filter SAM-DA97-07854Q

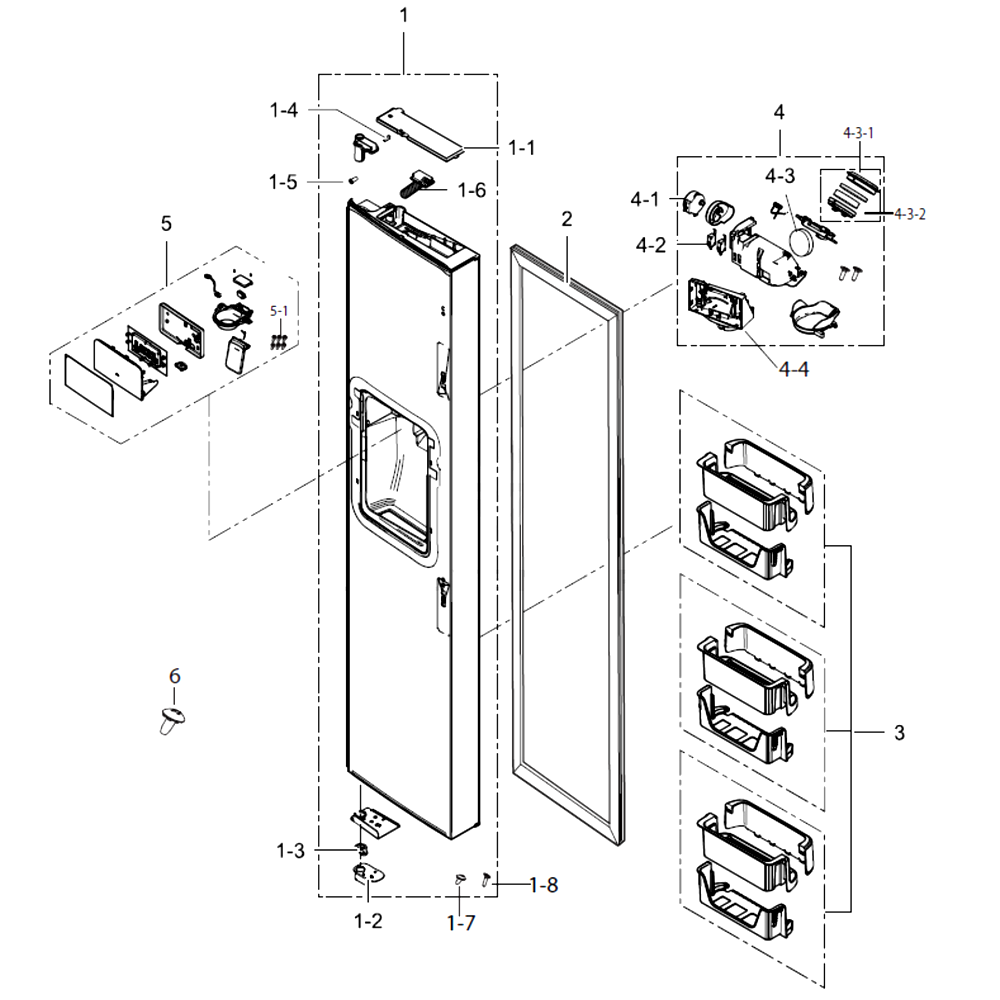

Freezer Door

...
...
1-1
Cover-Cap Door Fre SAM-DA63-05327D
...
1-2
Stopper-Door L SAM-DA61-05576A
...
1-3
Cam Hinge-Riser Upp L SAM-DA66-00695A
...
1-4
Magnet-A SAM-DA61-03769A
...
1-5
Screw-Tapping SAM-6002-001122
...
1-6
Assembly Pipe-Water Ice SAM-DA97-06542C
...
1-7
Screw-Tapping SAM-6006-001170
...
1-8
Screw-Tapping SAM-6002-001122
...
1
Assembly Door Foam-Fre SAM-DA91-03031P
...
2
Gasket-Door Fre SAM-DA63-06538B
...
3
Assembly Guard Tilt-Fre SAM-DA97-08349A
...
4-1
Switch-Micro SAM-DA34-00011A
...
4-2
Switch Micro SAM-DA34-00011B
...
4-3-1
Assembly Damper-1 Way SAM-DA97-12105A
...
4-3-2
Cover-Ice Route B SAM-DA63-04648A
...
4-3
Assembly Cover-Ice Route SAM-DA97-08117B
...
4-4
Case-Lever Dispenser SAM-DA61-07848C
...
4
Assembly Case-Lever Disp SAM-DA97-12095C
...
5-1
Screw-Tapping SAM-6002-000466
...
5
Assembly Cover-Dispenser SAM-DA97-08703L
...
6
Screw-Tapping SAM-6006-001170

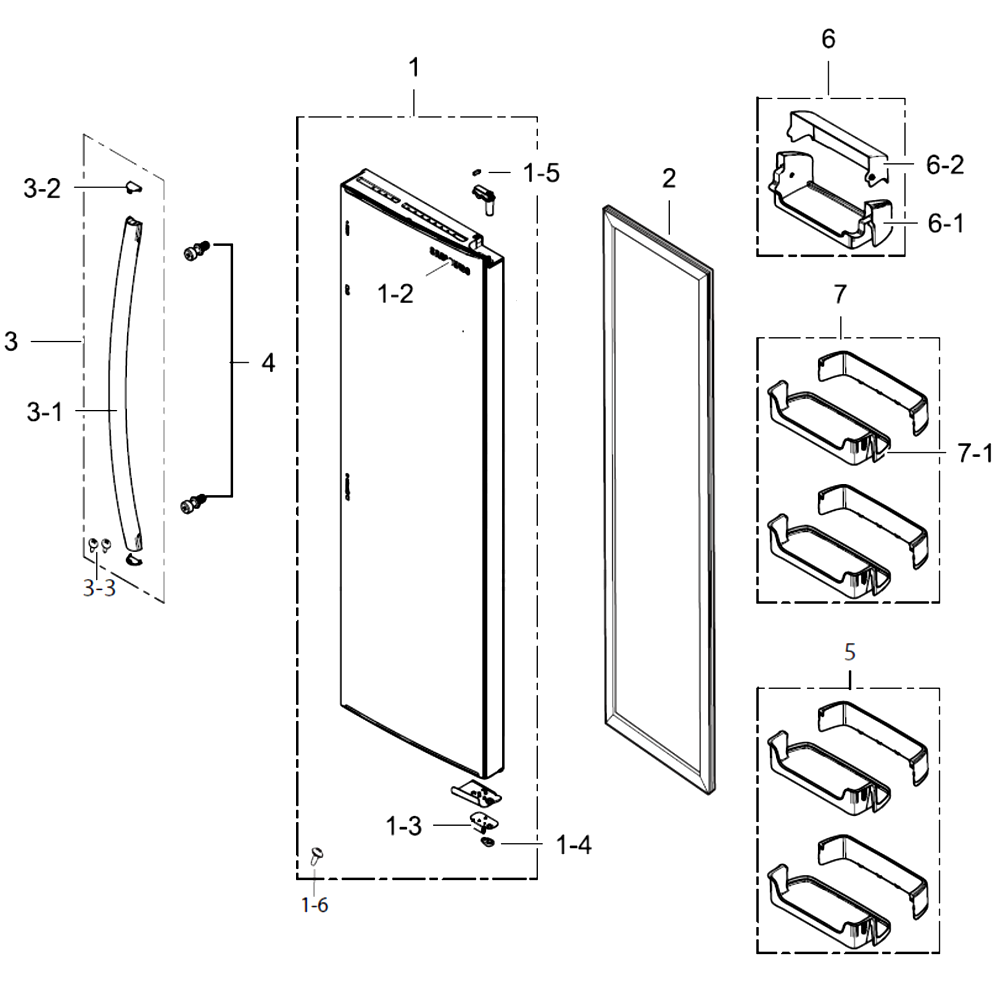

Refrigerator Door

...
...
1-2
Mascot SAM-DA64-04021A
...
1-3
Stopper-Door R SAM-DA61-05577A
...
1-4
Cam-Hinge Riser Low SAM-DA66-00344A
...
1-5
Magnet-A SAM-DA61-03769A
...
1-6
Screw-Tapping SAM-6006-001170
...
1
Assembly Door Foam Ref SAM-DA91-02963S
...
2
Gasket-Door Ref SAM-DA63-06537B
...
3-1
Handle Bar SAM-DA64-04026A
...
3-2
Cap-Handle SAM-DA67-02431C
...
3-3
Screw-Tapping SAM-6002-000213
...
3
Assembly Cushion Handle SAM-DA99-03738A
...
4
Fixer-Handle SAM-DA61-03734A
...
5
Assembly Guard Ref-Low SAM-DA97-08347A
...
6-1
Guard-Dairy SAM-DA63-05214A
...
6-2
Cover-Guard Dairy SAM-DA63-05225A
...
6
Assembly Guard-Dairy SAM-DA97-08060B
...
7-1
Guard Ref-Up SAM-DA63-05215A
...
7
Assembly Guard Ref-Up SAM-DA97-08348A
