Samsung RS2630SH

Model: RS2630SH

Save Part Not Listed?
product name

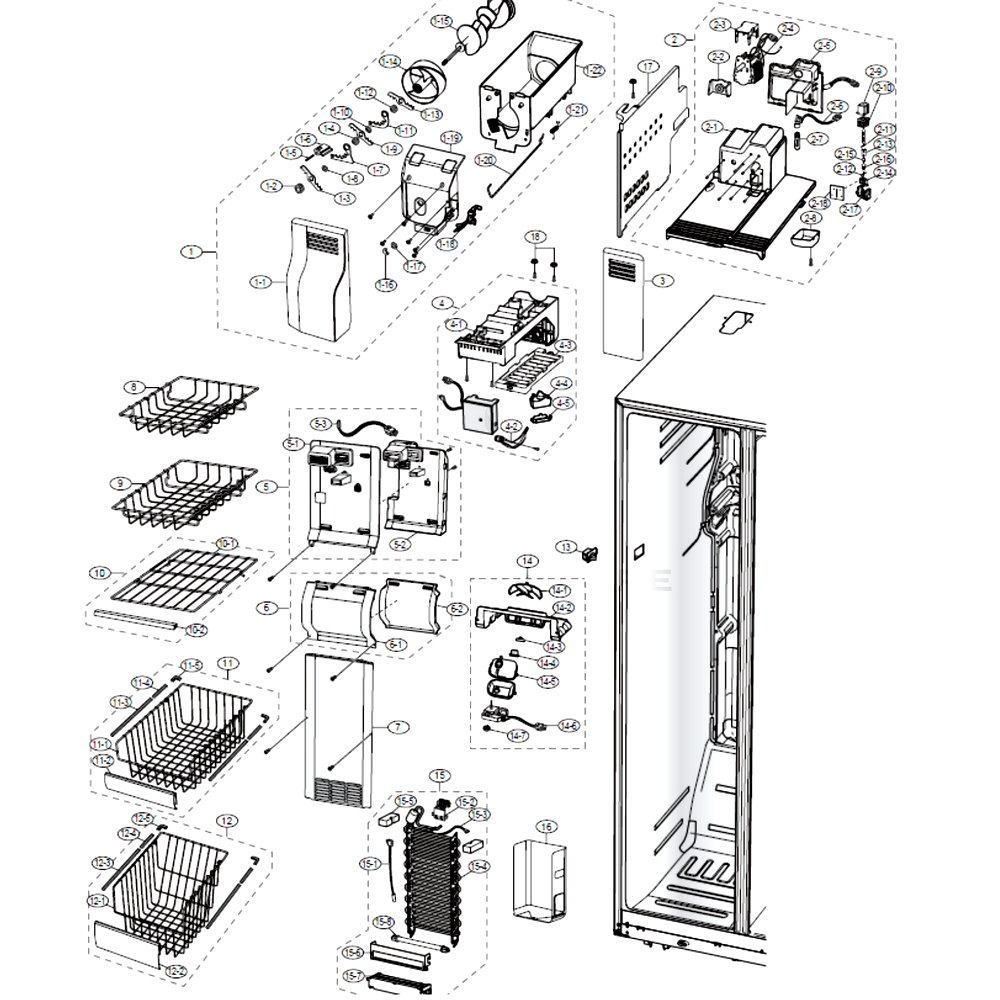

Freezer

...
...
Case Basket Fre SAM-DA61-01624A
...
1-1
Cover-Ice Bucket SAM-DA63-02008A
...
1-2
Fixer-Nut SAM-DA61-01721A
...
1-3
Blade-Moving C SAM-DA61-01664A
...
1-4/1-10
Seal-Pom SAM-DA72-60313A
...
1-5
Pin-Spiral SAM-DA60-90136A
...
1-6
Fixer-Guard SAM-DA71-20231A
...
1-7
Blade-Stationary Disp,out SAM-DA31-20121B
...
1-8/1-12
Seal-Pom SAM-DA72-60314A
...
1-9
Blade-Moving B SAM-DA61-01663A
...
1-11
Blade-Stationary Disp,in SAM-DA31-20122B
...
1-13
Blade-Moving A SAM-DA61-01662A
...
1-14
Blade-Ice SAM-DA61-01658A
...
1-15
Clamper Core-Helix SAM-DA65-00037A
...
1-16
Ring SAM-DA60-90125A
...
1-17
Washer-Plain SAM-DA60-40116A
...
1-18
Guide-Crusher SAM-DA61-01657A
...
1-19
Cover-Crusher SAM-DA63-02007A
...
1-20
Lever-Cube SAM-DA66-00140B
...
1-21
Spring Etc-Dispenser SAM-DA61-20124C
...
1-22
Tray Ice-Bucket SAM-DA63-02010A
...
1
Assembly Tray-Ice Bucket SAM-DA97-02058A
...
2-1
Case-Auger Motor SAM-DA61-01655A
...
2-2
Plate-Drive Auger SAM-DA61-01659A
...
2-3
Cover-Motor Auger,sub SAM-DA63-02012A
...
2-4
Motor Geard-Auger SAM-DA31-00105A
...
2-5
Cover-Auger Motor SAM-DA63-02006A
...
2-6
Lamp Holder SAM-DA47-00112G
...
2-7
Lamp-Incandescent SAM-4713-001172
...
2-8
Cover Lamp-Fre,disp SAM-DA63-00785A
...
2-9
Valve-Solenoid SAM-DA74-40151G
...
2-10
Seal-Foam Pe SAM-DA72-60348A
...
2-11
Pin-Spring SAM-DA60-90137A
...
2-12
Pin-Spring SAM-DA60-90137A
...
2-13
Bush-Solenoid SAM-DA63-90008A
...
2-14
Saddle-Solenoid SAM-DA65-20107A
...
2-15
Spring Etc-Solenoid SAM-DA61-20140A
...
2-16
Gear-Solenoid SAM-DA66-90003A
...
2-17
Slider-Solenoid Disp SAM-DA61-60001A
...
2-18
Rubber-Solenoide SAM-DA73-00168A
...
2
Assembly Case-Motor Auger SAM-DA97-02057A
...
3
Cover-Cool SAM-DA63-02005A
...
4
Assembly Ice Maker SAM-DA97-00258D
...
5
Assembly Cover-Multi Fre SAM-DA97-02045A
...
6
Assembly Cover-Supt Motor Fre SAM-DA97-02055A
...
7
Assembly Cover Evap-Front SAM-DA97-02056A
...
8
Shelf Wire-Fre Upp(half Basket) SAM-DA67-01024A
...
9
Shelf Wire-Fre Low(half Basket) SAM-DA67-01025A
...
10-1
Shelf Wire-Fre Low SAM-DA67-01023A
...
10-2
Trim Shelf-Wire SAM-DA64-01180A
...
10
Assembly Shelf Wire-Fre Low SAM-DA97-02037A
...
11-1
Case-Wire Basket Upp SAM-DA61-01653A
...
11-2
Trim-Wire Basket Upp SAM-DA64-01181A
...
11-3
Trim-Wire Basket,b SAM-DA64-00676A
...
11-4
Trim-Wire Basket,b SAM-DA64-00676E
...
11-5
Trim-Wire Basket,a SAM-DA64-00675B
...
11
Assembly Case-Wire Basket Upp SAM-DA97-02049A
...
12-1
Case-Wire Basket Low SAM-DA61-01654A
...
12-2
Trim-Wire Basket Low SAM-DA64-01182A
...
12-3
Trim-Wire Basket,b SAM-DA64-00676A
...
12-4
Trim-Wire Basket,c SAM-DA64-00676B
...
12-5
Trim-Wire Basket,a SAM-DA64-00675B
...
12
Assembly Case-Wire Basket Low SAM-DA97-02040A
...
13
Switch-Door SAM-DA34-10120E
...
14-1
Fan-Fre SAM-DA31-00095A
...
14-2
Support-Fan Motor Fre SAM-DA61-01633A
...
14-3
Protector-Motor SAM-DA63-01991A
...
14-4
Grommet-Motor SAM-DA63-01976A
...
14-5
Cover-Motor SAM-DA63-01283C
...
14-6
Motor Fan-Ac SAM-DA31-00003W
...
14-7
Grommet-Motor SAM-DA63-40119A
...
14
Assembly Support-Motor Fre SAM-DA97-01948A
...
15-1
Sensor Temp-F Def Sensor SAM-DA32-00006D
...
15-2
Fixer-Sensor SAM-DA61-00603A
...
15-3
Thermo Bimetal SAM-DA47-10160F
...
15-4
Evap Fre SAM-DA59-00314A
...
15-5
Seal-Evap Fre SAM-DA62-00788A
...
15-6
Cover-Heater Sub SAM-DA63-02028A
...
15-7
Cover-Heater SAM-DA63-02182A
...
15-8
Heater-Glass SAM-DA47-00154A
...
15
Assembly Evap-Fre SAM-DA96-00136A
...
16
Drain Plate-Fre SAM-DA67-01018A
...
17
Partition-Cool SAM-DA67-01026A
...
18
Fixer-Grommet Door SAM-DA71-20252A
...
19
Shelf Wire-Fre Upp SAM-DA67-01022A

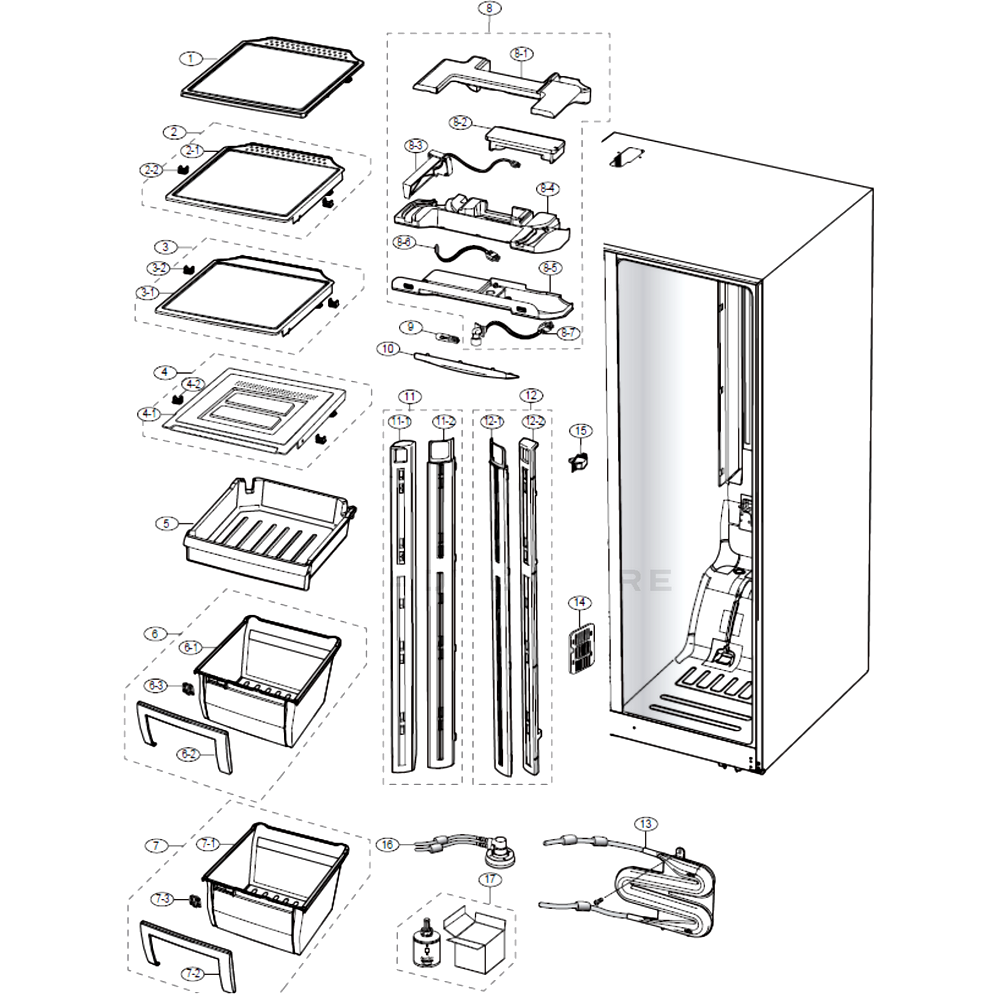

Refrigerator

...
...
Cap Tray Fre,r SAM-DA67-00949D
...
1
Shelf Ref-Insert SAM-DA67-01020A
...
2-1
Shelf Chilled-Insert SAM-DA67-01090A
...
2-2
Grommet-Rail SAM-DA63-01565B
...
2
Assembly Shelf-Chilled Insert SAM-DA97-02101A
...
3-1
Cover Veg-Upp Insert SAM-DA63-02191A
...
3-2
Grommet-Rail SAM-DA63-01565B
...
3
Assembly Cover Veg-Upp Insert SAM-DA97-02102A
...
4-1
Cover Veg-Low SAM-DA63-01977B
...
4-2
Grommet-Rail SAM-DA63-01565B
...
4
Assembly Cover Veg-Low SAM-DA97-02053B
...
5
Tray Child Room SAM-DA63-01978A
...
6-1
Case-Veg Up SAM-DA61-01718A
...
6-2
Cover Veg-Front SAM-DA63-02107A
...
6-3
Knob-Moisture Control(et) SAM-DA64-00085B
...
6
Assembly Case Veg-Up SAM-DA97-02062A
...
7-1
Case-Veg Low SAM-DA61-01717A
...
7-2
Cover Veg-Front SAM-DA63-02107A
...
7-3
Knob-Moisture Control(et) SAM-DA64-00085B
...
7
Assembly Case Veg-Low SAM-DA97-02063A
...
8-1
Insulation-Damper Ref Up SAM-DA62-00693A
...
8-2
Insulation-Damper Ref Sub SAM-DA62-00695A
...
8-3
Motor Dc-Damper SAM-DA31-00101A
...
8-4
Insulation-Damper Ref Low SAM-DA62-00694A
...
8-5
Cover Damper-Ref SAM-DA63-01979A
...
8-6
Sensor Assy SAM-DA32-00006B
...
8-7
Lamp Holder SAM-DA47-00112A
...
8
Assembly Cover-Damper Ref SAM-DA97-02015A
...
9
Lamp-Incandescent SAM-4713-001172
...
10
Cover Lamp-Ref Up SAM-DA63-01980A
...
11-1
Insulation-Side Multi L SAM-DA62-00696A
...
11-2
Cover Side-Multi L SAM-DA63-01982A
...
11
Assembly Cover-Side Multi SAM-DA97-02013A
...
12-1
Insulation-Side Multi R SAM-DA62-00697A
...
12-2
Cover Side-Multi R SAM-DA63-01983A
...
12
Assembly Cover-Side Multi SAM-DA97-02013B
...
13
Assembly Tank Water SAM-DA97-02094A
...
14
Cover-Purifier SAM-DA63-01077A
...
15
Switch-Door SAM-DA34-10110E
...
16
Assembly Case-Filter SAM-DA97-01666B
...
17
Filter-Water Assy SAM-DA29-00003A
...
18-1
Shelf-Ref Front SAM-DA67-01014A
...
18-2
Shelf-Ref Rear SAM-DA67-01019A
...
18-3
Shelf-Glass Ref Upp(insert) SAM-DA67-01028A
...
18
Assy-Shelf Ref Upp SAM-DA97-02048A
...
19-1
Shelf-Chilled SAM-DA67-01021A
...
19-2
Grommet-Rail SAM-DA63-01565B
...
19-3
Shelf-Glass Ref Upp SAM-DA67-01028G
...
19
Assy-Shelf Chilled SAM-DA97-02051A
...
20-1
Cover-Veg Upp SAM-DA63-02003A
...
20-2
Grommet-Rail SAM-DA63-01565B
...
20-3
Shelf-Glass Ref Upp SAM-DA67-01028H
...
20
Assy-Cover Veg Upp SAM-DA97-02052A

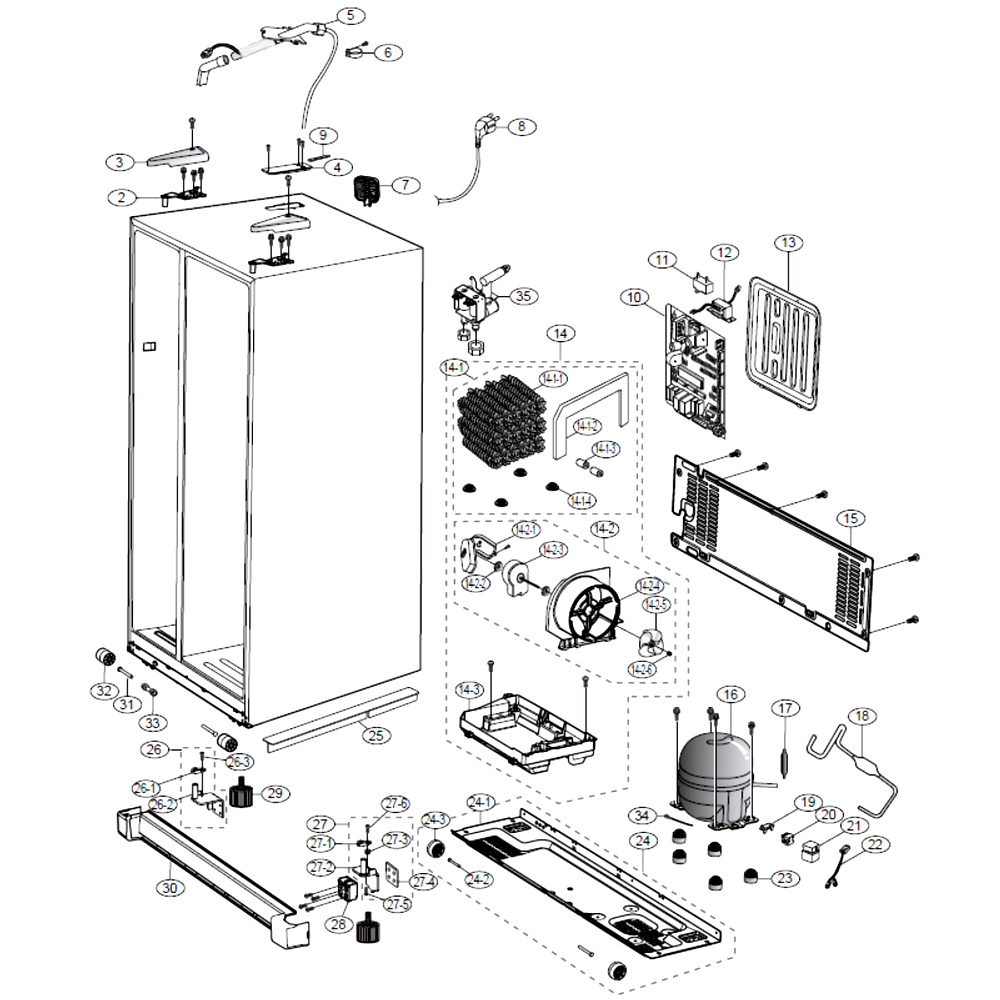

Cabinet

...
...
Cover Leg-Front SAM-DA63-00822T
...
1
Assembly Cabinet Form SAM-DA90-02102A
...
2
Hinge-Upp SAM-DA61-01650A
...
3
Cover-Hinge Upp SAM-DA63-01997A
...
4
Cover-Tube Water SAM-DA63-01275A
...
5
Assembly Pipe Water SAM-DA97-00708B
...
6
Cable-Clamp SAM-6502-000112
...
7
Cap-Fixer Water SAM-DA67-00772A
...
8
Cbf-Assy SAM-DA39-10165E
...
9
Cable Clamp SAM-6502-000156
...
10
Pba Main SAM-DA41-00219C
...
11
C-Oil SAM-2501-001045
...
12
Trans Dc(115v/60hz) SAM-DA26-00022B
...
13
Cover Pcb-Panel SAM-DA63-01990A
...
14-1-1
Pin-Spiral SAM-DA60-90136A
...
14-1-2
Seal Cutt-Rubber SAM-DA72-60040E
...
14-1-3
Grommet-Suct Pipe A SAM-DA63-40171B
...
14-1-4
Grommet-Sub Condenser SAM-DA63-02205A
...
14-1
Assembly Pipe-Spiral Cond SAM-DA97-02091A
...
14-2-1
Cover-Motor SAM-DA63-01283C
...
14-2-2
Grommet-Motor SAM-DA63-40119A
...
14-2-3
Motor Fan-Ac SAM-DA31-00103A
...
14-2-4
Support-Fan Motor Unit SAM-DA61-01634B
...
14-2-5
Fan-Turbo SAM-DA31-00015C
...
14-2-7
Spring Etc-Fan SAM-DA61-20128A
...
14-2
Assembly Support-Motor Unit SAM-DA97-01949A
...
14-3
Tray Drain-Water SAM-DA63-01992A
...
14
Assembly Tray-Drain Water SAM-DA97-02018A
...
15
Cover Comp SAM-DA63-01993A
...
16
Compressor SAM-MK183CL2U/E07
...
17
Dryer-Assy SAM-DA73-30102B
...
18
Assembly Pipe Connect SAM-DA97-00918A
...
19
Relay-Ptc SAM-DA35-10013Q
...
20
Relay Protector O/l SAM-DA34-10003S
...
21
Cover Relay SAM-DA63-10352D
...
22
Wire-Harness Relay SAM-DA39-00084D
...
23
Grommet-Comp SAM-DA63-02017A
...
24-2
Pin-Caster SAM-DA60-90146A
...
24-3
Caster-Rear SAM-DA61-40126B
...
24
Assembly Chassis-Comp SAM-DA97-02064A
...
25
Trim-Blade SAM-DA64-01173A
...
26-1
Cam-Riser SAM-DA66-00268A
...
26-2
Hinge-Low,l SAM-DA61-01649A
...
26-3
Screw-Taptype SAM-6003-001435
...
26
Assembly Hinge Low-L SAM-DA97-02097A
...
27-1
Screw-Taptype SAM-6003-001435
...
27-2
Hinge-Low,l SAM-DA61-01608A
...
27-3
Nut-Hexagon SAM-6021-001125
...
27-4
Shim Hinge-Low SAM-DA63-50207C
...
27-5
Bolt-Socket SAM-6011-001442
...
27
Assy-Hinge Low,r SAM-DA97-01763A
...
28
Bracket Hinge-Low SAM-DA61-00419D
...
29
Foot-Front SAM-DA61-30102A
...
30
Cover Leg-Front SAM-DA63-02004A
...
31
Rivet SAM-DA60-90124A
...
32
Caster-Front SAM-DA61-40115A
...
34
Wire Harness-Earth SAM-DA39-20389E
...
35
Valve-Water Assy SAM-DA74-40149D

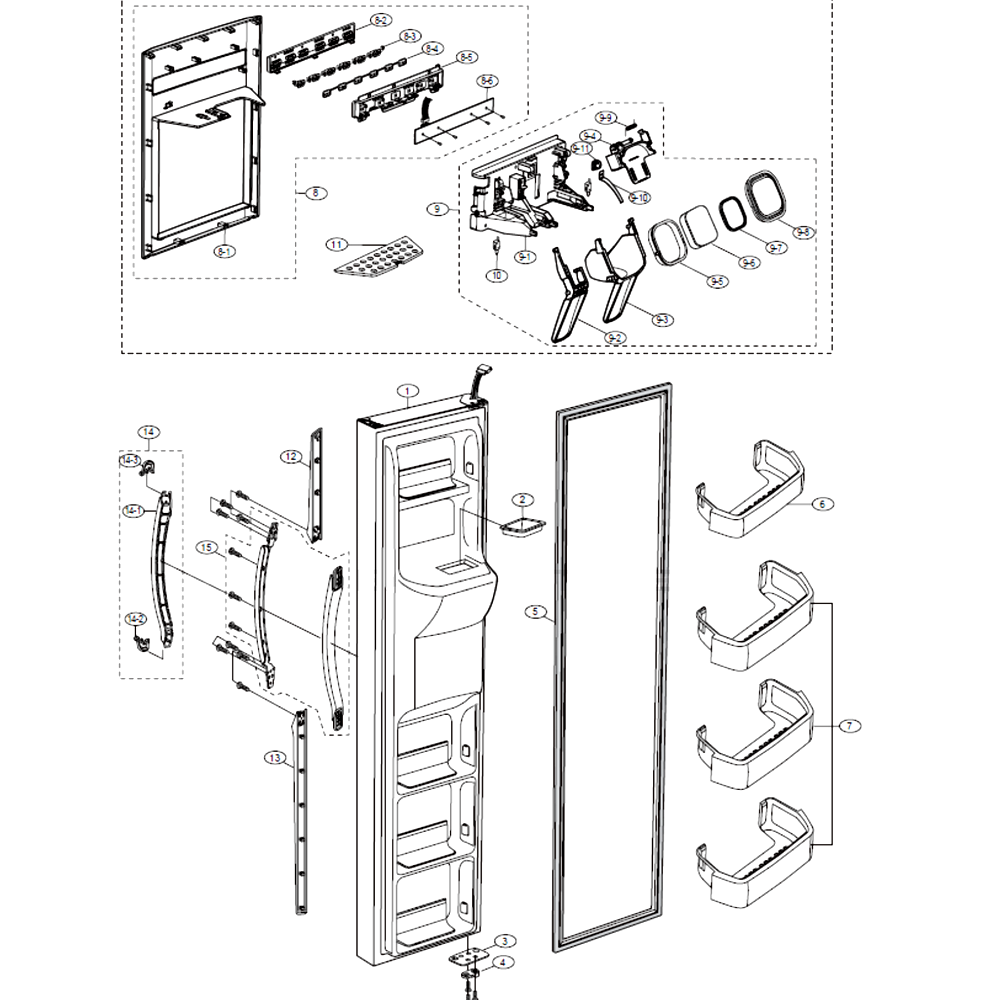

Freezer Door

...
...
Fixer-Handle SAM-DA61-01646A
...
8-6
Pba Panel SAM-DA41-00218A
...
9-1
Cover Pcb-Panel Rear SAM-DA63-01969A
...
9-2
Lever Dispenser-Ice SAM-DA66-00266A
...
9-3
Lever Dispenser-Water SAM-DA66-00267A
...
9-4
Cover-Ice Route,a SAM-DA63-01970A
...
9-5
Cover-Ice Route,b SAM-DA63-01971A
...
9-6
Seal-Ice Route,a SAM-DA62-00582E
...
9-7
Seal-Ice Route,b SAM-DA62-00583F
...
9-8
Gasket-Cover Ice Route SAM-DA63-01972A
...
9-9
Spring Etc-Cover Ice Route SAM-DA61-01651A
...
9-10
Spring Etc-Lever Disp Water SAM-DA61-01616A
...
9-11
Oil Damper SAM-DA61-01808A
...
9
Assembly Cover-Pcb Panel Rear SAM-DA97-02050A
...
10
Switch Micro SAM-DA34-00011B
...
11
Tray Dispenser SAM-DA63-01975A

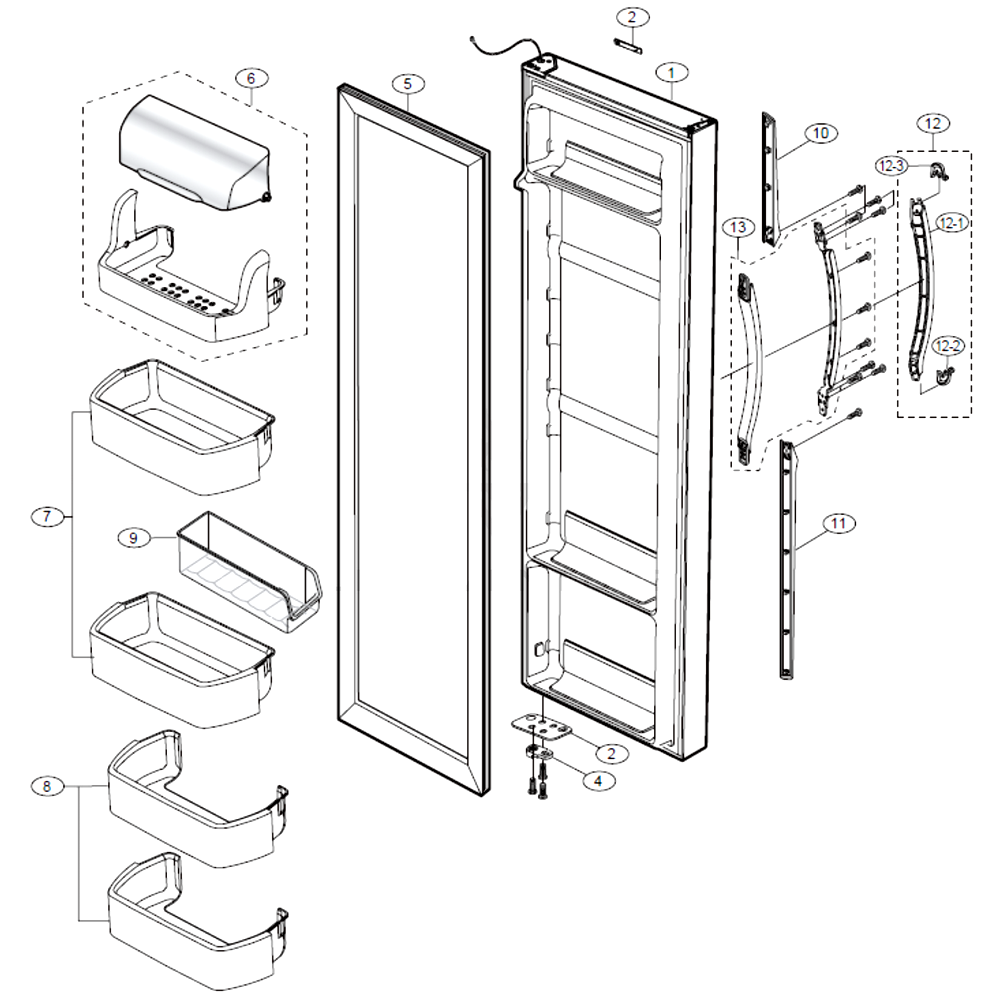

Refrigerator Door

...
...
Handle-Mid Front SAM-DA64-00413L
...
1
Assembly Door Foam Ref SAM-DA91-01840A
...
2
Mascot SAM-DA64-00990B
...
3
Stopper Door SAM-DA61-00430A
...
4
Cam-Riser SAM-DA66-00268A
...
5
Assy-Gasket Door Ref SAM-DA97-01800N
...
6-1
Cover-Dairy SAM-DA63-01998A
...
6-2
Guard-Dairy SAM-DA63-01999A
...
6
Assembly Guard-Dairy SAM-DA97-02041A
...
7
Guard Ref-Mid SAM-DA63-02001A
...
8
Guard Ref-Low SAM-DA63-02014A
...
9
Tray-Utility SAM-DA67-40250E
...
10
Handle-Trim Upp SAM-DA64-00418B
...
11
Handle-Trim Low SAM-DA64-00417B
...
12-1
Handle-Front SAM-DA64-01177A
...
12-2
Handle-Rear SAM-DA64-01178A
...
12-3
Reinf-Handle Mid SAM-DA61-01619A
...
12
Assembly Handle SAM-DA97-02247A
...
13-1
Reinf-Handle Mid SAM-DA61-00309A
...
13-2
Handle-Mid Rear SAM-DA64-00414J
...
13
Fixer-Handle SAM-DA61-01646A
