Samsung RS25J500DSR/AA_0001

Model: RS25J500DSR/AA_0001

Save Part Not Listed?
product name

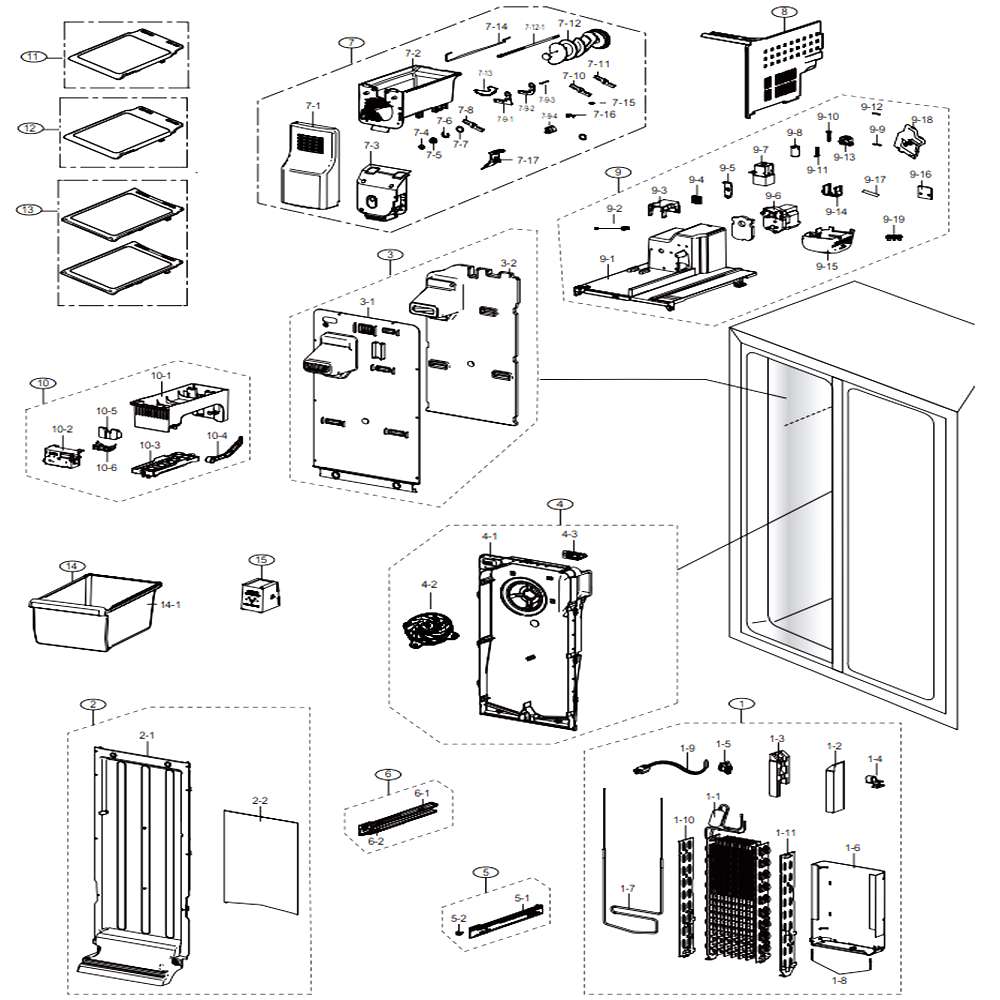

Freezer

...
...
1-1
Evap-Fre SAM-DA59-00393A
...
1-2
Spacer-Plate Evap L SAM-DA60-00221A
...
1-3
Spacer-Plate Evap R SAM-DA60-00222A
...
1-4
Fixer-Wire SAM-DA61-06708A
...
1-5
Fixer-Sensor SAM-DA61-05587A
...
1-6
Plate Drain-Fre SAM-DA61-05700A
...
1-7
Heater Sheath-Metal SAM-DA47-00311A
...
1-8
Fastener-Rivet SAM-DA60-90005A
...
1-9
Sensor Temp SAM-DA32-10109W
...
1-10
Plate-Evap Fre L SAM-DA61-05589A
...
1-11
Plate-Evap Fre R SAM-DA61-05590A
...
1
Assy Evap Fre SAM-DA96-00612G
...
2-1
Cover Evap-Fre Front SAM-DA63-05193A
...
2-2
Plate-Heater Evap Fre SAM-DA61-05558A
...
2
Assy Cover Evap-Fre Front SAM-DA97-08063B
...
3-1
Cover-Multi Fre Front SAM-DA63-05191A
...
3-2
Insulation-Cover Multi Fre Front SAM-DA62-02321A
...
3
Assy Cover Multi-Fre Front SAM-DA97-08062A
...
4-1
Cover Multi-Fre Rear SAM-DA63-08454A
...
4-2
Motor Bldc-Fan SAM-DA31-00287B
...
4-3
Cap-Sensor Fre Rear SAM-DA67-02457A
...
4
Assy Cover Multi-Fre Rear SAM-DA97-16668A
...
5-1
Rail-Basket R SAM-DA61-05554A
...
5-2
Grommet-Rail SAM-DA63-05237A
...
5
Assembly Rail-Basket R SAM-DA97-08122A
...
6-1
Rail-Basket L SAM-DA61-05553A
...
6-2
Grommet-Rail SAM-DA63-05237A
...
6
Assembly Rail-Basket L SAM-DA97-08121A
...
7-1
Cover-Ice Bucket SAM-DA63-05208B
...
7-2
Tray Ice-Bucket SAM-DA63-05227B
...
7-3
Cover-Crusher SAM-DA63-05222B
...
7-4
Nut-Hexagon Flange SAM-6021-001210
...
7-5
Nut-Hex SAM-DA60-30108A
...
7-6
Fastener-Ring SAM-DA60-00231A
...
7-7
Washer-Plain SAM-6031-002007
...
7-8
Blade-Moving C SAM-DA61-01664B
...
7-9-1
Blade-Stationary Disp,out SAM-DA31-20121B
...
7-9-2
Blade-Stationary Disp,in SAM-DA31-20122B
...
7-9-3
Pin-Spiral SAM-DA60-90136A
...
7-9-4
Fixer-Guard SAM-DA61-04765A
...
7-9
Assy Fixer-Fre SAM-DA97-14121B
...
7-10
Blade-Moving A SAM-DA61-01662B
...
7-11
Blade-Moving B SAM-DA61-01663B
...
7-12-1
Clamper Core SAM-DA65-00057A
...
7-12
Clamper Core-Helex SAM-DA65-00058A
...
7-13
Plate-Ice Bucket SAM-DA61-05691A
...
7-14
Lever-Cube SAM-DA66-00694B
...
7-15
Aw-Pjt,sts304,t0.8 SAM-DA61-03723B
...
7-16
Spring Etc-Dispenser SAM-DA61-20124D
...
7-17
Guide-Crusher SAM-DA61-01657B
...
7
Assy Tray-Ice Bucket SAM-DA97-08223D
...
8
Partition-Cool SAM-DA67-02454A
...
9-1
Case-Auger Motor SAM-DA61-05694B
...
9-2
Assy Wire Harness-Auger SAM-DA96-00036Z
...
9-3
Cover-Motor Auger Sub SAM-DA63-04593A
...
9-4
Fixer-Nut; Guggenheim,sts420,j2,sk5 SAM-DA71-00163B
...
9-5
Plate-Drive Auger SAM-DA61-01659B
...
9-6
Motor Geared Ac Auger SAM-DA31-00105G
...
9-7
Valve-Solenoid SAM-DA74-40151G
...
9-8
Bush-Solenoid SAM-DA63-90008A
...
9-9
Pin-Spring SAM-DA60-90137A
...
9-10
Gear-Solenoid SAM-DA66-90003A
...
9-11
Spring Etc-Solenoid SAM-DA61-20140A
...
9-12
Pin-Spring SAM-DA60-90137B
...
9-13
Slider-Solenoid Disp SAM-DA61-60001A
...
9-14
Saddle-Solenoid SAM-DA65-20107A
...
9-15
Cover-Lamp Disp Fre SAM-DA63-04449A
...
9-16
Grommet-Solenoid SAM-DA63-02621A
...
9-17
Pba-Led Lamp SAM-DA41-00519R
...
9-18
Cover Case-A/motor Rear SAM-DA63-05276A
...
9-19
Screw-Special SAM-DA60-00001B
...
9
Assy Case-Auger Motor SAM-DA97-08241C
...
10-1
Support-Ice Maker SAM-DA61-05535A
...
10-2
Ice Maker-Ass'y SAM-DA59-00392A
...
10-3
Ad,pp,hb,natural SAM-DA63-02284B
...
10-4
Guide Ice-Full SAM-DA61-05540A
...
10-5
Fixer Sensor; Ad,urethane,-,-,- SAM-DA61-01800A
...
10-6
Cover Sensor SAM-DA63-02183A
...
10
Assy Ice Maker-Mech SAM-DA97-08059A
...
11
Assembly Shelf Fre-Up SAM-DA97-08369A
...
12
Assembly Shelf Fre-Mid SAM-DA97-08370A
...
13
Assembly Shelf Fre-Low SAM-DA97-08371A
...
14-1
Case Basket-Fre SAM-DA61-05543B
...
14
Assy Case Basket-Fre SAM-DA97-15043A
...
15
Cover-Fixer Housing SAM-DA63-04108A

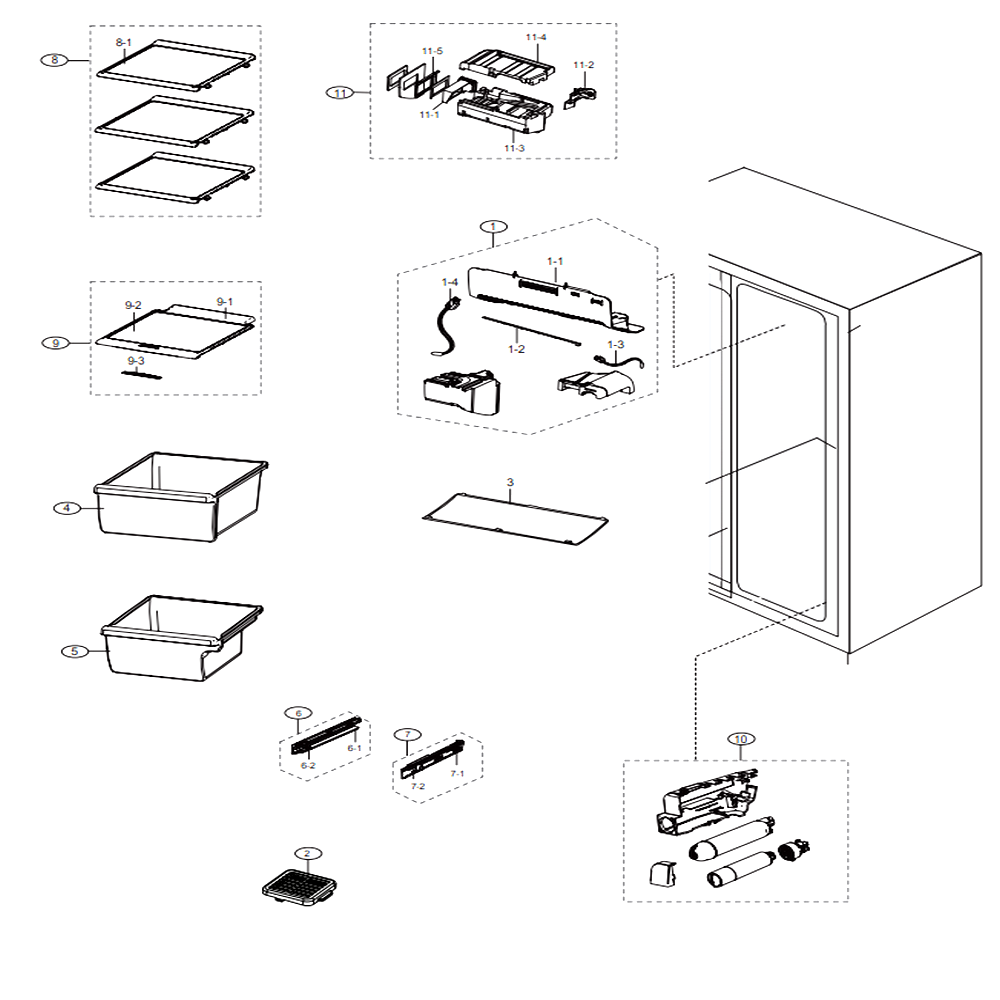

Fridge

...
...
1-1
Cover Damper-Ref SAM-DA63-05194A
...
1-2
Assy Lamp Led SAM-DA41-00676L
...
1-3
Sensor Temp SAM-DA32-10105V
...
1-4
Assy Wire Harness-Led SAM-DA96-00424Q
...
1
Assy Cover Damper-Ref SAM-DA97-08064A
...
2
Cover-Outlet Ref Low SAM-DA63-05206A
...
3
Cover Lamp-Ref Up SAM-DA63-05280A
...
4-1
Case-Veg Upp SAM-DA61-05548D
...
4
Assy Case-Veg Upp SAM-DA97-08693B
...
5-1
Case-Veg Low SAM-DA61-05547C
...
5
Assy Case-Veg Low SAM-DA97-08692B
...
6-1
Rail-Veg R SAM-DA61-05556A
...
6-2
Grommet-Rail SAM-DA63-05237A
...
6
Assembly Rail-Veg R SAM-DA97-08116A
...
7-1
Rail-Veg L SAM-DA61-05555A
...
7-2
Grommet-Rail SAM-DA63-05237A
...
7
Tank SAM-DA97-08115A
...
8-1
Glass-Shelf Ref Up SAM-DA01-00546A
...
8
Shelf-Ref Up SAM-DA67-02417A
...
9-1
Shelf-Ref Low SAM-DA67-02602C
...
9-2
Glass-Shelf Ref Low SAM-DA01-00546E
...
9-3
Knob-Moisture Control SAM-DA64-03092A
...
9
Assy Shelf-Ref Low SAM-DA97-11150C
...
10
Assy Case Water Filter-Side SAM-DA97-08043G
...
11-1
Motor Dc-Damper SAM-DA31-00043E
...
11-2
Support-Ins Damper Ref SAM-DA61-05709B
...
11-3
Insulation-Damper Ref Low SAM-DA62-02319A
...
11-4
Insulation-Damper Ref Up SAM-DA62-02320A
...
11-5
Cap-Ins Damper Ref SAM-DA67-02458A
...
11
Assy Ins-Damper Ref SAM-DA97-08318B

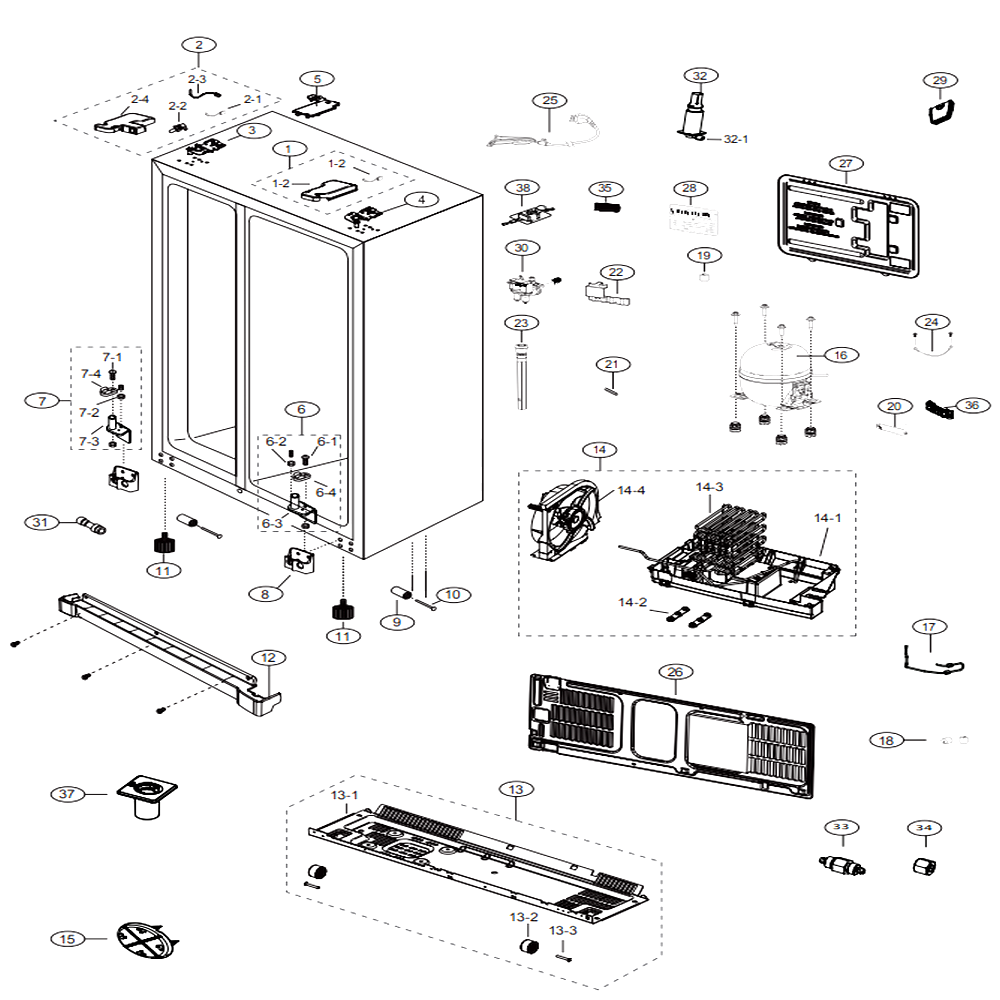

Cabinet

...
...
1-1
Switch Reed-Ass'y SAM-DA34-00043C
...
1-2
Cover Hinge-Up Right SAM-DA63-05560G
...
1
Assy Cover Hinge-Up Right SAM-DA97-08707G
...
2-1
Switch Reed-Ass'y SAM-DA34-00043B
...
2-2
Switch Door-Interlock SAM-DA34-00066C
...
2-3
Assy W/harness-Motor Switch SAM-DA96-00567B
...
2-4
Cover Hinge-Up Left SAM-DA63-05559K
...
2
Assy Cover Hinge-Up Left SAM-DA97-08706R
...
3
Hinge-Upp R SAM-DA61-05573A
...
4
Hinge-Upp L SAM-DA61-05572A
...
5
Assy Cover-Guide Pipe Water SAM-DA97-08244B
...
6-1
Screw-Taptype SAM-6003-001435
...
6-2
Nut-Hexagon SAM-6021-001125
...
6-3
Hinge-Low R SAM-DA61-05575A
...
6-4
Cam-Riser SAM-DA66-00401A
...
6
Assembly Hinge Low-R SAM-DA97-08163A
...
7-1
Screw-Taptype SAM-6003-001435
...
7-2
Nut-Hexagon SAM-6021-001125
...
7-3
Hinge-Low L SAM-DA61-05574A
...
7-4
Cam Hinge-Riser Low L SAM-DA66-00696A
...
7
Assembly Hinge Low-L SAM-DA97-08162A
...
8
Bracket-Hinge Low SAM-DA61-05546A
...
9
Caster-Front SAM-DA61-04702A
...
10
Caster-Rivet SAM-DA61-01920A
...
11
Foot-Front SAM-DA61-04721D
...
12
Cover Leg-Front SAM-DA63-05232D
...
13-1
Chassis Comp SAM-DA64-02735B
...
13-2
Caster-Rear SAM-DA61-04703A
...
13-3
Shaft-Caster SAM-DA66-00649B
...
13
Assy Chassis Comp SAM-DA97-06969B
...
14-1
Aw-Pjt,pp,black SAM-DA63-03450A
...
14-2
Grommet-Sub Cond SAM-DA63-40128A
...
14-3
Assembly Pipe Spiral Cond SAM-DA97-06988D
...
14-4
Assy Support-Circuit Motor; Rh9000k SAM-DA97-15765C
...
14
Assy Tray Drain Water SAM-DA97-05043K
...
15
Cover-Urethane SAM-DA63-04598B
...
16
Cmp,comp,refrigerator,r-134a SAM-MSV172AL2J/SM1
...
17
Pipe-Connect Suction SAM-DA62-03601B
...
18
Grommet-Suct Pipe B SAM-DA63-40171D
...
19
Grommet-Suct Pipe A SAM-DA63-40171B
...
20
Dryer SAM-DA62-04309B
...
21
Pipe-Connect SAM-DA62-00314C
...
22
Fixer-Hose SAM-DA61-04712C
...
23
Assy Cap-Drain SAM-DA97-06970B
...
24
Wire Harness-Earth SAM-DA39-20389E
...
25
At,u.s.a,canada,us3f-1,3c,125v,15a,blac K,1500,20/100/100/150,spt-3 Awg18 105c,ul/ Csa,y,n,n,n,y SAM-3903-000796
...
26
Assembly Cover Comp SAM-DA97-15162A
...
27
Assembly Cover-Pcb Panel SAM-DA97-07852A
...
28
Assy Pcb Main SAM-DA92-00625H
...
29
Assembly Cover-Tube Filter SAM-DA97-08131B
...
30
Valve Water-2way SAM-DA62-02360B
...
31
Fitting-Tube SAM-DA60-00258B
...
32-1
Assy Pipe Water-Ice SAM-DA97-13055A
...
32
Assy Pipe-Water SAM-DA97-08573A
...
33
Valve-Fitting Pu SAM-DA62-00305A
...
34
Valve-Fitting Nut SAM-DA74-00070B
...
35
Inverter,rs5000ha,197* SAM-DA92-00215R
...
36
Fixer Hose SAM-DA61-05346C
...
37-1
Cover-Fixer Water Line SAM-DA63-05305B
...
37
Assy Cover-Fixer Water Line SAM-DA97-08636A
...
38
Coil Filter-Emi SAM-DA27-00019L

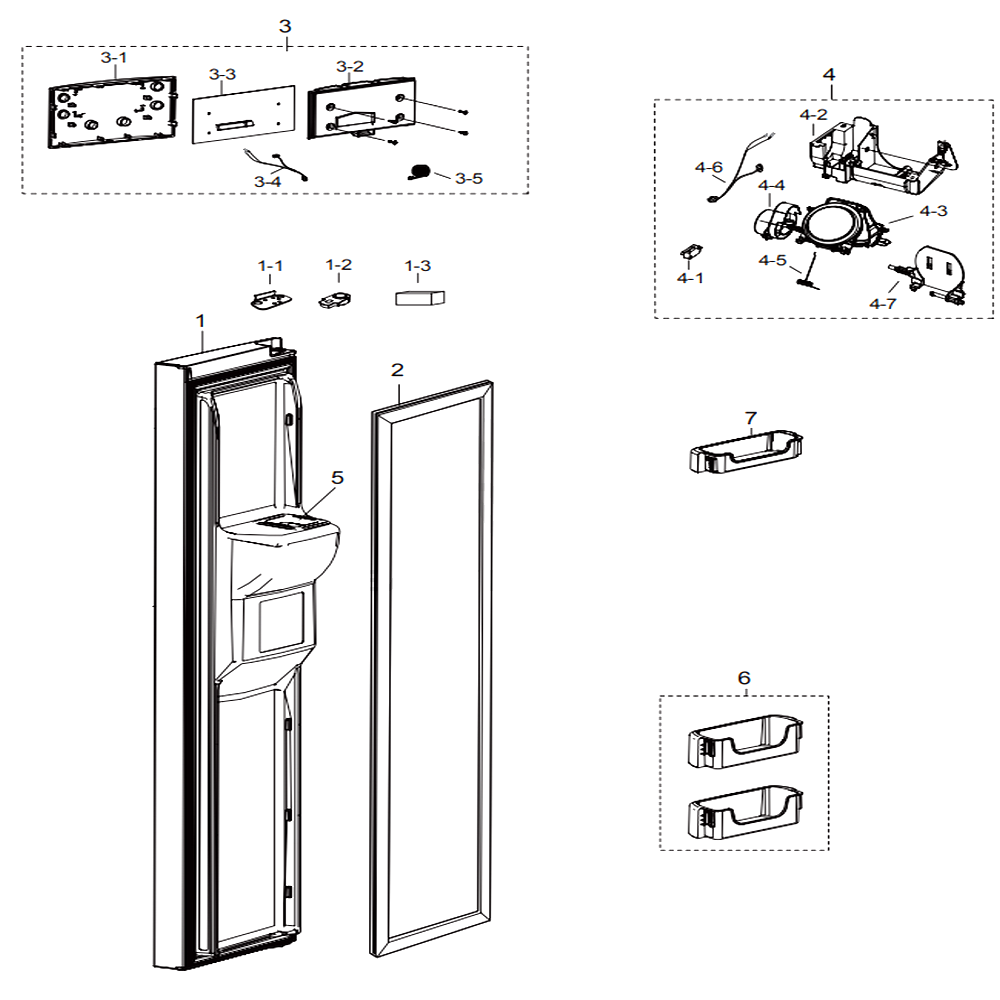

Door Fre

...
...
1-1
Stopper-Door L SAM-DA61-05576A
...
1-2
Cam Hinge-Riser Upp L SAM-DA66-00695A
...
1-3
Magnet-A SAM-DA61-03769A
...
1
Assy Door Foam-Fre SAM-DA91-02964P
...
2
Gasket-Door Fre SAM-DA63-06538B
...
3-1
Cover Dispenser SAM-DA63-07836A
...
3-2
Aw1-12,hips,ntr SAM-DA63-06949A
...
3-3
Assy Module SAM-DA92-00627B
...
3-4
Assy-W/harness Disp SAM-DA96-00106G
...
3-5
Spring Etc-Lever Disp Ice SAM-DA61-06033B
...
3
Assy Cover Dispenser SAM-DA97-14703E
...
4-1
Switch-Micro SAM-3405-001117
...
4-2
Aw-Pjt,abs,i Black,hg-076 SAM-DA61-03526A
...
4-3
Assembly Cover-Ice Route SAM-DA97-08117B
...
4-4
Motor Geared-Disp SAM-DA31-00079D
...
4-5
Spring Etc-Cover Ice Route SAM-DA61-01914A
...
4-6
Assy Wire Harness-Dispenser SAM-DA96-00106E
...
4-7
Cover-Ice Route A SAM-DA63-04647A
...
4
Aw1-12,120v/100w SAM-DA97-08680G
...
5
Cap-Chute Ice SAM-DA67-02425A
...
6
Assy Guard Fre-Low SAM-DA97-12940A
...
7
Assy Guard Fre-Up SAM-DA97-12952A

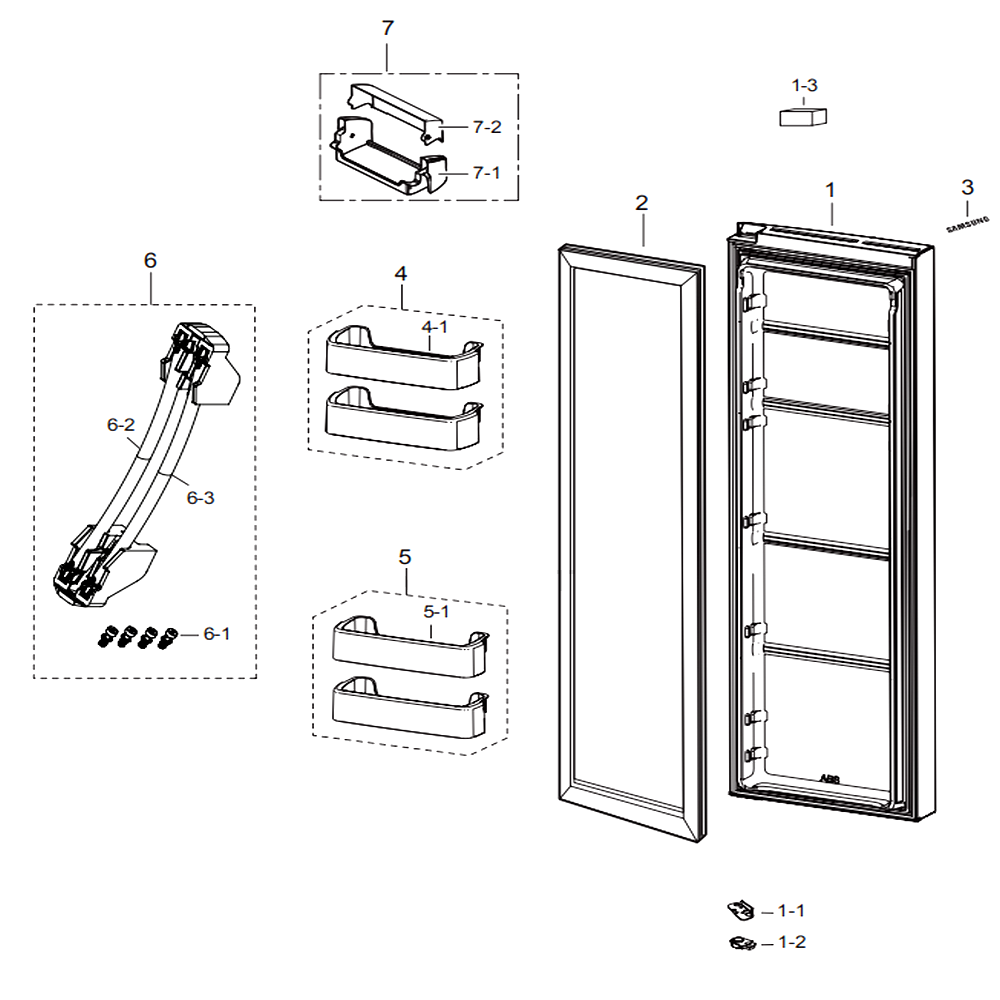

Door Ref

...
...
1-1
Stopper-Door R SAM-DA61-05577A
...
1-2
Cam-Hinge Riser Low SAM-DA66-00344A
...
1-3
Magnet-A SAM-DA61-03769A
...
1
Assy Door Foam-Ref SAM-DA91-02963V
...
2
Gasket-Door Ref SAM-DA63-06537B
...
3
Mascot SAM-DA64-04021A
...
4-1
Guard Ref-Up SAM-DA63-05210A
...
4
Assy Guard Ref-Up SAM-DA97-12924A
...
5-1
Guard Ref-Low SAM-DA63-05211A
...
5
Assy Guard Ref-Low SAM-DA97-12939A
...
6-1
Fixer Handle; Aw3-14,swrch10a,m8 SAM-DA61-11161A
...
6-2
Assy Handle-Ref SAM-DA97-12714D
...
6-3
Assy Handle-Fre SAM-DA97-12715D
...
6
Assy Handle-Kit SAM-DA99-03738J
...
7-1
Guard-Dairy SAM-DA63-05214A
...
7-2
Cover-Guard Dairy SAM-DA63-05225A
...
7
Assembly Guard-Dairy SAM-DA97-08060B
