Samsung RS25H5111SR/AA_0002

Model: RS25H5111SR/AA_0002

Save Part Not Listed?
product name

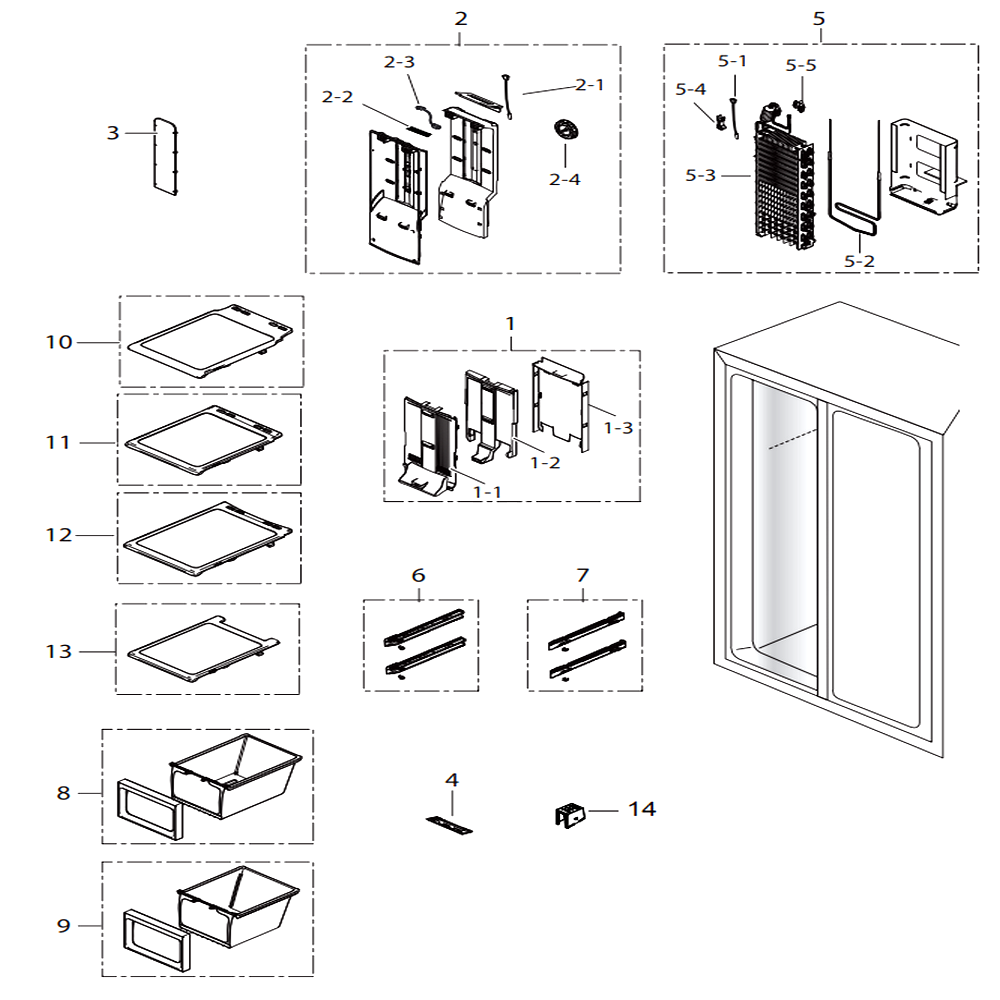

Freezer

...
...
1-1
Cover Evap-Fre SAM-DA63-05333A
...
1-2
Insulation-Evap Fre SAM-DA62-02422A
...
1-3
Plate-Evap Heater Fre SAM-DA61-05768A
...
1
Assembly Cover Evap-Fre SAM-DA97-08689A
...
2-1
Sensor Temp SAM-DA32-10109W
...
2-2
Assylamp Led SAM-DA41-00749C
...
2-3
Assembly W/harness-Led Lamp SAM-DA96-00424S
...
2-4
Motor Bldc Fan SAM-DA31-00287D
...
2
Assy Cover Multi-Fre SAM-DA97-16667A
...
3
Cover-Lamp Fre SAM-DA63-05335A
...
4
Cap-Ice Duct Fre SAM-DA67-02480B
...
5-1
Sensor Temp SAM-DA32-00029Q
...
5-2
Heater-Sheath-Metal Fre SAM-DA47-00324C
...
5-3
Evaporator-Fre SAM-DA59-00402C
...
5-4
Fixer-Evap Fre SAM-DA61-05475A
...
5-5
Fixer-Sensor SAM-DA61-05587A
...
5
Assy Evap Fre SAM-DA96-00679M
...
6
Assembly Rail-Basket L SAM-DA97-08121A
...
7
Assembly Rail-Basket R SAM-DA97-08122A
...
8
Assembly Case-Basket Fre Upp SAM-DA97-08372B
...
9
Assembly Case-Basket Fre Low SAM-DA97-08373B
...
10
Assembly Shelf Fre-Top SAM-DA97-08368A
...
11
Assembly Shelf Fre-Up SAM-DA97-08369A
...
12
Assembly Shelf Fre-Mid SAM-DA97-08370A
...
13
Assembly Shelf Fre-Low SAM-DA97-08371A
...
14
Cover-Fixer Housing SAM-DA63-04108A

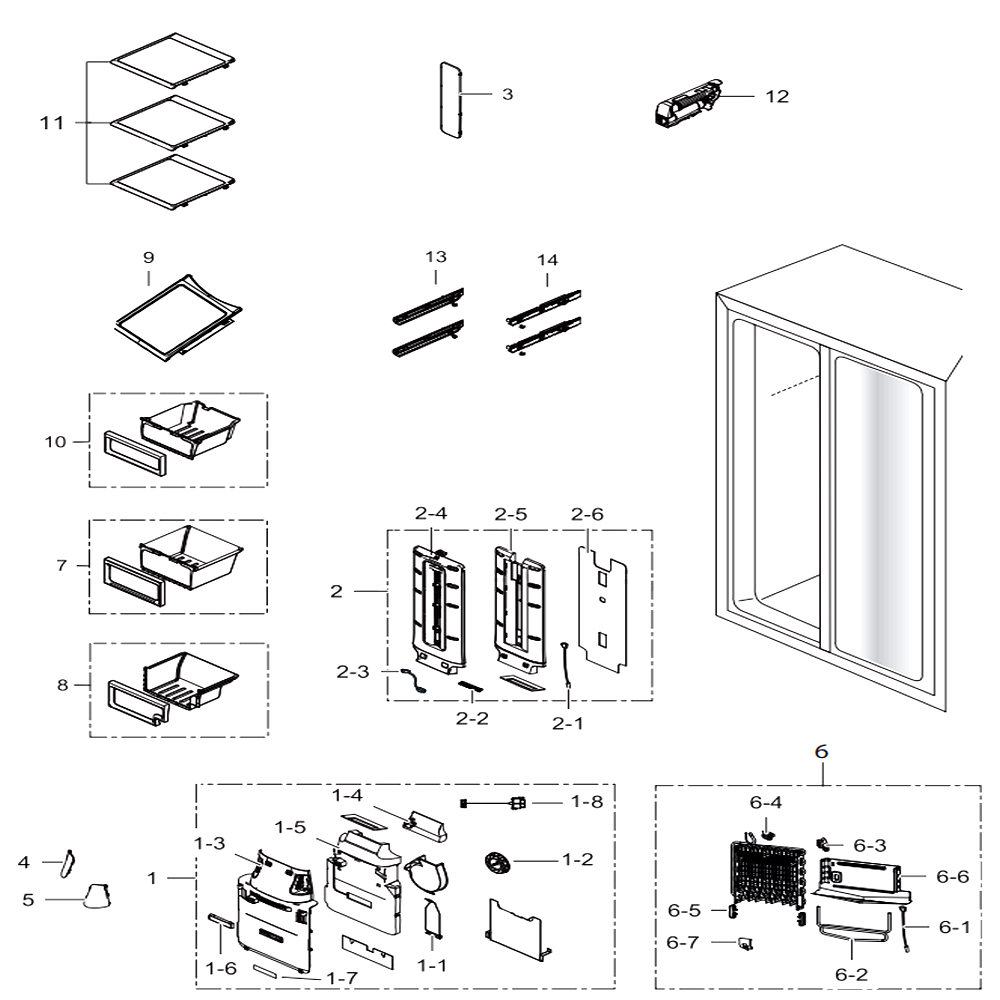

Fridge

...
...
1-1
Plate-Drain Ins Evap Ref SAM-DA61-06185A
...
1-2
Motor Bldc-Fan SAM-DA31-00287B
...
1-3
Cover Evap-Ref SAM-DA63-08486A
...
1-4
Insulation Cover Evap-Ref B SAM-DA62-04735A
...
1-5
Insulation Cover Evap-Ref A SAM-DA62-04736A
...
1-6
Cover-Led Ref Low SAM-DA63-05341A
...
1-7
Pba-Led Lamp SAM-DA41-00519R
...
1-8
Assembly Wire Harness-Led Lampall, SAM-DA96-00424X
...
1
Assy Cover Evap-Ref SAM-DA97-16666A
...
2-1
Sensor Temp SAM-DA32-10105U
...
2-2
Pba-Led Lamp SAM-DA41-00676B
...
2-3
Assembly W/harness-Led Lamp SAM-DA96-00768B
...
2-4
Cover-Multi Ref SAM-DA63-05532A
...
2-5
Insulation-Multi Ref SAM-DA62-02580A
...
2-6
Plate-Multi Ref Rear SAM-DA61-06900B
...
2
Assembly Cover-Multi Ref SAM-DA97-08725F
...
3
Cover-Lamp Ref SAM-DA63-05342A
...
4
Cover-Lamp Ref Mid L SAM-DA63-05343A
...
5
Cover-Lamp Ref Mid R SAM-DA63-05344A
...
6-1
Sensor Temp SAM-DA32-00029R
...
6-2
Heater-Sheath Metal Ref SAM-DA47-00322J
...
6-3
Fixer-Sensor SAM-DA61-00603A
...
6-4
Fixer-Wire SAM-DA61-05925A
...
6-5
Fixer-Heater Sub SAM-DA61-06031A
...
6-6
Plate-Drain Evap Ref SAM-DA61-06071A
...
6-7
Plate-Evap Ref Sub SAM-DA61-06147A
...
6
Assembly Evap Ref SAM-DA96-00681J
...
7
Assembly Case Veg-Upp SAM-DA97-08067B
...
8
Assembly Case Veg-Low SAM-DA97-08069B
...
9
Assembly Shelf-Chilled Room SAM-DA97-10592A
...
10
Assembly Tray-Chilled Room SAM-DA97-08383B
...
11
Shelf-Ref Up SAM-DA67-02417A
...
12
Assembly Case-Water Filter Tank SAM-DA97-08043H
...
13
Tank SAM-DA97-08115A
...
14
Assembly Rail-Veg R SAM-DA97-08116A

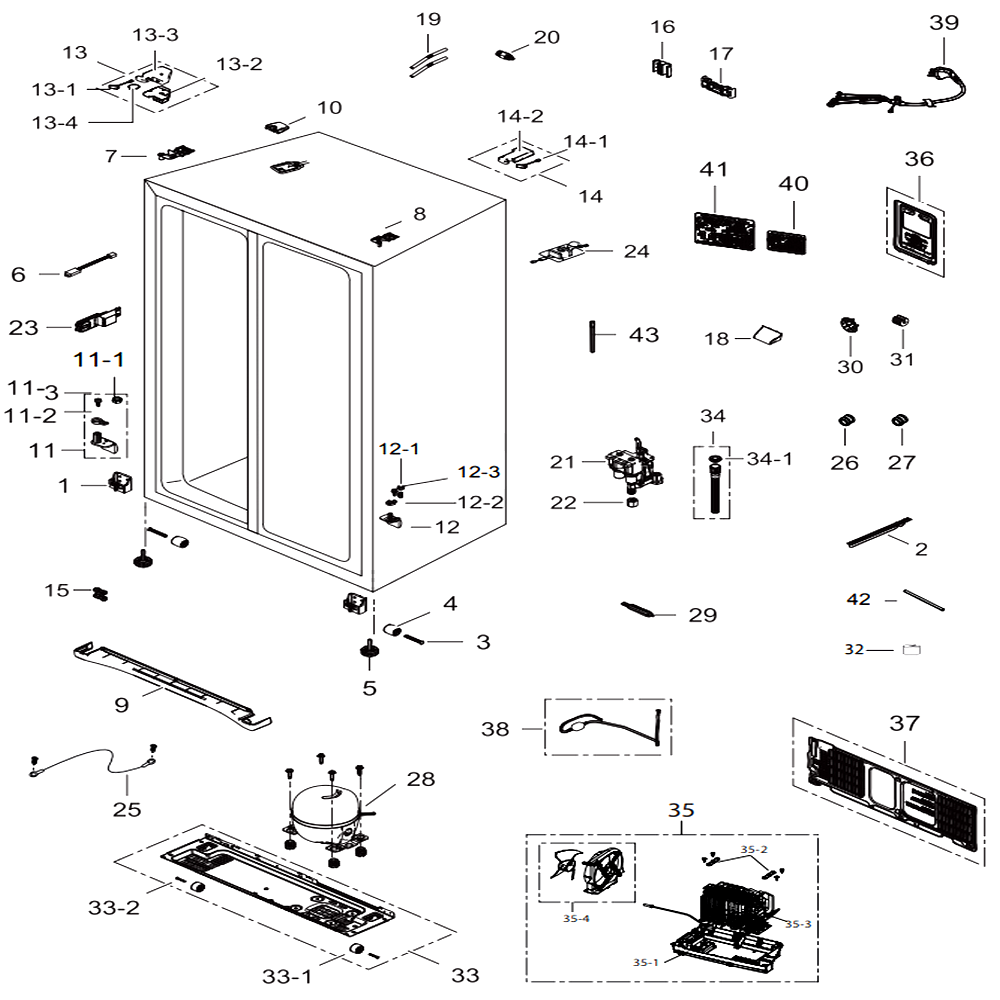

Cabinet

...
...
1
Bracket-Hinge Low SAM-DA61-05546A
...
2
Trim-Blade SAM-DA64-02631A
...
3
Caster-Rivet SAM-DA61-01920A
...
4
Caster-Front SAM-DA61-04702A
...
5
Foot-Front SAM-DA61-04721D
...
6
Sensor Humidity SAM-DA32-00034B
...
7
Hinge-Upp L SAM-DA61-05572A
...
8
Hinge-Upp R SAM-DA61-05573A
...
9
Cover Leg-Front SAM-DA63-05232D
...
10
Assembly Cover-Tube Filter SAM-DA97-08131B
...
11-1
Nut-Hexagon SAM-6021-001125
...
11-2
Cam Hinge-Riser Low L SAM-DA66-00696A
...
11-3
Screw-Taptype SAM-6003-001435
...
11
Assembly Hinge Low-L SAM-DA97-08162A
...
12-1
Nut-Hexagon SAM-6021-001125
...
12-2
Cam-Riser SAM-DA66-00401A
...
12-3
Screw-Taptype SAM-6003-001435
...
12
Assembly Hinge Low-R SAM-DA97-08163A
...
13-1
Switch Reed-Ass'y SAM-DA34-00043B
...
13-2
Plate-Cover Hinge SAM-DA61-06092A
...
13-3
Cover Hinge-Up Left SAM-DA63-05559K
...
13-4
Cap-Interlock Switch Hole SAM-DA67-03218D
...
13
Assy Cover Hinge-Up Left SAM-DA97-08706S
...
14-1
Switch Reed-Ass'y SAM-DA34-00043C
...
14-2
Cover Hinge-Up Right SAM-DA63-05560G
...
14
Assy Cover Hinge-Up Right SAM-DA97-08707G
...
15
Fitting-Tube SAM-DA60-00258B
...
16
Fixer-Hose SAM-DA61-04712C
...
17
Fixer Hose SAM-DA61-05346C
...
18
Support Case Auger SAM-DA61-09831A
...
19
Pipe-Water Line SAM-DA62-02429Q
...
20
Valve-Fitting Pu SAM-DA62-00305A
...
21
Valve Water-2way SAM-DA62-02360B
...
22
Valve-Fitting Nut SAM-DA74-00070B
...
23
Assy Case Auger Motor SAM-DA97-14619A
...
24
Coil Filter-Emi SAM-DA27-00019L
...
25
Wire Harness-Earth SAM-DA39-20389E
...
26
Fitting-Lokring 33 SAM-DA60-00280A
...
27
Fitting-Lokring 43 SAM-DA60-00281A
...
28
Compressor SAM-NC1MV90ALP/SM1
...
29
Dryer SAM-DA62-04309B
...
30
Cover-Urethane SAM-DA63-04598B
...
31
Grommet-Suct Pipe B SAM-DA63-40171D
...
32
Grommet-Suct Pipe A SAM-DA63-40171B
...
33-1
Caster-Rear SAM-DA61-04703A
...
33-2
Shaft-Caster SAM-DA66-00649B
...
33
Assy Chassis Comp SAM-DA97-06969B
...
34-1
Grommet-Drain SAM-DA63-02761A
...
34
Assembly Cap-Drain SAM-DA97-06970A
...
35-1
Aw-Pjt,pp,black SAM-DA63-03450A
...
35-2
Grommet-Sub Cond SAM-DA63-40128A
...
35-3
Assembly Pipe Spiral Cond SAM-DA97-06988D
...
35-4
Assy Support-Circuit Motor; Rh9000k SAM-DA97-15765C
...
35
Aw1-12,seeda,ibaci SAM-DA97-05043L
...
36
Assembly Cover-Pcb Panel SAM-DA97-07852A
...
37
Assembly Cover Comp SAM-DA97-15162A
...
38
Assembly Pipe Connect SAM-DA97-08458G
...
39
At,u.s.a,canada,us3f-1,3c,125v,15a,blac K,1500,20/100/100/150,spt-3 Awg18 105c,ul/ Csa,y,n,n,n,y SAM-3903-000796
...
40
Assy Pcb Inverter; Inverter,sseda,197*98. SAM-DA92-00215X
...
41
Assy Pcb Main SAM-DA92-00624H
...
42
Pipe-Connect SAM-DA62-00314C

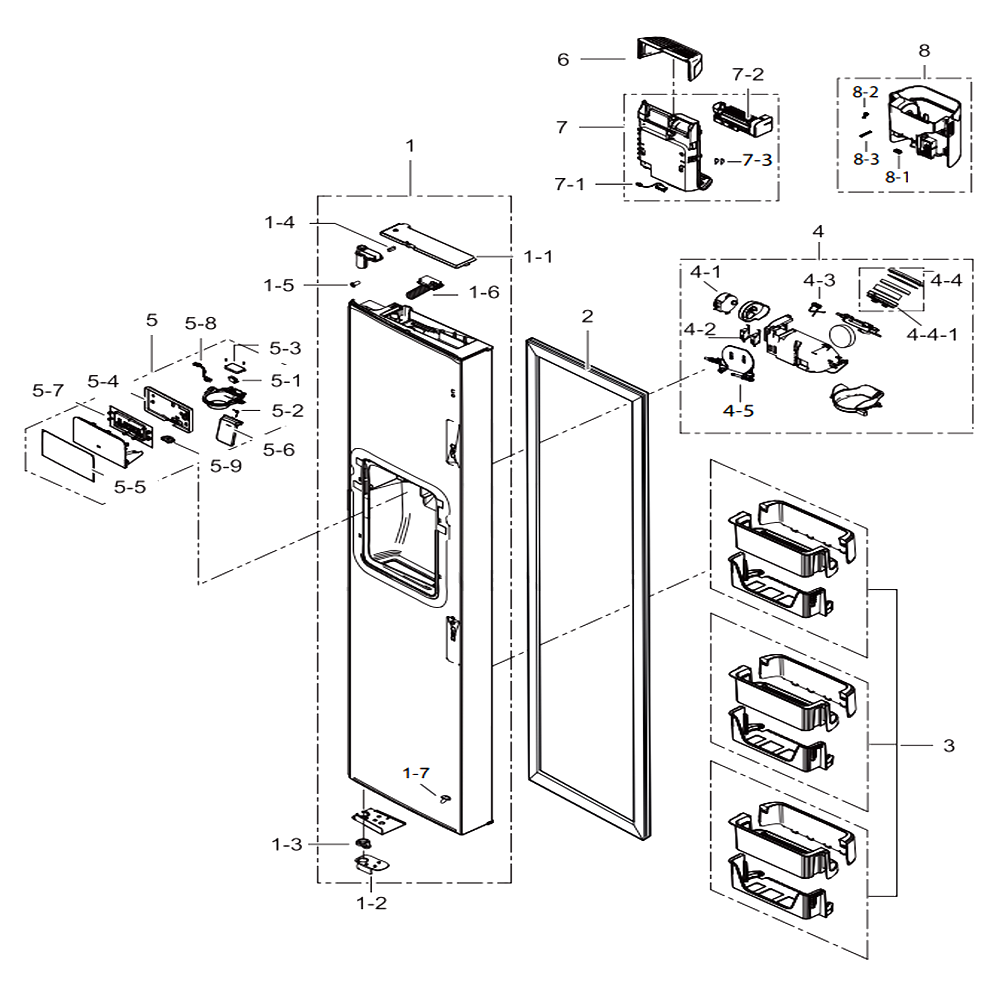

Door Fre

...
...
1-1
Cover-Cap Door Fre SAM-DA63-05327D
...
1-2
Stopper-Door L SAM-DA61-05576A
...
1-3
Cam Hinge-Riser Upp L SAM-DA66-00695A
...
1-4
Magnet-A SAM-DA61-03769A
...
1-5
Fixer-Valve Water B SAM-DA71-20208A
...
1-6
Assembly Pipe-Water Ice SAM-DA97-06542C
...
1-7
Screw-Tapping SAM-6006-001170
...
1
Assy Door Foam-Fre SAM-DA91-03031U
...
2
Gasket-Door Fre SAM-DA63-06538B
...
3
Assembly Guard Tilt-Fre SAM-DA97-08349A
...
4-1
Motor Geared-Disp SAM-DA31-00079D
...
4-2
Switch-Micro SAM-3405-001117
...
4-3
Spring Etc-Cover Ice Route SAM-DA61-01914A
...
4-4-1
Cover Ice-B SAM-DA63-04648B
...
4-4
Assembly Cover-Ice Route SAM-DA97-08117B
...
4-5
Cover-Ice Route A SAM-DA63-04647A
...
4
Aw1-12,120v/100w SAM-DA97-08680G
...
5-1
Switch-Micro; 250vac,1a,80,spst-No,t105 SAM-3405-001119
...
5-2
Spring Etc-Lever Disp Ice SAM-DA61-06033B
...
5-3
Cover-Switch SAM-DA63-05449A
...
5-4
Aw1-12,hips,ntr SAM-DA63-06949A
...
5-5
Inlay-Control SAM-DA64-04716A
...
5-6
Rs-H260a,pc,3022ir, SAM-DA66-00866L
...
5-7
Assy Module SAM-DA92-00626A
...
5-8
Assy-W/harness Disp SAM-DA96-00106G
...
5-9
Assy-Lamp Door SAM-DA97-02847F
...
5
Assy Cover Dispenser SAM-DA97-14703A
...
6
Assembly Cover-Ice Maker SAM-DA97-11888A
...
7-1
Switch Reed-Ass'y SAM-DA34-00043C
...
7-2
Assy Ice Maker SAM-DA97-13415B
...
7-3
Screw-Tapping SAM-6002-000217
...
7
Assy Ice Maker-Indoor SAM-DA97-14253A
...
8-1
Magnet-Ass'y SAM-DA61-02738A
...
8-2
Screw-Earth SAM-DA60-10107A
...
8-3
Pin-Spiral SAM-DA60-90136A
...
8
Assy Case Ice SAM-DA97-14263B

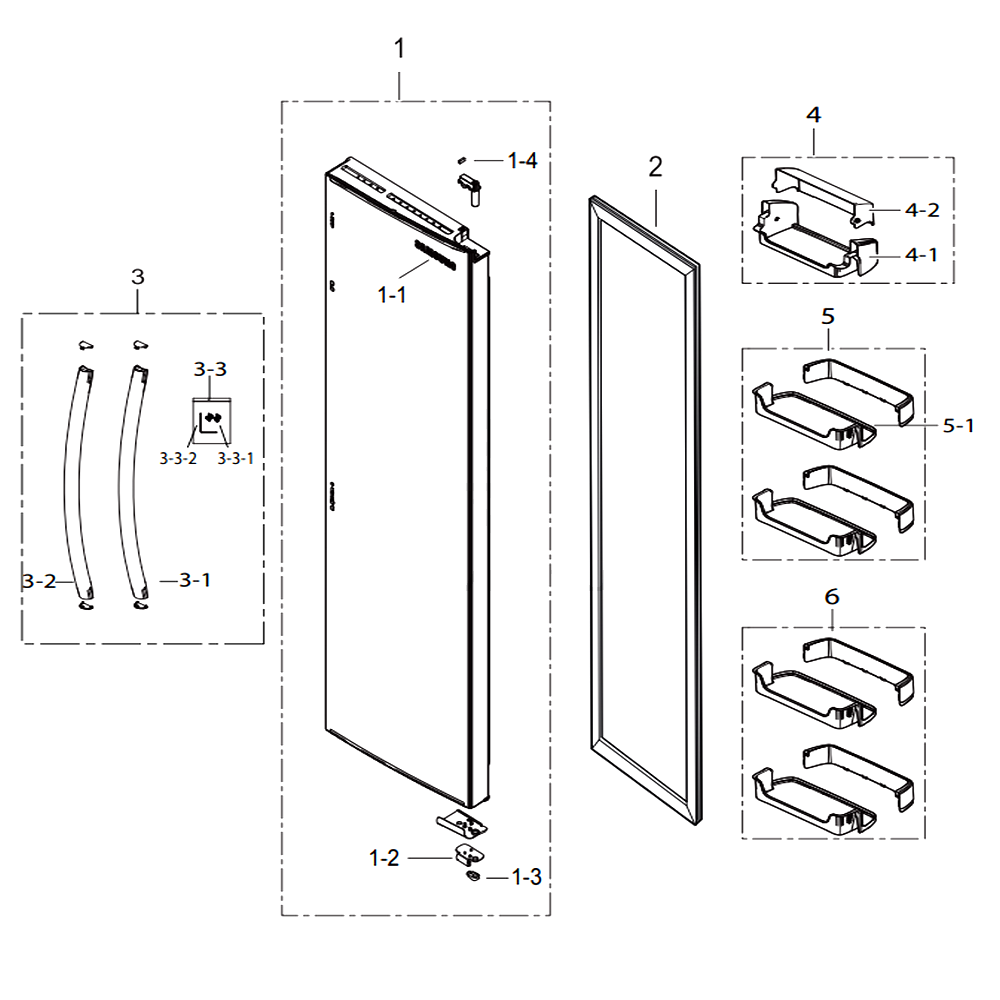

Door Ref

...
...
1-1
Mascot SAM-DA64-04021A
...
1-2
Stopper-Door R SAM-DA61-05577A
...
1-3
Cam-Hinge Riser Low SAM-DA66-00344A
...
1-4
Magnet-A SAM-DA61-03769A
...
1
Assy Door Foam-Ref SAM-DA91-02963V
...
2
Gasket-Door Ref SAM-DA63-06537B
...
3-1
Assy Handle Bar-Ref R; Aw4,al(a6063),vers SAM-DA97-12714C
...
3-2
Assy Handle Bar-Ref L; Aw4,al(a6063),vers SAM-DA97-12715C
...
3-3-1
Fixer Handle; Aw3-14,swrch10a,m8 SAM-DA61-11161A
...
3-3-2
Wrench-Spanner SAM-DA80-00026B
...
3-3
Assy Packing-Install SAM-DA99-03680B
...
3
Assy Cushion Handle SAM-DA99-03738D
...
4-1
Guard-Dairy SAM-DA63-05214A
...
4-2
Cover-Guard Dairy SAM-DA63-05225A
...
4
Assembly Guard-Dairy SAM-DA97-08060B
...
5-1
Guard Ref-Up SAM-DA63-05215A
...
5
Assembly Guard Ref-Up SAM-DA97-08348A
...
6
Assembly Guard Ref-Low SAM-DA97-08347A
